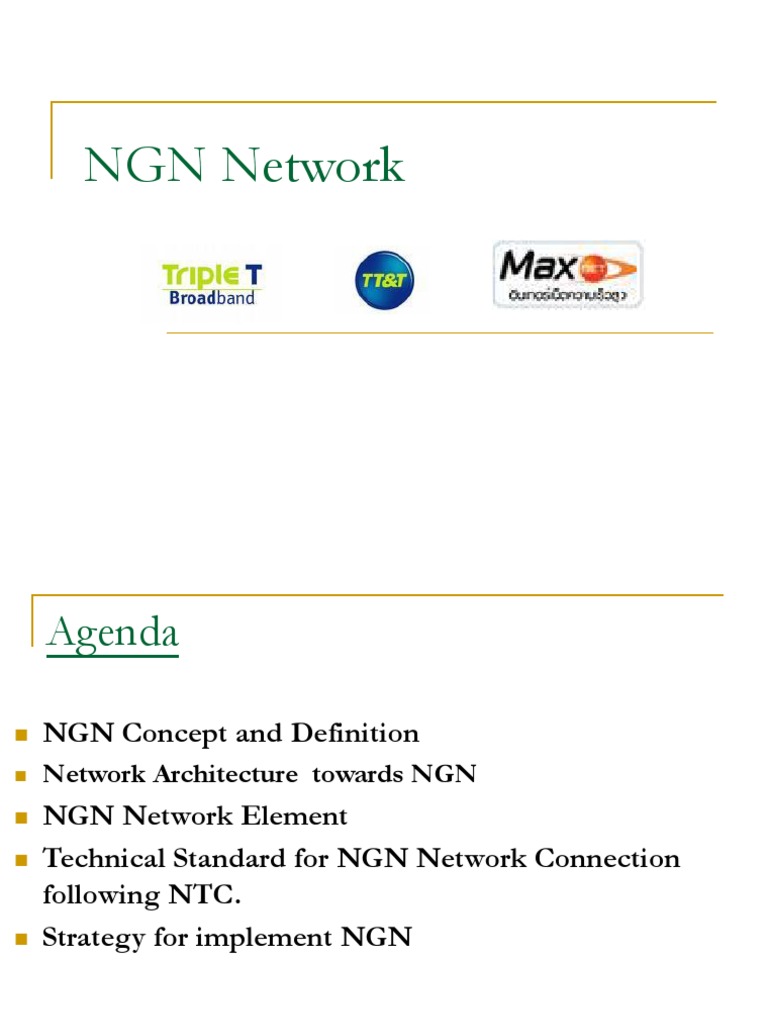

NGN Network

Agenda

 NGN Concept and Definition

 Network Architecture towards NGN
 NGN Network Element
 Technical Standard for NGN Network Connection
following NTC.
 Strategy for implement NGN
NGN Concept and
Definition
NGN Concept and Definition
 Multi-service network
 Voice,data,video
 Hierachy topology
 Network service layer,control layer,media layer,transport & access layer
 Open interface
 H.248, SIP, MGCP
 Packet mode technology
 IP/MPLS support
 QOS
 A network with guaranteed QoS for different traffic types and SLAs

 NTC definition
 For interconnection between all operator in national (continue)
Network Architecture towards
NGN
NGN Network Architecture

Source: ITU/BDT NGN Network Architecture

NGN Network Architecture (Cont.)

Source: ITU/BDT NGN Network Architecture

Network Architecture towards NGN
Architecture Consolidation: Combined Segments

Source: ITU/BDT NGN Network Architecture

NGN Network Element
NGN Network Element

Source: ITU/BDT NGN Network Architecture

NGN Network Element (Cont.)

 Access Gateway
 - Allows the
connection of
subscriber to the
packet network.
 - Converts the
traffic flows of
analogue signal to
packet network..
NGN Network Element (Cont.)

 Trunking Gateway
- Allows interworking between
TDM telephony network to
packet-based network.
NGN Network Element (Cont.)

 Softswitch
- Referred to as Call Agent or
Media Gateway Controller (MGC)
provides the service delivery
control within the network via
H.248 protocol,sip protocol
- Performs signalling gateway
functionality for interworking with
PSTN N7 signalling network.
- Provides connection to Intelligent
Network or Applications
Server (AS) to offer another services
NGN Network Element (Cont.)

 Applications Server
(AS)
- Support service execution,
e.g. to control call server and
NGN special resources (e.g.
media server, message server)
via these protocol: H.248,
SIP, SS7, ENUM, MPLS,
BGP etc.
Strategy for implement of NGN

 NGN Total Solution

 NGN Strategy for fixed Network
 NGN application for Triple Play Solution
 Pre-IMS: Smart Network Solution
 NGN Total Solution

Service & Management NMS 3rd party AS IN meeting Media resource SHLR Conference service
service

Network Control Softswitch Softswitch

Bearer control
layer Policy
Control System

Core Switching Packet Core

Packet Core
IP bearer core network

SBC

Broadband Signalling PSTN Media Gateway

WLL PLMN/3G
Edge Access gateway

Access gateway
IAD Access gateway Media gateway Media gateway
access gateway Video Gateway

Home Gateway
Soft phone POTS/ISDN
Terminals SIP/MGCP/H.323 2G/WLL 3G
WiFi Phone Terminal Terminal
Phone
 NGN Strategy for fixed Network
Replace out-dated Bring voice Bring broadband additional
equipments additional value value
SoftSwitch Centralized Database

AG
TG TG DSLAM

IP
SDH / MSTP

RTU
AG AG
IAD

Aged subscriber lines Remaining PSTN Broadband is not pipeline

any more !
acquire new technology.
 NGN application for Triple Play Solution
Trend to Commercial deployment
VoD Server
BB service platform
Home Network TL1/CORBA Middle
/API Notification ware
NMS
Carrier’s OSS
Internet
PC
CPE/HG
Ethernet IP Core

MSE
IPTV
DSLAM/ Softswitch
MSAN
IAD

Phone AAA Server

CPE NSP ASP/ISP

-Advantage : for customer for single contact & payment

-Broadband : Service provider utilize resource &facility.
-Content :service provider concentrate on Applications.
Conclusion

 NGN has implemented and put into service for TRIPLE T

Broadband.
 Service Offerings: Maxnet (high speed internet) VoIP
services and future multimedia convergent services.
 The PSTN network replacement Plan by NGN are settled
for T&T in future plan.
 The international gateway for TTT Global net also
implemented by NGN.
