Design of FIR Filter for ECG Denoising

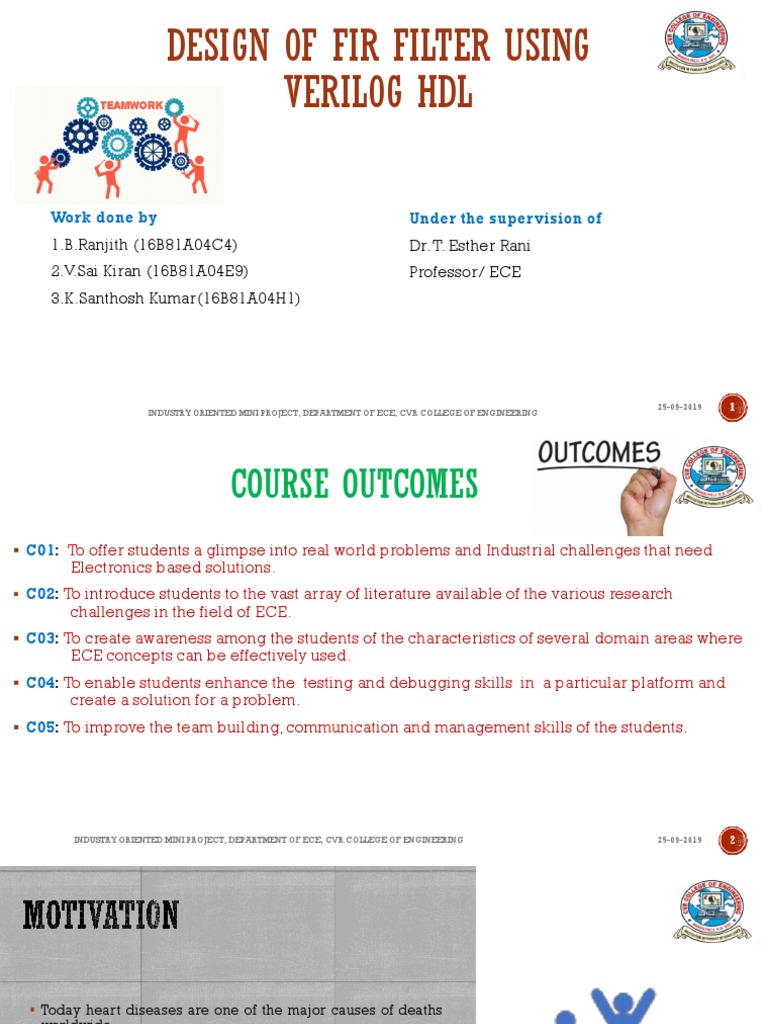

DESIGN OF FIR FILTER USING
VERILOG HDL
Work done by Under the supervision of

1.B.Ranjith (16B81A04C4) Dr. T. Esther Rani
2.V.Sai Kiran (16B81A04E9) Professor/ ECE
3.K.Santhosh Kumar(16B81A04H1)
INDUSTRY ORIENTED MINI PROJECT, DEPARTMENT OF ECE, CVR COLLEGE OF ENGINEERING

25-09-2019 1
COURSE OUTCOMES
 C01: To offer students a glimpse into real world problems and Industrial challenges that need
Electronics based solutions.
 C02: To introduce students to the vast array of literature available of the various research
challenges in the field of ECE.
 C03: To create awareness among the students of the characteristics of several domain areas where
ECE concepts can be effectively used.
 C04: To enable students enhance the testing and debugging skills in a particular platform and
create a solution for a problem.
 C05: To improve the team building, communication and management skills of the students.
INDUSTRY ORIENTED MINI PROJECT, DEPARTMENT OF ECE, CVR COLLEGE OF ENGINEERING 25-09-2019 2
 Today heart diseases are one of the major causes of deaths
worldwide.
 To investigate the underlying chest pain sources.
 To increase the quality of the ECG signal.
 To design a simple low pass FIR filter in
Verilog HDL for ECG Denoising.
 Baseline Wander, EMG interference, and
power line noise.
 Reduction of high-frequency noise and
power-line interference.
 Normally, the frequency range of an ECG
signal is of 0.05–100 Hz and its dynamic
range of 1–10 mV.
 The ECG signal is characterized by five
peaks and valleys labelled by the letters P, Q,
R, S, T.
 There is a U wave in ECG signal which is
having a very low amplitude or even more
often is absent.
DIFFERENT ECG SIGNAL DENOISING TECHNIQUES:
 IIR Notch Filter
 Adaptive filter
 FIR FILTERING
 Noises are the unwanted signals that are merged with ECG signal and sometimes
create obstacles for the physicians from making a true diagnosis.
 Noises with high frequency include Electromyogram noise, Additive white
Gaussian noise, and power line interference.
 Noises with low frequency include baseline wandering.
 The noises contaminated in the ECG signal may lead wrong interpretation.
 FIR Filter:
 A Finite Impulse Response (FIR) filter is a type of a digital filter.
 The impulse response, the filter's response to input, is finite

because it settles to zero in a finite number of sample intervals.
 This is in contrast to Infinite Impulse Response (IIR) filters, which
have internal feedback and may continue to respond indefinitely.
 The impulse response of an Nth-order FIR filter lasts for N+ 1
sample, and then dies to zero.
 The difference equation that defines the output of an FIR filter in
terms of its input is:
Y[n] = b0x[n] +b1x [n-1] +b2x [n-2]………………..+ bn x [n-N]
 First of all , the filter coefficients are generated from Matlab.
 The ECG signal is declared in the same Matlab program and it is plotted.
 Then the file which has the sample ECG signal is fetched into the Test bench of the FIR
filter designed in XILINX ISE tool.
 After every clock cycle the output value at each instance is written into another file and
this output file is opened in Matlab program.
 FFT is applied for both input ECG signal and for that of output file generated in ISE tool.
FIR FILTER:
Where
x[n] is input ECG signal
y[n] is Filtered output
b0,b1,b2, ….. are the filter coefficients
 Finite Impulse Response(FIR) filters are one of the two main type of filters available
for signal processing. As the name suggests the output of a FIR filter is finite and it
settles down to zero after some time.
 A FIR filter output, 'y' can be defined by the following equation
 The block diagram consists of three units;
I. Delay unit or D- flip flop unit
II. Adder and
III. Multiplier
 Since the filter coefficients are symmetric , Linear-Phase FIR filter structure is
chosen for the design of FIR filter.
 The Linear-Phase Structure has less multipliers compared to other realization
structures.
 Algorithm (or) Flow chart
 After running simulations in Modelsim, the filtered output is written into output.txt
for verification.
 The verification is done by comparing the output file with the correct result
generated from Matlab.
 The presentation introduces the types of common
noise sources in ECG signals and simple signal
processing techniques for removing them, and also
presents a section of Matlab code for the technique
described.
 The electrocardiogram (ECG) signals contain many

types of noises- baseline wander, powerline
interference, electromyographic (EMG) noise,
electrode motion artifact noise.
 Baseline wander is a low-frequency noise of around 0.5
CONCLUSION
to 0.6 Hz. To remove it, a high-pass filter of cut-off
frequency 0.5 to 0.6 Hz can be used.
 Powerline interference (50 or 60 Hz noise from mains
supply) can be removed by using a FIR filter of 50 or
60 Hz cut-off frequency.
 EMG noise is a high frequency noise of above 100 Hz
and hence may be removed by a low-pass filter of an
appropriate cut-off frequency.
 Electrode motion artifacts can be suppressed by
minimizing the movements made by the subject.
 This designed FIR filter can be implemented
on FPGA or CPLD .
 FPGA is small enough to be implemented in
currently available parts.
 This is an important aspect which makes the
system feasible to be ultimately fabricated as FUTURE SCOPE
a complete hardware system or embedded
within a handy small electronic device such as
a smart-phone where patient can observe
their pure ECG signal.
 Advanced Digital Design with the Verilog HDL by Michael D.Ciletti
 Design through Verilog HDL by T.R. Padmanabhan
 Digital signal processing by Ramesh Babu.
 Design-of-FIR-Filter-Using-Verilog-HDL from www.scribd.com
 Iosrjournals.org
 https://www.allaboutcircuits.com/technical-articles/design-of-fir-filters-design-
octave-matlab/
 https://en.wikipedia.org/wiki/Electrocardiography
 https://www.fpga4student.com/2017/01/a-low-pass-fir-filter-in-vhdl.html
S.NO COMPONENT/MODULE QUANTITY COST PER TOTAL COST
MODULE/COMPONENT (in rupees)
TOTAL EXPENDITURE (in rupees)
INDUSTRY ORIENTED MINI PROJECT, DEPARTMENT OF ECE, CVR COLLEGE OF ENGINEERING

25-09-2019 18
PE01 PEO2 PEO3 PO1 PO2 PO3 PO4 PO5 PO6 PO7 PO8 PO9 PO10 PO11 PO12 PSO1 PSO2 PSO3
CO1
CO2
CO3
CO4
CO5
