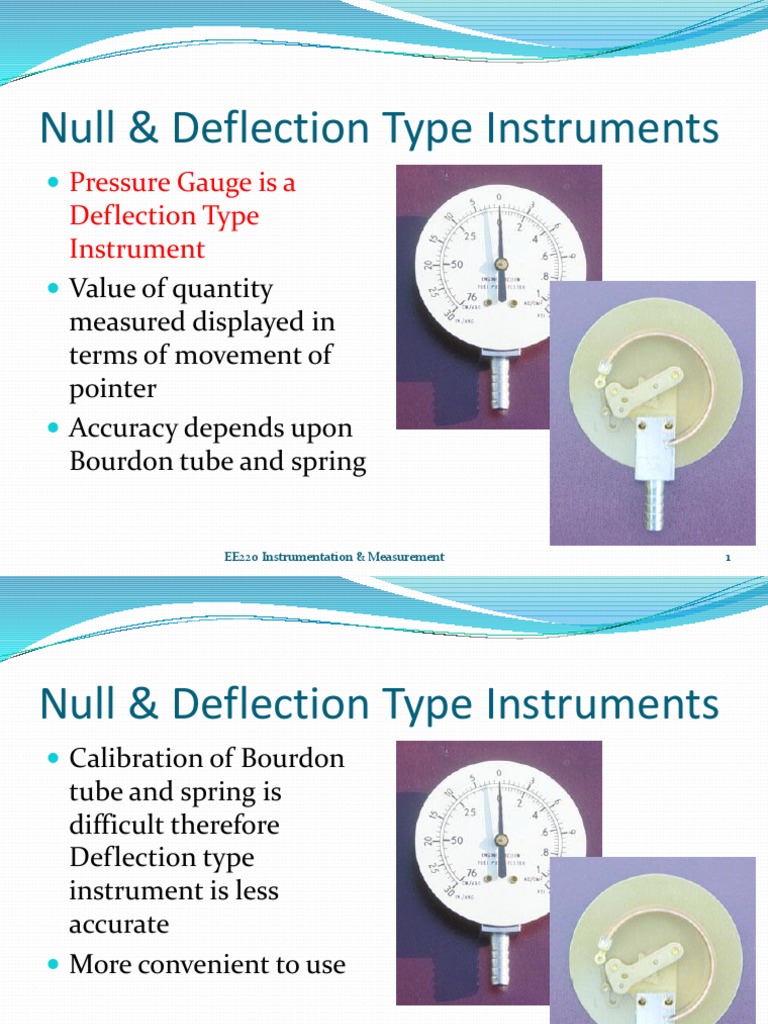

Pressure Gauge is a Deflection Type Instrument Value of quantity measured displayed in terms of movement of pointer Accuracy depends upon Bourdon tube and spring
EE220 Instrumentation & Measurement 1
Null & Deflection Type Instruments Calibration of Bourdon tube and spring is difficult therefore Deflection type instrument is less accurate More convenient to use
EE220 Instrumentation & Measurement 2
Null & Deflection Type Instruments Dead Weight Pressure Gauge is a Null Type Instrument, works on the principle that P= F/A Weights are put on top of piston until the downward force balances the fluid pressure
EE220 Instrumentation & Measurement 3
Null & Deflection Type Instruments Weights are added until the piston reaches a datum level known as the null point Accuracy depends upon calibration of weights Calibration of weights is easier therefore null type instruments are more accurate
EE220 Instrumentation & Measurement 4
Null & Deflection Type Instruments Inconvenient to use, for calibration purposes only
EE220 Instrumentation & Measurement 5
Analogue and Digital Instruments Analogue Instruments give a continuously varying output as the quantity being measured changes Deflection Type pressure Gauge Digital Instruments give output that varies in discrete quantities
EE220 Instrumentation & Measurement 6
Static & Dynamic Characteristics Static Characteristics deal with steady state or slowly varying inputs Dynamic Characteristics refers to the performance of the instrument when the input variable is changing rapidly with time
EE220 Instrumentation & Measurement 7
Static Characteristics Characteristics of an instrument at Steady State Accuracy Precision (Repeatability and Reproducibility) Range or Span Linearity Sensitivity Threshold Resolution
EE220 Instrumentation & Measurement 8
Accuracy (Measurement Uncertainty) Accuracy of an instrument is a measure of how close the output reading of an instrument is to the actual value In practice the inaccuracy figure is quoted Inaccuracy quoted as percentage of the full scale (f.s.) reading of an instrument Pressure gauge of range 0 – 10 bar has quoted inaccuracy of ±1.0% f.s. Maximum error to be expected in any reading is 0.1 bar
EE220 Instrumentation & Measurement 9
Accuracy (Measurement Uncertainty) When instrumentation is reading 1.0 bar the maximum error which is 0.1 bar gives an error of 10% Important Instrument Design Rule Instrument Range should be appropriate to the spread of values to be measured Never use an instrument having 0 – 10 bar range to measure values between 0 and 1 bar
EE220 Instrumentation & Measurement 10
Precision (Repeatability/ Reproducibility) Precision of an instrument describes its degree of freedom from random errors If large number of readings are taken of the same quantity then the spread of readings should be very small A high precision instrument may have low accuracy
EE220 Instrumentation & Measurement 11
Accuracy Vs. Precision
EE220 Instrumentation & Measurement 12
Repeatability vs. Reproducibility Repeatability Closeness of output readings when same input is applied repeatability over a short period of time With the same measurement conditions Same instrument and observer Same location Same conditions of use maintained throughout
EE220 Instrumentation & Measurement 13
Repeatability vs. Reproducibility Reproducibility Closeness of output readings for same input when there are changes in Method of measurement Observer Measuring instrument Location Conditions of use and time of measurement
EE220 Instrumentation & Measurement 14
Accuracy vs. Repeatability
EE220 Instrumentation & Measurement 15
Range or Span Maximum and Minimum values of a quantity that the instrument is designed to measure
EE220 Instrumentation & Measurement 16
Linearity It is desirable that the output reading of an instrument is linearly proportional to the quantity being measured Non-Linearity defined as the maximum deviation of any of the output readings from the best-fit straight line output
EE220 Instrumentation & Measurement 17
Linearity Non-linearity is expressed as a percentage of full scale reading
EE220 Instrumentation & Measurement 18
Sensitivity It is a measure of the change in instrument output that occurs when the quantity being measured changes by a given amount Scale Deflection/Value of measurand producing deflection 1 V/Ω
EE220 Instrumentation & Measurement 19
Threshold The minimum input to an instrument at which the output is detectable Car speedometer typically has a threshold of 15 kmph Manufacturers vary in which they specify threshold Threshold quoted as an Absolute Value Threshold quoted as a percentage of full-scale reading
