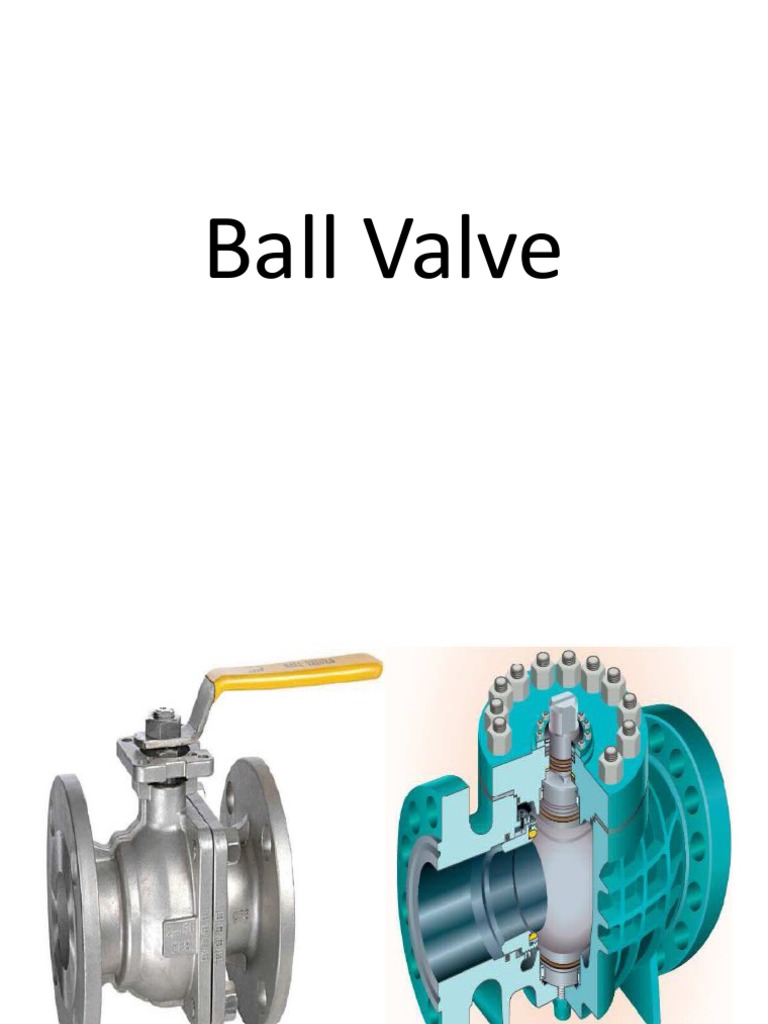

• A ball valve is a valve with a spherical disc, the part
of the valve which controls the flow through it. • The sphere has a hole, or port, through the middle so that when the port is in line with both ends of the valve, flow will occur. • When the valve handle is operated to open the valve, the ball rotates to a point where the hole through the ball is in line with the valve body inlet and outlet. • When the valve is shut, which requires only a 90- degree rotation of the hand wheel for most valves, the ball is rotated so the hole is perpendicular to the flow openings of the valve body, and flow is stopped. • Most ball valves are of the quick-acting type (requiring only a 90-degree turn to operate the valve either completely open or closed), but many are planetary gear operated. • This type of gearing allows the use of a relatively small hand wheel and operating force to operate a fairly large valve. • The gearing does, however, increase the operating time for the valve. • Some ball valves contain a swing check located within the ball to give the valve a check valve feature. • Ball valves are normally found in the following systems aboard ship: seawater, sanitary, trim and drain, air, hydraulic, and oil transfer. • Ball valves are durable and usually work to achieve perfect shutoff even after years of disuse. • They are therefore an excellent choice for shutoff applications (and are often preferred to globe valves and gate valves for this purpose). • They do not offer the fine control that may be necessary in throttling applications but are sometimes used for this purpose. • Ball valves are used extensively in industrial applications because they are very versatile, supporting pressures up to 1000 bars and temperatures up to 200°C. • Sizes typically range from 0.5 cm to 30 cm. They are easy to repair and operate. • The body of ball valves may be made of metal, plastic or metal with a ceramic centre. • The ball is often chrome plated to make it more durable. • There are five general body styles of ball valves. • The difference is based on how the pieces of the valve—especially the casing that contains the ball itself—are manufactured and assembled. • 1.single body, 2. three piece body, 3. split body, 4. top entry, and 5. welded. • The valve operation is the same in each case. Full Bore(Port) Ball Valve • A full port or more commonly known full bore ball valve has an over-sized ball so that the hole in the ball is the same size as the pipeline resulting in lower friction loss. • Flow is unrestricted but the valve is larger and more expensive so this is only used where free flow is required, for example in pipelines which require pigging. Reduced bore (Port) ball valves • In reduced port or more commonly known reduced bore ball valves, flow through the valve is one pipe size smaller than the valve's pipe size resulting in flow area being smaller than pipe. • As the flow discharge remains constant and is equal to area of flow (A) times velocity (V), A1V1 = A2V2 the velocity increases with reduced area of flow. • A V port ball valve has either a 'v' shaped ball or a 'v' shaped seat commonly known as venturi bore ball valves. • This allows the orifice to be opened and closed in a more controlled manner with a closer to linear flow characteristic. • When the valve is in the closed position and opening is commenced the small end of the 'v' is opened first allowing stable flow control during this stage. • This type of design requires a generally more robust construction due to higher velocities of the fluids, which might damage a standard valve. V-Port Valves • ·A trunnion ball valve has additional mechanical anchoring of the ball at the top and the bottom, suitable for larger and higher pressure valves (say, above 10 cm and 40 bars). • Cavity filler Ball Valve. Many industries encounter problem with residues in the ball valve. • Where the fluid is meant for human consumption, residues may also be health hazard, and when where the fluid changes from time to time contamination of one fluid with another may occur. Residues arise because in the half open position of the ball valve a gap is created between the ball bore and the body in which fluid can be trapped. • To avoid the fluid getting into this cavity, the cavity has to be plugged, which can be done by extending the seats in such a manner that it is always in contact with the ball. • This type of ball valve is known as Cavity Filler Ball Valve. Valve materials • Balls are usually metallic in metallic bodies with trim (seats) produced from elastomeric (elastic materials resembling rubber) materials. • Plastic construction is also available. • The resilient seats for ball valves are made from various elastomeric material. • The most common seat materials are teflon (TFE), filled TFE, Nylon, Buna-N, Neoprene, and combinations of these materials. • Because of the elastomeric materials, these valves cannot be used at elevated temperatures. • Care must be used in the selection of the seat material to ensure that it is compatible with the materials being handled by the valve. ADVANTAGE AND DISADVANTAGE • A ball valve is generally the least expensive of any valve configuration and has low maintenance costs. • In addition to quick, quarter turn on-off operation, ball valves are compact, require no lubrication, and give tight sealing with low torque. • Conventional ball valves have relatively poor throttling characteristics. • In a throttling position, the partially exposed seat rapidly erodes because of the impingement of high velocity flow. Assignments • How the valve sealing is done? • Assess the risk of using this valve in high pressure applications. • What could happen if the lever is not indicated properly for Open and Shut position • What could be the possible reasons if the valve found sticky.
