HUAWEI COMMISSIONING

Md. Sohrab Al Islam

Md. Kaim Iftahaj Nirjhor

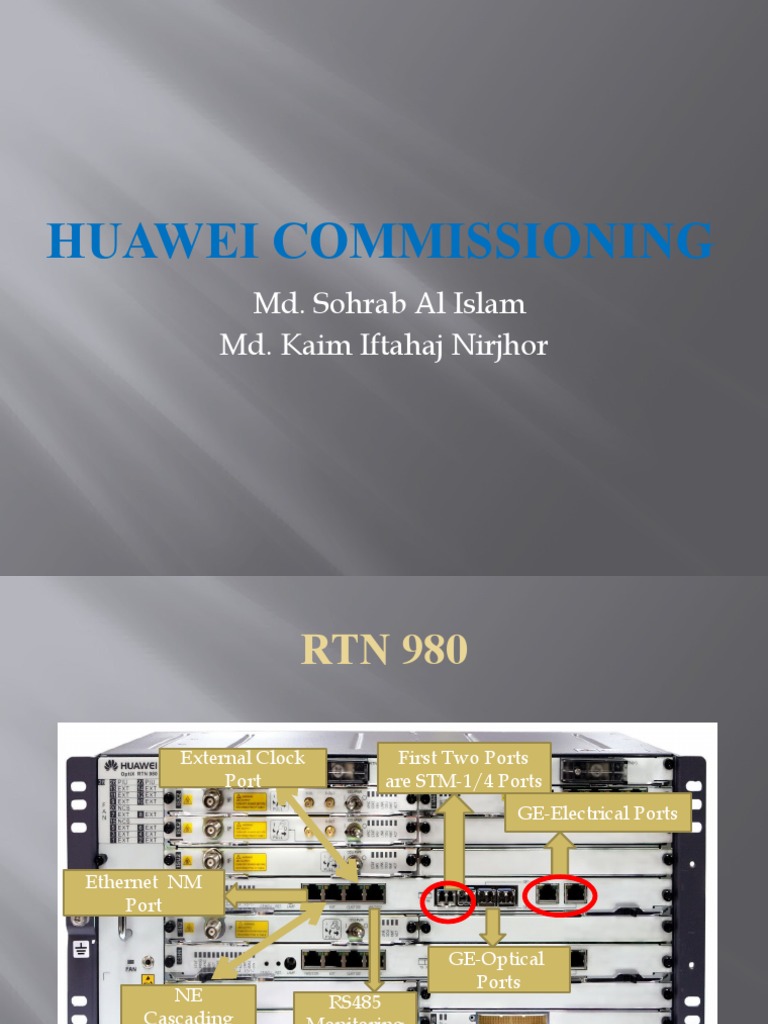

 RTN 980

External Clock First Two Ports

Port are STM-1/4 Ports
GE-Electrical Ports

Ethernet NM
Port

GE-Optical
Ports
NE RS485
Cascading Monitoring
Port Port
2M Signaling Port
 Description of Ports
 Ethernet NM Port-Login Port
 NE Cascading Port-Back to Back Connection from one NE to
Another NE
 External Clock Port-Reserved Port for future use
 RS485 Monitoring Port- Port-Reserved Port for future use
 STM-1/4 Ports-Ports are used for TDM High capacity
service
 GE-Optical Ports-Ports are used for 3G High capacity
service with Optical Patch Cords
 GE-Electrical Ports- Ports-Ports are used for 3G High
capacity service with LAN Cable
 2M Signaling Port-Port for 16 E1 TDM
 PC LAN Connection Setting

Click Here
Click Here

Please
Pleaseinsert
insertthis
thisIP
IP

First Double Click on TCP/IPV4 then Put

the IP Address as mentioned
 Login to RTN

First you have to go the WebLCT software.

From there you have to go startweblct and get
started!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
Setting Password in RTN

Default User Name:admin

Password:Changeme_123

For New User password will always be

Changeme_123
 Resetting Password

Old password : Changeme_123

New Password:(As you wish!!!!)
Conform the New password and get on
with it

First Set the Old Password &

then give the New Password
Addition of NE in RTN

For NE Search you have to go to

Advanced Search then click on
the Search option
Addition of NE in RTN

After Searching for NE

We have to click the End
2
Search
Click Here to end the search for NE

&

Then Add NE to add the

NE

Click Here
 Addition of NE in RTN

And Just Like

that NE is
Added

Please Click OK
to Complete the
addition
Putting Password for NE Search

NE Password Should
Be set as "password"

Password
=password

After apply Click

Click OK Apply
2 1
NE Exploring

Click Here for

NE Exploring
 IF Board and ODU Addition
Click Here NE
Selection

No ODU is selected
yet

Please click
here for
Configuration

No Board is
2 selected yet
 IF Board Addition
ISV3 is added like that

Click
here
 ODU Addition

ODU is added

Click Here to add

ODU
NE Name, ID Modification

Modify the
Name from here

From NE Attributes we
can Modify the Name
and IDs Click here for Modification
only NE ID & Extended ID
NE Name, ID Modification

Please click OK to Confirm the

Modification
 Selecting IF Board

Please click here

Please click here to
1 select the IF Board
3

Please click here

2
Link Parameter Commissioning

Which Kind of Configuration

you want to use??? 1+0/1+1

Please Click
here for
Frequency
Allocation
Link Parameter Commissioning

AM Status as per WO

Modulation Scheme &

Activation Capacity as per WO

DependDepend
on Active
on Active
E1 E1

TX Channel Frequency as per Plan

Link Parameter Commissioning

Please fill up the RF portions

as per WO

First Click apply then Click

Query

1
2
Link Parameter Commissioning

Click Yes to Permit

the Changes

Please give tick in

the Blank
 GE-Optical Port Protection

Click Here
We Use Link Aggregation for Ethernet
1 port protection

Click Here for Interface management

2 Click Here

Click Here for Link Aggregation 4

3
 GE-Optical Port Protection

Please fill up the

box as per
requirement
GE-Optical Port Protection

Please select main port

and standby port as figure
GE-Optical Port Protection

Please Select Query to

Complete the Aggregation
STM-1 Port Protection

Click on Create
menu
 STM-1 Port Protection

All are selected like as these

figure and click on it to
shifted desire component
from Available Boards to
Mapped Boards
STM-1 Port Protection

Please Shift desire Finally Apply then

component from Ok
Available Boards to
Mapped Boards
STM-1 Port Protection

Working and Protection Unit is selected

How to Create VLAN

Click on New Menu

How to Create VLAN?

ETH

Click on Get UNI

Port
How to Create VLAN?

Shifting from Available

Ports to Selected Ports
How to Create VLAN?
 Clock Setting In RTN

Click on Create menu

Click on Clock Source
Priority

2
Clock Setting In RTN

Select source element

Then click ok

2
Clock Setting In RTN

Finally Click Query

 IF 1+1 Configuration

Select IF 1+1 Protection

Click New

Click on Link Configuration

3
IF 1+1 Configuration

Follow like this

Select your desire IF

board
1

3 2

Click first Apply then

Ok
How to do Cross-Connection

First Click SDH/PDH Service Management then

click New
 How to do Cross-Connection

Select your desire 1

component

Free Timeslot
Should be put and
Range may be
limited of Capacity
First Apply Then
2 OK
3
How to do Cross-Connection

After creation of cc, format will be like this

Finally Click
Query
IF Port Configuration

Must be Tag Aware Finally Apply then Query

IF Port Configuration

Encapsulation Type must be Finally Apply then

802.1Q Query
Ethernet Port Configuration

Encapsulation Type as
Finally Apply then
802.1Q Query

By clicking right button on it and select

Enabled
 Ethernet Port Configuration

Please click on 17-

EG6 for Ethernet
Port

Finally Apply then

Select Query
Must be Tag
Aware
Please Select
Ethernet Interface
RTN-980
Thank You

NEC \Orchestrating a brighter world
