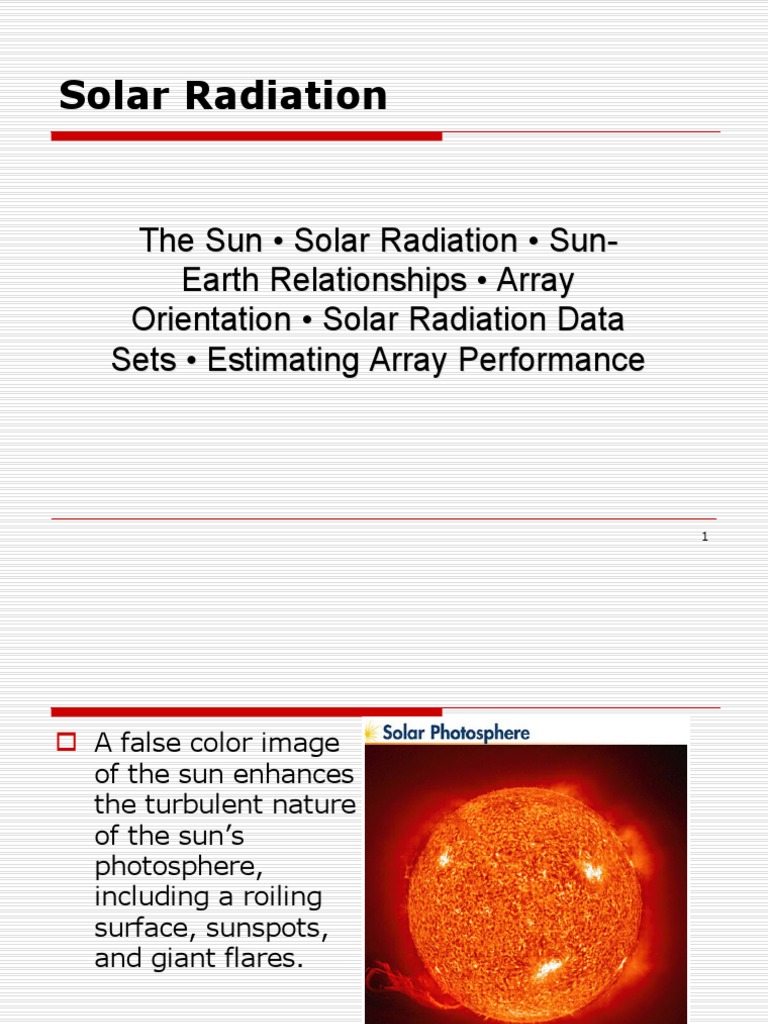

Solar Radiation

The Sun • Solar Radiation • Sun-

Earth Relationships • Array
Orientation • Solar Radiation Data
Sets • Estimating Array Performance

1
 A false color image
of the sun enhances
the turbulent nature
of the sun’s
photosphere,
including a roiling
surface, sunspots,
and giant flares.

2
 Even over the vast distance, an enormous
amount of energy reaches Earth from the sun.

3
 Solar irradiance is
solar power per unit
area.

4
 The inverse square law states that irradiance is
reduced in proportion to the inverse square of
the distance from the source.

5
 Solar irradiation
equals the total solar
irradiance over time.

6
 The electromagnetic
spectrum is the
range of all types of
electromagnetic
radiation, which vary
with wavelength.

7
 Radiated as electromagnetic waves of which 98
percent have wave length in the range of 0.2
to 4.0 micrometers.
 Energy consists of about 8 per cent ultraviolet
radiation (short wavelength, less than 0.39
micrometer), 46 per cent visible light (0.39 to
0.78 micrometer) and 46 per cent infrared
radiation (long wave length more than 0.78
micrometer)

8
 The wavelength
distribution of
extraterrestrial solar
radiation forms a
spectral signature
unique to the sun.

9
 Solar radiation
entering Earth’s
atmosphere consists
of direct, diffuse,
and albedo
radiation.

10
 Air mass is a
representation of
the amount of
atmosphere
radiation that must
pass through to
reach Earth’s
surface.

11
 Peak sun hours is an
equivalent measure of total
solar irradiation in a day.
 For example, a day with an
average irradiance of 600
W/m2 over 8 hr may only
reach peak sun condition
for an hour or less around
noon. However, the total
irradiation of 4800 Wh/m2
(600 W/m2 × 8 hr = 4800
Wh/m2) is equivalent to 4.8
peak sun hours (4800
Wh/m2 ÷ 1000 W/m2 = 4.8
peak sun hr)

12
 Insolation (solar
irradiation received
over a period of time,
kWh/m2/day) maps
rate locations by their
average daily peak
sun hours.

13
14
 The atmosphere
absorbs
extraterrestrial
radiation at certain
wavelengths,
resulting in an
altered spectral
distribution for
terrestrial radiation.

15
Solar Geometry
 Hour angle
 Latitude angle
 Declinaiton
 Altitude angle
 Zenith angle
 Solar Azimuth angle
 Slope
 Surface Azimuth angle
 Incident angle

16
Solar Geometry
 Latitude of location ()
 The latitude of a place is the angle subtended by the radial
line joining the place to the center of the earth with the
projection of the line on the equatorial plane.
 +ve - location towards the northern hemisphere
 -ve - towards the southern hemisphere
 at equator 0 deg
 North Poles - +90 deg
 South Poles - -90 deg

17
Solar Geometry
 Latitude Angle
 The latitude of a place is the angle subtended by the radial
line joining the place to the center of the earth with the
projection of the line on the equatorial plane.
 +ve - location towards the northern hemisphere
 -ve - towards the southern hemisphere
 at equator 0 deg
 North Poles - +90 deg
 South Poles - -90 deg

18
 Solar Geometry
 Declination
 angle made by the line
joining the centres of
the sun and the earth
with its projection on
the equatorial plane.
 varies from a maximum
of +23.5o on June 21 to
minimum of -23.5o on
December 21.

19
Solar Geometry
 Hour angle
 angle through which the earth must turn to
bring the meridian of the plane directly in
line with the sun rays.
 Equivalent to 15o per hour.
 In the morning the hour angle is negative,
in the afternoon the hour angle is positive
 By definition, the Hour angle is 0o at solar
noon.

20
 Solar Geometry
 Altitude angle
 The elevation angle (Altitude angle) is the
angular height of the sun in the sky
measured from the horizontal.
 The elevation is 0o at sunrise
and 90o when the sun is directly overhead
(which occurs for example at the
equator on the spring and
fall equinoxes)
 Angle from sun to Ground
21
 Solar Geometry
 Zenith Angle
 The angle between
the sun’s ray and
the perpendicular
(normal) to
horizontal plane is
known as the
Zenith angle.
 It is compliment of
Altitude angle.

22
 Solar Geometry
 Solar Azimuth Angle
 Horizontal angle measured from north to the
horizontal projection of sun rays.

23
 The ecliptic plane is formed by Earth’s elliptical orbit around the sun.
 In one year, Earth makes a slightly elliptical orbit around the sun.
Perihelion is the point in Earth’s orbit when it is closest to the sun.
Aphelion is the point in Earth’s orbit when it is farthest from the sun.
Perihelion occurs around January 3 and aphelion occurs around July
4.

24
 The equatorial plane is tipped 23.5° from the
ecliptic plane. As Earth revolves around the
sun, this orientation produces a varying solar
declination.

25
 The summer solstice
occurs when the
Northern
Hemisphere is tipped
towards the sun. The
winter solstice
occurs when the
Northern
Hemisphere is tipped
away from the sun.

26
 The fall and spring
equinoxes occur
when the sun is
directly in line with
the equator.

27
 Two angles are used to define the sun’s
position, relative to an observer on Earth:
Solar azimuth and altitude angles are used to
describe the sun’s location in the sky.

28
 Array orientation can be described using
azimuth and tilt angles.

29
 Energy production at certain times of the year
can be optimized by adjusting the array tilt
angle.

30
 The average
seasonal declinations
define the optimal
tilt angles for those
periods.

31
 A pyranometer
measures total
global solar
irradiance from the
whole sky.

32
 Diffuse solar
irradiance can be
measured by
adding a shadowing
device to a
pyranometer, which
blocks the direct
component of total
irradiance.

33
 Handheld
pyranometers use
less precise sensors
than precision
pyranometers but
are more suitable for
field measurements.

34
 A pyrheliometer
measures the
direct component
of solar irradiance,
which is important
when installing
concentrating
collectors.
