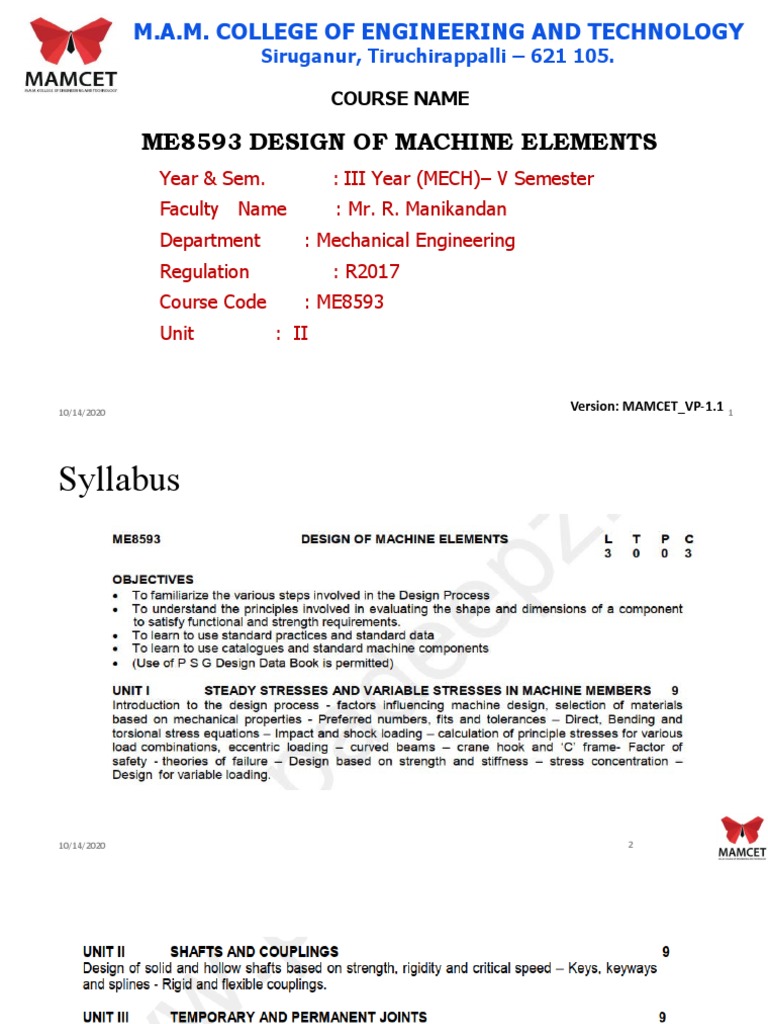

M.A.M.

COLLEGE OF ENGINEERING AND TECHNOLOGY

Siruganur, Tiruchirappalli – 621 105.

COURSE NAME

ME8593 DESIGN OF MACHINE ELEMENTS

Year & Sem. : III Year (MECH)– V Semester
Faculty Name : Mr. R. Manikandan
Department : Mechanical Engineering
Regulation : R2017
Course Code : ME8593
Unit : II

10/14/2020
Version: MAMCET_VP-1.1 1
Syllabus

10/14/2020 2
10/14/2020 3
TEXT BOOK AND REFERENCE BOOK

10/14/2020 4
OTHER REFERENCE BOOK
• 1.Machine design By RS Khurmi (Design of machine elements and
Design of transmission system)

10/14/2020 5
UNIT II SHAFT AND COUPLINGS
Design of shaft based on twisting moment and bending moment
(solid shaft and hollow shaft)

Design of key

Design of coupling (Muff coupling ,Flange coupling and flexible

coupling)

13.08.2020
6
UNIT II SHAFT AND COUPLINGS
Shaft:
A shaft is a rotating machine element which is used to transmit power
from one place to another.
The power is delivered to the shaft by some tangential force and the
resultant torque (or twisting moment) set up within the shaft permits
the power to be transferred to various machines linked up to the
shaft.
A shaft is used for the transmission of torque and bending moment

13.08.2020
7
10/14/2020 8
10/14/2020 9
•2.1.4 Types of Shafts
•The following two types of shafts are important from the subject point of view :
•1. Transmission shafts.
•These shafts transmit power between the source and the machines absorbing power. The
counter shafts, line shafts, over head shafts and all factory shafts are transmission shafts.
Since these shafts carry machine parts such as pulleys, gears etc., therefore they are
subjected to bending in addition to twisting.
•2. Machine shafts.
•These shafts form an integral part of the machine itself. The crank shaft is an example of
machine shaft.

10/14/2020 10
• 2.1.5 Stresses in Shafts
• The following stresses are induced in the shafts :
• 1. Shear stresses due to the transmission of torque (i.e. due to
torsional load).
• 2. Bending stresses (tensile or compressive) due to the forces acting
upon machine elements like gears, pulleys etc. as well as due to the
weight of the shaft itself.
• 3. Stresses due to combined torsional and bending loads.

10/14/2020 11
• 2.1.6 Design of Shafts
• The shafts may be designed on the basis of
• 1. Strength, and 2. Rigidity and stiffness.
• In designing shafts on the basis of strength, the following cases may
be considered :
• (a) Shafts subjected to twisting moment or torque only,
• (b) Shafts subjected to bending moment only,
• (c) Shafts subjected to combined twisting and bending moments, and
• (d) Shafts subjected to axial loads in addition to combined torsional
and bending load.
10/14/2020 12
Shafts subjected to twisting moment or torque only

10/14/2020 13
10/14/2020 14
TORSIONAL Equation (Design Data book)
(P NO7.1)

10/14/2020 15
BENDING STRESS (P.NO -7.1)

Dr. B. Muruganantham., Professor, Department of Electrical and Electronics Engineering, M.A.M. College of 16
10/14/2020
Engineering and Technology, Siruganur, Tiruchirappalli – 621 105.
10/14/2020 17
 • M=Bending moment
• T=Twisting moment or torque

10/14/2020 18
Equivalent bending moment (Me)

10/14/2020 19
Problems on shaft subjected to twisting and bending
1. line shaft is driven by means of a motor placed vertically below it.
The pulley on the line shaft is 1.5 metre in diameter and has belt
tensions 5.4 kN and 1.8 kN on the tight side and slack side of the belt
respectively. Both these tensions may be assumed to be vertical. If the
pulley be overhang from the shaft, the distance of the centre line of the
pulley from the centre line of the bearing being 400 mm, find the
diameter of the shaft. Assuming maximum allowable shear stress of 42
MPa

Dr. B. Muruganantham., Professor, Department of Electrical and Electronics Engineering, M.A.M. College of 20
10/14/2020
Engineering and Technology, Siruganur, Tiruchirappalli – 621 105.
• Given : D = 1.5 m or R = 0.75 m; T1 = 5.4 kN = 5400 N ; T2 = 1.8 kN =
1800 N ;L = 400 mm ; τ = 42 MPa = 42 N/mm2

10/14/2020 21
Step 1

• M=Bending moment
• T=Twisting moment or torque

10/14/2020 22
Step 2

10/14/2020 23
Step 3

10/14/2020 24
Step 4

10/14/2020 25
