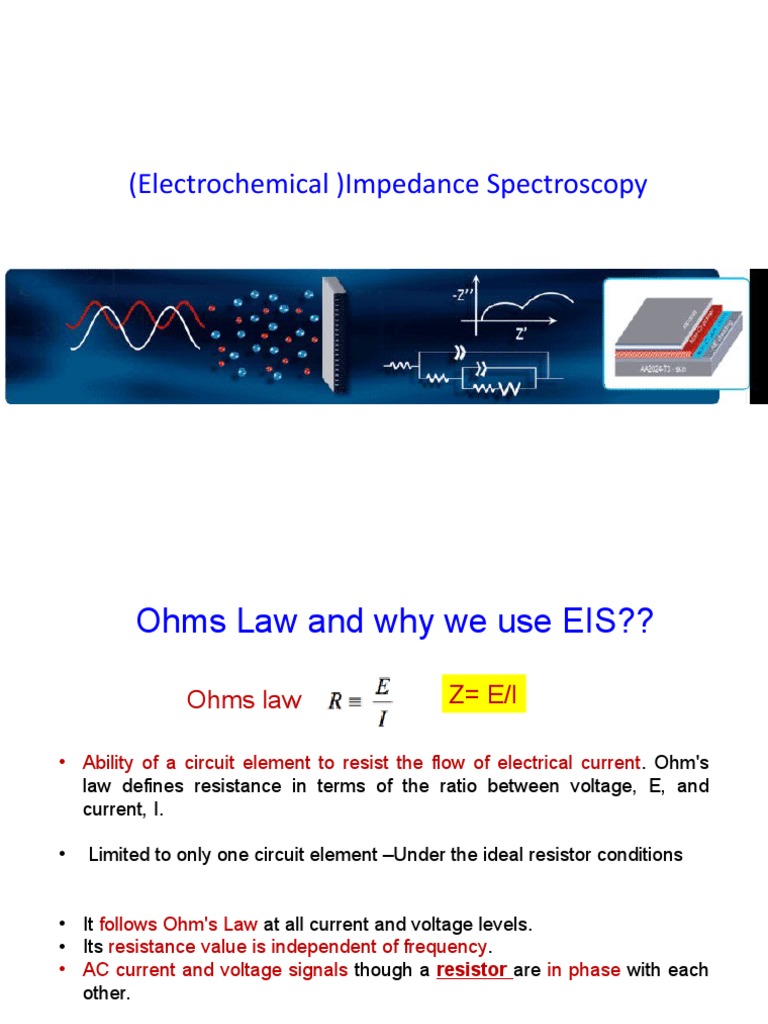

(Electrochemical )Impedance Spectroscopy

Ohms Law and why we use EIS??

Ohms law Z= E/I

• Ability of a circuit element to resist the flow of electrical current. Ohm's

law defines resistance in terms of the ratio between voltage, E, and
current, I.

• Limited to only one circuit element –Under the ideal resistor conditions

• It follows Ohm's Law at all current and voltage levels.

• Its resistance value is independent of frequency.
• AC current and voltage signals though a resistor are in phase with each
other.

https://www.gamry.com/application-notes/EIS/basics-of-electrochemical-impedance-
spectroscopy/
 What is Electrochemical Impedance
Spectroscopy?

 Exploit Faraday’s Law to characterize a chemical process

in terms of electrical measurements.

 Electrochemical impedance is the response of an

electrochemical system (cell) to an applied potential.

 The frequency dependence of this impedance can reveal

underlying chemical processes.
 What is Electrochemical Impedance
Spectroscopy?

 The response of electrochemical systems is very nonlinear.

 We interrogate the impedance in a perturbative manner:ƒ Small

amplitude (~10 mV) AC ripple on top of the controlled DC
polarization potential with varying frequency (mHZ to MHz)

 Frequency (High-Fast electrode kinetics and low frequency- Slow

process such as diffusion )

 At high frequency the reactants do not have enough time to diffuse

ELECTROCHEMICAL IMPEDANCE SPECTROSCOPY

6
ELECTROCHEMICAL IMPEDANCE SPECTROSCOPY

7
 Resistors, capacitors and Inductors

• Impedance of a resistor is independent of frequency

• Impedance of the capacitor is inversely proportional to frequency

(Phase=90˚) ; Capacitor behavior occurs at low and mid frequency region)

• Impedance of inductor is in direct proportional to frequency(Phase = -90˚)

• Inductance phenomena occurs at high and mid frequency
 Impedance values changes with that changes with frequency and has phase shift.

 impedance drops with frequency and the current leads voltage by 90 degrees, it is
capacitance

 impedance rises with frequency and the current lags voltage by 90 degrees, it is
inductance

Component Impedance as
complex form
resistor Z=R

inductor Z = jωL

capacitor Z = 1/jωC
 Analyzing EIS: Modeling

• Electrochemical cells can be modeled as a

network of passive electrical circuit elements.
• A network is called an “equivalent circuit”.
• The EIS response of an equivalent circuit can
be calculated and compared to the actual EIS
response of the electrochemical cell.

R Capacitance Inductor
Constant phase
Warburg element
 Nyquist and its corresponding bode planes

R independent of “f”
1 Log IzI Zim

Log f
Zreal

2 Log IzI
Zim

Log f
Zreal

3 Log IzI
Zim
Log f
Zreal

Similar to capacitor- however, ideally it deviates

 Electrochemistry as a Circuit
Helmholtz region

Diffuse region
• Double Layer
Capacitance
• Electron
Transfer
Resistance
• Uncompensate
d (electrolyte) Randles Cell
Resistance (Simplified)
Working electrode
DLC
Including diffusion region in equivalent circuit
 Nyquist, Bode and Phase angle of a simple
Randles circuit

Low freq.
High freq.

Rs
Rct

https://www.gamry.com/application-notes/EIS/basics-of-electrochemical-impedance-
spectroscopy/
 Randles with diffusion impedance

Warburg

Rs Rct

https://www.gamry.com/application-notes/EIS/basics-of-electrochemical-impedance-
spectroscopy/
Inductance
Exercise
Files --- Examples
Ignoring Rs
Including Rs
THANK YOU
ELECTROCHEMICAL IMPEDANCE SPECTROSCOPY
EIS – Mass Transfer Controlled Process

Nyquist
Bode
Impedance

Bode
Phase
 ELECTROCHEMICAL IMPEDANCE SPECTROSCOPY
Mixed kinetics
ELECTROCHEMICAL IMPEDANCE SPECTROSCOPY

Bode
Impedance
(Magnitude

Nyquist

Bode Phase
Angle
ELECTROCHEMICAL IMPEDANCE SPECTROSCOPY

30
ELECTROCHEMICAL IMPEDANCE SPECTROSCOPY

31
ELECTROCHEMICAL IMPEDANCE SPECTROSCOPY

32
ELECTROCHEMICAL IMPEDANCE SPECTROSCOPY

33
ELECTROCHEMICAL IMPEDANCE SPECTROSCOPY

34
ELECTROCHEMICAL IMPEDANCE SPECTROSCOPY

35
ELECTROCHEMICAL IMPEDANCE SPECTROSCOPY

36
ELECTROCHEMICAL IMPEDANCE SPECTROSCOPY

37
