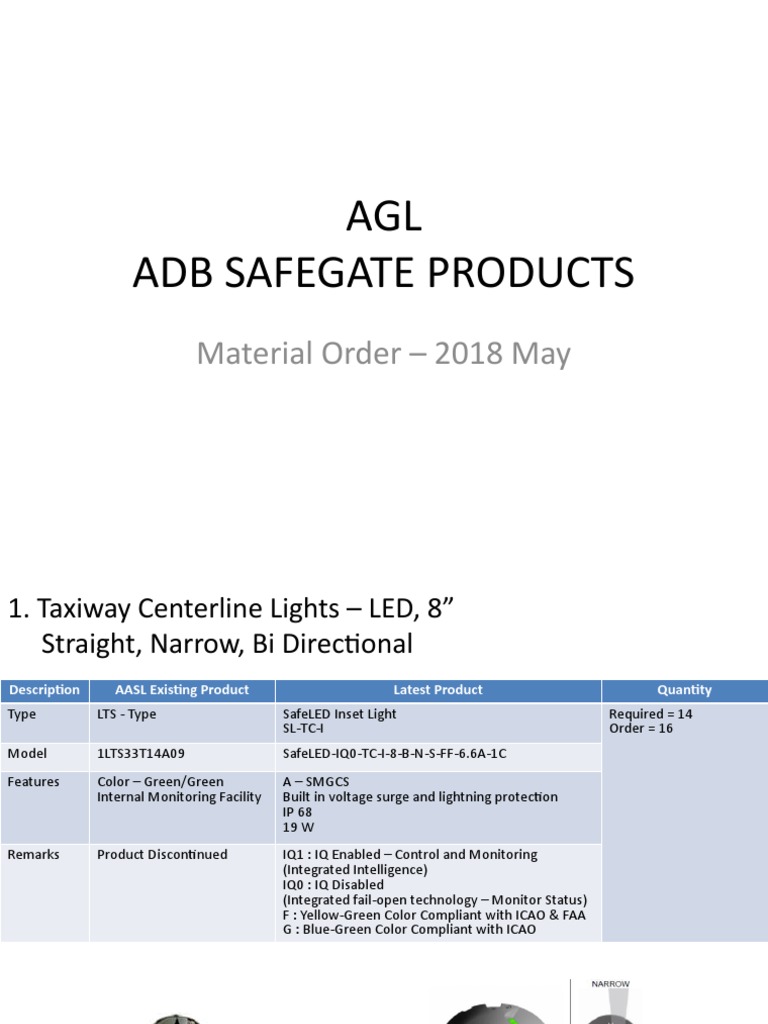

AGL
ADB SAFEGATE PRODUCTS
Material Order – 2018 May
1. Taxiway Centerline Lights – LED, 8”
Straight, Narrow, Bi Directional
Description AASL Existing Product Latest Product Quantity
Type LTS - Type SafeLED Inset Light Required = 14
SL-TC-I Order = 16
Model 1LTS33T14A09 SafeLED-IQ0-TC-I-8-B-N-S-FF-6.6A-1C
Features Color – Green/Green A – SMGCS
Internal Monitoring Facility Built in voltage surge and lightning protection
IP 68
19 W
Remarks Product Discontinued IQ1 : IQ Enabled – Control and Monitoring
(Integrated Intelligence)
IQ0 : IQ Disabled
(Integrated fail-open technology – Monitor Status)
F : Yellow-Green Color Compliant with ICAO & FAA
G : Blue-Green Color Compliant with ICAO
LTS - Type SafeLED – SL-TC-I - Type
2. Taxiway Centerline Lights – LED, 8”
Straight, Wide, Bi Directional
Description AASL Existing Product Latest Product Quantity
Type LTS - Type SafeLED Inset Light Required = 3
SL-TC-I Order = 4
Model 1LTS33T14A09 SafeLED-IQ0-TC-I-8-B-W-S-FF-6.6A-1C
Features Color – Green/Green A – SMGCS
Internal Monitoring Facility Built in voltage surge and lightning protection
IP 68
Remarks Product Discontinued IQ1 : IQ Enabled – Control and Monitoring
(Integrated Intelligence)
IQ0 : IQ Disabled
(Integrated fail-open technology – Monitor Status)
FF : Yellow-Green Color Compliant with ICAO & FAA
GG : Blue-Green Color Compliant with ICAO
LTS - Type SafeLED – SL-TC-I - Type
3. Taxiway Centerline Lights – LED, 8”
Curved, Bi Directional
Description AASL Existing Product Latest Product Quantity
Type LTC - Type SafeLED Inset Light Required = 54
SL-TC-I Order = 60
Model 1LTC33T14A09 SafeLED-IQ0-TC-I-8-B-C-S-FF-6.6A-1C
Features Color – Green/Green A – SMGCS
Internal Monitoring Facility Built in voltage surge and lightning protection
IP 68
Remarks Product Discontinued IQ1 : IQ Enabled – Control and Monitoring
(Integrated Intelligence)
IQ0 : IQ Disabled
(Integrated fail-open technology – Monitor Status)
F : Yellow-Green Color Compliant with ICAO & FAA
G : Blue-Green Color Compliant with ICAO
LTC - Type SafeLED – SL-TC-I - Type
4. Intermediate Holding Position Lights– LED, 8”
Straight, Wide, Uni Directional
Description AASL Existing Product Latest Product Quantity
Type LTS - Type SafeLED Inset Light Required = 9
SL-TC-I Order = 10
Model 1LTS49T14A09 SafeLED-IQ0-TC-I-8-U-W-S-F-6.6A-1C
Features Color – Yellow/Blank A – SMGCS
Internal Monitoring Facility Built in voltage surge and lightning protection
IP 68
Remarks Product Discontinued IQ1 : IQ Enabled – Control and Monitoring
(Integrated Intelligence)
IQ0 : IQ Disabled
(Integrated fail-open technology – Monitor Status)
F : Yellow-Green Color Compliant with ICAO & FAA
G : Blue-Green Color Compliant with ICAO
Y - Yellow
LTS - Type SafeLED – SL-TC-I - Type
5. Isolation Transformers (45 W / 65 W)
Description AASL Existing Product Others Products Quantity
Type Type RST ITX Series Circuit EFLA Required -
Series Transformer Isolation Transformer KR600 AGL Transformers for 45W = XX
Series Circuits 65W = XX
Model 45W - IST 045 66 5E AASL 45W - 35C0077-1 45W - KR631 / L-831-1 Order -
65W - IST 065 66 5E AASL 65W - 35C0079-1 65W - KR636 / L-831-3 45W = XX
65W = XX
Features FAA: AC 150/5345-47 FAA: L-831 AC 150/5345-47 FAA: L-831 AC 150/5345-47
50 Hz, With Earth Wire 50 Hz, With Earth Wire 50 Hz, With Earth Wire
45W - Style L-831-1, 45W - Style L-831-1,
65W - Style L-831-3, 65W - Style L-831-3,
Remarks Factory-molded plugs and Quick and easy connection, Low leakage inductance for
receptacles, Factory-molded L-823 single lamp control and
Encapsulated in a special, plugs and receptacles, more advanced control
non-water absorbing, Complete water tightness, monitoring requirements,
thermo-plastic elastomer Directly in the ground, Easy to install by using
Immersed, buried or Exposed to the sun, factory molded connectors
exposed to sunlight Immersed in water Heavy-duty and extreme
conditions in airfield
RST - T/F ITX - T/F EFLA - T/F
6. Primary Connector Kit
Description AASL Existing Product Quantity
Type Resin filled primary connector kits Required - XX
Order - XX
Model CKE 52
(Resin Filled - PRK S2B)
Features FAA: AC 150/5345-26 (L-823) Type 1
FAA L-823 class B style 3 plug style 10 receptacle
Remarks Single-pole connector kits for screened cable
Outer Diameter - 11.00 mm to 14.5 mm
Conductor Size - 6 sqmm
Primary Connector Kit
7. Secondary Connector Kit
Description AASL Existing Product Quantity
Type Secondary Connector Kits Plugs :
Required - XX
Model Plug: SCK 1PB5 Order - XX
Receptacle: SCK 1RB5
Receptacles :
Required - XX
Features FAA: AC 150/5345-26 (L-823) Type II Order - XX
FAA L-823 class B style 5 plug and style 12 receptacle
Remarks Two-pole connector kits for one two-core cable:
Outer Diameter - 11.50 mm to 18.00 mm
Conductor Size - 4 sqmm
Secondary Connector Kit
8. Factory Molded type Secondary Cables
Descripti AASL Existing Product Other Products Quantity
on
Type Secondary Extension Cables Secondary Wires and Cables 55 m :
Required - XX
Model 55 m Cable – 95M PR7-G-55 Order - XX
60 m Cable – 95M PR7-G-60
60 m :
Features FAA L823, 2 Core Cables FAA: AC 150/5345-7D (L-824) Required - XX
Plug- Style 1 Receptacle - Style 7 Order - XX
(Class A, Type II)
Remarks Outer Diameter - 11.50 mm to 18.00 mm
Conductor Size - 4 sqmm
9. Shallow Base - 08”
Description AASL Existing Product Others Products Qty
Type HPI Shallow bases Eurobase Ground Fixing of 8” Inset Required:
Light Fittings (8” base) 49
Model HPI 08 E3 F1 AASL MSB-C-1-0-0-Y-000-3 Base 8"-135"-0-S-M Or Order:
8”MK2 133 mm BELOW 54
Features FAA: AC 150/5345 – 46 and 42 FAA: AC 150/5345 – 46 and 42 FAA: AC 150/5345-42G
Direct mounting of inset lights Direct mounting of inset lights Bottom hole diameter:
Central hole of 100 mm dia. in Central bottom hole 100 mm dia. Base 8” Ø 100 mm or
bottom FAA: AC 150/5345-42C
Remarks Use in wet or dry systems, Fitting : Robust mechanical design,
Durable aluminum alloy, A = 8” Eurobase Low resin consumption,
Earthing facility outside and C = 8” HPI base Anti-rotation pins
inside, Fixing: High pressure die cast
Fixing: 0 = M10 screw fixing kit with aluminum,
F1: Blind / M10 Screws nylon encapsulated washers Water protected.
F2 : Passing / M10 Screws 1 = M10 screw fixing kit T = Insert thread version
F3: Blind / M10 Studs & Self 2 = M10 self locking nut fixing kit S = Stud bolt version
locking nuts 3 = 3/8 x 16UNC screw + anti M = Metric threads (M10)
rotation pins fixing kit 2
HPI Type Eurobase Type Base Type
9. Deep Base – 08” / 12”
Description Proposed Product Others Product Qty
Type Light Bases Light Bases & Transformer Required:
Housings 31
Model 868A 24 G2H101 L-868, B (12") Order:
Features FAA: L-868 AC 150/5345-42 FAA: L868 AC 150/5345-42B 35
Direct mounting of inset lights, 24” heights Standard 610 mm height
Remarks Internal and external ground strap, Hot dip galvanization,
One copper ground lug kit with each base, Watertight,
Standard bases as Class IA, galvanized steel, One piece or
868A = 8” diameter / 868AB = Bottom section, 8” diameter Multiple piece products,
Type of Opening: Number, diameter, type and
B = Mixed type and/or size location of conduit
C = 2-inch Coupling / F = 2-inch Flex (Grommet) entrances to be given.
G = 3-inch Flex / H = 3-inch Coupling
Opening Quantity & Location:
2 = Two openings at 0°, 180°
B = One 2” flex at 0°; one 3” flex at 180°
C = One 2” coupling at 0°; one 3” coupling at 180°
Drain Type: C = Coupling / F = Flex (Grommet) / H = Hole
Drain Size: 1 = 1 inch / 2 = 2 inch
LB Type ALB / TH Type
9. Adaptor Rings, 12”-8”
Description Product Qty
Type Adaptor Rings Required:
31
Model Order:
35
Features FAA: AC 150/5345 – 46 and 42
8” Luminary into a 12” base
19” Flange height
Remarks Use in wet or dry systems,
Durable aluminum alloy,
Earthing facility outside and inside,
Fixing:
T = Insert thread version
S = Stud bolt version
M = Metric threads (M10)
Adaptor Ring
