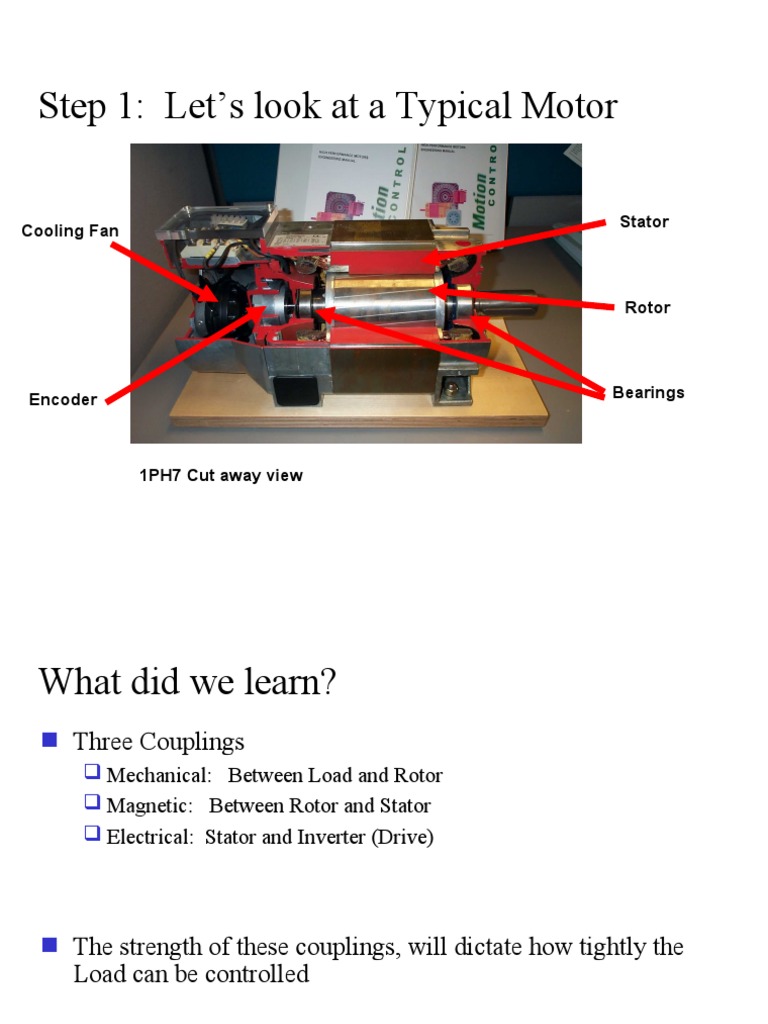

Step 1: Let’s look at a Typical Motor
Stator
Cooling Fan
Rotor
Encoder Bearings
1PH7 Cut away view
What did we learn?
Three Couplings
Mechanical: Between Load and Rotor
Magnetic: Between Rotor and Stator
Electrical: Stator and Inverter (Drive)
The strength of these couplings, will dictate how tightly the
Load can be controlled
High Performance Motors
Overview
cU
SIMOVERT MASTERDRIVES VC
L
Compact
asynchronous through motor cooling
motors force cooled
1PH4 IP55 / IP23
1PH7 / 1PL6 IP 65 (water-cooled)
self cooled /
Premium
servo motors
1FT forced cooled
IP64 to IP67 / IP54
1FT6
Standard
servo motors 1FK self cooled
1FK6 SIMOVERT IP64 or IP65
MASTERDRIVES MC
0.7 5.0 7.0 46.4 81 (water- 288 (1PH7) 400 HP (1PL6)
0.5 3.7 5.2 34.6 61 cooled) 215 300 kW
Dynamic - typical acceleration factors
10
IPL6
5
standard
induction motor
1PA6
(acceleration factor)
x 1000
1 DC motor
Tmax / J
1/s2
0,5
0,1
1 10 100 P/HP at 1500 min -1
Step 2: Understanding the Single Line Diagram of a
Motor
Stator and Cable Impedance Rotor Impedance
I Measured Component Dependant
I Load on Slip
Volts/Hz Magnetizing Reactance
I mag
Volts /Hz
Configuration
Step 2: Understanding the Single Line Diagram of a
Motor
Cable Impedance Armature Impedance
I Field
I Arm
Armature Field
DC Motor Configuration
Step 2: Understanding the Single Line Diagram of a
Motor
Stator and Cable Impedance Rotor Impedance
Component Dependant
isq Quadrature on Slip
isd Direct Magnetizing Reactance
Vector Configuration
Step 2: Understanding the Single Line Diagram of a
Motor
Stator and Cable Impedance Rotor Impedance
isd
isq
Magnetizing
Component Dependant Reactance
on Slip
Vector Control Looks Like a DC Motor
What did we learn?
An AC Motor using Vector Control Mimics a DC Motor
Advantage: AC Motor’s ROTOR weighs less than the DC
Motor’s ARMATURE; therefore faster acceleration or speed
reversals.
AC Motor Maintenance schedule is more attractive than DC
Motor
Step 3: Typical Speed Torque Curves?
Nema B
Torque %
250
200
150
Nema B
100
50
0
0 10 20 30 40 50 60 70 80 90 Hz
Step 3: The “Little” Triangle
Triangle
250
200
150
Triangle
100
50
0
50 52 54 56 58 60
Rated Rotor Nameplated Speed Slip Rated Stator Speed
What did we learn?
Slip is a RPM Value not % of speed. (ie: 1785 RPM motor
has 15 RPM of Slip)
The “Little” triangle not only describes the rated speed
conditions but any condition on the speed/torque curve
including Zero Speed.
In the previous example the numbers were distorted to make it
easier to see. 100% Torque point is at 57.5 Hz. For a 4 pole
motor Rated Nameplate speed would then be
(120*57.5/4)=1725 RPM. Slip would equal 1800-1725=75
RPM.
To develop full torque at zero speed 75 RPM of slip would be
required.
Why use an Encoder / Tachless Mode or
Volts/Hz?
Each Mode has unique Advantages
Volts/Hz
No feedback required
Accurate Motor Data not as important
Torque at zero speed not required
Tachless Mode
No feedback required
Tighter Speed Control
Vector Mode with Encoder Feedback
Required when actual numbers needed
Better control at zero speed
Lets pick some applications, and see which
mode is best suited
Fan
Volts/Hz
Centrifugal Pump
Volts/Hz
Positive Displacement Pump
Vector
Extruder
Vector or Vector with Encoder
Crane - Hoist
Vector with Encoder
Crane - Bridge
Vector or Vector with Encoder
Crane - Trolley
Volts/Hz or Vector
Lets pick some applications, and see which
mode is best suited
Winder - Payoff Stand
Vector with Feedback
Winder - Rear Drum
Vector with Feedback
Winder - Front Drum
Vector with Feedback
Winder - Slitter
Volts/Hz
Wind-up Roll
Volts/Hz
Shafted Printing Press
Vector or Vector with Encoder
Stamping Press
Vector with Encoder
Lets pick some applications, and see which
mode is best suited
Conveyors
Volts/Hz or Vector or Vector with Feedback
Wire Drawing Machinery
Vector with Feedback
Ball Mills, Kilns
Vector or Vector with Feedback
Plywood
Vector with Encoder
Lathe
Vector with Encoder
Synchronizing to the AC Line
Vector with Encoder
Speed Mode / Torque Mode Transfer
Vector with Encoder
You Pick An Application?
