Isometric Drawing

ISO-CIRCLE AND ARCS

Lettering Instrumental Drawing Geometrical Construction Working Drawing Isometric Drawing


Isometric Circles And Isometric Drawing

Arcs

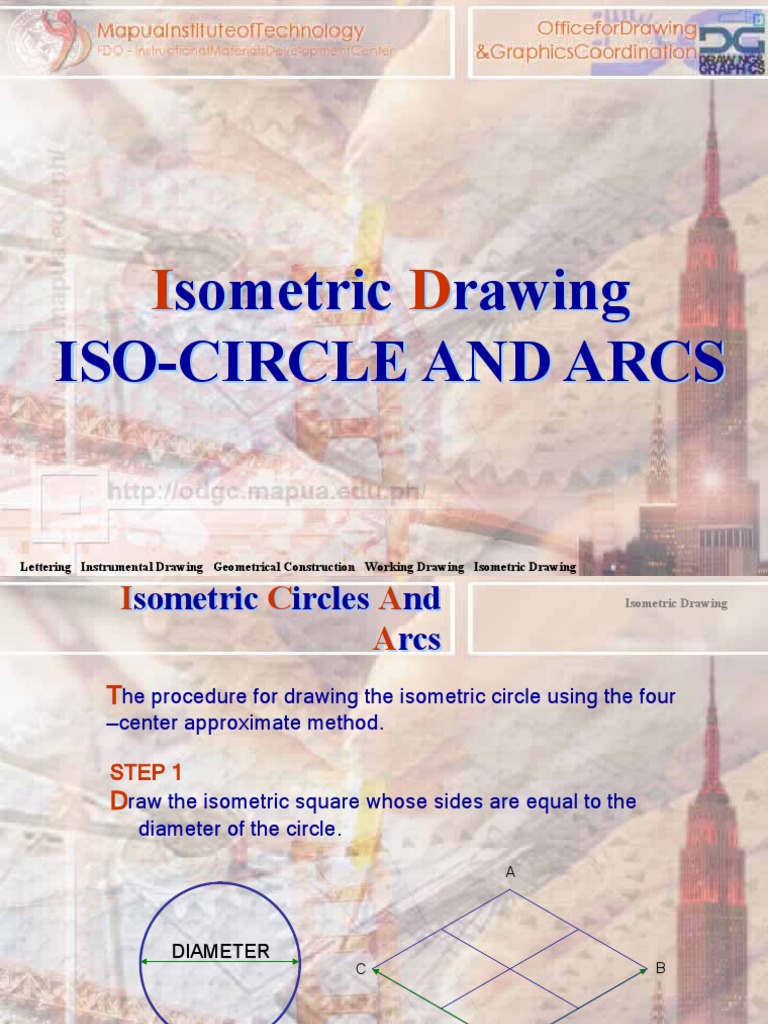

The procedure for drawing the isometric circle using the four
—center approximate method.

STEP 1
Draw the isometric square whose sides are equal to the
diameter of the circle.
A

DIAMETER
C B

Lettering Instrumental Drawing Geometrical Construction Working Drawing Isometric Drawing


Isometric Drawing
Isometric Circles And Arcs

STEP 2
Connect the corners of the isometric square by constructing two
diagonal lines AD & CB.

C B

Lettering Instrumental Drawing Geometrical Construction Working Drawing Isometric Drawing


Isometric Drawing
Isometric Circles And Arcs

STEP 3
Locate the midpoint of the sides and these points are the points of
tangency of the major and minor arcs.

C B

Lettering Instrumental Drawing Geometrical Construction Working Drawing Isometric Drawing


Isometric Drawing
Isometric Circles And Arcs

STEP 4
Locate the centers of the major arcs.
The centers of the major arcs are the end points of the shorter diagonal
lines which are points A & D.

C B

Lettering Instrumental Drawing Geometrical Construction Working Drawing Isometric Drawing


Isometric Drawing
Isometric Circles And Arcs

STEP 5
Locate the centers of minor arcs.
The centers of minor arcs can be located by connecting the
centers of the major arcs to the midpoint of their opposite sides, the
intersections of these lines are the centers of the minor arcs which
are points E & F.

C B
E F

Lettering Instrumental Drawing Geometrical Construction Working Drawing Isometric Drawing


Isometric Drawing
Isometric Circles And Arcs

STEP 6
Draw the major and minor arcs using the located center points.

C B
E F

Lettering Instrumental Drawing Geometrical Construction Working Drawing Isometric Drawing


Isometric Drawing

Isometric Arcs

An isometric arc is constructed using the four—center approximate


method by selecting the required portion of the isometric circle.
R1.00

Lettering Instrumental Drawing Geometrical Construction Working Drawing Isometric Drawing


Isometric Drawing

Isometric Arcs

Lettering Instrumental Drawing Geometrical Construction Working Drawing Isometric Drawing


Isometric Drawing

Isometric Arcs

Lettering Instrumental Drawing Geometrical Construction Working Drawing Isometric Drawing
