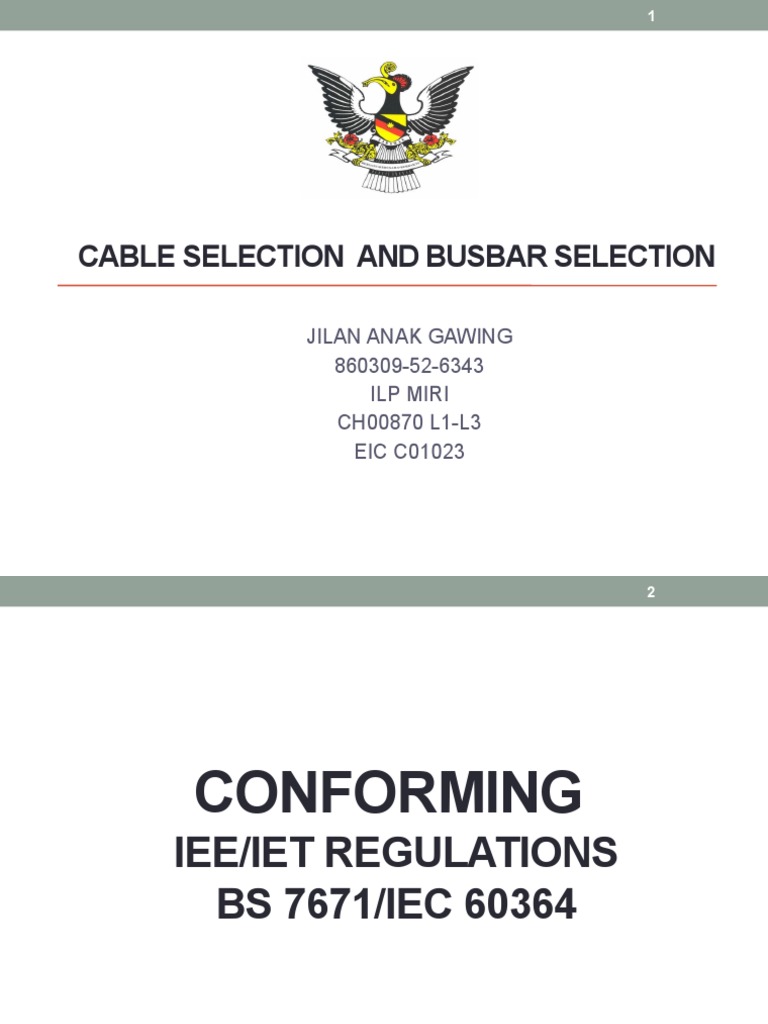

CABLE SELECTION AND BUSBAR SELECTION
JILAN ANAK GAWING
860309-52-6343
ILP MIRI
CH00870 L1-L3
EIC C01023
2
CONFORMING
IEE/IET REGULATIONS
BS 7671/IEC 60364
3
4
Conforming Regulation in Cable Selection.
5
FACTORS IN CONSIDERATION TO CHOOSE CABLE SIZE.
1. Current Rating setting in Protective Device (ACB(OCR),MCB/MCCB/Fuse)
2. Effective Current causes Protective Device (ACB(OCR),MCB/MCCB/Fuse) operated
conventional to time.
3. Cable Laying Method/Cable Conveying Method.
4. Insulation Type for Cable.
5. Design Operating Temperature
6. Cable formation designs (Core number, Shield, Screen, Armoured)
7. Current-Carrying Capacity of Cable
8. Size for cable may be changed due to Correction Factor ,if cable laid in different
condition, it correction may related to:
a. Ambient Temperature
b. Depth Laying
c. Soil Thermal Resistivity
d. Group Rating Factor
e. Thermal Insulation
9. Size for cable may be changed due to following factor:
a. Distance
b. Percentage Drop of Voltage
6
Relevant Symbols for Correction Factors.
Ca - Ambient Temperature (Air @ Ground)
Cd - Depth Laying (U/G)
Cs - Soil Thermal Resistivity(U/G)
Cg - Group Rating Factor (Air Installation)
Cc – Group Circuit buried in ground (U/G)
Ci - Insulation Thermal
7
GUIDE OF CABLE SELECTION FOR
INSTALLATION OTHER THAN U/G AND
AERIAL LINE
8
Overcurrent Protective Device
-MCB rating BS60898 TYPE C,B,D
9
Overcurrent Protective Device-MCCB
10
Effective Current of Protection
Overcurrent Devices in Overload Conditions
Protection Device and Class Time Effective Current
MCB Class B,C,D 1.5×In
1 Minute- 2 Minutes@ Less than 1 Hours
MCCB Class Category A,B
1.5×In
Less than 1 Hours
Fuse BS88 1.8×In
Less than 1-2 Hours
Fuse BS 1361
1.6×In
Less than 1-2 Hour
Fuse BS 3036 1.45×In
Less than 1-2 Hours
IDMT OCR Type 1 1×Iset
Depend on TMS,PMS
IDMT OCR Type 1.2
1.2×Iset
Depend on TMS,PMS
Oil Dashpot Relay(OCR)
1.2×Iset
Depend on Class (A-10sec,B-20sec,
C-50sec,D-100sec,E-400sec,F-900sec)
Thermal Overload Relay 1.2×Iset
Class 10-40sec,Class 20-90sec,
Class 30-140sec
Overload Relay Adjustable according to [Link] 5,Class 10 1.2×Iset
(Solid State Type) Class 15,Class 20,Class 30
11
INSTALLATION METHODS
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Correction Factor
Ambient Temperature
(Ca)
27
Correction Factor for Ambient (Ca)
28
Correction Factor
Thermal Insulation
(Ci)
29
30
Correction Factor
Circuit Grouping
(Cg)
31
Cable Grouping (Cg)
• Consideration.
– Bunch and Layer
– Uniform Size and Not Uniform Size
32
Grouping -Cable in Layer
33
Grouping-Cable in Bunch
34
Cg for Cable Grouping
(Not uniform size)
35
Cg for Cable Grouping
(uniform size)
36
Cg for Cable Grouping
(uniform size)-for some installation not provided inTable 5 (Cable Group)
37
Cg for Cable Grouping
(uniform size)-for some installation not provided inTable 5 (Cable Group)
38
Cg for Cable Grouping
(uniform size)-for some installation not provided inTable 5 (Cable Group)
39
Cg for Cable Grouping
(uniform size)-for some installation not provided inTable 5 (Cable Group)
40
41
Appendix
Current –carrying Capacity
of Cable
42
CABLE SELECTION FOR INSTALLATION
OTHER THAN U/G AND AERIAL LINE
43
44
EXERCISE 1-METHOD A
4 circuits running in metal trunking, fed to single phase supply 240V/50Hz in ambient
temperature 40°C, without insulation thermal and each circuit connected using
1C/PVC/non-armoured, without sheath. Each circuit shall be protected using MCB SP
class C. By aid following information, find adequately CSA of cable for each circuit.
Circuit 1
10 lighting points , 100W per point, 1.8 must be taken in calculation, diversity
allowance 95%,distance 20 meters
Circuit 2
8 lighting points , 100W per point, 1.8 must be taken in calculation, diversity
allowance 95%, distance 20 meters
Circuit 3
1 Hp air-conditioner, distance 10 meter PF and inrush current can be neglected.
Circuit 4
8 points for Socket outlet 13A,assume power usage per point is 500W,longer
point 10 meters
45
46
EXERCISE 2-METHOD B
4 circuits running in metal trunking, fed to single phase supply 240V/50Hz in ambient
temperature 40°C, without insulation thermal and each circuit connected using
1C/PVC/non-armoured, without sheath. Each circuit shall be protected using MCB SP
class C. By aid following information, find adequately CSA of cable for each circuit.
Circuit 1
10 lighting points , 100W per point, 1.8 must be taken in calculation, diversity
allowance 95%,distance 20 meters
Circuit 2
8 lighting points , 100W per point, 1.8 must be taken in calculation, diversity
allowance 95%, distance 20 meters
Circuit 3
1 Hp air-conditioner, distance 10 meter PF and inrush current can be neglected.
Circuit 4
8 points for Socket outlet 13A,assume power usage per point is 500W,longer
point 10 meters
47
48
EXERCISE 3-METHOD C
4 circuits running in metal trunking, fed to single phase supply 240V/50Hz in ambient
temperature 40°C, without insulation thermal and each circuit connected using
1C/PVC/non-armoured, without sheath. Each circuit shall be protected using MCB SP
class C. By aid following information, find adequately CSA of cable for each circuit.
Circuit 1
10 lighting points , 100W per point, 1.8 must be taken in calculation, diversity
allowance 95%,distance 20 meters
Circuit 2
8 lighting points , 100W per point, 1.8 must be taken in calculation, diversity
allowance 95%, distance 20 meters
Circuit 3
1 Hp air-conditioner, distance 10 meter PF and inrush current can be neglected.
Circuit 4
8 points for Socket outlet 13A,assume power usage per point is 500W,longer
point 10 meters
49
EXERCISE 4
By aid figure above ,find sufficiently CSA of cable for each circuit. Assume
voltage drop is not be problem in installation.
50
EXERCISE 5
By aid figure above ,find sufficiently CSA of cable for each circuit. Assume
voltage drop is not be problem in installation.
51
CABLE SELECTION FOR INSTALLATION
U/G ONLY
52
Underground Cable Selection
53
EXERCISE 6
By aid figure above ,find sufficiently CSA of cable for each circuit. Consideration shall
be included voltage drop .
54
EXERCISE 7
By aid figure above ,find sufficiently CSA of cable for street lighting system.
Consideration shall be included voltage drop .
55
GUIDE OF CABLE SELECTION FOR
UNDERGROUND CABLE INSTALLATION
56
Overcurrent Protective Device-MCCB
57
CORRECTION FACTOR AND
CURRENT-CARRYING CAPACITY OF
CABLE ACCORDING TO CABLE
INSTRUCTION MANUAL OF
MANUFACTURE
58
CORRECTION FACTOR
59
CORRECTION FACTOR
60
CORRECTION FACTOR
61
62
63
CONDUCTOR SIZING FOR LV
DISTRIBUTION BOARD
(SWITCHGEAR AND CONTROLGEAR ASSEMBLIES)
64
Compliant Regulation
65
Cable Selection for Low Voltage Distribution Board and Assemblies
According to IEC 439/BS EN 61439
Type of Conductor.
1. Bare conductors or single-core conductors with basic insulation, for example cables
according to IEC 60227-3.
2. Single-core conductors with basic insulation and a maximum permissible conductor
operating temperature of at least 90 °C, for example cables according to
IEC 60245-3, or heat-resistant thermo-plastic (PVC) insulated cables according to
IEC 60227-3.
3. Single or multi-core sheathed cables, for example cables according to IEC 60245-4
or IEC 60227-4.
66
67
68
Exercise
Determine the CSA of cable for connection between busbar of
feeder pillar to each MCCB for outlet.
69
BUSBAR SIZING
70
Basic Guide to select
current-carrying capacity of busbar.
71
BUSBAR SIZE SELECTION ACCORDING
TO IEC 439/BS439/BS159
72
Appendix-Current-Carrying
Capacity of Busbar
73
74
Power Losses in Busbar
75
Re-rating Current Carrying Capacity of Busbar
76
Exercise
Find CSA of Busbar at “Main” and “Sub”.
77
BUSBAR SIZE SELECTION
ACCORDING TO COPPER
DEVELOPMENT ASSOCIATION
78
79
80
Factors to Re-rating Current Carrying Capacity of Busbar
• Ambient temperature.
• Maximum temperature rise.
• Operating temperature.
• Rated correction factor may obtained by refer to appendix in regulation or by
calculation using equation below:
I1= current 1, A
I2 = current 2, A
θ1 = temperature rise for current 1, °C
θ2= temperature rise for current 2, °C
T1 = working temperature for current 1, °C
T2 = working temperature for current 2, °C
T20 = temperature coefficient of resistance at 20°C ( = 0.00393)-Annealed Cooper
81
Exercise 1
OCR IDMT type 1.2 with setting 100% at 600A. Find sufficient CSA of copper
busbar for installation LV Main Switchboard which ambient temperature
40 °C and operating temperature 70 °C.
82
APPENDIX COPPER DEVELOPMENT
ASSOCIATION
HIGH CONDUCTIVITY COPPER
(40°C Ambient, 50°C Temperature Rise)
Frequency AC rating up to 60Hz
83
84
85
86
87
88
PROTECTIVE CONDUCTOR SELECTION
89
Protective Conductor according to table in
IET/IEE Regulation/BS 61439
90
Exercise
• Find size of main cable for earth.
91
Calculation Method-BS 61439
92
93
Exercise
• Find size of main cable for earth.
