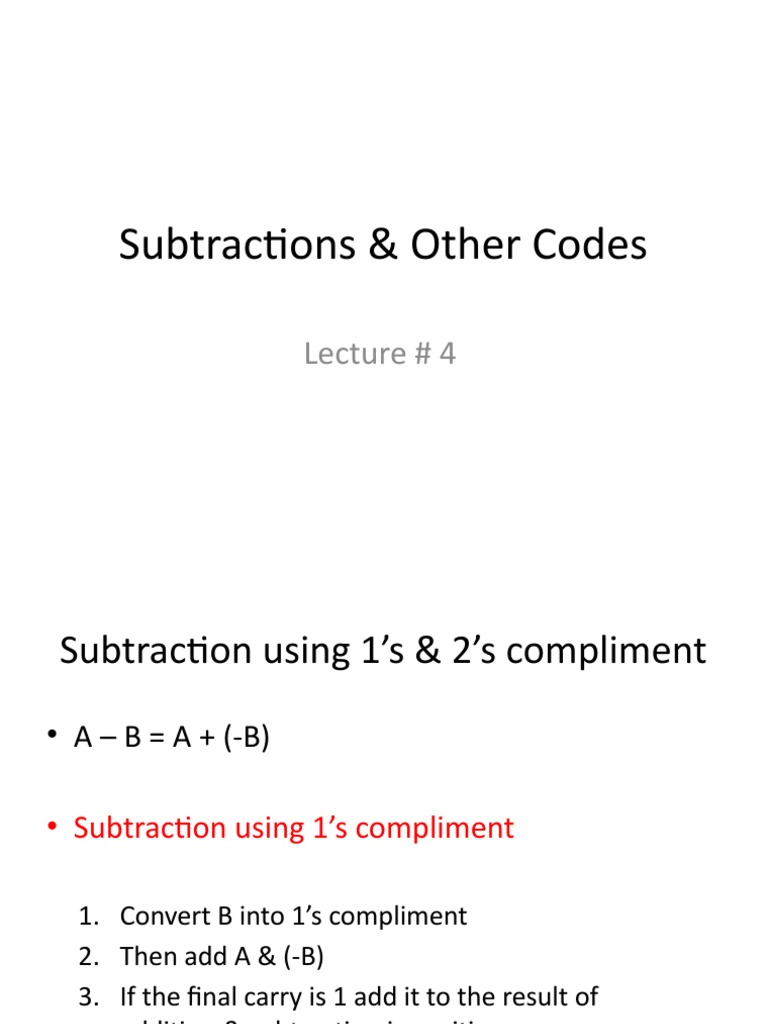

Subtractions & Other Codes

Lecture # 4
 Subtraction using 1’s & 2’s compliment
• A – B = A + (-B)

• Subtraction using 1’s compliment

1. Convert B into 1’s compliment

2. Then add A & (-B)
3. If the final carry is 1 add it to the result of
addition,& subtraction is positive.
4. If the final carry is 0 ,then the result is negative and
take its complement again.
 Case 1
• Both positive ,A>B
• Perform 1011 – 0100 by 1’s complement.
• A =1011
• B= 0100
• B’=1011
• S= 10110
 Self Task
• Using 1’s Complement,
– Perform X-Y if X = 1010100 and Y = 1000011

– Perform Y-X
 Case 2
• Using 2’s Complement of following signed
numbers:
– Perform +6+13 ,

– Perform +6-13

– Perform -6-13
 Binary Code

Digital data is represented in group of binary bits

called binary code.
 Binary Coded Decimal
• It is numeric code in which each digit of
decimal number is represented by seperate
group of bits.
• Represent 0-9 decimal
• 5 0101
 BCD Addition
• Having 3 cases
• Case 1: Sum equals to 9 or less with 0 carry
6+3=9
A= 0110 6
B= 0011 3
S= 1001 9
 BCD Addition
• Case 2 : Sum greater than 9 with carry 0
– Add 6 bits for correction
– E.g : 6 + 8 = 14

A = 0110 6
B = 1000 8
S = 1110 14 Invalid BCD
Add 6 for correction
S = 1110
6 = 0110
Ans = 10100
0001 0100
1 4
 BCD Addition
• Case 3 : Sum equals to 9 or less with carry 1
– Add 6 bits for correction
– E.g : 8 + 9 = 17

A = 1000 8
B = 1001 9
S= 10001
0001 0001 11 Invalid Result
Add 6 for correction
S = 0001 0001
6 = 0110
Ans = 0001 0111
1 7 Correct Result
 Self Task
• Add 24 + 18 = 42

A = 0010 0100 24
B = 0001 1000 18
S = 0011 1100 312 Invalid
Add 6 = 0110
= 0100 0010
4 2 Correct Result
 Gray Code 0000 0
0001 1
0011 2
• Use to detect errors in 0010 3
the bits 0110
0111
4
5
• Two numbers differ only 0101 6
0100 7
in 1 bit position 1100 8
• 0-15 decimal 1101 9
1111 10
1110 11
1010 12
1011 13
1001 14
1000 15
 Conversions
• Gray code to binary code (Discard Carries)
G =1 1 1 0

B =1 0 1 1
 Conversions
• Binary code to Gray code (Add)

• B = 1 0 1 1 (Discard Carries)

• G = 1 1 1 0
 Self Task

• Convert the following binary in gray

– 1100,11010
• Convert the following gray in binary
– 1010,1000
 Error Detection Codes
• Parity Method for Error Detection
– A parity bit is attached to a group of bits to make
the total number of 1’s in a group always even or
odd.
 Error Detection Codes
• Detecting an error
– Suppose we have transmitted BCD 6 using parity
bit.

– We received the data with some errors.

 Self Task
• Assign the proper even parity bit to the
following codes.
– 1010, 111000, 101101, 1000111001001
 Self Task
• An odd parity system receives the following
code groups:
– 10110, 11010, 110011, 110101110100,
1100010101010
– Determine which groups, if any, are in error.
