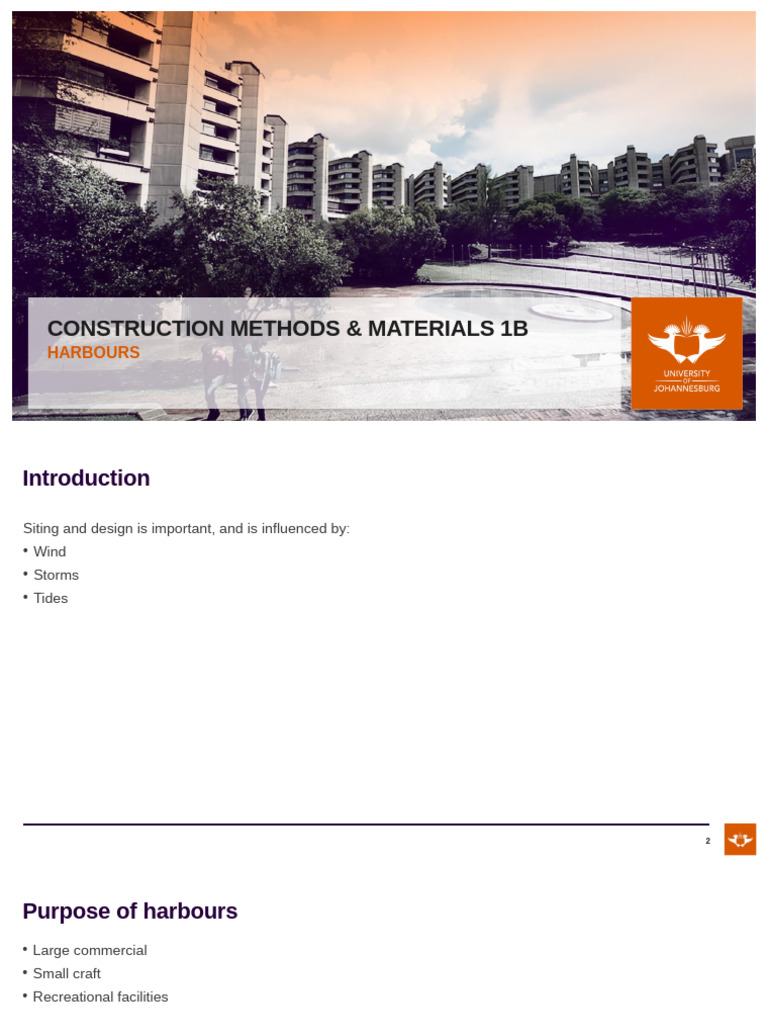

CONSTRUCTION METHODS & MATERIALS 1B

HARBOURS
Introduction

Siting and design is important, and is influenced by:


• Wind
• Storms
• Tides

2
Purpose of harbours
• Large commercial
• Small craft
• Recreational facilities

Large harbours are situated at:


• Durban
• Richards Bay
• PE
• Cape Town

3
Factors for harbour planning

• Location
• Need for harbour protection
• Advantages vs. disadvantages
• Finance
• Type of harbour
• Number, size and type of craft to be accommodated

4
Definitions

• Wharf – a platform where loading and unloading of ships takes place


• Dock – area between two wharfs used for mooring ships
• Dry dock – ships can be accommodated and water can be drained
• Pier – similar to wharf
• Mooring – a place to anchor ships

5
Definitions

• Berth – a place assigned to a ship for mooring


• Jetty – a structure build from the shore that extends into the water
• Quay – A wharf build parallel to the shore
• Breakwater – massive wall build into the sea to protect the harbour against waves
• Slipway – ramp from which vessels are launched
• Buoy – orange coloured float to show danger

6
Breakwater
Entrance

Pier Pierhead

Quay Slip
Wharf
Entrance

Pier Breakwate
r

Cargo
sheds
Functions

• Shelters vessels
• Supports ships at sea – lighthouses, foghorns
• Service provision – refuelling, ship maintenance
• Receive and dispatch cargo

9
Types

• Natural – carved out of land: New York

• Improved – providing breakwaters or removing sandbars: Durban

• Artificial – built on dry land and then opened to the sea: Cape Town

10
Wharf

• A structure that allows for vessels to lie alongside to receive and discharge cargo

and passengers

• Quay: build parallel to shore (marginal wharf)

• Pier: wharf build at angle to shoreline

• Slip: berthing and manoeuvring space between piers

11
Wharf

Substructures

Solid fill – vertical gravity wall on the waterfront face. Earth is backfilled behind the wall and
covered

Open type – wharf is supported by concrete or steel piles. Girders are placed on top, and
decking is placed on the girders

12
Bulkheads, seawalls & revetments

Bulkhead – placed parallel to the shoreline. Secondary line of defence in major storms

Seawalls – protects the land from scouring action of waves

Revetment – 1 + layers of stone/concrete on the sloping face of the seawall. Dissipates wave energy

13
Bulkheads, seawalls and revetments

bulkhead

Seawall Revetment

14
Jetties

• Extends into the water to direct tidal flow in a channel


• Prevent or reduce silting
• Protects entrance from wave action and cross currents

15
Breakwater

• A structure to protect harbour against wave action.

• Three main types:


• Vertical sides
• Rubble mounds (replaces by dollos)
• Composite

16
Dollos

17
Dollos

18
THE END
