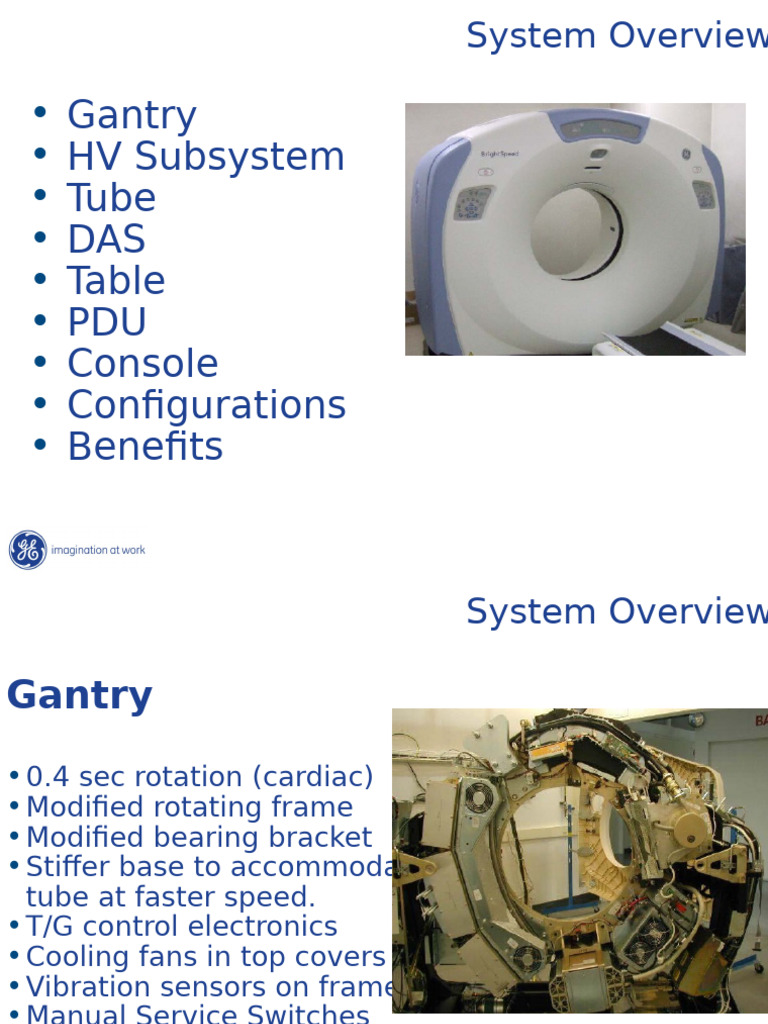

System Overview
• Gantry
• HV Subsystem
• Tube
• DAS
• Table
• PDU
• Console
• Configurations
• Benefits
System Overview
Gantry
• 0.4 sec rotation (cardiac)
• Modified rotating frame
• Modified bearing bracket
• Stiffer base to accommodate
tube at faster speed.
• T/G control electronics
• Cooling fans in top covers
• Vibration sensors on frame
• Manual Service Switches
System Overview
Gantry Slip Ring
Configuration
5 Power Rings: AC120 (2); DC650 (2); GND (1)
Larger contact surface – higher current
4 signal rings: LSCOM (3); EXP Enable (1)
1 HSDCD transceiver for DAS Data
DAS Data Transfer
800 – 850Mbaud range
833Mbaud average
System Overview
JEDI HV Subsystem
Tube D3146T D3186T
Output 42kW Jedi 60kW Jedi
Power
kV -80 to –140 kV 80 to 140 kV
Bi Polar Bi polar
(cathode and anode (cathode and anode
kv) kV)
Input Power 670 Vdc nominal 670 Vdc nominal
120 Vac 120 Vac
System Overview
Performix Ultra Tube
Most proven CT Tube in the world.
Strong performance
Greater exam flexibility through:
Peak power (53.2 kW)
mA range (10 – 440 mA)
Capable of routine 0.5 sec scanning
Outstanding Image Quality:
Smaller focal spots than competition
IQ provided by GE.
System Overview
Data Acquisition System
Global DAS (GDAS)
Compatible with 4/8/16 slice detector
Scalable scan modes
48 or 96 converter boards
Programmable DAS Control Board
Fiber Optic Interface to Slip Ring
Analog and Digital Power Supplies
System Overview
Table Specifications
t (Max) 44” (1120mm) Table fully elevated.
(Max) 24” (610mm)
h (Max) 199” (5055mm) lowest table position
t (Max) 340kg (750 lbs)
ion Range 20.26” (514,6mm) to 39” (991mm)
al Scan-able Range 31.75”(806mm) to 39”(991mm)
ntal Scan-able Range 1700mm metal-free (axial)
1600mm metal-free (helical & Scout)
able Total Cradle Range 67" (1703 mm)
Load Capacity 181 kg (400 lb) +/-0.25 mm positional accuracy
Load Capacity 205 kg (450 lb) +/-0.75 mm positional accuracy
udinal Velocity Range 0.5mm/s to 100.0 mm/s +/-1%,
um Slice Increment 0.5mm
ion Travel Time Fast: 25 -30sec , 5 mm/sec
Slow 110 -120 sec, 40 mm/sec
Power 120Vac nom. (95-132Vac)
System Overview
Control Electronics
Board: Table Gantry Processor
ost Processor of the Gantry side communication with
C side via Ethernet.
xWorks OS with 32 bit CPU.
ommunication to ORP by LSCOM chip.
ontrol MSUB functionality by direct connector signal.
ocated in Stationary Gantry
B Board: Milwaukee Subordinate Board
GP controls axial drive, tilt and Table movement through MSUB.
SUB control relays gantry tilt control.
terface functionality to IHHC and Foot SW for Smartview.
ocated on Stationary Gantry
Board: On Rotation Processor
xWorks OS with 32bit CPU.
AN Direct communication to JEDI, CCB, DCB.
ontrol alignment lights and Gantry ambient thermal sensor.
ocated in Rotating Gantry.
B Board: Milwaukee Table Control
ocated in table base.
dapts TGP Board and using new elevation, cradle driver and absolute encoder.
AN communication to MSUB.
System Overview
NGPDU
r input: 380/400/415/440/460/480V 3phase AC
gulation: 50/60Hz ( 47-53 or 57 to 63 )
r Rating: 150KVA momentary
ut: 670 Vdc nom (480 -740 Vdc) (for JEDI)
120 Vac nom. (95 -132 Vac)
440V 3φAC (for axial driver/motor)
power connections:
/0 for 380 -420 Vac
for 440 -480 Vac
/0 gnd wire all cases
Circuit Breaker Rating:
5A with shunt trip by a input transformer thermal overload.
EMC Filtering:
w inductance, AC filter capacitors on the load side ofCB1
transformer: Multiple winding, 3-phase isolation transformer
ht: 770 lbs. (350 kg) nominal
nsions: 711(W) x 559 (D) x 1067(H) mm 28”x22”x42”( Maximum
System Overview
GRE Console
Linux Host PC Computer
• HP8000
• CPU Dual P4 Xeon 2.6 GHZ
• Memory: 2 GB
• Disk: 1 x 36GB & 2 x 73GB
Recon Engine
• DARC (Data Acquisition and Recon Control)
• IG (Image Generator)
• SDDA (Scan Data Disk Array)
GRE Recon Specs:
• Time to first image: < 2 secs
• Image cycle time: 6 fps
System Overview
Configurations
SYSTEM TUBE GENERATOR DFOV DAS TABLE COMMENTS
LightSpeed Performix Pro Jedi 100 48cm MDAS16
Pro16 100 GDAS16 H Power • 0.4 sec rotation speed
• Owner: Milwaukee
(Hercules)
LightSpeed HP60 Performix Ultra Jedi 60 48cm MDAS16/8/4 • 0.5 sec rotation speed
LightSpeed VFX* GDAS16/8/4 H Power • Owner: Hino
*(workflow options)
• 0.5 sec rotation speed
BrightSpeed Elite Performix Ultra Jedi 60 48cm GDAS16 H Power • Owner: Hino
• 0.5 sec rotation speed
BrightSpeed Edge Performix Ultra Jedi 60 48cm GDAS8 H Power • No IG & no MOD
• Owner: Hangwei
• 0.5 sec rotation speed
BrightSpeed Excel Performix Ultra Jedi 60 48cm GDAS4 H Power • No IG & no MOD
• Owner: Hangwei
Jedi 100 65cm MDAS4 • 0.5 sec rotation speed
LightSpeed RT4 Performix Pro H Power • Owner: Hangwei
(53.2 kW – 440mA) GDAS 4
LightSpeed RT16 Performix Pro 100 Jedi 100 • 0.5 sec rotation speed
(53.2kW – 440mA)
65cm GDAS16 G Table • Owner: Hangwei
• 0.5 sec rotation speed
LightSpeed Xtra Performix Pro 100 Jedi 100 65cm GDAS16 G Table • Owner: Hangwei
(100kW – 800mA)
BrightSpeed System Overview
What is different?
Gantry is ~7” narrower.
Gantry Controls have different shape.
Top cover fixed with 2 screws.
TGP moved slightly to the back of the Gantry.
BrightSpeed System Overview
What is different?
PRODUCT Slice IGs IG Option SCSI Tower
s
BrightSpeed 16 1 3 IGs with
Elite
MOD
BrightSpeed 8 0 1 IG with no MOD
Edge
LFC
BrightSpeed 4 0 1 IG with no MOD
Excel
LFC
System Overview
GRE Software has come up with a new format as follows:
<software_label>.<G>_<T>_<D>_<R>_<TBL>
Software label format is as follows:
[Link]
Where: YY = Year. For example 04.
L = Location. M - Milwaukee, H - Hino, B - Beijing.
Wxx = Fiscal Week. For example W15.
ZZ = Revision number for each build.
D – DAS Type
G – Gantry Types T – Tube Type
SDAS 4 S4
LightSpeed 1X Performix
H1 Ultra (MX200) P
MDAS4 or MDAS8 M4 or M8
LightSpeed 2X Performix
H2 Pro 100 (MX240) H
MDAS 16 M16
LightSpeed 3X Performix
H2 Pro (OEM) O
GDAS 16 G16
LightSpeed 4X H2
V64 Sherlock 64
LightSpeed 5X HP
H64 Halo 64
LightSpeed RT WB
Pro32 32 slices
HiSpeed QXi QX R – Recon Hardware Type
LightSpeed 7X V40Pegasus P
GRE G
TBL – Table (only on SW Version
06MW03.X)
Examples: GTL VCT/RT16 – 2000mm
06MW03.4.V40_H_V64_G_GTL LightSpeed VCT with GTM VCT/RT16 – 1700mm
2000mm Table HPT non VCT Systems
06MW03.4.V40_H_V64_G_GTM LightSpeed VCT with 1700mm Table Zeus used on LS 1X ~ 4X
05MW10.2.V40_H_V32_G_GTL LightSpeed Pro32 slices
06MW03.5.HP_H_M16_G_HPT LightSpeed Pro 16 with
MDAS
06MW03.5 HP_H_G16_G_HPT LightSpeed Pro 16 with
GDAS
06MW03.5.WB_O_M4_G_HPT LightSpeed RT
06MW03.5HP_P_G16_G_HPT LightSpeed 5X – HP60
System Overview
Evolution
DAS Updates
MDAS updated to GDAS
System Overview
Evolution
System Overview
Evolution
GOC3 Updated to GOC4
GOC3 -> GOC4 Changes
• SDDA Eliminated
• DARC -> DARC2 (2 Scan Data Disks)
• Intercom/ Tilt Assy added
• VCT fans (better cooling)
• VCT covers w/ sound absorbing
• Air filter to reduce dust, lint.
System Overview
Customer Features
• Faster Scanning
• Increased Clinical Performance
• More / Thinner slices
• Cover more anatomy
• Scan more frequently
• 12 patients / hour
