E E 238 B1 - Winter 2012

HW #5

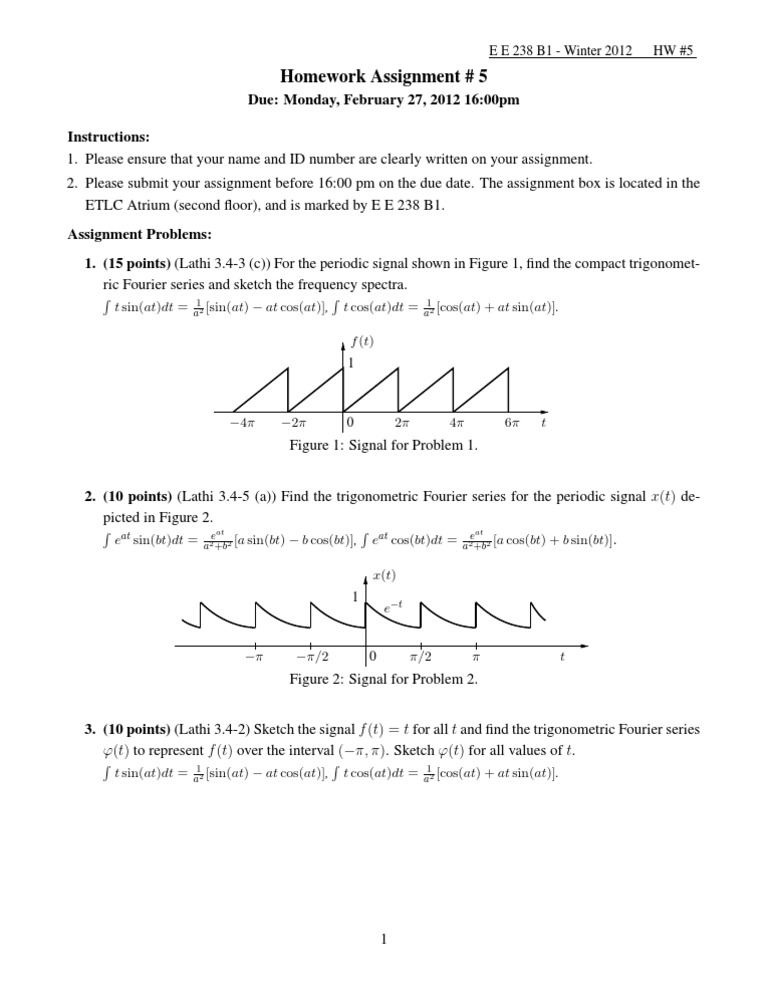

Homework Assignment # 5
Due: Monday, February 27, 2012 16:00pm Instructions: 1. Please ensure that your name and ID number are clearly written on your assignment. 2. Please submit your assignment before 16:00 pm on the due date. The assignment box is located in the ETLC Atrium (second floor), and is marked by E E 238 B1. Assignment Problems: 1. (15 points) (Lathi 3.4-3 (c)) For the periodic signal shown in Figure 1, find the compact trigonometric Fourier series and sketch the frequency spectra.
t sin(at)dt =
1 [sin(at) a2

at cos(at)],

t cos(at)dt = f (t) 1

1 [cos(at) a2

+ at sin(at)].

Figure 1: Signal for Problem 1. 2. (10 points) (Lathi 3.4-5 (a)) Find the trigonometric Fourier series for the periodic signal x(t) depicted in Figure 2. eat eat eat sin(bt)dt = a2 +b2 [a sin(bt) b cos(bt)], eat cos(bt)dt = a2 +b2 [a cos(bt) + b sin(bt)].
x(t) 1 et 0 /2 t

/2

Figure 2: Signal for Problem 2. 3. (10 points) (Lathi 3.4-2) Sketch the signal f (t) = t for all t and find the trigonometric Fourier series (t) to represent f (t) over the interval (, ). Sketch (t) for all values of t.
t sin(at)dt =
1 [sin(at) a2

at cos(at)],

t cos(at)dt =

1 [cos(at) a2

+ at sin(at)].
