    JSS ACADEMY OF TECHNICAL EDUCATION NOIDA

    Department of Electronics & Communication Engineering Subject-Integrated circuits (EEC501)


    B.Tech (EC) 5th Semester ASSIGNMENT#2 Section-EC-1 Faculty-Sangeeta Mangesh Dt- 4/10/2013 _____________________________________________________________________________________

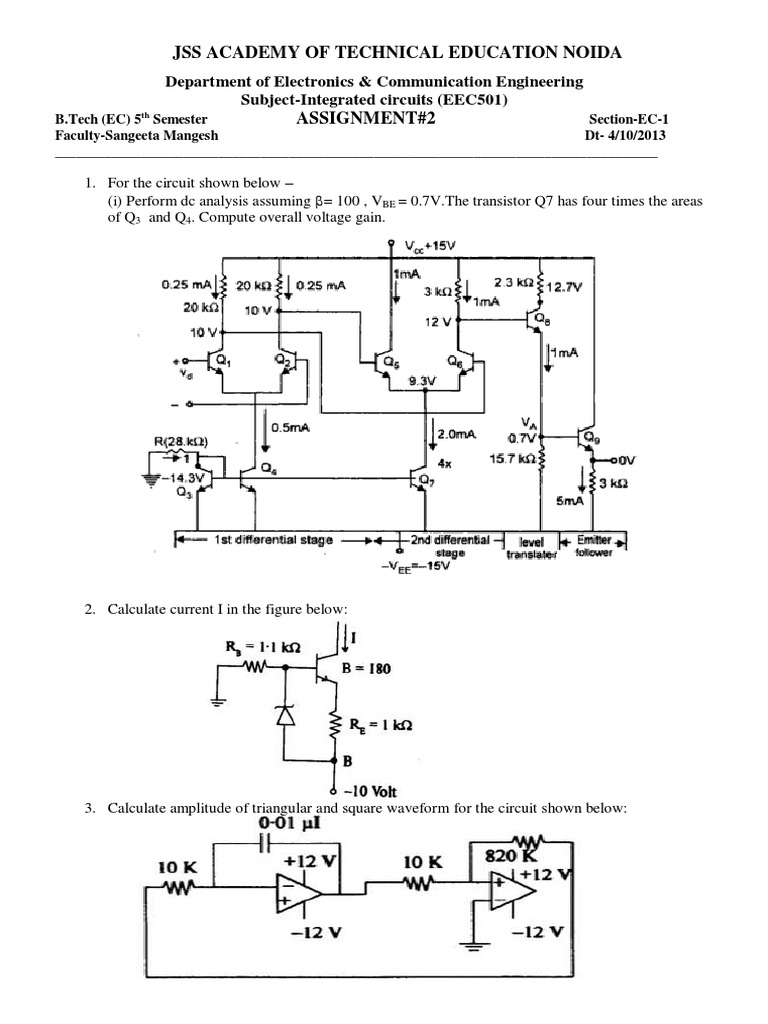

    1. For the circuit shown below (i) Perform dc analysis assuming = 100 , VBE = 0.7V.The transistor Q7 has four times the areas of Q3 and Q4. Compute overall voltage gain.

    2. Calculate current I in the figure below:

    3. Calculate amplitude of triangular and square waveform for the circuit shown below:

    4. Discuss DC analysis of ( i) input stage of opamp (ii) second stage of opamp and (iii) output stage of opamp. Discuss how short circuit protection is achieved in the output stage of opamp741.Also calculate the output resistance of opamp-741. 5. For the circuit that gives square output find the values of R and C so that square wave of 10msec can be generated.

    6. For the circuit given find the output voltage swing-
