Course Teacher: Tasnuva Chowdhury

AMERICAN INTERNATIONAL UNIVERSITY BANGLADESH

Engineering Faculty
Digital Logic Design (LAB)

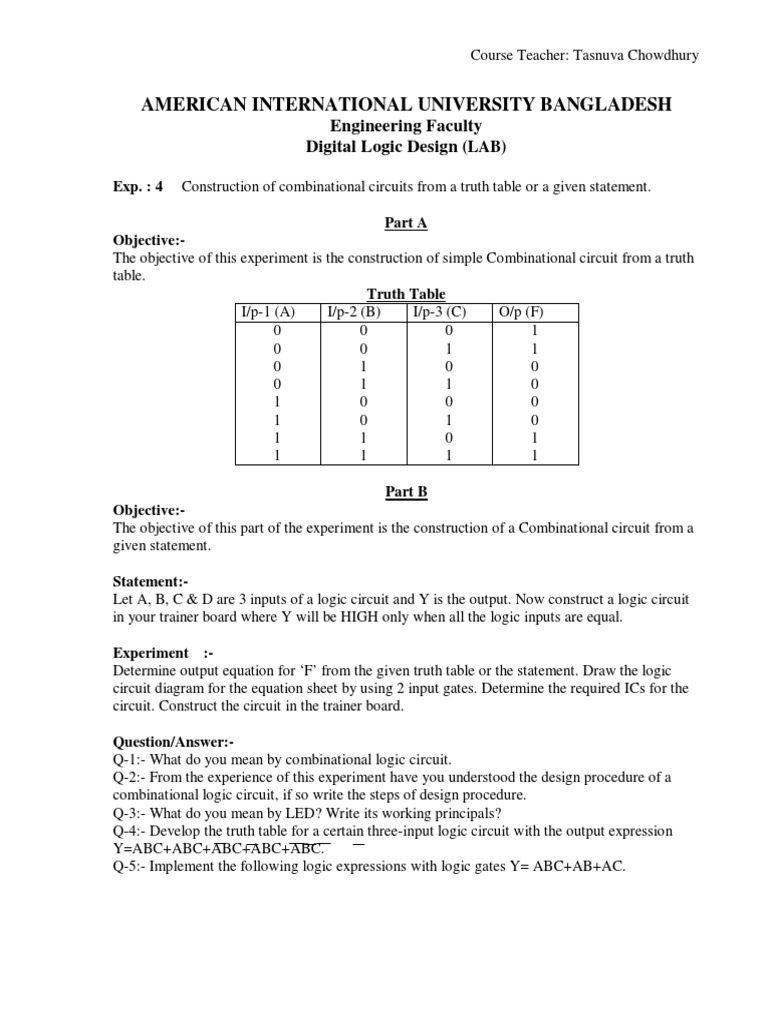

Exp. : 4 Construction of combinational circuits from a truth table or a given statement.

Part A
Objective:-
The objective of this experiment is the construction of simple Combinational circuit from a truth
table.
Truth Table
I/p-1 (A) I/p-2 (B) I/p-3 (C) O/p (F)
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
1
1
0
0
0
0
1
1

Part B
Objective:-
The objective of this part of the experiment is the construction of a Combinational circuit from a
given statement.

Statement:-
Let A, B, C & D are 3 inputs of a logic circuit and Y is the output. Now construct a logic circuit
in your trainer board where Y will be HIGH only when all the logic inputs are equal.

Experiment :-
Determine output equation for F from the given truth table or the statement. Draw the logic
circuit diagram for the equation sheet by using 2 input gates. Determine the required ICs for the
circuit. Construct the circuit in the trainer board.

Question/Answer:-
Q-1:- What do you mean by combinational logic circuit.
Q-2:- From the experience of this experiment have you understood the design procedure of a
combinational logic circuit, if so write the steps of design procedure.
Q-3:- What do you mean by LED? Write its working principals?
Q-4:- Develop the truth table for a certain three-input logic circuit with the output expression
Y=ABC+ABC+ABC+ABC+ABC.
Q-5:- Implement the following logic expressions with logic gates Y=ABC+AB+AC.
