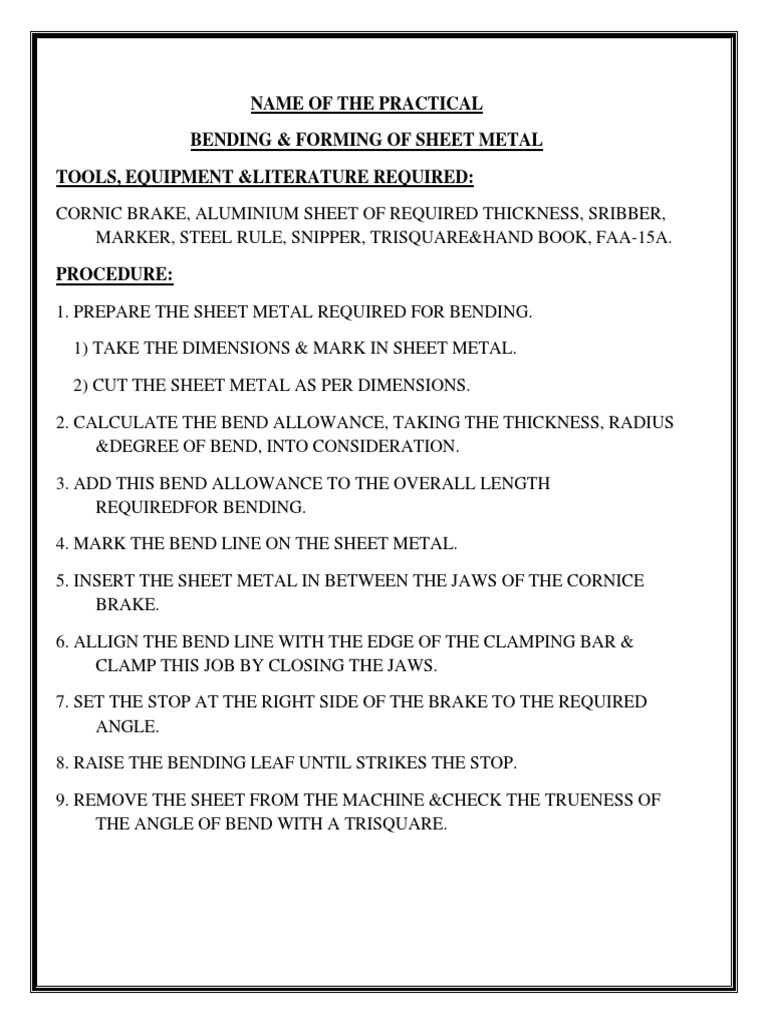

NAME OF THE PRACTICAL

BENDING & FORMING OF SHEET METAL


TOOLS, EQUIPMENT &LITERATURE REQUIRED:
CORNIC BRAKE, ALUMINIUM SHEET OF REQUIRED THICKNESS, SRIBBER,
MARKER, STEEL RULE, SNIPPER, TRISQUARE&HAND BOOK, FAA-15A.
PROCEDURE:
1. PREPARE THE SHEET METAL REQUIRED FOR BENDING.
1) TAKE THE DIMENSIONS & MARK IN SHEET METAL.
2) CUT THE SHEET METAL AS PER DIMENSIONS.
2. CALCULATE THE BEND ALLOWANCE, TAKING THE THICKNESS, RADIUS
&DEGREE OF BEND, INTO CONSIDERATION.
3. ADD THIS BEND ALLOWANCE TO THE OVERALL LENGTH
REQUIREDFOR BENDING.
4. MARK THE BEND LINE ON THE SHEET METAL.
5. INSERT THE SHEET METAL IN BETWEEN THE JAWS OF THE CORNICE
BRAKE.
6. ALLIGN THE BEND LINE WITH THE EDGE OF THE CLAMPING BAR &
CLAMP THIS JOB BY CLOSING THE JAWS.
7. SET THE STOP AT THE RIGHT SIDE OF THE BRAKE TO THE REQUIRED
ANGLE.
8. RAISE THE BENDING LEAF UNTIL STRIKES THE STOP.
9. REMOVE THE SHEET FROM THE MACHINE &CHECK THE TRUENESS OF
THE ANGLE OF BEND WITH A TRISQUARE.
