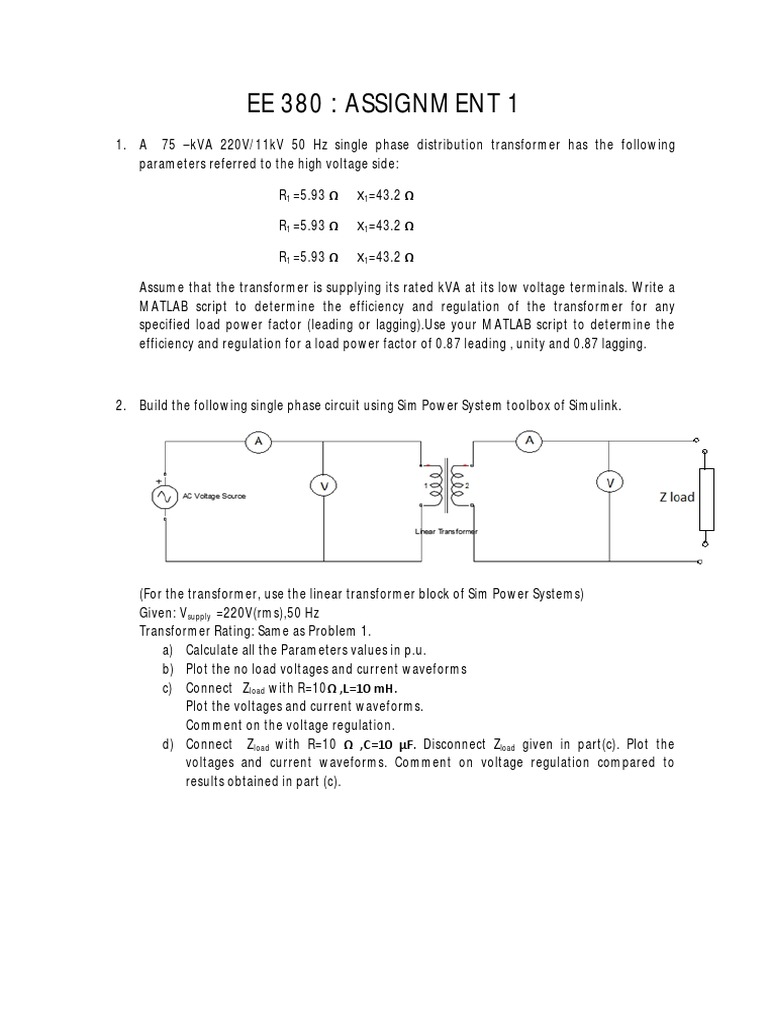

EE 380 : ASSIGNMENT 1

1. A 75 kVA 220V/11kV 50 Hz single phase distribution transformer has the following

parameters referred to the high voltage side:
R1 =5.93

X1=43.2

R1 =5.93

X1=43.2

R1 =5.93

X1=43.2

Assume that the transformer is supplying its rated kVA at its low voltage terminals. Write a
MATLAB script to determine the efficiency and regulation of the transformer for any
specified load power factor (leading or lagging).Use your MATLAB script to determine the
efficiency and regulation for a load power factor of 0.87 leading , unity and 0.87 lagging.

2. Build the following single phase circuit using Sim Power System toolbox of Simulink.

(For the transformer, use the linear transformer block of Sim Power Systems)
Given: Vsupply =220V(rms),50 Hz
Transformer Rating: Same as Problem 1.
a) Calculate all the Parameters values in p.u.
b) Plot the no load voltages and current waveforms
c) Connect Zload with R=10 ,L=10 mH.
Plot the voltages and current waveforms.
Comment on the voltage regulation.
d) Connect Zload with R=10 ,C=10 F. Disconnect Zload given in part(c). Plot the
voltages and current waveforms. Comment on voltage regulation compared to
results obtained in part (c).
