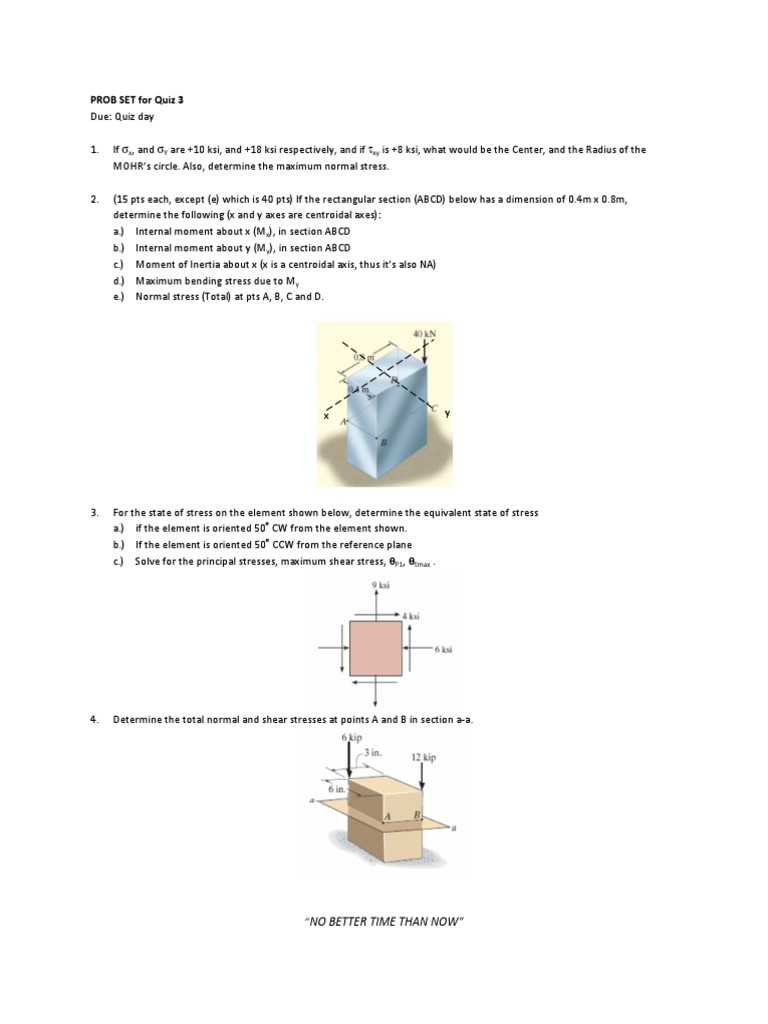

PROB SET for Quiz 3

Due: Quiz day

1.

If x, and Y are +10 ksi, and +18 ksi respectively, and if xy is +8 ksi, what would be the Center, and the Radius of the
MOHRs circle. Also, determine the maximum normal stress.

2.

(15 pts each, except (e) which is 40 pts) If the rectangular section (ABCD) below has a dimension of 0.4m x 0.8m,
determine the following (x and y axes are centroidal axes):
a.) Internal moment about x (Mx), in section ABCD
b.) Internal moment about y (My), in section ABCD
c.) Moment of Inertia about x (x is a centroidal axis, thus its also NA)
d.) Maximum bending stress due to My
e.) Normal stress (Total) at pts A, B, C and D.

3.

For the state of stress on the element shown below, determine the equivalent state of stress
a.) if the element is oriented 50 CW from the element shown.
b.) If the element is oriented 50 CCW from the reference plane
c.) Solve for the principal stresses, maximum shear stress, P1, max .

4.

Determine the total normal and shear stresses at points A and B in section a-a.
