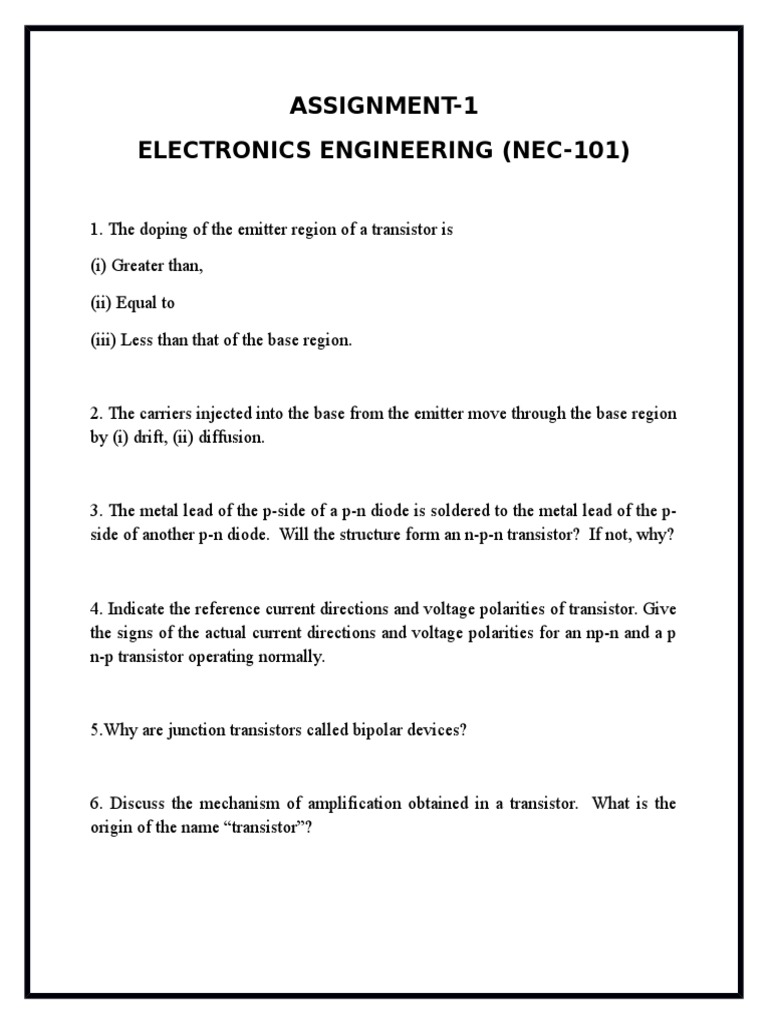

    ASSIGNMENT-1

    ELECTRONICS ENGINEERING (NEC-101)


    1. The doping of the emitter region of a transistor is
    (i) Greater than,
    (ii) Equal to
    (iii) Less than that of the base region.

    2. The carriers injected into the base from the emitter move through the base region
    by (i) drift, (ii) diffusion.

    3. The metal lead of the p-side of a p-n diode is soldered to the metal lead of the pside of another p-n diode. Will the structure form an n-p-n transistor? If not, why?

    4. Indicate the reference current directions and voltage polarities of transistor. Give
    the signs of the actual current directions and voltage polarities for an np-n and a p
    n-p transistor operating normally.

    5.Why are junction transistors called bipolar devices?

    6. Discuss the mechanism of amplification obtained in a transistor. What is the


    origin of the name transistor?

    ASSIGNMENT-2
    ELECTRONICS ENGINEERING (NEC-101)
    1. A transistor is operating in the CE mode. Calculate VCE if =125, assuming
    VBE=0.6V, and Ico<<Ic

    2. The load resistance of a centre tapped full wave rectifier is 500 and the
    necessary voltage (end to end) is 60sin (100t). Calculate a) peak, average and rms
    values of current. b) Ripple factor c) efficiency of the rectifier, assume diode
    forward resistance RF=50 .

    3. A half-wave rectifier use a diode with diode forward resistance of RF=100 if


    the i/p ac voltage is220V (rms) and the load resistance is of 2k determine
    a) Peak, average and rms values of current.
    b) Ripple factor
    c) Efficiency of the rectifier

    4. Plot the minority and majority carrier current components in a p-n junction
    diode as a function of distance from the junction.

    5. Describe the physical mechanism of zener and avalanche break down. Explain
    the difference between the two.

    6. What is the effect of increasing temperature in extrinsic semiconductor?
