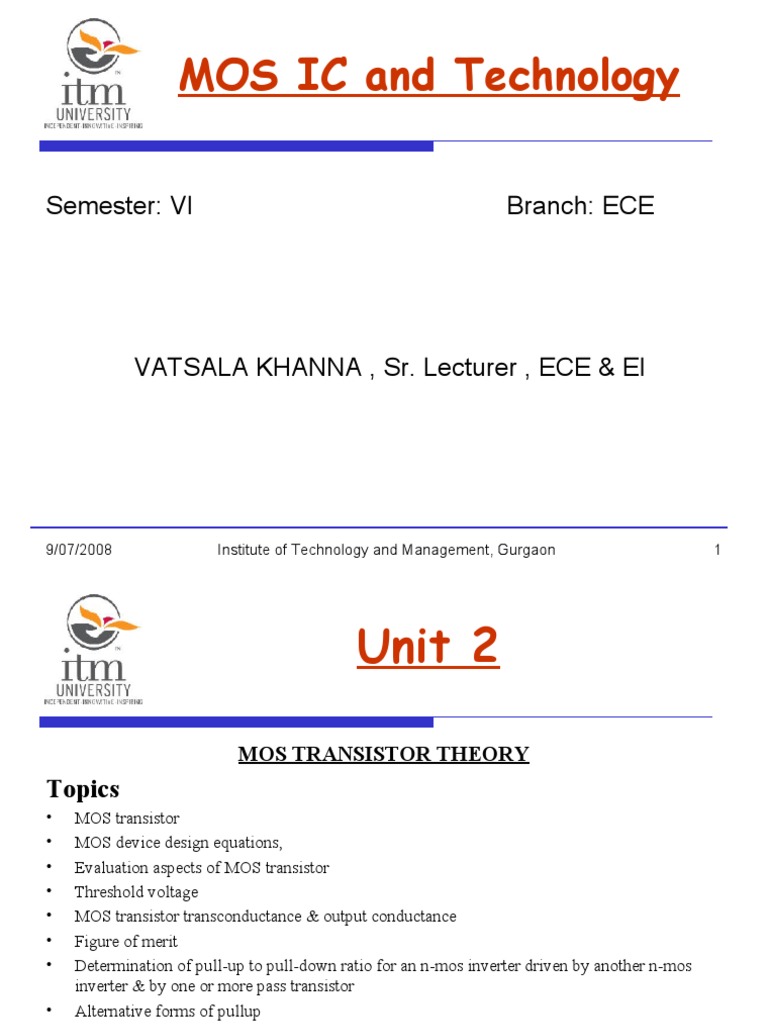

MOS IC and Technology

Semester: VI Branch: ECE

VATSALA KHANNA , Sr. Lecturer , ECE & EI

9/07/2008 Institute of Technology and Management, Gurgaon 1

 Unit 2

MOS TRANSISTOR THEORY

Topics
• MOS transistor
• MOS device design equations,
• Evaluation aspects of MOS transistor
• Threshold voltage
• MOS transistor transconductance & output conductance
• Figure of merit
• Determination of pull-up to pull-down ratio for an n-mos inverter driven by another n-mos
inverter & by one or more pass transistor
• Alternative forms of pullup
• CMOS and Bicmos-inverters
• Latch up in CMOS circuitry and bicmos latch up susceptibility

9/07/2008 Institute of Technology and Management, Gurgaon 2

 Basic MOS Structure (1)

MOS Stands for Metal-Oxide-Semiconductor. It has two Terminals

9/07/2008 Institute of Technology and Management, Gurgaon 3

 Basic MOS Structure (2)

When the Three components are brought in physical contact

9/07/2008 Institute of Technology and Management, Gurgaon 4

 MOS Structure under
External Bias (1)
• Vb is set at zero and Vg is varied.
• If a voltage equal and opposite to ΦM – ΦS is applied externally
between gate and bulk, then bending near surface can be
compensated and bands become flat.
• This is known as the Flat Band Condition, defined by

VFB  M  S
9/07/2008 Institute of Technology and Management, Gurgaon 5
 MOS Structure under
External Bias (2)

• Now if External Bias other than VFB is applied, MOS system will have
three regions of operation:

• Accumulation (VG < 0).

• Depletion (VG > 0, but small voltage).

• Inversion (VG >> 0, high).

9/07/2008 Institute of Technology and Management, Gurgaon 6

 MOS Structure under
External Bias (3)

ACCUMULATION REGION – Vg<0

DEPLETION REGION – Vg > 0 (Small)

9/07/2008 Institute of Technology and Management, Gurgaon 7

 MOS Structure under
External Bias (4)
• As the Positive Voltage is further increased, the depletion region increases.
• With increasing Vg, downward bending also increases. Minority carriers
are attracted from bulk to surface.
• The p and n concentration becomes equal. The difference between Ei and
Efp at surface becomes ‘0’.
• As Vg increases again, Ei becomes smaller than Efp on the surface. The
electrons concentration becomes lager than holes concentration on surface.
The n-type region created near the surface is called inversion layer.
• When density of electrons on surface becomes equal to holes concentration
in bulk, surface is said to be inverted and Φs = -ΦF.
• At this point the width of the depletion region is maximum.

9/07/2008 Institute of Technology and Management, Gurgaon 8

 MOS Structure under
External Bias (5)
• Thus we define the conditions for Inversion as:
• Φ = 2ΦF
• VGB = VTO.
• Threshold Voltage (VTO ) - Is defined as the voltage required to create
inversion layer.
• There are three main components of threshold voltage:

1. The work function difference between gate and channel.

2. The gate voltage component to change the surface potential.
3. The gate voltage component to off-set the depletion charge.
4. Oxide charges are present within the oxide layer. The gate voltage
component to off-set the oxide layer charges.

9/07/2008 Institute of Technology and Management, Gurgaon 9

 Expression for
Threshold Voltage
• Combining the four factors together the expression for threshold voltage is
given as:

• Threshold Voltage is Positive value for NMOS and has a

Negative Value in case of PMOS.

9/07/2008 Institute of Technology and Management, Gurgaon 10

 N-Channel MOSFET
Operation

• Simple operation of device is : current conduction control between Source

and Drain using electric field generated by gate voltage .
• When voltage at drain, source and bulk is zero then the device is simple
MOS capacitor.
• When small positive voltage is applied Vgs <Vto, only depletion region is
formed and no channel from source to drain.

9/07/2008 Institute of Technology and Management, Gurgaon 11

 N-Channel MOSFET
Operation

• When Vgs > Vto is applied on gate inversion layer is formed and source to drain are
connected through a n-type channel.
• Gate Voltage is applied with respect to source then Vto is same as in case of MOS
Capacitor.

9/07/2008 Institute of Technology and Management, Gurgaon 12

 Influence of changing
value of VDS
• Now the N-type conducting channel is capable of carrying the
Drain Current.
• Depending on the value of VDS, there are two modes of drain
current flow:

– Linear Mode : for small values of VDS

– Saturation Mode : for VDS> VDSAT.

9/07/2008 Institute of Technology and Management, Gurgaon 13

 NMOS in Linear Region

•If small drain voltage is applied, drain current flows through the
conducting channel.
•As drain voltage increases, drain current also increases
linearly with voltage. The channel region acts as voltage
controlled resistor.

This operation
mode is called
linear mode.
9/07/2008 Institute of Technology and Management, Gurgaon 14
 NMOS in Saturation
Region (1)
• As the Drain Voltage is increased, the inversion layer charge and
the channel depth at Drain end starts to decrease.

• For drain voltage equal to VDS = VDSAT , inversion charge at drain

is reduced to zero, This is called the Pinch – off Point.

9/07/2008 Institute of Technology and Management, Gurgaon 15

 NMOS in Saturation
Region (2)
• Beyond the pinch-off point, i.e. for VDS > VDSAT, a depleted
surface forms adjacent to the Drain.
• The depletion region grows towards the source with increasing
VDS.
• This mode of operation is called Saturation Mode.
• Near pinch-off section high field region forms between
channel-end and drain. Electrons arriving at this end injected
to drain region and accelerated to drain.
• 3-D analysis of this system is very complex to establish the I-
V relation of NMOS.
• Several approximations be made to simplify the problem.
• The Gradual-Channel Approximation (GCA) is used which
converts 3D problem into 1-D for analytic derivation of I-V.
9/07/2008 Institute of Technology and Management, Gurgaon 16
 Drain Current in Linear
Region

9/07/2008 Institute of Technology and Management, Gurgaon 17

 Drain Current in
Saturation region

9/07/2008 Institute of Technology and Management, Gurgaon 18

 IV Characteristics

Drain Current V/S Gate Source Voltage

Drain Current V/S Drain Source Voltage

9/07/2008 Institute of Technology and Management, Gurgaon 19

 Transconductance

• Transconductance measures the change in the drain current produced

by a given change in the gate-source voltage.
• Is given by the following equation:
Three Expressions for gm

9/07/2008 Institute of Technology and Management, Gurgaon 20

 Output Conductance

• Output conductance is defined as the change in drain current

produced by a given change in drain-source voltage.
• Is calculated as follows:

9/07/2008 Institute of Technology and Management, Gurgaon 21

 Figure of merit of MOSFET

• AC drain source resistance: rds = ∂Vds (at constant Vgs)

∂Id
• Transconductance: gm = ∂Id (at constant Vds) = β(Vgs –Vt)
∂Vgs
• Amplification factor: µ = ∂Vds (at constant Id) = rds.gm
∂Vgs
• Input resistance: ri = ∂Vgs
∂Igs

9/07/2008 Institute of Technology and Management, Gurgaon 22

 MOS Transistor as Switch

nMOS transistor:
•Closed (conducting) when Gate = 1 (Vdd, 5V)
•Open (non-conducting) when Gate = 0 (ground, 0V

pMOS transistor:
•Closed (conducting) whenGate = 0(ground, 0V)
•Open (non-conducting) whenGate = 1 (Vdd, 5V)

For nMOS switch, source is typically tied to ground and is

used to pull-down signals and for pMOS switch, source is
typically tied to Vdd, used to pull signals up.

9/07/2008 Institute of Technology and Management, Gurgaon 23

 NMOS Inverter

R
1 0 Vo

0 1

•Inverter : basic requirement for R

producing a complete range of
Logic circuits
Vss

9/07/2008 Institute of Technology and Management, Gurgaon 24

 NMOS Inverter

Vdd Basic Inverter: Transistor with source

R Pull-Up connected to ground and a load resistor
Vo connected from the drain to the positive
Supply rail
Output is taken from the drain and control
Vin input connected between gate and ground
Pull Down
Resistors are not easily formed in silicon
- they occupy too much area
Vss

Transistors can be used as the pull-up device

9/07/2008 Institute of Technology and Management, Gurgaon 25

 NMOS Depletion type
Vdd
Pull-up D

• Pull-Up is always on – Vgs = 0; depletion

• Pull-Down turns on when Vin > Vt
• With no current drawn from outputs, Ids Vo S
for both transistors is equal
V0 Vt D
Vdd
Vin

S
Non-zero output Vss

Vi
9/07/2008 Institute of Technology and Management, Gurgaon 26
 Ids
Vgs=0.2VDD
Ids
Vgs=0

Vgs=-0.2 VDD

Vgs=-0.4 VDD

Vgs=-0.6VDD
VDD –Vds
Vds
Vin

Vgs=VDD
VDD
Ids
Vgs=0.8VDD

Vgs=0.6 VDD

Vgs=0.4 VDD
Vgs=0.2VDD
Vds
Vo
VDD VDD

9/07/2008 Institute of Technology and Management, Gurgaon 27

 NMOS Depletion type
Pull-up
Decreasing
Zpu/Zpd
Vin
VDD
Increasing
Zpu/Zpd

Vinv VDD Vo

• Point where Vo = Vin is called Vinv

• Transfer Characteristics and Vinv can be shifted by altering ratio
of pull-up to Pull down impedances

9/07/2008 Institute of Technology and Management, Gurgaon 28

 NMOS Depletion Mode
Inverter Characteristics

• Dissipation is high since rail to rail current flows when Vin =

Logical 1
• Switching of Output from 1 to 0 begins when Vin exceeds Vt
of pull down device
• When switching the output from 1 to 0, the pull up device is
non-saturated initially and this presents a lower resistance
through which to charge capacitors (Vds < Vgs – Vt)

9/07/2008 Institute of Technology and Management, Gurgaon 29

 Cascading NMOS
Inverters
When cascading logic devices care must be taken
to preserve integrity of logic levels

i.e. design circuit so that Vin = Vout = Vinv

Determine pull – up to pull-down ratio for driven inverter

9/07/2008 Institute of Technology and Management, Gurgaon 30

 Determination of Pull-up to Pull-down ratio
for nMOS Inverter driven by another
nMOS Inverter

Assume equal margins around inverter; Vinv = 0.5 Vdd

Assume both transistors in saturation, therefore: Ids = K (W/L) (Vgs – Vt)2/2
Depletion mode transistor has gate connected to source, i.e. V gs = 0
Ids = K (Wpu/Lpu) (-Vtd)2/2
Enhancement mode device Vgs = Vinv, therefore
Ids = K (Wpd/Lpd) (Vinv – Vt)2/2

Assume currents are equal through both channels (no current drawn by load)
(Wpd/Lpd) (Vinv – Vt)2 = (Wpu/Lpu) (-Vtd)2
Convention Z = L/W
Vinv = Vt – Vtd / (Zpu/Zpd)1/2

Substitute in typical values Vt = 0.2 Vdd ; Vtd = -0.6 Vdd ; Vinv = 0.5 Vdd
This gives Zpu / Zpd = 4:1 for an nmos inverter directly driven by another inverter

9/07/2008 Institute of Technology and Management, Gurgaon 31

 Pull-Up to Pull-Down Ratio for an
nMOS inverter driven through 1 or
more pass transistors
Inverter 1 Vdd Vdd Inverter 2

A B C

Vin1 Vout2

It is often the case that two inverters are connected via a series of switches (Pass Transistors)
We are concerned that connection of transistors in series will degrade the logic levels into
Inverter 2. The driven inverter can be designed to deal with this. (Zpu/Zpd >= 8/1)

9/07/2008 Institute of Technology and Management, Gurgaon 32

 Complimentary Transistor Pull
– Up (CMOS)
Vdd Vout Vtn Vtp

P on N on
Vin Vo N off P off

Both On

Vin
Vss Vdd

Vss Logic 1
Logic 0

9/07/2008 Institute of Technology and Management, Gurgaon 33

Vout Vtn Vtp

P on N on
N off P off 1: Logic 0 : p on ; n off
Both On
5: Logic 1: p off ; n on

2: Vin > Vtn.

Vdsn large – n in saturation
Vdsp small – p in resistive
Vin Small current from Vdd to Vss
Vss Vdd
4: same as 2 except reversed p and n

3: Both transistors are in saturation

1 2 3 4 5 Large instantaneous current flows

9/07/2008 Institute of Technology and Management, Gurgaon 34

 CMOS Inverter Characteristics

Current through n-channel pull-down transis n

 VDD  Vtp  Vtn
I n  n  Vin  Vtn  2 p
2 Vin 
n
Current through p-channel pull-up transistor 1
p
p
Ip 
2

  Vin  VDD   Vtp 2  If n = p and Vtp = –Vtn
At logic threshold, In = Ip
V
n 2 p   Vin  DD
Vin  Vtn     Vin  VDD   Vtp 2 2
2 2
p  pW p
n
2
Vin  Vtn  
2

  Vin  VDD   Vtp   W
 n n
Lp Ln
n
Vin  Vtn   Vin  VDD  Vtp
p Mobilities are unequal : µn = 2.5 µp
  n  n Z = L/W

Vin 1   Vtn  VDD  Vtp
  p  p Zpu/Zpd = 2.5:1 for a symmetrical CMOS inverter

9/07/2008 Institute of Technology and Management, Gurgaon 35
 CMOS Inverter
Characteristics
• No current flow for either logical 1 or logical 0 inputs
• Full logical 1 and 0 levels are presented at the output
• For devices of similar dimensions the p – channel is slower
than the n – channel device

9/07/2008 Institute of Technology and Management, Gurgaon 36

 Simplified BiCMOS Inverter

Vdd
•Two bipolar transistors (T3 and
Vin T2   T4), one nMOS and one pMOS
T4   transistor (both enhancement-type
devices, OFF at Vin=0V).
Vout

T1
•The MOS switches perform the
T3   logic function & bipolar
CL   transistors drive output loads.

9/07/2008 Institute of Technology and Management, Gurgaon 37

 Basic Operation

When Vin = 0 :
• T1 is off. Therefore T3 is non-conducting
• T2 ON - supplies current to base of T4
• T4 base voltage set to Vdd.
• T4 conducts & acts as current source to charge load CL towards Vdd.
• Vout rises to Vdd - Vbe (of T4)
Note : Vbe (of T4) is base-emitter voltage of T4.
(pullup bipolar transistor turns off as the output approaches 5V - Vbe (of T4))

When Vin = Vdd :

• T2 is off.Therefore T4 is non-conducting.
• T1 is on and supplies current to the base of T3
• T3 conducts & acts as a current sink to discharge load CL towards 0V.
• Vout falls to 0V+ VCEsat (of T3)
Note : VCEsat (of T3) is saturation V from T3 collector to emitter


9/07/2008 Institute of Technology and Management, Gurgaon 38

 Conventional BiCMOS Inverter

Vdd


T2
•Two additional enhancement-type nMOS
Vin
T4   devices have been added (T5 and T6).
T6   •These transistors provide discharge paths
Vout for transistor base currents during turn-off.
T1   •Without T5, the output low voltage cannot
T3   fall below the base to emitter voltage VBE of
T5   CL
T3.

9/07/2008 Institute of Technology and Management, Gurgaon 39

 Basic Operation

When Vin = 0 :
T1 is off. Therefore T3 is non-conducting
T2 ON - supplies current to base of T4
T4 base voltage set to Vdd.
T5 is turned on & clamps base of T3 to GND. T3 is turned off.
T4 conducts & acts as current source to charge load C L towards Vdd.
Vout rises to Vdd - Vbe (of T4)

When Vin = Vdd :

T2 is off
T1 is on and supplies current to the base of T3
T6 is turned on and clamps the base of T4 to GND. T4 is turned off.
T3 conducts & acts as a current sink to discharge load C L towards 0V
Vout falls to 0V+ VCEsat (of T3)

9/07/2008 Institute of Technology and Management, Gurgaon 40

 Comparison of logic families

9/07/2008 Institute of Technology and Management, Gurgaon 41

 Further advantages of
BiCMOS Technology
•Analogue amplifier design is facilitated and improved.
•High impedance CMOS transistors may be used for the input circuitry while the remaining
stages and output drivers are realised using bipolar transistors.
•In general, BiCMOS devices offer many advantages where high load current sinking and
sourcing is required. The high current gain of the NPN transistor greatly improves the output
drive capability of a conventional CMOS device.
•MOS speed depends on device parameters such as saturation current and capacitance. These
in turn depend on oxide thickness, substrate doping and channel length.
•Compared to CMOS, BiCMOS’s reduced dependence on capacitive load and the multiple
circuit and I/Os configurations possible greatly enhance design flexibility and can lead to
reduced cycle time (i.e., faster circuits).
[Peak bipolar speed is less dependent on circuit capacitance. Device parameters f t , Jk and Rb determine
Bipolar circuit speed performance (not covered here) and depend on process parameters such as base
width, epitaxial layer profile, emitter width and extrinsic base formation ]

9/07/2008 Institute of Technology and Management, Gurgaon 42

 Further advantages of
BiCMOS Technology
•BiCMOS is inherently robust with respect to temperature and process
variations, resulting in less variability in final electrical parameters,
resulting in higher yield, an important economic consideration.
•Large circuits can impose severe performance penalties due to
simultaneously switching noise, internal clock skews and high nodal
capacitances in critical paths - BiCMOS has demonstrated superiority
over CMOS in all of these factors.
•BiCMOS can take advantage of any advances in CMOS and/or bipolar
technology, greatly accelerating the learning curve normally associated
with new technologies.

9/07/2008 Institute of Technology and Management, Gurgaon 43

 Are there disadvantages
with BiCMOS technology ?

•Main disadvantage : greater process complexity compared to CMOS

•Results in a 1.25 -> 1.4 times increase in die costs over conventional CMOS.
•Taking into account packaging costs, the total manufacturing costs of supplying a BiCMOS chip ranges
from 1.1-> 1.3 times that of CMOS.
•However, as CMOS complexity has increased, the percentage difference between CMOS and BiCMOS
mask steps has decreased.
•Therefore, just as power dissipation constraints motivated the switch from nMOS to CMOS in the late ‘70s,
performance requirements motivated a switch from CMOS to BiCMOS in the late ‘80s for VLSI products
requiring the highest speed levels.
•Capital costs of investing in continually smaller (<1um) CMOS technology rises exponentially, while the
requirement of low power supplies for sub-0.5um CMOS results in degradation of performance.
•Since BiCMOS does not have to be scaled as aggressively as CMOS, existing fabs can be utilised resulting
in lower capital costs. Extra costs incurred in developing a BiCMOS technology is more than offset by the
fact that the enhanced chip performance obtained extends the usefulness of manufacturing equipment &
clean rooms by at least one technology generation.

9/07/2008 Institute of Technology and Management, Gurgaon 44

 Thanks !!!

7/09/2008 Institute of Technology and Management, Gurgaon 45
