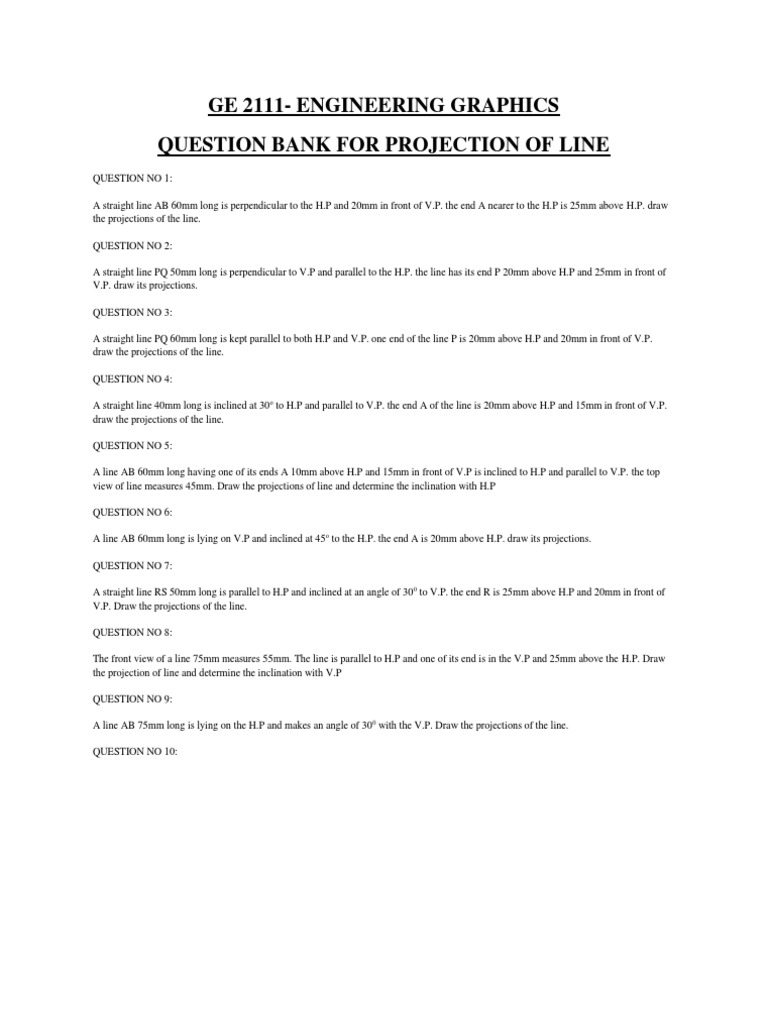

GE 2111- ENGINEERING GRAPHICS QUESTION BANK FOR PROJECTION OF LINE

QUESTION NO 1: A straight line AB 60mm long is perpendicular to the H.P and 20mm in front of V.P. the end A nearer to the H.P is 25mm above H.P. draw the projections of the line. QUESTION NO 2: A straight line PQ 50mm long is perpendicular to V.P and parallel to the H.P. the line has its end P 20mm above H.P and 25mm in front of V.P. draw its projections. QUESTION NO 3: A straight line PQ 60mm long is kept parallel to both H.P and V.P. one end of the line P is 20mm above H.P and 20mm in front of V.P. draw the projections of the line. QUESTION NO 4: A straight line 40mm long is inclined at 30o to H.P and parallel to V.P. the end A of the line is 20mm above H.P and 15mm in front of V.P. draw the projections of the line. QUESTION NO 5: A line AB 60mm long having one of its ends A 10mm above H.P and 15mm in front of V.P is inclined to H.P and parallel to V.P. the top view of line measures 45mm. Draw the projections of line and determine the inclination with H.P QUESTION NO 6: A line AB 60mm long is lying on V.P and inclined at 45 o to the H.P. the end A is 20mm above H.P. draw its projections. QUESTION NO 7: A straight line RS 50mm long is parallel to H.P and inclined at an angle of 30 0 to V.P. the end R is 25mm above H.P and 20mm in front of V.P. Draw the projections of the line. QUESTION NO 8: The front view of a line 75mm measures 55mm. The line is parallel to H.P and one of its end is in the V.P and 25mm above the H.P. Draw the projection of line and determine the inclination with V.P QUESTION NO 9: A line AB 75mm long is lying on the H.P and makes an angle of 30 0 with the V.P. Draw the projections of the line. QUESTION NO 10:
