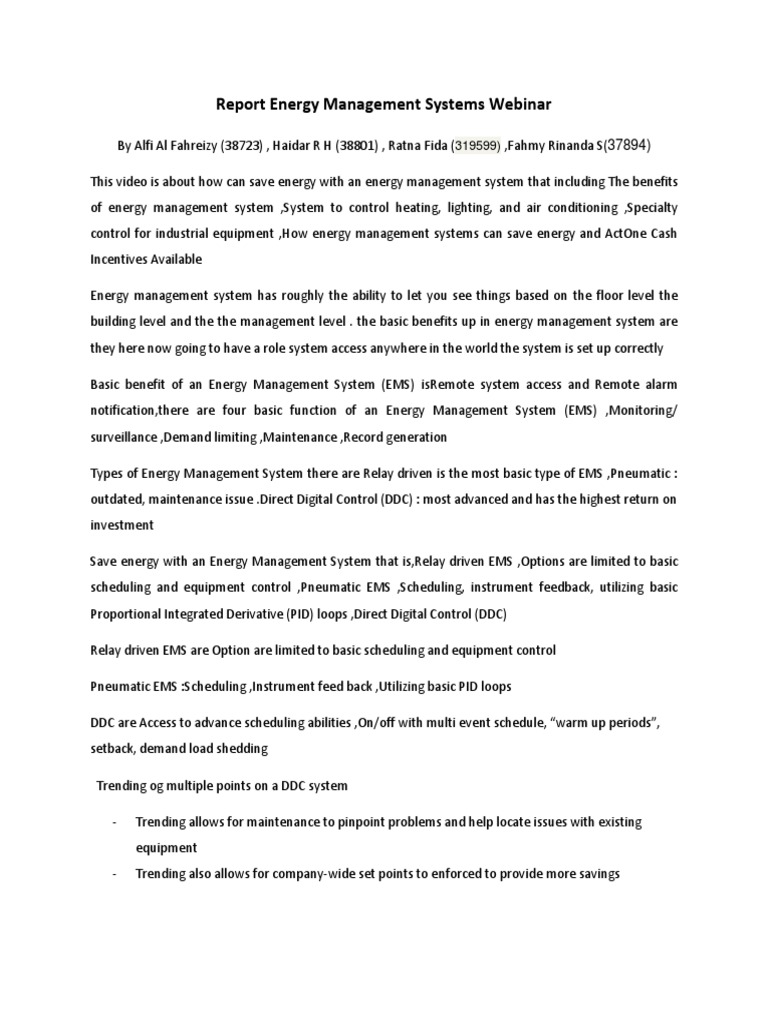

Report Energy Management Systems Webinar

By Alfi Al Fahreizy (38723) , Haidar R H (38801) , Ratna Fida (319599) ,Fahmy Rinanda S(37894) This video is about how can save energy with an energy management system that including The benefits of energy management system ,System to control heating, lighting, and air conditioning ,Specialty control for industrial equipment ,How energy management systems can save energy and ActOne Cash Incentives Available Energy management system has roughly the ability to let you see things based on the floor level the building level and the the management level . the basic benefits up in energy management system are they here now going to have a role system access anywhere in the world the system is set up correctly Basic benefit of an Energy Management System (EMS) isRemote system access and Remote alarm notification,there are four basic function of an Energy Management System (EMS) ,Monitoring/ surveillance ,Demand limiting ,Maintenance ,Record generation Types of Energy Management System there are Relay driven is the most basic type of EMS ,Pneumatic : outdated, maintenance issue .Direct Digital Control (DDC) : most advanced and has the highest return on investment Save energy with an Energy Management System that is,Relay driven EMS ,Options are limited to basic scheduling and equipment control ,Pneumatic EMS ,Scheduling, instrument feedback, utilizing basic Proportional Integrated Derivative (PID) loops ,Direct Digital Control (DDC) Relay driven EMS are Option are limited to basic scheduling and equipment control Pneumatic EMS :Scheduling ,Instrument feed back ,Utilizing basic PID loops DDC are Access to advance scheduling abilities ,On/off with multi event schedule, warm up periods, setback, demand load shedding Trending og multiple points on a DDC system Trending allows for maintenance to pinpoint problems and help locate issues with existing equipment Trending also allows for company-wide set points to enforced to provide more savings

Utilizing adaptive PISs on inlet vanes, variable frequency drives (VDS), hot water and chilled water valve, etc. By taking advantage of PIDs equipment will use less energy by easing into the setpoint of temperature chillers, boiler and HVAC equipment together so the system will work as one By having a balanced system employee discomford is minimized, and equipment load reduce

So now we are outgoing to talk about arcon energy incentive area Lighting Variable frequency drives Retro-commissioning-compressed air HVAC and water heater Process steam/steam traps Custom electric and gas

Cash incentive for EMS are available under custom Program $0.05/(annual kWh saved) for lighting component $0.07/(annual kWh saved) for all other components (HVAC, equipment control, etc.) $1.20/(annual therm saved) for natural gas savings

Example of EMS 1. Industrial Typical industrial building with 8 AHUs,door heaters,lighting control,and large industrial chiller Installed multiple DDC and supporting equipment . Price for the project was quote at $750,125 . Payback was calculated at less than 7 years Payback was large due to the industrial facility not being scheduled and operating large motor loads . ActOnEnergy cash incentive would be about $100,000 .

Example : a. power house boiler system you can accest the system byremotely b. chiller system

the pump ,water flowing,speed coming in you have temprature you have status,any kind of alarm coming in 2. Commercial

A 75,265 square foot office building has 3 VAV AHUs These units had old pneumatic controls with inlet vanes and inefficient 10 and 5 house power fan Replaced the motors ,change the inlet vanes over to VFDs and add DDC to the 3 AHUs Total cost were calculated to be $65,715 Total savings calculated at $12,760.19 per year Simple payback is 5.15 years Example : a. EMS screenshot : there is temperature ,occupancy,set point ofheating and equipment is on. b. Layout SAIC equipment : unit fan and mode auto and the temperature 74 C c. Tabular screen of Hvac facility : the tempereature dgrading when light turn and off d. Example of scheduller HVAC system

3. Hotel System We have anergy saving sport hotel with 46 room with 46 existing exsternal termostate . after we insole the room with thermostate with occupied temprature set pack with temperature setpoint setter by EMS . you dont want the room to drop allow 68degreees and you dont want to get me more 72 . It very important to the termostate so some one coming to the hotel can actually drop it below. In running energy calculation and figuring that the room was occupied for beetween 8 and 4 during the week and during the weekend and holiday between 9 and 8 . 47000 kw which figur 41000 dolar per year figure implementation hours and lobour and your looking for payback . 4. Reatail Store System to control HVAC setpoints,ventilation,and duty cycling System also control lights and light levels Uses temperature ,CO2 readings,photo sensors,and hours of operation inputs to continually assess and adjust HVAC and lighting.

Price for the projrct was $24,577 Payback was calculated at 3.3 years without incentive ActonEnergy cash incentive of $5,842.38 brought payback down to 2.5 years This cash incentive would have been larger using gas incentives that are currently available
