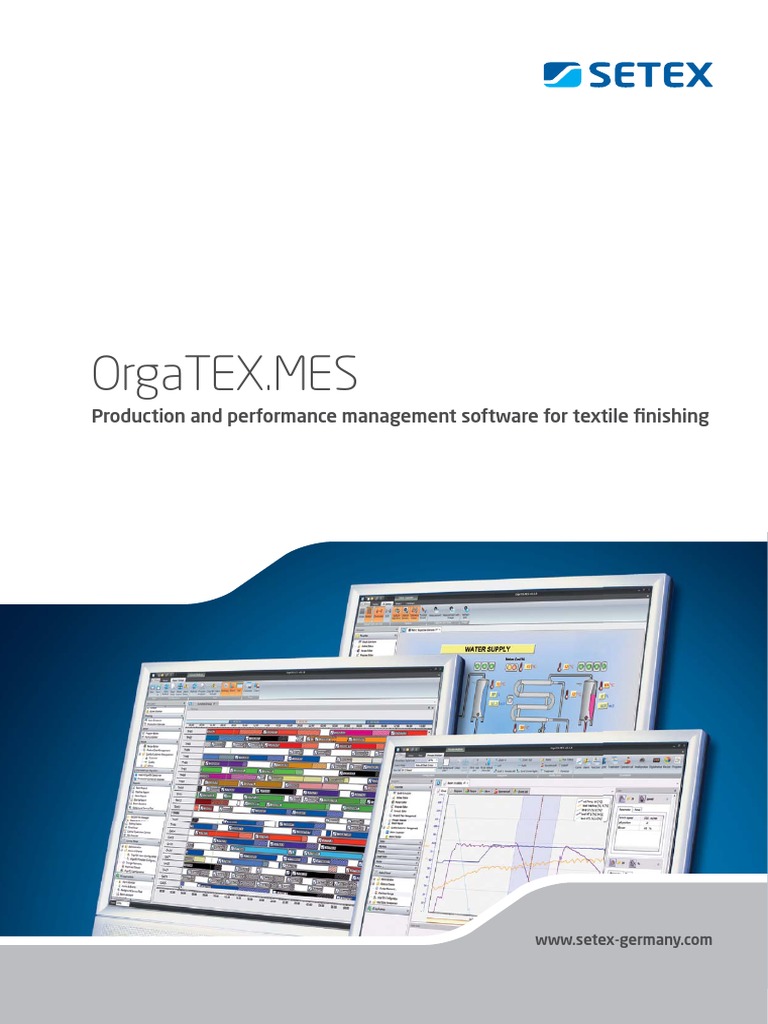

OrgaTEX.

MES
Production and performance management software for textile nishing

www.setex-germany.com

OrgaTEX.MES
Transparency and resource productivity at your fingertips

Making money in todays textile nishing market means handling an economic, efcient and versatile production
with high speed and quality.
Customers worldwide turn to SETEX for solutions that bridge the gap between machine automation, smart data
management and 3rd party integration, while maintaining open standards that make it easy for facilities to mold
SETEX products around their existing workows.
Production machine supervisor or Manufacturing Execution System OrgaTEX can cover both. The software
suite is composed of scalable modules. Start low and built as you grow to suit continuously the desired level. With
SETEX you have one supplier for MES software and machine automation.

One-stop shop synergies

Transparency, consistent documentation and

Top-down or bottom-up: SETEX systems profit from

traceability with OrgaTEX.MES make every company

being both. Knowing every single parameter of

secure and profitable. Planning on real-time

a dyeing or finishing machine allows smart data

conditions improve responsiveness and productivity

handling in the supervisor and MES software.

to a maximum.

Evidence-based key-numbers allow

Management key-numbers

Shortening Time-to-Market of the products

Increasing the product transparency and flexibility
Planning optimization
Reduction of downtimes
Lowering production costs

Know-how protection
Lasting investment
Production performance
Resource productivity
Target and plan

Administration key-numbers

Energy and environment assessment

Central multi-source information

Wide variety of reports and visualization possibilities
Analysis of production, efficiency, downtimes,

Energy efficiency (electricity, steam, oil, gas)

Utility management (hot water, water discharge)
Tools for carbon footprint

shifts,

Standardization

Process engineering tools

Reports, alarms and extensive data-logging

Bottleneck management
Data copy-and-paste to analysis applications
Fast introduction and knowledge transfer with
universal platform
Process standardization

rti

ca

l in

te

gr

at

io

ERP

ve

OrgaTEX.MES

Production oor

horizontal integration

Dyeing Manufacturing
Process development, production scheduling and monitoring

Process development

dyeing procedures. This workow leads automatically

The OrgaTEX.MES Program Editor program

to few Standard Operation Procedures (SOP) which

helps you manage all of your process information

make everyday optimization easier and increase

during the pre-production phases.

reproducibility and savings.

The creation and administration of complex dye

Features

processes is considerably easier and much more

efciently done on a PC. Repeatedly used process

sections (prewash, bleaching, soaping, after treatments)
are created as exible treatments instead of a xed

Graphical and tabular forms

Temperature/time curve
Variable procedure parameters with formula
integration

process in order to be used multiple in many different

Dye program editor

Automatically generated temperature/
time curve

Production scheduling

Production monitoring

An interactive and graphical planning system for

OrgaTEX.MES Online Status permits total visibility

scheduling with medium and short term outlook and

of machine, process and deviation information. Collecting

real-time production progress control and visibility.

data and the possibility of real-time interventions

during batch runtime at the single machine level

The online Batch Scheduler is an optimal tool to

unlocks a wealth of detailed data and opportunities

reduce the daily routine work in a dye house ofce to

that can drive organizational efciency. All centrally

a minimum.

from a workstation in the ofce with OrgaTEX.MES

you have your manufacturing under control.

Features

Electronic planning board

Batch scheduling
Use of templates
Batch can be moved per drag and drop
Deadline monitoring
Preparation and addition treatment processing

Online status

Selection and display of production downtime

Features

Display of actual process and machine data

(in tables and graphically)

Correction of process parameters

Interventions during unforeseen incidents
Online analysis of the process data
Alarm processing

Batch scheduler

Process data

product
analysis

fault
analysis

resource
analysis

Reporting and Analysis

Real-time analysis of the process and product related data

Gain practical and usable insight from the potential of your data
Analysis functions based on accurate information can have a positive influence on a successful business strategy
and the ROI. If required, our MES System OrgaTEX gathers data from various data sources like connected
controllers, interfaces to ERP and dosing systems, dye kitchen, colorimetric and other optional systems.
With the OrgaTEX.MES analysis and report management system you have the tool for predefined standardized
reports and also a customer and case specific analysis.

Resource analysis

Product analysis

The resource or process related reporting provides

The product related reporting provides information

information about the machines which have been

about the products which has been produced.

used to produce a product.

Machine and production utilization including

maintenance

Reduce your stock

Down time analysis (bottleneck)

Right first time quote (number of additions)

Batch report incl. products used and recipes
Targeting versus result for a production (t/day)
Total production costs
Product costs per kg fabric

Comparison machine utilization planned target

Machine comparison

Production overview

Fault/weak point analysis

(e.g. manual intervention on a dyeing controller)

The fault related analysis in combination with the

Online Status module is providing the basic data

for a weak spot analysis.

Process runtimes

Documented manual changes

Historic data (production cost, energy costs,
utilization)

Basic data for a performance-based incentive for

workers

Alarm messages, reports

Consumption of water, chemicals, dyestuff
Problems with dosing, liquor ratio etc.

Linking and combining the analyses

Comparison of current data with historical data

Not every time data is required in real-time. Certain

contents will be ascertained and stored manually or

Tools to increase the productivity in MES

in cycles by a superordinate time parameter.

Material- and information streams receive, by

the complete integration of SETEX controllers, a

measuring instrument that relentlessly shows
efficiency losses and the overall efficiency of the
complete system (e.g. OEE operating figures):

Individually configurable report documents

Manual, cyclic or event orientated reporting
If requested: access to all product and process
data for a third party reporting tool

Export to MS-Office

Statistics incl. real-time logs of the controllers

Identification of deviations and alarms
Evaluation of variances and their causes
Checking the effectiveness of measurements and
defined activities (plan, do, check, act)

Alarm report

Correction report

PDA
Production data acquisition of downtimes

When large numbers of different items are being

Controller operation

used for different production steps simultaneously,

Easy selection of up

people must manage dozens of requests just in time.

to 64 stop reasons
per machine group at

With the SECOM CE based controller generation,

your fingertips or with

SETEX provides an all-in-one solution for the

hotkeys.

acquisition of production up- and downtimes (PDA):

Selection of downtime reasons

The machine controller is used for both: to manage

the machine control AND as a terminal for production

Software options

data acquisition. In combination with the OrgaTEX.MES

The PDA module functionality is deeply integrated

PDA module a flexible and fully integrated system is

into OrgaTEX.MES Batch Scheduler and Report-

available that automatically assigns the detected

ing. The batch scheduler history visualizes on-click

stop reasons to the related events and batches. With

downtimes and reasons.

the support of objective data acquisition, based on

Scheduled downtimes (e.g. maintenance) are inte-

up-to-the-minute information and substantial reports,

grated into the fine planning visualization and allow

a production increase of 1530 % can be achieved.

precise online production planning.

Before
After

Plant Navigator
A comprehensive tool kit for smart data management

The OrgaTEX.MES Plant Navigator module offers a centralized presentation with real-time interactions of
several dyeing and finishing machines as well as with integrated supply units.

How can I increase the utilization

rate of my chemical dosing? Plant
Navigator can compare a dosing call
with the recipe of the next batch and
group the quantity automatically to
save dosing and preparation time.
The synchronized use of resources
like HT draining devices, the preferential use of recycled water from the heat
exchanger or separate heating of the
addition tank are just some examples
where the smart data management of
Plant Navigator can optimize stan-

Real-time visualization

dard production processes on the fly.

Plant Navigator helps to safeguard
the environment and saves cost and energy.

Plant Navigator is composed of

The graphically appearance is customizable in

Display tool for real-time visualization of processed

many ways:

information

Formula smart data management for interactive online machine values adjustment through
application specific algorithms

Reporting tool

Pictures, floor plan

Numerical fields to display machine values
Controller state information also processed by
smart data analyses

Batch information (text and parameters)

Plant Navigator visualization tool

Plant Navigator formula smart data management

Use the opportunity of a transparent production by

OrgaTEX.MES Plant Navigator includes, if desired,

visualization options provided by a direct interaction

sophisticated data analyzing routines for the auto-

with every single PLC. Any value of any machine

matic determination of resource allocation. The soft-

on one screen allows focused immediate actions.

ware continuously adapts the process values on

Monitoring on one central place: the users can

the machines to the calculated values of the Plant

check on one view that the production performs as

Navigator formulas and corrects the individual program

defined.

steps during runtime. The algorithms are created

customer-specific and can be maintained and adapted
directly by the customer.

Formula Management

if then else

The universal engine for smart data management

in case of

SETEX knows about the challenge in todays data management for textile dyeing and
finishing. OrgaTEX.MES Formula Management adds more flexibility with intelligent
treatment parameters, look-up tables and rules which interconnect all available data
online and offline for individual specific requirements.
Predefined groups, already containing the necessary parameters, will be helpful during
the creation of formulas. The functionality can be completely configured according to
your requirements. Working with formulas noticeably reduces the number of procedures
and treatments in the system and at the same time increases the variability in using the
particular treatments. Just work as a finishing specialist is used to.

Flexible use

Predefined rule areas

The batch length automatically sets the machine

winch speed and pump pressure

The color recipe automatically selects the best

production treatment

Number of rinse cycles is chosen by the salt

Formel Editor

Program Editor
Recipe
Reporting
Plant Navigator
SECOM data request

concentration

Reports based on complex structured data

Return on investment

Energy usage designates the machine to be used

Up to 15% production cost savings have been

Manual inputs on the machine controller will be

reported through shortening batch runtimes,

assigned to the batch (e.g. pH)

chemicals and energy savings and production

process maintenance and optimization.

10

IF_QualityName=RapidPolyester THEN
_WinchSpeed = 380

Energy Management
SETEX solutions for an energy-flexible production in textile finishing

An efficient energy management in the textile finishing field goes far beyond the simple logging of energy consumption. SETEX Energy Management solution permits the short term adaption of the production related
energy demand depending on the availability of electricity, gas, pressurized air and steam.

SETEX Energy Management solutions contain online machine data as part of the energy values and
therefore support parts of the ISO 50001 requirements. Additionally, production processes will be
actively adapted in several levels:
1. In real-time on the controller/PLC of the machine
2. As central energy control terminal of a department
3. Function comprehensive OrgaTEX.MES Energy
Management modules

Comprehensive approach
Our individual solutions will be projected according

Customer specific configured SECOM controller visualizes the

activities

to the desired energy related need of action. The

methods used to control and optimize the energy

term adaption of the energy usage within the defined

usage integrate actively the boiler house, the dye

range of machines in order to avoid peaks and to

house, the finishing department and the wastewater

achieve an efficient production. Alarm messages

treatment, if necessary. SECOM controllers monitor

will be shown, energy intensive progra m steps will

and control consumptions, temperatures, levels,

be modified, the start of additional machines will be

pressure and other necessary parameter on the

prevented etc.

machine and additional equipment like heat recovery

and hot water management.

Smart data management

Our OrgaTEX.MES Energy Management analysis

Avoiding energy peaks

algorithms, which support the decision process to

Via trend analysis of the real-time energy usage the

prevent peak loads, will be adapted to meet customer

necessary action will be constantly determined: If

specific conditions. The deeply integrated connection

the Smart Data Analysis predicts an energy peak,

down to the machine PLC level permits interventions

it starts a matching, alternative process for the short

that could not be realized manually.

OrgaTEX.MES Energy Management KPI parameter

11

Production Recipe
Unrivaled access to a fully integrated recipe management

For an efficient and consistent production flow from the color laboratory up to the final inspection, the recipe
management and the production procedures are inseparably linked. Especially by using todays highly integrated
technology the productivity in the textile finishing field will substantially be increased, among other things, by the
interaction of machine controllers with automatic dye kitchen. Via the integrated management of dye recipes and
finishing procedures in OrgaTEX.MES, information and dependencies can be interconnected in an uncomplicated way.

Adaptable recipe structure

Even more efficient and flexible is the organization

Without much precognition, recipes (dye stuff,

with OrgaTEX.MES sub-recipes and variable para-

chemicals/parameters, text) can directly be created

meters, which provide nearly unlimited possibilities in

with few mouse clicks in the OrgaTEX.MES Recipe

conjunction with the Formula module.

Editor and can be stored as reusable templates.

Intelligent processing
For more performance, procedures can be created

Using the optional OrgaTEX.MES Formula module

from various treatment modules and can be com-

product quantities can be substituted by rules, which

bined with the recipe. The result is an efficient

automatically connect parameters with look-up

management with less standard treatments.

tables containing experience of dyers and suppliers.

Recipe editor
Dyestuff library

12

Results throughout the company

Lab2Bulk

Enhance the process reliability

Integrating Datacolor laboratory software modules

Enhance the production flexibility

into OrgaTEX.MES with the Lab2Bulk module has

Shorten time-to-market

a markedly favorable effect of better processes for

Storage and use of process know-how

maintaining accuracy, transparency and standards

Cost calculation and data transfer to controlling

from laboratory to production.

One button click converts the recipe into a batch

ready for production

Three modules form the interface:

Features

product and dyes, dyestuff class, combined

Product data management

process reference and customer to keep data

Customer/quality management

synchronized.

DataSync echos data of quality-fiber-affinity,

Pretreatment and washing recipes

LabRecipeImport picks automatically tagged

Calculation of dye recipes and procedures

laboratory recipes from the Datacolor data-

(single and multi stage)

base into OrgaTEX.MES and auto-selects the

Color matching integration (optional)

appropriate production treatment (process) to

Lab dispensing integration (optional)

generate a complete production recipe.

Integration with dye kitchen systems (optional)

ProductionCorrection transfers batches with

Stock management (optional)

status sampling to the Datacolor laboratory

Dynamic adaptions with the Formula module

software for instrumental production correction.

Stock Management
Todays scope of production requires the best possible transparency in order to minimize the stock of
dyestuff and auxiliaries. Stock amounts, real-time
consumption withdrawals and just in time orders for
required products below stock minimum is essential
for a continuous and on-time production.

Features

Specific stock conditions (minimum, optimal

Online production correction

amount and drum capacity)

Consumption reports with flexible criteria

Features

Stock reservation on batch disposition

resources and avoid retyping errors

Real-time stock update on batch completion

Order list with product amounts below stock minimum

Import laboratory-recipe information to save

Auto-assignment to the correct OrgaTEX.MES

process or template/treatment combination

Cost calculation of stock quantities

Sharing the necessary root data to streamline

data handling

Accurate display of the batch colors in OrgaTEX.MES

detailed (fine) planning for better sorting

Integrated instrumental production control and

calculation of additions with batch list on the
Datacolor system

Enhanced manual correction possibilities

Stock management

13

Fabric Inspector
Integrated laboratory unit for measuring the thread/mesh density

A uniform fabric density of woven and knitted fabric is an important quality attribute for retailers as well as for
the production itself:
Warrants the improvement of color consistency
A reliable assessment of the residual shrinkage
Increase of the production yield
The SETEX Fabric Inspector is a practical, portable
measurement device for the continuous determination
of the mesh or weft and warp density. Main application
for determination of the parameters is straightening,
drying, xation and sanforizing:
Simple and fast fabric detection at various

Fabric Inspector

places of the production

Precise weft/mesh density detection using digital
picture processing
Color independent detection

Production relevant specications

The information gained with Fabric Inspector can
instantly be used for SETEX CamCOUNT systems
on production machines:

Simple usage
As full-edged OrgaTEX.MES module Fabric Inspector,
it allows the correct measurement of different fabric

Article-specic conguration of your shrinkage/

overfeed control system
Shrinkage/overfeed towards specic fabric weight (g/m2)

and can store the data as fabric input parameters in

the quality data management:

Used for the delivery inspection in the laboratory or

A full quality control provides root data manage-

for the nal inspection of the quality assurance with

ment with stored batch, reference, article attributes,

SETEX Fabric Inspector you will receive a solution that

image and tolerances.

can be integrated into the OrgaTEX.MES network:

Detailed visualization and comprehensive reporting

tools add value to your process tracing.

Parameter settings and monitoring/control

Uniformity of the fabric
Reproducibility

Measurement interface

14

Tolerance report

SETEX.OptiWeigh
Integrated system for reliable weighing

In order to achieve reliable, high level processes, the OrgaTEX.MES module Weighing provides a constant
data stream from scheduling up to the dye kitchen. In combination with the SETEX.OptiWeigh components the
software guides the operator through the color kitchen weighing process: precise, reproducible and documented.
It provides quick and easy access to the information needed to ensure the right amounts are prepared. It reduces
production cost with increasing right first time.

Fully integrated

Scheduled batches are immediately available on

the WT2010 scaling station

Fast selection of priority jobs with a barcode scanner

Batch/product status transparent for OrgaTEX.MES
Product consumption feedback to the OrgaTEX.MES
stock control module

Working as dyers like

Auto-scale-selection based on product quantity

Applies practical tolerances by scale and product
Graphical weighing process visualization
Bucket identification with partial batch tickets
printout

Ergonomic designed housing for PC and equipment

Useful: single products can be weighed

independent of batches

Weighing sequence can be paused on priority jobs

Paternoster

Weigh large amounts as container less the

Increase the value of your paternoster with a modern

excess amount

SECOM controller and integration into the OrgaTEX.MES

weighing workflow:

Connective

pick position

Used with the SETEX.OptiWeigh components

Up to 3 scales are supported
Link to paternoster units with SECOM controls

Weighing process drives paternoster product in

Product identification by barcode

Weighing sequence waits for paternoster confirmation

15

CDC Central Dye Kitchen Control

For dispensing, dissolving and weighing stations with SECOM CE control systems

Numerous central dye kitchen systems running in modern textile nishing plants worldwide are fully automated
with SECOM CE control systems. In combination with the OrgaTEX.MES CDC module you get more out of your
daily to-do's through automatic capacity utilization control, individual generated dissolving procedures and a
close connection to dye machine programs. This simplies the day to day business and increases the utilization.

Priority management

CDC can adjust the running batch program in the

Time critical requests, like additions for dyeing pro-

dye machine to display and allow manual approach.

grams, lling tanks on continuous machines or manual

requests will be prioritized automatically. But also

Features

with the same priority, calls for chemicals/dyestuff

Automatic dissolving program composing

can be split and handled on several dispensing

Priority assignment of preparation processes

stations in order to optimize the utilization of the facility.

Priority schedule for additions

Equipment effectiveness control

Individual dissolving

Detailed malfunction alarm indication

Instead of using time consuming, fixed dissolving

Congurable error handling

programs the CDC composes the optimal dissolving

Tank administration

procedure for the particular dyestuffs and their

Dosing history and reports

quantities. Using OrgaTEX.MES product information,

associated values as quantity, temperature and
stirring time decide the number of dosing pans and
dissolving parameters.

Instant feedback
CDC shows the status of all preparations online
and provides various solutions to avoid production
process delays.
In case of a preparation process malfunction, e.g.

16

tank runs out of chemical, enhanced functionality of

Dispensing calls

Dye Kitchen Systems

Optimized production with OrgaTEX.MES modules and integration

The phrase savings on chemicals is most appropriately used with centralized dye kitchen systems due to
improved hardware and controlled weighing and dissolving. A reduction of production time however can only be
achieved if these systems are integrated into production management systems like OrgaTEX.MES. Otherwise, the desired advantage may become ineffective by increased efforts and time for recipe management and manual procedures.
OrgaTEX.MES makes sure that your automated

With dye kitchen integration in place, preparation

dye kitchen and dispensing systems run exactly

calls can be realized in different ways:

synchronized with the program steps of the machine

controller, without waiting times and manual interventions. The logic for the side and addition tanks
contains also the functionality for batch overlapping

Via SECOM CE controller on the production

machine (discontinuous, continuous)

preparations and look-ahead delivery of the pre-

Request terminal close to the production machine

Manual activation via the OrgaTEX.MES
Batch scheduler

paration calls for an optimal utilization of the dye

kitchen systems and no waste of time on machines

Features

that are waiting.

Providing dye kitchen system preparation data

(product, quantity, target tank and request time)

Integration considerably simplifies the operation of

dye kitchen systems if recipe and preparation data is

managed and calculated centrally in OrgaTEX.MES.

Dye kitchen consumption data feedback into

OrgaTEX.MES stock control

Synchronize of error messages between dye

kitchen system and production machines

Linking dye kitchen systems to OrgaTEX.MES is

provided for both departments: textile dyeing and

Production additions priority handling by

OrgaTEX.MES and dye kitchen system

continuous finishing machines in pretreatment,

washing, drying and fixation departments.

OrgaTEX.MES
CDC

Dye kitchen connection

3rd Party

Integration central dye kitchen system with SECOM CE controllers

3
rd party integration

17

Continuous Production
Transparency in the washing, drying and fixation department

Process development

Production scheduling

The creation and administration of preparation data

The assignment of correct machine settings or

sets for a large number of article specific machine

preparation data sets for all batches of the con-

settings for different kind of machines can easily be

tinuous machines can easily be realized by using the

realized with the OrgaTEX.MES Program Editor.

Batch Scheduler. The graphical online planning

Depending on the machine type, different input

board shows transparently the actual situation of all

screens are available.

production batches.

Using the OrgaTEX.MES Formula Management

Features

module, the number of data sets can considerably be

reduced with the help of variable parameters (e.g. fabric

width) using interconnected look-up tables and rules.

Features

Graphical and tabular editor

Variable process parameter with formula integration
Freely creatable organization structure (tree control)

Batch scheduler

18

Electronic planning board

Batch scheduling
Automatic set time calculation
Batch can be moved per drag and drop
Deadline monitoring
Preparation call to central dispensing system
Selection and display of production downtime
(optional)

Production monitoring
For an effective and centralized monitoring of the
machine outfit, OrgaTEX.MES provides the module
Online Status which gives a graphical visualization
of machines, process values and batch data. The
module supports the creation of user dependent
display screens/windows.

Features

Display of actual process and machine data

(in tables and graphically)

Correction of process parameters

Manual intervention in case of unforeseen events
Alarm information
Online analysis of process data
Alarm processing

The OrgaTEX.MES Process Analyzer visualizes,

batch based, all important process data. Printing
and storing this data can be used for in-house

Online visualization

documentation and optimizing tasks as well as for

standards according to the quality norm EN ISO
9000 ff. for 3rd parties.

Process data

19

System Landscape

ERP

t
IODPmJOH
HPPET
t
CVTUPmFS
PSEFST

t
SIJppJOH
OPUFT
t
IOvPJDFT
y

ERP systems

t
.BTUFS
EBUB
t
1SPEVDUJPO
PSEFST
t
3PVUJOH

MES

t
#BDL
nVTI


1%"
TUPDL
CPPLJOHT

t
y

OrgaTEX.MES

Server

Workstations

Thin clients

t
Program &ditor
t
1SPDFTT
"OBMZ[FS
t
0OMJOF
4UBUVT
t
#BUDI
4DIFEVMFS
t
3FQPSUJOH

Production
oor

Bleaching

Fixation

Dyeing

Material ow
20

Laboratory

Dye kitchen systems

Datacolor

t
1BUFSOPTUFS
t
8FJHIJOH
t
%JTTPMWJOH
t
%PTJOH
t
y

Lab recipe
t
2VBMJUZ
t
$PMPSBOUT
t
1SPDFTT

t
1%"
1SPEVDUJPO
%PXOUJNFT
t
1MBOU
/BWJHBUPS
t
1SPEVDUJPO
3FDJQF
t
4UPDL
.BOBHFNFOU
DIFNJDBMT
EZFTUVGG

t
-BC#VML
DPMPS
NBUDIJOH
JOUFSGBDF

t
'PSNVMB
.BOBHFNFOU
t
&OFSHZ
.BOBHFNFOU
t
$POUSPMMFE
8FJHIJOH
t


4FSWJDF
BEBQUFS

3SE
1BSUZ

4FSWJDF
BEBQUFS

Dyeing

Drying

Sanforizing

Final
inspection

Stock
semi nished

21

OrgaTEX.MES IT strategies
Clustering, virtualization and terminal services architecture
OrgaTEX.MES supporting your unique safety and security requirements

Time critical delivery schedules require strategies to bridge the gap during system failures (failover), to generally improve the IT service (virtualization) and to simplify the management of applications and computer centers (TS-services).

Virtualization

OrgaTEX.MES provides

Virtualization can dramatically decrease the operating

Prepared for failover cluster systems

costs (energy, space, air condition) as well as mainte-

Resource conguration for database services,

nance and administration expenses for the computer

shared drives and background services, to allow

hardware. Additional benets like simple backup solu-

a switchover on all cluster nodes

tions, external data storage (iSCASI, SAN,) as well

Seamless (real-time) failover

as secure and fast migration to a new hardware will

Performance enhancement of the system

also be the recommended virtualized infrastructure in

Smart backup solution

the textile nishing world.

Terminal server architecture

OrgaTEX.MES in conjunction with SECOM CE con-

The central access to software and services via terminal

trollers are tested and released for the most important

server functionality provides also for OrgaTEX.MES

virtualization platforms:

simple installation and software updates without the

Citrix XenServer from V.6.0

need to address complex distribution mechanisms in

Microsoft Hyper-V from Windows 2008 R2

the company.

VMware ESX/ESXi Server from V3.5

VMware vSphere from V4.x

Advantages
Easy updates only one instance of the software

Failover cluster systems

Industrial production with a high degree of automation

Every terminal provides full software capabilities

and integration is requiring continuous IT availability

Time saving administration by using a centralized

and a high degree of reliability. High availability systems

(HA) where controllers of the production machines
will not even notice that OrgaTEX.MES automatically
switched to another resource, are provided through

22

is maintained

redundant cluster systems.

concept
Internet/WAN remote client

Overview
OrgaTEX.basic OrgaTEX.professional

Functions

basic

professional

Program Editor

Process Analyzer

Online Status

Batch Scheduler

Production Calendar

Batch Report

Alarm and Event Report

Machine Report

Expert Level Reports

PDA Production Downtimes

Plant Navigator

Production Recipe

Stock Management

Lab2Bulk (color matching interface)

Formula Management

Energy Management

Weighing

Paternoster

Interface to Dye Kitchen Systems (SECOM controller)

CDC Central Dye Kitchen Control

Interface to Dye Kitchen Systems (3rd party)

Interface ERP/PPS
Recipe

Dyelots and Consumption

Interface Continuous Machines

Continuous Production

Dyehouse Production

= not available, = included, = optional

23

Headquarter
Subsidiaries

05.06.2013 SD1400701 OT-KEA-010-0007-3

Technical modifications reserved. All brand and product names are trademarks or registered
trademarks of their respective owners. Printed in Germany.

SETEX Schermuly textile computer GmbH

Hauptstrae 23-25 35794 Mengerskirchen Germany
Tel. +49 6476 9147-0 Fax +49 6476 9147-31
info@setex-germany.com www.setex-germany.com
