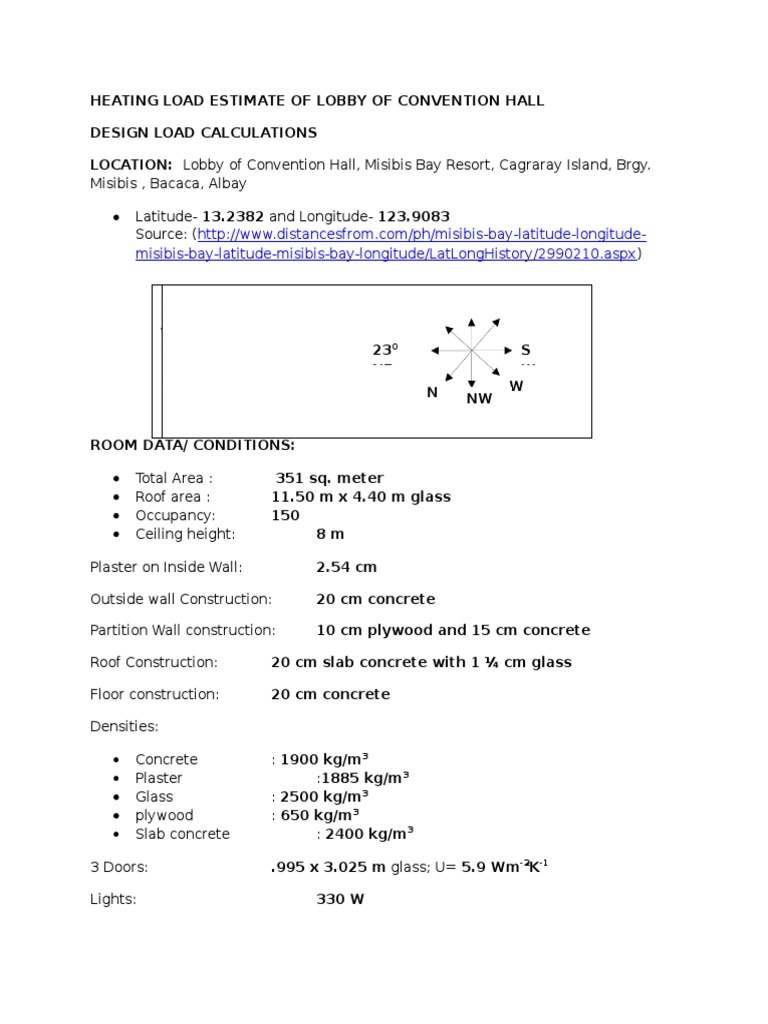

HEATING LOAD ESTIMATE OF LOBBY OF CONVENTION HALL

DESIGN LOAD CALCULATIONS

LOCATION: Lobby of Convention Hall, Misibis Bay Resort, Cagraray Island, Brgy.
Misibis , Bacaca, Albay

Latitude- 13.2382 and Longitude- 123.9083

Source: (http://www.distancesfrom.com/ph/misibis-bay-latitude-longitudemisibis-bay-latitude-misibis-bay-longitude/LatLongHistory/2990210.aspx)
E
n
t
r
a
n
c
e

SE

230
NE
N

NW

S
S
W
W

ROOM DATA/ CONDITIONS:

Total Area :
Roof area :
Occupancy:
Ceiling height:

351 sq. meter

11.50 m x 4.40 m glass
150
8m

Plaster on Inside Wall:

2.54 cm

Outside wall Construction:

20 cm concrete

Partition Wall construction:

10 cm plywood and 15 cm concrete

Roof Construction:

20 cm slab concrete with 1 cm glass

Floor construction:

20 cm concrete

Densities:

Concrete
Plaster
Glass
plywood
Slab concrete

3 Doors:
Lights:

: 1900 kg/m3
:1885 kg/m3
: 2500 kg/m3
: 650 kg/m3
: 2400 kg/m3
.995 x 3.025 m glass; U= 5.9 Wm-2K-1
330 W

Conditions
Outdoor air
Room (Rm)
Difference

DB (0C)
36
26
10

WB(0C)
28
18
10

Assumed bypass factor of cooling coil 0.15

%RH
54.58
36.85
17.73

DP
25.4
11.89
13.51

W(kg/kg)
0.02059
0.00868
0.01191
