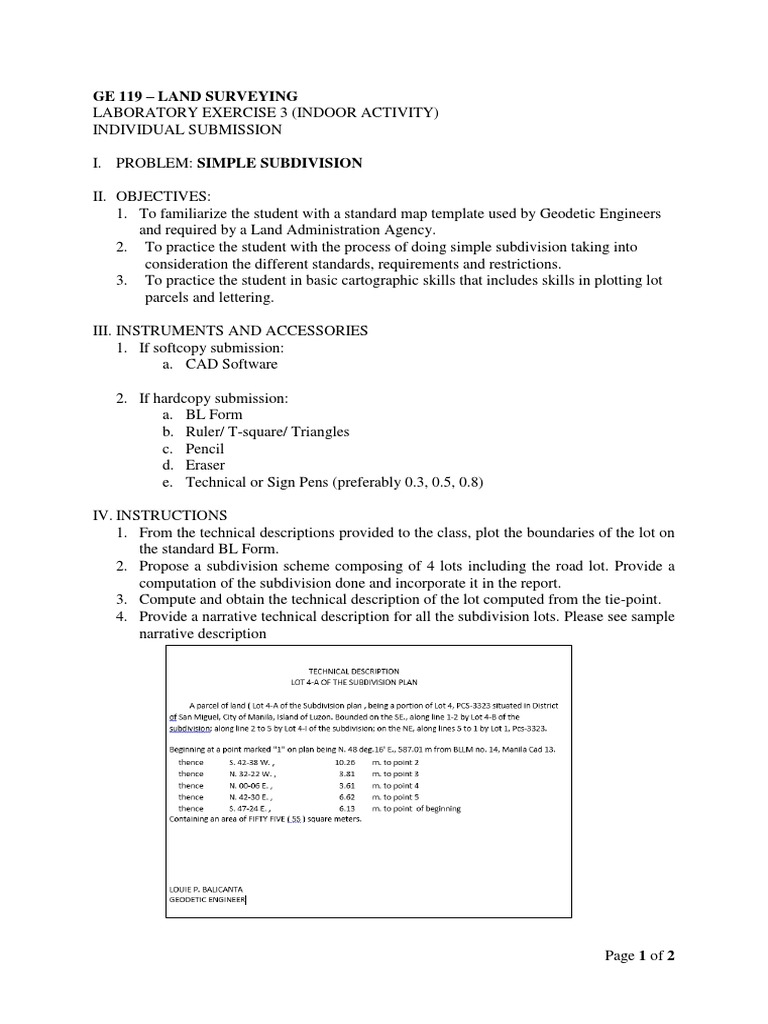

GE 119 LAND SURVEYING

LABORATORY EXERCISE 3 (INDOOR ACTIVITY)


INDIVIDUAL SUBMISSION

I. PROBLEM: SIMPLE SUBDIVISION

II. OBJECTIVES:
1. To familiarize the student with a standard map template used by Geodetic Engineers
and required by a Land Administration Agency.
2. To practice the student with the process of doing simple subdivision taking into
consideration the different standards, requirements and restrictions.
3. To practice the student in basic cartographic skills that includes skills in plotting lot
parcels and lettering.

III. INSTRUMENTS AND ACCESSORIES


1. If softcopy submission:
a. CAD Software

2. If hardcopy submission:
a. BL Form
b. Ruler/ T-square/ Triangles
c. Pencil
d. Eraser
e. Technical or Sign Pens (preferably 0.3, 0.5, 0.8)

IV. INSTRUCTIONS
1. From the technical descriptions provided to the class, plot the boundaries of the lot on
the standard BL Form.
2. Propose a subdivision scheme composing of 4 lots including the road lot. Provide a
computation of the subdivision done and incorporate it in the report.
3. Compute and obtain the technical description of the lot computed from the tie-point.
4. Provide a narrative technical description for all the subdivision lots. Please see sample
narrative description

Page 1 of 2
5. Sample wordings of the certification that can be used in the submission plan.

V. COMPUTATIONS
1. For hardcopy submission use the following scale for the plotting
Maximum Difference in
Scale to be used Coordinates
1: 100 0 to 30 meters
1: 200 30 to 60 meters
1: 300 60 to 90 meters
1: 400 90 to 120 meters
1: 500 120 to 150 meters
1: 600 150 to 180 meters
1: 800 180 to 240 meters
1: 1,000 240 to 300 meters
1: 2,000 300 to 600 meters
1: 3,000 600 to 900 meters
1: 4,000 900 to 1,200 meters
1: 5,000 1,200 to 1,500 meters
1: 6,000 1,500 to 1,800 meters
1: 8,000 1,800 to 2,400 meters
1: 10,000 2,400 to 3,000 meters

VI. REMARKS, HINTS & PRECAUTIONS:

1. The final output includes the following:


a. Sketch of the subdivision scheme drawn and plotted using the standard BL Form
for hardcopy submission or in pdf for softcopy submission;
b. Narrative technical description in docx format submitted digitally; and
c. Laboratory report
2. This exercise is an individual work and outputs shall be made and submitted per
individual. Group leaders must compile the reports and put in folders with the group
members name as folder names. These folders must be placed in folder with section
and group number as the name of the folder.
3. This exercise is good for 100 points and shall be submitted on March 31, 2016 (for
Tues-Thurs class) and April 1, 2016 (for Wed-Fri class) not later than 1:00pm.

Page 2 of 2
