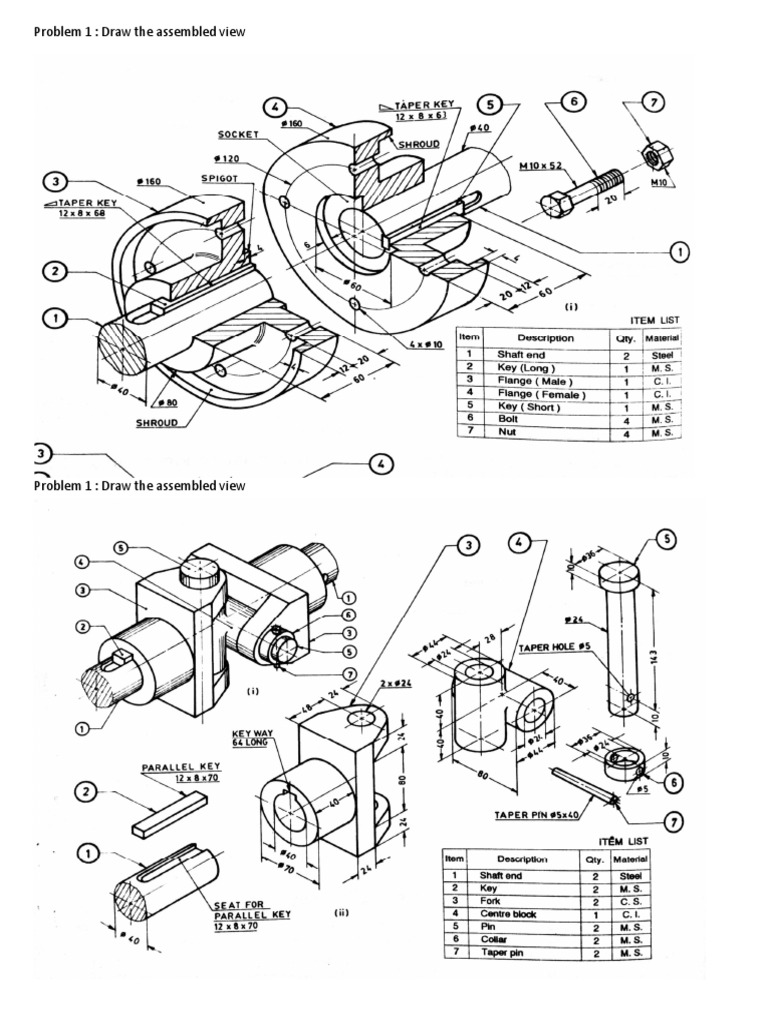

Problem 1 : Draw the assembled view

Problem 1 : Draw the assembled view

Problem 2. A Beam is clamped on the left side and has a point force of 6KN acting downward on the right end of
the beam. Beam has a length of 4m, width of 0.35m and height of 0.35m.Youngs Modulus is 2.7e^11 Pa. It is
required to find the deformation of the beam, Maximum bending stress along the beam and bending moment
along the beam.

Problem 2. A Beam is clamped on the left side and has a point force of 6KN acting downward on the right end of
the beam. Beam has a length of 4m, width of 0.35m and height of 0.35m.Youngs Modulus is 2.7e^11 Pa. It is
required to find the deformation of the beam, Maximum bending stress along the beam and bending moment
along the beam.
