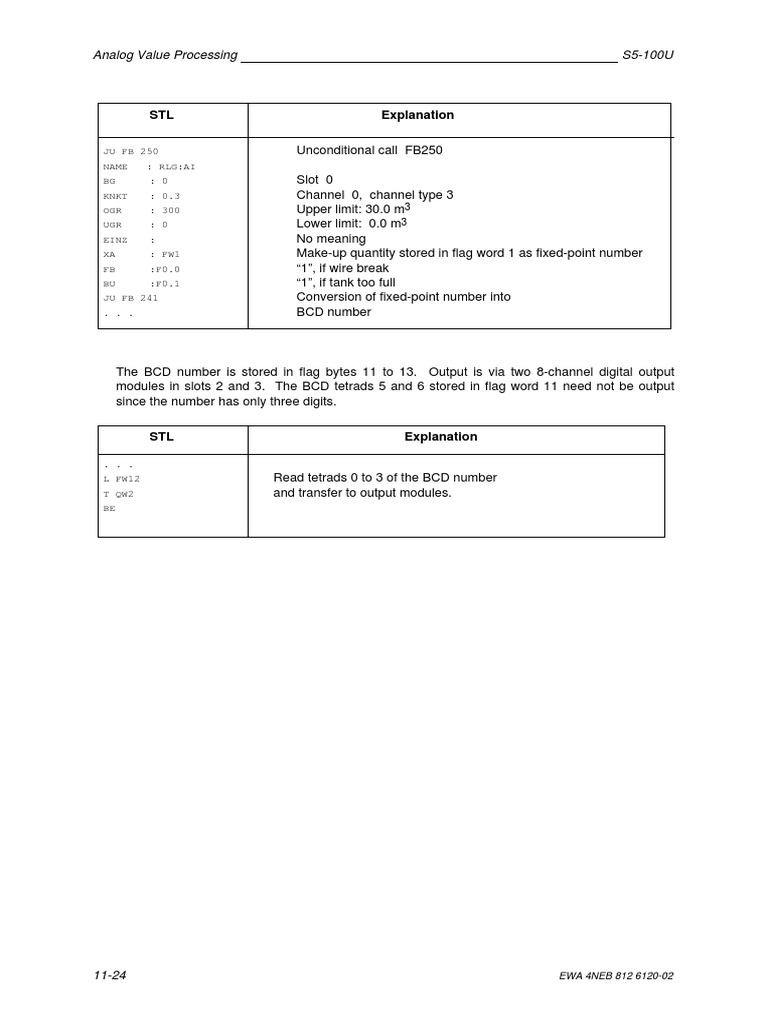

Analog Value Processing S5-100U

STL Explanation

JU FB 250 Unconditional call FB250

NAME : RLG:AI
BG : 0 Slot 0
KNKT : 0.3 Channel 0, channel type 3
OGR : 300 Upper limit: 30.0 m3
UGR : 0 Lower limit: 0.0 m3
EINZ : No meaning
XA : FW1 Make-up quantity stored in flag word 1 as fixed-point number
FB :F0.0 “1”, if wire break
BU :F0.1 “1”, if tank too full
JU FB 241 Conversion of fixed-point number into
. . . BCD number

The BCD number is stored in flag bytes 11 to 13. Output is via two 8-channel digital output
modules in slots 2 and 3. The BCD tetrads 5 and 6 stored in flag word 11 need not be output
since the number has only three digits.

STL Explanation

. . .
L FW12 Read tetrads 0 to 3 of the BCD number
T QW2 and transfer to output modules.
BE
