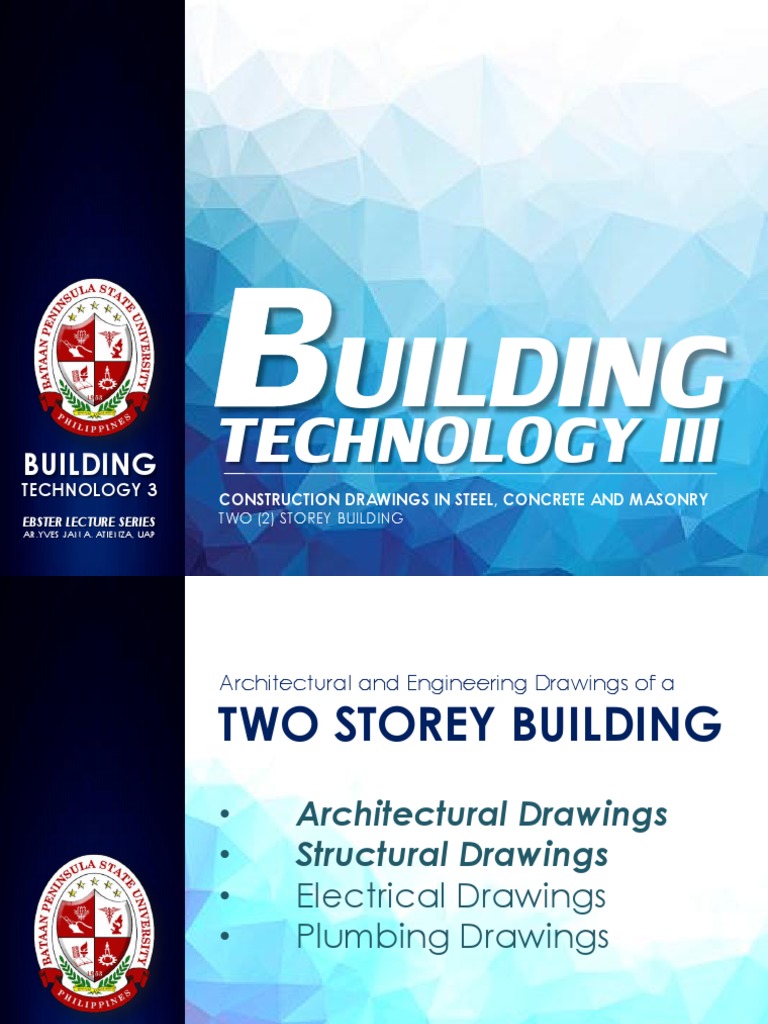

BUILDING

UILDING
TECHNOLOGY III
TECHNOLOGY 3
CONSTRUCTION DRAWINGS IN STEEL, CONCRETE AND MASONRY
EBSTER LECTURE SERIES TWO (2) STOREY BUILDING
AR.YVES JAN A. ATIENZA, UAP
 Architectural and Engineering Drawings of a

TWO STOREY BUILDING

• Architectural Drawings
• Structural Drawings
• Electrical Drawings
• Plumbing Drawings

BUILDING
TECHNOLOGY 3
EBSTER LECTURE SERIES
AR.YVES JAN A. ATIENZA, UAP
 Architectural and Engineering Drawings of a

TWO STOREY BUILDING

• Architectural Drawings
• Structural Drawings
• Electrical Drawings
• Plumbing Drawings

BUILDING
TECHNOLOGY 3
EBSTER LECTURE SERIES
AR.YVES JAN A. ATIENZA, UAP
ELECTRICAL DRAWINGS

E1
 ELECTRICAL DRAWINGS
REQUIREMENTS

1. Lighting Layout (GF and SF)

Plan
Lighting Outlets (LO)
Switches
Circuit Line
Switch Line
Circuit Home Run
Panel Board
Electric Meter
 ELECTRICAL DRAWINGS
REQUIREMENTS

2. Power Layout (GF and SF)

Plan
Convenience Outlets (CO)
Switches
Circuit Line
Circuit Home Run
Panel Board
Other Outlets
 ELECTRICAL DRAWINGS
REQUIREMENTS

3. Schedule of Load – Computation

4. General Electrical Notes and Specs

5. Legends and Symbols

6. Riser Diagram

7. Location Plan
ELECTRICAL INFORMATIONS
Electricity – Phenomenon, manifestation, made of atoms (electron, neutron and proton)
Electrical System – 5 x 4m minimum dwelling
2 classes:
Dynamic – AC, for buildings
Static – DC, for batteries (1.5V)
Use:
Fuse – if less tan 5 circuits
Panel Board – more than 5 circuits

Panel board best location – kitchen for shorter run (ref/ range) – better efficiency, longer run
as friction loss/ drag.

Notes from Philippine Electrical Code:

• All system should be duplex convenience outlets
• 8 lighting and convenience outlet – minimum per circuit
• 2.00mm2 – minimum diameter of wires (lighting)
• 3.50mm2 – minimum diameter of wires (convenience)
• 2 convenience outlet per room – minimum

Types of Wire:
• th – heat resistant
• tw – moisture resistant
• thw – moisture and eat thermoplastic
• thhn – feeder – thermoplastic, eat, nylon resisted
FAULTY ELECTRICAL WIRING
BEGIN
Electrical Drawings Quiz Tomorrow.
