  • DG Set Foundation Details

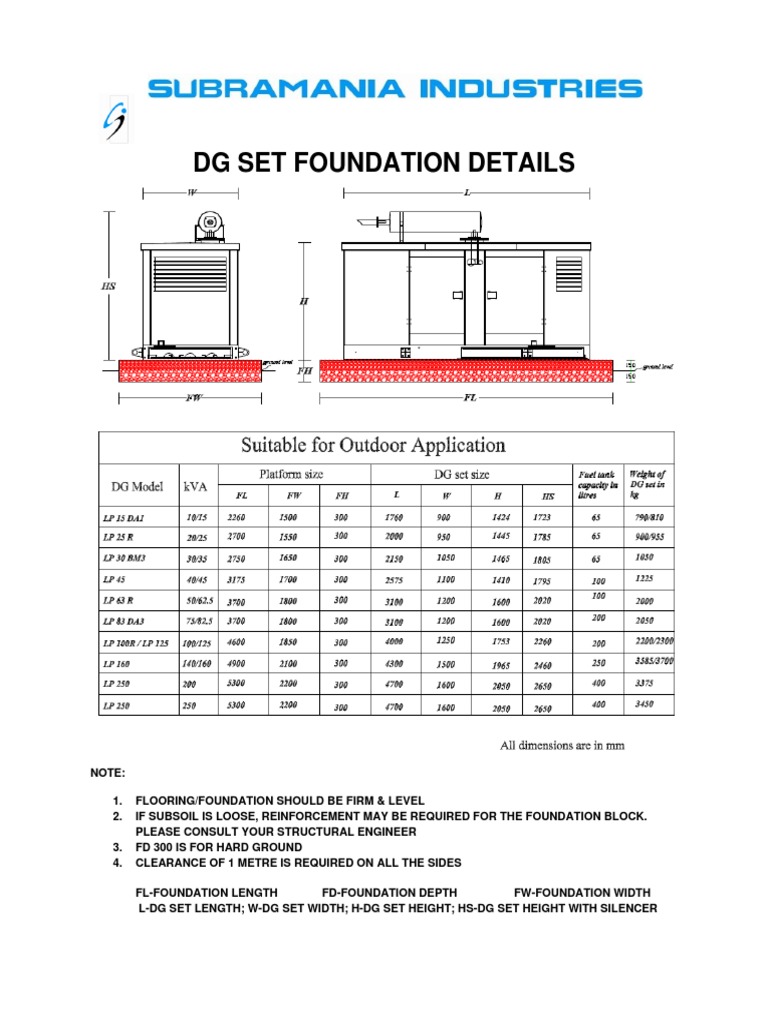

DG SET FOUNDATION DETAILS

NOTE:

1. FLOORING/FOUNDATION SHOULD BE FIRM & LEVEL


2. IF SUBSOIL IS LOOSE, REINFORCEMENT MAY BE REQUIRED FOR THE FOUNDATION BLOCK.
PLEASE CONSULT YOUR STRUCTURAL ENGINEER
3. FD 300 IS FOR HARD GROUND
4. CLEARANCE OF 1 METRE IS REQUIRED ON ALL THE SIDES

FL-FOUNDATION LENGTH FD-FOUNDATION DEPTH FW-FOUNDATION WIDTH


L-DG SET LENGTH; W-DG SET WIDTH; H-DG SET HEIGHT; HS-DG SET HEIGHT WITH SILENCER
