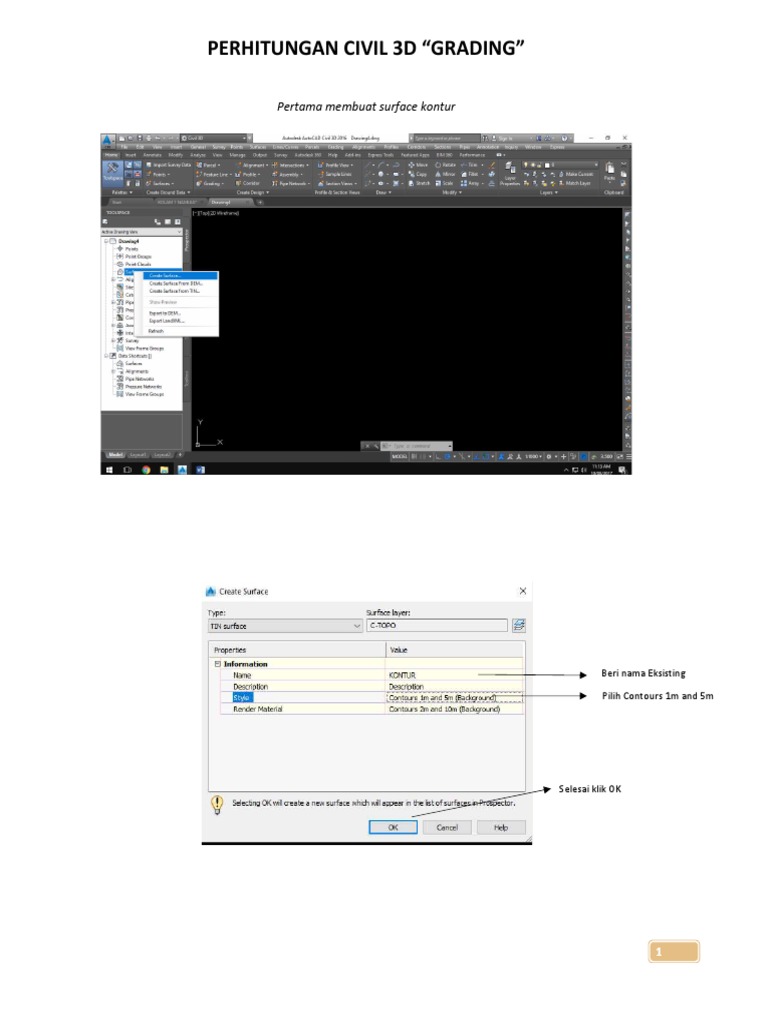

    PERHITUNGAN CIVIL 3D “GRADING”

    Pertama membuat surface kontur

    Beri nama Eksisting

    Pilih Contours 1m and 5m

    Selesai klik OK

    1
    Add point file xyz

    Pilih ENZ (space delimited)

    Selesai klik OK

    2
    Command : Zoom
    Specify corner of windows, enter a scale factor (nX or nXP), or
    [All/Center/Dynamic/Extents/Previous/Scale/Window/Object] <real tim> : E

    Pilih File – Open ( Pilih file dwg rencana Kolam 1 )

    3
    Select All
    Ctrl + A -> Ctrl + C

    Pilih Slide Awal

    Edit -> Paste to Original Coordinates

    4
    Feature Line -> Create Feature Line From Object

    Pilih garis profil rencana -> enter

    5
    Ceklist

    Klik Assign elevations

    Selesai Klik OK

    Pilih Elevation

    Isi Sesuai desain yg diinginkan

    Selesai Klik OK

    6
    Grading -> Create Grading Group

    Rubah Nama Menjadi Rencana

    Ceklist

    Ceklist

    Selesai Klik OK

    7
    Grading -> Create Grading Infill

    Pilih cut Slope Display -> Klik OK

    Select an area to infill ( Klik di Area dalam ) -> Klik Enter

    8
    Grading -> Grading Creation Tools

    Pilih Greade to Elevation

    Klik Edit Current Selection

    9
    Pilih Criteria

    Cut Slope

    Isi sesuai Desain Slope

    Klik OK

    Create Grading

    Pilih Garis Grading

    10
    Select the grading side ( Klik diluar garis grading )
    Apply to entry rang : Yes -> Enter
    Cut Format : Slope -> Enter
    Cut Slope : 1.00:1 -> Enter
    Selsai Esc

    Alignment -> Create Alignment from Objects

    11
    Pilih garis as -> Enter

    Pastikan Arah Panah Mengarah dari

    Spot Awal ke Spot akhir

    (Jika Terbalik Pilih Reverse )

    -> Enter

    12
    Alignment label set

    : Major and Minor only

    Uncek

    Uncek Edit Current Selection

    Isi interval sesuai yg akan dibuat

    100.00 m

    100.00 m

    Selesai Klik OK

    13
    Klik kanan Alignment -> Properties

    Klik Sample Line

    14
    Klik garis as Alignment

    Simple line label style : Setion Name and Marks

    Style Finished Ground


    15
    By range of stations..

    Kedalaman X Slope 9 x 1 = 9
    +
    ( 0.5 x LebarAlur/Kolam ) 0.5 x 200 = 100 +
    109

    True
    Selesai Klik OK

    16
    Klik Analyze Compute Material

    Klik OK

    Quantity takeoff criteria : Earthworks Edit Current Selection

    17
    Rubah Nama Material
    Cut

    Below

    18
    Eksisting

    Rencana

    Section Views -> Create Multiple Views

    19
    Edit Current Selection

    Custom Scale : 250

    20
    21
    22
