Riso WEB Version

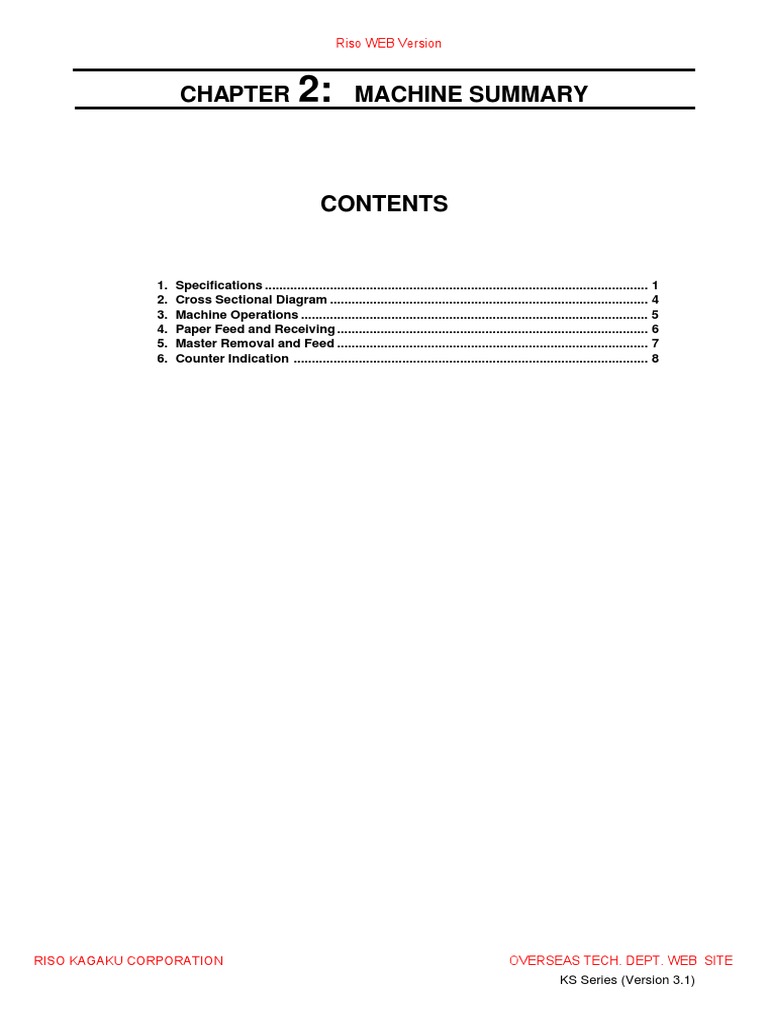

CHAPTER 2: MACHINE SUMMARY

CONTENTS

1. Specifications .......................................................................................................... 1
2. Cross Sectional Diagram ........................................................................................ 4
3. Machine Operations ................................................................................................ 5
4. Paper Feed and Receiving ...................................................................................... 6
5. Master Removal and Feed ...................................................................................... 7
6. Counter Indication .................................................................................................. 8

RISO KAGAKU CORPORATION OVERSEAS TECH. DEPT. WEB SITE

KS Series (Version 3.1)
 Riso WEB Version

MEMO

RISO KAGAKU CORPORATION OVERSEAS TECH. DEPT. WEB SITE

KS Series (Version 3.1)
 Riso WEB Version
MACHINE SUMMARY
SPECIFICATIONS

1. Specifications

KS500 / KS500C / KS500AL

Processing Automatic digital scanning

Fully automatic, thermal screening duplicating system

Time to First Copy 60 seconds (A4 or B4 original)

Print Speed 2 selectable print speeds (60, 90 sheets/min.)

Scanning Resolution 200 x 300 dpi

Original Type Sheet

Original Size KS500 Max. 257 x 394mm or B4 Min. 182 x 257mm or B5

KS500C Max. 273 x 394mm Min. 182 x 257mm or B5
KS500AL Max. 210 x 297mm or A4 Min. 182 x 257mm or B5

Paper Size KS500 Max. 257 x 364mm or B4 Min. 182 x 257mm or B5

KS500C Max. 273 x 394mm Min. 182 x 257mm or B5
KS500AL Max. 210 x 297mm or A4 Min. 182 x 256mm or B5

Original Weight Max. 107 g/m2

Min. 50 g/m2

Paper Weight KS500 / KS500AL Max. 80 g/m2 Min. 50 g/m2

KS500C Max. 70 g/m2 Min. 35 g/m2

Image Area 249 x 352mm

Paper Capacity KS500 / KS500AL Feed tray - 250 sheets (64 g/m2 )
Receiving tray - 250 sheets (64 g/m2 )
KS500C Feed tray - 280 sheets (50 g/m2 )
Receiving tray - 280 sheets (50 g/m2 )

Machine Weight Approx. 45 kg

Dimensions In use / 1200 x 650 x 470mm

[WxDxH]
In storage / 635 x 645 x 479mm

Power Source KS500 / KS500AL

220 to 240 VAC, 50/60 Hz <1.5A-2.0A>
<Requirements>

KS500C
220 VAC, 50 Hz <1.5A-2.0A>
<Requirements>

KS500(120)
110 to 127 VAC, 50/60 Hz <1.9A-2.5A>
<Requirements>

Features Print speed control, Confidential mode, Photo processing mode,

Scanning contrast adjustment, Print position adjustment,
Newspaper mode, Print/Master count display

RISO KAGAKU CORPORATION OVERSEAS TECH. DEPT. WEB SITE

2-1
KS Series (Version 3.1)
 Riso WEB Version
MACHINE SUMMARY
SPECIFICATIONS

1. Specifications

KS600 / KS600C / KS600AL

Processing Automatic digital scanning

Fully automatic, thermal screening duplicating system

Time to First Copy 60 seconds (A4 or B4 original)

Print Speed 2 selectable print speeds (60, 90 sheets/min.)

Scanning Resolution 200 x 300 dpi

Original Type Sheet

Original Size KS600 Max. 257 x 364mm or B4 Min. 182 x 257mm or B5

KS600C Max. 273 x 394mm Min. 182 x 257mm or B5
KS600AL Max. 210 x 297mm or A4 Min. 182 x 257mm or B5

Paper Size KS600 Max. 257 x 364mm or B4 Min. 182 x 257mm or B5

KS600C Max. 273 x 394mm Min. 182 x 257mm or B5
KS600AL Max. 210 x 297mm or A4 Min. 182 x 257mm or B5

Original Weight Max. 107 g/m2

Min. 50 g/m2

Paper Weight KS600 / KS600AL Max. 80 g/m2 Min. 50 g/m2

KS600C Max. 70 g/m2 Min. 35 g/m2

Image Area 249 x 352mm

Paper Capacity KS600 / KS600AL Feed tray - 250 sheets (64 g/m2 )
Receiving tray - 250 sheets (64 g/m2 )
KS600C Feed tray - 280 sheets (50 g/m2 )
Receiving tray - 280 sheets (50 g/m2 )

Machine Weight Approx. 46 kg

Dimensions In use / 1200 x 600 x 550mm

[WxDxH]

Power Source KS600 / KS600AL

220 to 240 VAC, 50/60 Hz <1.5A-2.0A>
<Requirements>

KS600C
220 VAC, 50 Hz <1.5A-2.0A>
<Requirements>

KS600 (120)
110 to 127 VAC, 50/60 Hz <1.9A-2.5A>
<Requirements>

Features Print speed control, Confidential mode, Photo processing mode,

Scanning contrast adjustment, Print position adjustment,
Newspaper mode, Print/Master count display

RISO KAGAKU CORPORATION OVERSEAS TECH. DEPT. WEB SITE

2-2
KS Series (Version 3.1)
 Riso WEB Version
MACHINE SUMMARY
SPECIFICATIONS

1. Specifications
KS800 / KS800C / KS800AL

Processing Automatic digital scanning

Fully automatic, thermal screening duplicating system

Time to First Copy 60 seconds (A4 or B4 original)

Print Speed 2 selectable print speeds (60, 90 sheets/min.)

Scanning Resolution 200 x 300 dpi

Original Type Sheet

Original Size KS800 Max. 257 x 394mm or B4 Min. 182 x 257mm or B5

KS800C Max. 273 x 394mm Min. 182 x 257mm or B5
KS800(AL) Max. 257 x 394mm or B4 Min. 182 x 257mm or B5

Paper Size KS800 Max. 297 x 420mm or A3 Min. 182 x 257mm or B5

KS800C Max. 297 x 420mm or A3 Min. 182 x 257mm or B5
KS800(AL) Max. 210 x 297mm or A4 Min. 182 x 257mm or B5

Original Weight Max. 107 g/m2

Min. 50 g/m2

Paper Weight KS800 / KS800(AL) Max. 128 g/m2 Min. 50 g/m2

KS800C Max. 128 g/m2 Min. 35 g/m2

Image Area KS800 249 x 352mm

KS800C 249 x 352mm
KS800(AL) 210 x 280mm

Enlargement Parameters 141%, 122%, 116%

Reduction Parameters 71%, 82%, 87%, 94%

Paper Capacity KS800 / KS800(AL) Feed tray: 250 sheets (64 g/m2 )
Receiving tray: 250 sheets (64 g/m2 )
KS800C Feed tray: 280 sheets (50 g/m2 )
Receiving tray: 280 sheets (50 g/m2 )

Machine Weight Approx. 46 kg

Dimensions In use / 1200 x 600 x 550mm

[WxDxH]

Power Source KS800 / KS800(AL)

220 to 240 VAC, 50/60 Hz <1.5A-2.0A>
<Requirements>

KS800C
220 VAC, 50 Hz <1.5A-2.0A>
<Requirements>

KS800(120)
110 to 127 VAC, 50/60 Hz <1.9A-2.5A>
<Requirements>

Features Print speed control, Confidential mode, Photo processing mode,

Scanning contrast adjustment, Print position adjustment,
Newspaper mode, Print/Master count display

RISO KAGAKU CORPORATION OVERSEAS TECH. DEPT. WEB SITE

2-3
KS Series (Version 3.1)
 Riso WEB Version
MACHINE SUMMARY
CROSS SECTIONAL DIAGRAM

2. Cross Sectional Diagram

Document Cutter unit
feeder
Image scanner Thermal print head
Original rack
Master disposal box 8

Write roller
6
Master roll
7 9
10
5
1 2
Separator
4

3
Paper feed tray
Paper receiving tray
Suction unit
Pickup roller
Pressure roller
Timing roller
Guide roller

1 First Paper Feed Area: Feeds single sheets of paper to the second paper feed area via
the Pickup roller and Stripper pad.

2 Second Paper Feed Area: Controls the vertical print position and feeds paper to the print
area via the Timing and Guide rollers.

3 Press (Printing) Area: Uses the Pressure roller to press paper against the master on the
Drum.
The Drum rotates with the Pressure roller and prints an image on
paper.

4 Paper Ejection Area: Separates a printed paper from the Drum, and transports it onto
the paper receiving tray.

5 Drum Area: Supplies the Drum surface with ink from an Ink cartridge.

6 Master Clamp Area: Clamps the leading edge of the master.

7 Master Disposal Area: Separates used master from the Drum and disposes it into the
Master disposal box.

8 Image Scanning Area: Carries an original and scans it with the Image scanner and
converts the image information into digital data.

9 Master Making Area: Makes a master with the Thermal print head.

10 Master Loading Area: Feeds the prepared master material to the Drum and cuts it to an
appropriate length.

RISO KAGAKU CORPORATION OVERSEAS TECH. DEPT. WEB SITE

2-4
KS Series (Version 3.1)
 Riso WEB Version
MACHINE SUMMARY
MACHINE OPERATIONS

3. Machine Operations

Set the original and press the Start key.

Master Disposal Master Making

The used master is removed from The original is scanned by the image
the drum and stored in the scanner and the image is made on the
disposal box. master with the thermal print head.

Master Carrier and Loading

The made master is wrapped onto the

drum and cut.
Also, a proof print is printed.

Printing

Paper is fed one sheet at a time from

the Paper feed tray, printed, and
stored on the paper receiving tray.

RISO KAGAKU CORPORATION OVERSEAS TECH. DEPT. WEB SITE

2-5
KS Series (Version 3.1)
 Riso WEB Version

MACHINE SUMMARY
PAPER FEED AND RECEIVING

4. Paper Feed and Receiving

Pickup roller Drum

The Drum is rotated and a sheet of paper is fed
from the first paper feed area to the second paper
feed area by Pickup rollers, and Stripper pad.

Stripper pad

Guide roller
The paper feed to the second paper feed area is
stopped by the Guide and Timing rollers to form a
buckle. The paper then waits until the rotation of
Timing roller the Guide roller starts.

The Guide and Timing rollers in the second paper

feed area are rotated and the paper is fed to the
Pressure roller printing area.

While the paper is being fed from the second

paper feed area, the Pressure roller rises and
printing starts.
Separation fan
(The Pressure roller contacts the Drum and starts
rotating.)
Separator

After the Pressure roller contacts the Drum to start

printing, the Separator approaches the Drum and
the Separation fan starts to blow.
The Guide roller goes up to release the paper.
(The paper is then transferred by the rotation of
the Drum.)

Transfer belt The printed paper is separated from the Drum by

the Separator and with a help of the air blow from
the Separation fan.
It is then transported onto the Paper receiving tray
by the Transfer belts using Suction fan.

The Timing roller contacts with the Guide roller to

feed the next sheet of paper.

RISO KAGAKU CORPORATION OVERSEAS TECH. DEPT. WEB SITE

2- 6
KS Series (Version 3.1)
 Riso WEB Version

MACHINE SUMMARY
MASTER REMOVAL AND FEED

5. Master Removal and Feed

Clamp plate Master
projection shaft Master roll Master Removal
The Clamp plate opens and Master
release shaft releases the master from the
Clamp plate.
Vertical Master
transport roller

The Drum and Vertical transport rollers

starts rotating and removes the master
Master from the Drum and feed it into the Master
disposal box disposal box.

The Master compressing plate starts

compressing the removed master within
the Master removal box.
TPH

Master Making
The Image scanner scans the image on
the original and Thermal print head (TPH)
makes the image on the master material.
The Master tension plate drops down and
applies tension on the master material.

Master Loading
The master is transferred onto the Drum
and the leading edge is clamped by the
Clamp plate.

The Drum rotates to wrap the master on

the Drum.

Cutter

The Cutter cuts the master.

RISO KAGAKU CORPORATION OVERSEAS TECH. DEPT. WEB SITE

2-7
KS Series (Version 3.1)
 Riso WEB Version
MACHINE SUMMARY
COUNTER FOR MAINTENANCE

6. Counter Indication

1. Indicate Copy and Master Counter:

No mechanical counters are installed on KS therefore the alternatives are available as software
counter.
The counter indication can be shown by using USER MODE.
By pressing [*] and then [1], three digits of seven segments indication on the control panel displays
the Copy counter. The three digits of seven segments change every 2 seconds then displays nine
digits of numbers finally.
By pressing [*] and then [2], the Master counter can be shown as same method as the above.

[Example] In case the Copy count is 123,456 and the Master count is 1,234.
Copy Count
1. Press [*] key then [1] key.
2. [ - - - ] will be indicated at first.
3. After 2 seconds, the indication will be changed to [ 1 2 3 ].
4. After 2 seconds, the indication will be changed to [ 4 5 6 ].
Master Count
1. Press [*] key then [2] key.
2. [ - - 1 ] will be indicated at first.
3. After 2 seconds, the indication will be changed to [ 2 3 4 ].

2. Clear of Copy and Master Counter:

The counter indication can be cleared and set back to default zero by using TEST MODE No.97.

By pressing the print position adjustment key or on the control panel then Power On.
Three digits of seven segments indication on the control panel displays version of the System ROM
initially. Then press [C] button so that the Test numbers can be input.

Clear Copy and Master counter:

1. Press [9] and [7] key then press [Start] key while test mode is available.
2. [1] will be indicated. In case the indication is [0], counter cannot be clear.
3. Press [C] to clear the memorised copy and master counter.
4. Press [Reset] key or power off to be back to normal operation.

Prohibit clear of Copy and Master counter:

1. Press [9] key and [7] key then press [Start] key while test mode is available.
2. [1] will be indicated. In case the indication is [0], counter cannot be clear.
3. Press [C] to clear the memorised copy and master counter.
4. Press the print position adjustment key or to the indication change from [1] to [0].
5. Press [Start] key so that counter clear mode becomes no longer available.
6. Press [Reset] key or power off to be back to normal operation.

Note:
*1. To confirm the status of the counter clear mode, input test mode No.97 then press [Start] key
while test mode is available. If the indication is [0], counter cannot be cleared. If the indication
is [1], the counter can be cleared.
*2. It is recommended that the prohibit clear mode should be done before the machine is installed
at customer site. Once the prohibit clear mode is activated, the counters will no longer be able
to be cleared permanently.

RISO KAGAKU CORPORATION OVERSEAS TECH. DEPT. WEB SITE

2-8
KS Series (Version 3.1)
