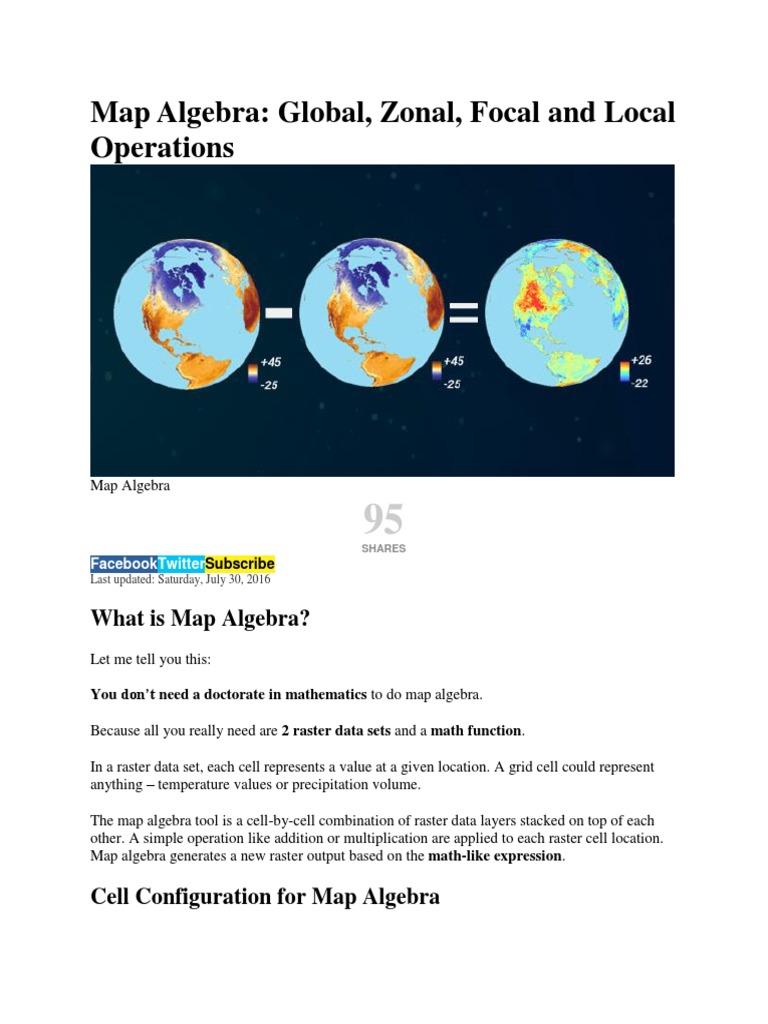

Map Algebra: Global, Zonal, Focal and Local

Operations

Map Algebra

95
SHARES
FacebookTwitterSubscribe
Last updated: Saturday, July 30, 2016

What is Map Algebra?

Let me tell you this:

You don’t need a doctorate in mathematics to do map algebra.

Because all you really need are 2 raster data sets and a math function.

In a raster data set, each cell represents a value at a given location. A grid cell could represent
anything – temperature values or precipitation volume.

The map algebra tool is a cell-by-cell combination of raster data layers stacked on top of each
other. A simple operation like addition or multiplication are applied to each raster cell location.
Map algebra generates a new raster output based on the math-like expression.

Cell Configuration for Map Algebra

The simplest approach is performing map algebra on a cell-by-cell basis with two raster data
sets. This is an example of a local operation.

But cell configuration can vary. Map algebra can be defined

as local, focal, zonal and globaloperations:

Local Operation

The value generated in the output raster is a function of cell values at the same location on in the
input layers. When you take the temperature average in each cell using two raster grids, this is an
example of a local operation.

Here are examples of operations that can be used between the two raster layers:

▪ Arithmetic operations (addition, subtraction, multiplication, division)

▪ Statistical operations (minimum, maximum, average, median)
▪ Relational operations (greater than, smaller than, equal to)
▪ Trigonometric operations (sine, cosine, tangent, arcsine)
▪ Exponential and logarithmic operations (exponent, logarithm)

Global Operation
A global operation is a process or function that is performed on each output cell using all of the
cells of the input raster.

For example, the Euclidean distance tool is an example of a global operation because it
calculates the closest distance away from the closest source.

Focal Operations

The focal operation is a spatial function that computes an output value of each cell
using neighborhood values. Convolution, kernel and moving windows are examples of image
processing techniques that use focal operations.

A moving window is a rectangular arrangement of cells that applies an operation to each cell in a
raster dataset while shifting in position entirely.
A neighborhood operation is a spatial function where the output location, area and extent comes
from areas larger than and adjacent to the input cells. For example, average neighborhood
operations smooth values in a map.

Zonal Operation

A zonal operation is a spatial function that computes an output value of each cell using the zone
containing that cell.

An example of a zone could be a watershed. When you want to calculate the total mean volume
of precipitation in each watershed zone, this is an example of when you would use a zonal
operation.

Map Algebra Example: Land Surface Temperature Change

NASA’s Land Surface Temperature rasters show how warm or cold Earth’s features (bare soil,
snow or ice cover, cropland and forest canopy, etc) are during the daytime. Land surface
temperature should not be confused with air temperature because land surface is the skin of the
Earth.

Scientists want to measure global land surface temperature because it’s useful for understanding
crop conditions, weather patterns and climate change. Moderate Resolution Imaging
Spectroradiometer (MODIS) instruments measure the top 1-millimeter of the surface using
thermal infrared.

If you were to take a snapshot of land surface temperature in April 2015, it would look like

this: Land Surface Temperature April 2014 – LST

data courtesy of NASA
If you were to take April 2014 land surface temperature, here’s what it looks like:

Land Surface Temperature April 2015 – LST data

courtesy of NASA

When you subtract April 2014 from April 2015 for land surface temperature, you see the
difference in temperature everywhere in the world:
 Land Surface Temperature Difference

This is an example of an arithmetic local operator because each cell is being subtracted from one
year by another. Using two raster layers, each grid cell had a value representing land surface
temperature in 2014 and 2015. These grid cells overlapped each other and ranged from -25° to
+45° Celsius.

We subtracted 2014 from 2015 land surface values for each cell. As a result, the output map has
a range from -40° to +40° Celsius. You can pinpoint cells with the greatest difference. If there
were null values in any of the rasters, they remained as null in the output raster.

This is a local operation because the arithmetic function is being performed at the same location
of each cell. In the resulting layer, if values are positive: this means that 2015 land surface
temperatures were hotter. If values are negative, this means that 2014 land surface temperatures
were hotter.

Land Surface Temperature Subtraction

Performing Map Algebra in ArcGIS

Doing map algebra in ArcGIS is as if you are running any other geoprocessing tool.

In this section, you’ll uncover how to use the raster calculator tool in ArcGIS and get hands-on
experience performing map algebra. Let’s get you started:

▪ Enable your Spatial Analyst extension

▪ Under ArcToolbox > Spatial Analyst Tools > Map Algebra, double-click the raster
calculator tool
▪ Select your raster data sets and operators
▪ Save as new raster layer

Other Map Algebra Examples

Here are some clear-cut examples that will help you connect the math-like functions with map
algebra:

RELATIONAL OPERATORS is a logical function that tests a relationship and returns true (as
the value 1) or false (as the value 0).

Examples of relational operators are: equal to, not equal to, less than, less than or equal to,
greater than and greater than or equal to.
If you use a “greater than 0” relational operator on a raster grid, the output raster grid will return
the value one for all positive values and zero for all negative values.

STATISTICAL OPERATORS calculate statistics for each cell by using a statistical function
such as minimum, maximum, average or median.

You can really crunch numbers using tools like zonal statistics. This tool uses a statistical
operator to crunch numbers of all the cell values within a zone. Zonal mean, zonal median, zonal
minimum – these configurations help GIS users for times in need.

All the cells within a zone have the same value for the raster output. In a zonal statistics output
table, each row represents a unique zone.

Data Citation:

Land Surface Temperature Data provided by NASA’s Earth Observatory Team, using data
provided by the MODIS Land Science Team.
