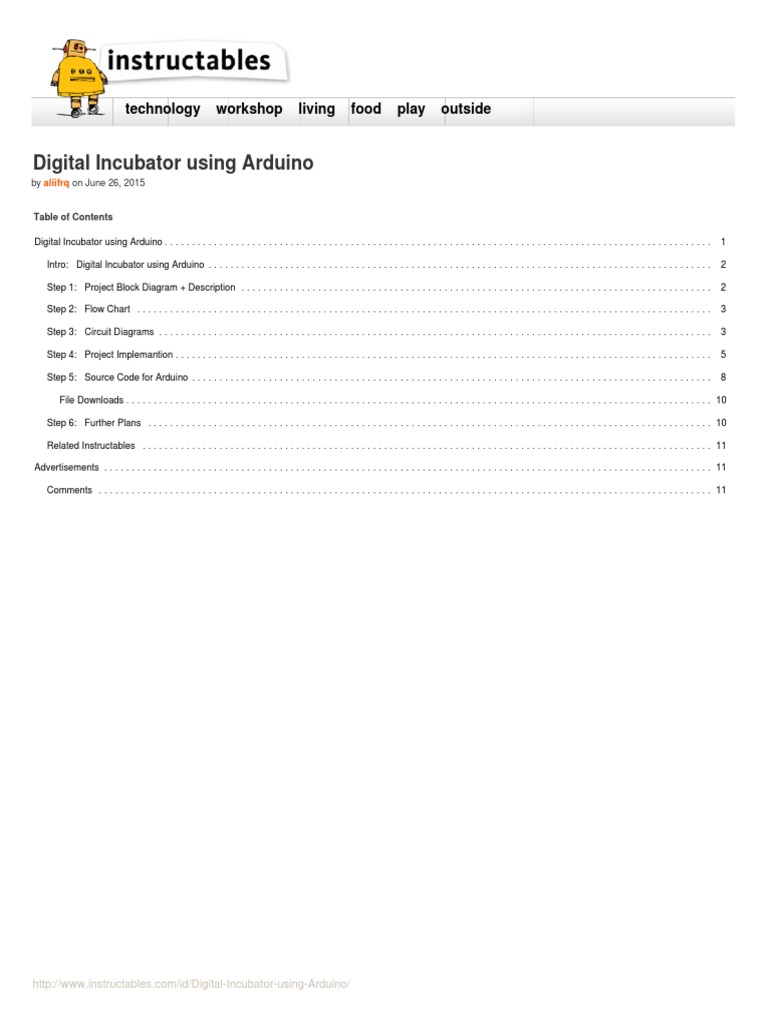

Digital Incubator using Arduino

by aliifrq on June 26, 2015

Table of Contents

Digital Incubator using Arduino . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Intro: Digital Incubator using Arduino . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Step 1: Project Block Diagram + Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Step 2: Flow Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Step 3: Circuit Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Step 4: Project Implemantion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Step 5: Source Code for Arduino . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

File Downloads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Step 6: Further Plans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Related Instructables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Advertisements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

http://www.instructables.com/id/Digital-Incubator-using-Arduino/
Intro: Digital Incubator using Arduino
Introduction

An incubator is a device which is used to breed and preserve the bacteriological cultures or cell cultures. It supports the prime temperature, light intensity, humidity and
other conditions inside the atmosphere. Incubators are very important for many experimental works in the field of cell biology, microbiology as well as molecular biology
and cultures are used for the bacteria and other Eukaryota cells. They are also used as a substitute for the poultry chickens which often leads to a high rate of explosion
because of the ability to control the major factor. i.e. Temperature.

The simplest incubator cased in the insulated box contains an adjustable heater, typically occurs 60 to 65o C (140 to 150o F) and some others with typically higher
temperature range. The temperature often used for both bacteria as well as mammalian cell is approximately around 37oC,as these organisms grow under these
conditions. For other organisms which are used in the biological experiments such as the budding yeast the optimal temperature required for their grow this 30o C.

The incubator which we have designed basically an egg incubator that monitors and control the temperature as well as lightness in the desired or optimum range
required for the proper hatching of eggs as a primary task because of its importance as a guiding factor / parameter.

Basically, it is similar to the type of incubator which can be used as a substitute of poultry chicken to hatch the chicken eggs automatically. It will be helpful for the farmers
to hatch the eggs automatically without the need of human intervention by keeping the egg worm, allowing the fetuses inside them to grow and hatch without the
presence of mother.

Furthermore, egg incubator will not only improve the poultry production considerably but will also help in the regularity of income making, enabling the farmers to be able
to get transition into possible rural entrepreneurship.

Image Notes
1. Incubation box

Step 1: Project Block Diagram + Description

We have used a temperature sensor (LM35) and light sensor (LDR) which sense the temperature and light intensity inside the incubator, the output of which is provided
to the Arduino microcontroller which takes the decision based on the comparison between the desired set point values and the input values obtained from the sensor. The
current temperature is displayed on theLCD. The decision taken by the microcontroller is either to turn on the Bulb (when temperature is low) or turn the Fan on (when
temperature is high).

Basically the incubation system start by reading the current values of temperature and light intensity. This system is designed depending upon the sunshine. If there is a
sunshine, it means that this is the day time. So, the fan in this condition runs at the full speed. On the other hand if there is no sunshine, then it means that the time is the
night time. So, in this condition, the fan runs using the Pulse Width Modulation Technique through which the speed of the fan can be varied. In fact, this is done because
therefore temperature outside is the low in the night time as compared to the daytime when the sun is shining So, it will be work efficiently.

http://www.instructables.com/id/Digital-Incubator-using-Arduino/
Step 2: Flow Chart

Image Notes
1. Ldr for light detection
2. lm35 for temperature detection

Step 3: Circuit Diagrams

All of these circuits are implemented in Proteus Simulator.

For Power supply I have used ATX Computer Power supply.

Components and Other things Required

1. BC547 Transistor for Bulb circuit

2. LED'S

3. TIP122 Transistor for Fan circuit.

4. 16x2 Alpha Numeric LCD

5. 12 volt Relay

6. 12 volt Cooling Fans (computer power supply fans)

7. 100 watt bulb

8. LM35 and LDR

9. Resistors (10k,1k and 10k pot for lcd brightness adjustment)

10. Arduino UNO

11. Jumper wires and connectors.

12. Heat sink for tip 122.

Image Notes
Image Notes 1. LDR circuit for interfacing with Arduino
1. LM35 circuit for interfacing with Arduino

http://www.instructables.com/id/Digital-Incubator-using-Arduino/
 Image Notes
1. Bulb circuit
Image Notes Relay is connected with 100 watt bulb
1. 16X2 LCD Circuit for interfacing with Arduino 2. Base of Transistor is connected with pin 8 of Arduino.

Image Notes
1. Cooling fan circuits

2. Base of Transistor is connected with pin 6 of Arduino.

http://www.instructables.com/id/Digital-Incubator-using-Arduino/
Step 4: Project Implemantion

Image Notes
1. just to check if it is working properly.

http://www.instructables.com/id/Digital-Incubator-using-Arduino/
http://www.instructables.com/id/Digital-Incubator-using-Arduino/
http://www.instructables.com/id/Digital-Incubator-using-Arduino/
 Image Notes
1. Cooling Fan + Bulb inside the box

Step 5: Source Code for Arduino

Coding

n Using Simple IF-ELSE LOGIC

// Digital Data Acquisition – Spring 2015 (NUST UNIVERSITY)

// End Semester Project

// Incubator by M. Aatif Mobeen, M. Ali Farooq and S. M. Afaq Khan

#include

LiquidCrystal lcd (12, 11, 5, 4, 3, 2);

// initialization

int fan = 6;

int bulb = 8;

int ldrpin = 9;

float temp;

int temppin=0;

int ldrstate = 0;

void setup()

pinMode (fan, OUTPUT);

pinMode (bulb, OUTPUT);

pinMode (ldrpin, INPUT);

Serial.begin (9600); // Setting the Baud Rate

lcd.begin (16, 2); // Activating both Rows of LCD

lcd.print (“NUST PNEC”);

delay (5000); // 5 Seconds Delay

lcd.clear();

lcd.print (“SPRING 2015”);

delay (5000);

lcd.clear();

lcd.print (“DDAC”);

delay (5000);

lcd.clear ();

lcd.print (“by”);

delay (5000);

lcd.clear ();

lcd.print (“Cdr. Dr. Aleem”);

delay (5000);

lcd.clear ();

lcd.print (“And”);

delay (5000);

lcd.clear ();

lcd.print (“Cdr. Dr. Attaullah”);

delay (5000);

lcd.clear ();

http://www.instructables.com/id/Digital-Incubator-using-Arduino/
lcd.print (“Semester Project”);

delay (5000);

lcd.clear ();

lcd.print (“INCUBATOR”);

delay (5000);

lcd.clear ();

lcd.print (“Group Members”);

delay (5000);

lcd.clear ();

lcd.print (“M. Ali Farooq”);

delay (5000);

lcd.clear ();

lcd.print (“M. Aatif Mobeen”);

delay (5000);

lcd.clear ();

lcd.print (“S. M. Afaq Khan”);

delay (5000);

lcd.clear ();

lcd.print (“Initialization”);

delay (5000);

lcd.clear ();

lcd.print (“Temperature = ”);

void loop ()

ldrstate = digitalRead (ldrpin); // Reading the LDR State

temp = analogRead (tempPin); // Reading the Temperature

temp = temp*0.48828125; // Conversion Factor

delay (1000);

Serial.printIn (temp); // Printing in Serial Monitor

Serial.printIn (“Centigrade”);

lcd.serCursor (0, 1); // Selecting the LCD Cursor to 1st Line

lcd.print (temp);

lcd.print (“Centigrade”);

if (ldrstate == HIGH)

if (temp>36) // Maintaining the Range 32 – 36.

digitalWrite (fan, HIGH);

digitalWrite (bulb, LOW);

else if (temp<32)

digitalWrite (fan, LOW);

digitalWrite (bulb, HIGH);

http://www.instructables.com/id/Digital-Incubator-using-Arduino/
}

else

digitalWrite (fan, LOW);

digitalWrite (bulb, LOW);

else

if (temp>36)

digitalWrite (fan, HIGH);

delay (800);

digitalWrite (fan, LOW);

delay (200);

digitalWrite (bulb, LOW);

else if (temp<32)

digitalWrite (fan, LOW);

digitalWrite (bulb, HIGH);

else

digitalWrite (fan, LOW);

digitalWrite (bulb, LOW);

File Downloads

Coding.docx (11 KB)

[NOTE: When saving, if you see .tmp as the file ext, rename it to 'Coding.docx']
Step 6: Further Plans
After successfully implementation of this project we have further decided to add humidity sensor and vary the intensity or brightness of bulb using more advance circuit
based on traic and other power electronics components.

Moreover we have also decided to implement PID logic rather then if else to make our system more efficient.

Thank you

Regards,

Muhammad Ali Farooq

MS (CONTROL)

NUST University.
