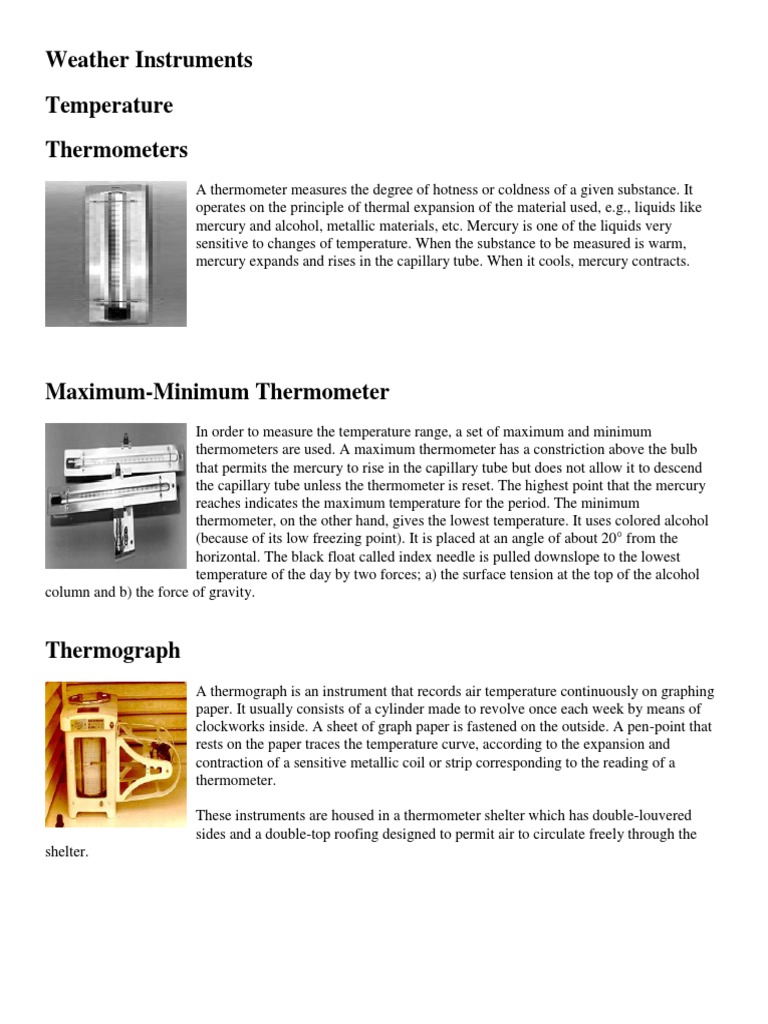

Weather Instruments

Temperature
Thermometers
A thermometer measures the degree of hotness or coldness of a given substance. It
operates on the principle of thermal expansion of the material used, e.g., liquids like
mercury and alcohol, metallic materials, etc. Mercury is one of the liquids very
sensitive to changes of temperature. When the substance to be measured is warm,
mercury expands and rises in the capillary tube. When it cools, mercury contracts.

Maximum-Minimum Thermometer
In order to measure the temperature range, a set of maximum and minimum
thermometers are used. A maximum thermometer has a constriction above the bulb
that permits the mercury to rise in the capillary tube but does not allow it to descend
the capillary tube unless the thermometer is reset. The highest point that the mercury
reaches indicates the maximum temperature for the period. The minimum
thermometer, on the other hand, gives the lowest temperature. It uses colored alcohol
(because of its low freezing point). It is placed at an angle of about 20° from the
horizontal. The black float called index needle is pulled downslope to the lowest
temperature of the day by two forces; a) the surface tension at the top of the alcohol
column and b) the force of gravity.

Thermograph
A thermograph is an instrument that records air temperature continuously on graphing
paper. It usually consists of a cylinder made to revolve once each week by means of
clockworks inside. A sheet of graph paper is fastened on the outside. A pen-point that
rests on the paper traces the temperature curve, according to the expansion and
contraction of a sensitive metallic coil or strip corresponding to the reading of a
thermometer.

These instruments are housed in a thermometer shelter which has double-louvered

sides and a double-top roofing designed to permit air to circulate freely through the
shelter.
Atmospheric Pressure
Mercurial Barometer
A mercurial barometer is a simple barometer made by filling a glass tube 32 inches
long with mercury and inverting it so that the open end of the tube is below the surface
of mercury in a cistern. The height of the mercury column is measured by sliding a
vernier attached on a scale. To obtain accurate measurements, corrections are made for
temperature expansion of the instrument, gravity and latitude. Values are read in
millibars, millimeters or inches of mercury.

Aneroid Barometer
An aneroid barometer is made by removing the air from a thin, circular, metallic box.
With practically no air on the inside the box would collapse. A spring is installed to
limit the collapse of the box commensurate to the air pressure or weight of the column
of air on the box. If one side of the box is fixed, the other side will move due to
changes in atmospheric pressure. The surface of the metallic box is corrugated in order
for the box to collapse and return uniformly. The movement of the spring causes a
pointer to move over a scale of figure corresponding to the readings of a mercury
barometer.

Since air pressure decreases with increase in altitude, the aneroid is also used as altimeters. On the altimeter, the
scale is marked off in hundreds and thousands of feet or meters above sea level. The altimeters is a basic
instrument in aeronautical stations and on board an aircraft.

Barograph
A barograph is a recording barometer. The pen point that traces the pressure curve on
the paper is made to move up or down by means of a series of levers attached to
aneroid cells (metallic boxes) in tandem. The use of aneroid cells in tandem provide a
more pronounced response to changes in atmospheric pressure than would be indicated
by a single aneroid cell of the same size.
Atmospheric Humidity
Sling Psychrometer
The sling psychrometer consists of a dry and wet-bulb thermometer. The term bulb
refers to that portion of the glass tube where the mercury is stored. The dry and wet
bulbs are exactly alike in construction. The only difference is that the wet-bulb has a
piece of muslin cloth or wick wrapped around its bulb and which is dipped in water
shortly before the psychrometer is read.

This is how it is done. The weather observer firsts wets the cloth cladding the wet-
bulb, whirls the psychrometer a few times, then reads the wet-bulb. He reads the dry-
bulb last. Normally, the wet-bulb's reading will be lower than the dry-bulb's. The dry-
bulb reading is the air temperature. The difference between the dry and the wet-bulb readings will give, with the
aid of a psychrometric table, the dew point temperature and the relative humidity. (Dew point is the temperature
at which the water vapor will condense while relative humidity is the ratio of the amount of water vapor
actually present in the air to the maximum amount of water vapor the air can hold at a given temperature).

Hygrometer
The other instrument used to measure humidity is the Hygrometer. The hygrometer is
less accurate than the psychrometer. It uses human hair from which the oil has been
removed by using ether. The hair becomes longer as the relative humidity of the air
increases. This change can be made to move an indicator needle which moves over a
scale, the graduations of which reads from 0% to 100%.

Hygrothermograph
The hygrothermograph records both relative humidity and temperature on graph paper
in the same manner as the thermograph and barograph do.
Precipitation
8-inch Raingauge
An 8-INCH RAINGAUGE, so called because the inside diameter of the collector is
exactly 8 inches above a funnel that conducts rain into a cylindrical measuring tube or
receiver. The volume of the collector is 10 times the volume of the measuring tube.
Therefore the actual depth of rainfall is increased ten times on being collected in the
smaller measuring tube.

To measure the amount of rainfall accumulated in the measuring tube, (a) a thin
measuring stick with the magnified scale printed on its face is used. The precisely
dimensioned (b) measuring tube has a capacity representative of only 2 inches (50.8
millimeters) on flat level ground. Rainfall exceeding this amount spills into the (d) overflow can but can be
easily measured by pouring it into the measuring tube for total rainfall.

Tipping Bucket Raingauge

The tipping-bucket raingauge is a type of rainfall recording instrument. It is an upright
cylinder that has funnel-shaped collector. The precipitation collected by the collector
empties into one side of a "tipping bucket", an inverted triangular contraption
partitioned transversely at its center, and is pivoted about a horizontal axis. Once one
compartment is filled with rain, it tips, spilling out the water and placing the other half
of the bucket under the funnel. The tipping activates a mercury switch causing an
electrical current to move the pen in the recorder. Each tipping is equal to one-half
millimeter of rainfall.

Clouds
Ceiling Light Projector
A ceiling light projector projects vertically a narrow beam of light on to a cloud base.
The height of the cloud base is determined by using a clinometer located at a known
distance from the projector to measure the elevation angle included by the illuminated
spot on the cloud, the observe, and the projector. From trigonometry, the height of the
cloud base is equal to the distance of the observer from the ceiling light projector
multiplied by the tangent of the elevation angle.
Ceiling Balloon
Another way of determining the height of the cloud base is by using a ceiling balloon.
A ceiling balloon is a meteorological balloon whose rate of ascent has been
predetermined. It is filled with gas lighter than air, usually hydrogen, and released. The
time of release and the time the balloon disappears into the cloud are recorded. The
time difference multiplied by the rate of ascent will give the height of the cloud base.

Special Instruments
Pilot Balloon/Theodolite
A Pilot Balloon is a meteorological balloon that is filled with gas lighter than air.
When the pilot balloon is used in conjunction with a theodolite it is used to determine
the speed and direction of winds at different levels of the atmosphere.

The theodolite is similar to an engineer's transit. It consists of a sighting telescope

mounted so that it is free to rotate around a horizontal and a vertical axis and has
graduated scales so that the angles of rotation maybe measured while tracking the pilot
balloon.

The elevation angles and azimuths of the balloon are recorded from the theodolite and these data at the end of
the flight which may last for more than an hour are plotted to a plotting board. The wind speed and direction at
selected levels are calculated either by trigonometric methods or graphical methods.

Night observation is accomplished by attaching a lit paper lantern to the balloon.

Radiosonde
Radiosonde, an airborne instrument used for measuring pressure, temperature and relative
humidity in the upper air is the radiosonde. The instrument is carried aloft by a
meteorological balloon inflated with hydrogen. The radiosonde has a built-in high
frequency transmitter that transmits data from the radiosonde meter and recorded on the
ground by a specially designed radiosonde receiver.
Rawinsonde
A more sophisticated version of this instrument is the rawindsonde. The rawindsonde
is an electronic device used for measuring wind velocity, pressure, temperature and
humidity aloft. It is also attached to a balloon and as it rises through the atmosphere, it
makes the required measurements.

Rawin
Another special instrument is the Rawin which is short for Radar and Wind. It is an electronic device that
measures pressure, temperature and humidity.

Wind Finding Radar

Another instrument is the Wind Finding Radar. It determines the speed and direction of winds aloft by means of
radar echoes. A radar target is attached to a balloon and it is this target that is tracked by ground radar. The
bearing and time of interval of the echoes is evaluated by a receiver.

Weather Surveillance Radar

A Weather Surveillance Radar is of the long range type which detects and tracks typhoons and cloud masses at
distance of 400 kilometers or less. This radar has a rotating antenna disk preferably mounted on top of a
building free from any physical obstruction. Radio energy emitted by the transmitter and focused by the antenna
shoots outward through the atmosphere in a narrow beam. The cloud mass, whether it is part of a typhoon or
not, reflects a small fraction of the energy back to the antenna. This reflected energy is amplified and displayed
visually on a radar scope. The distance or slant range of the target from the radar is determined through the
elapsed time the signal is transmitted and then received as an echo. Its direction is determined by the direction at
which the focused beam is pointing at the instant the echo is received. The radar is a useful tool in tracking and
monitoring tropical cyclones.
