ASSIGNMENT

Electrical Technology (EEE201

Submission Deadline: 21st-10-2019

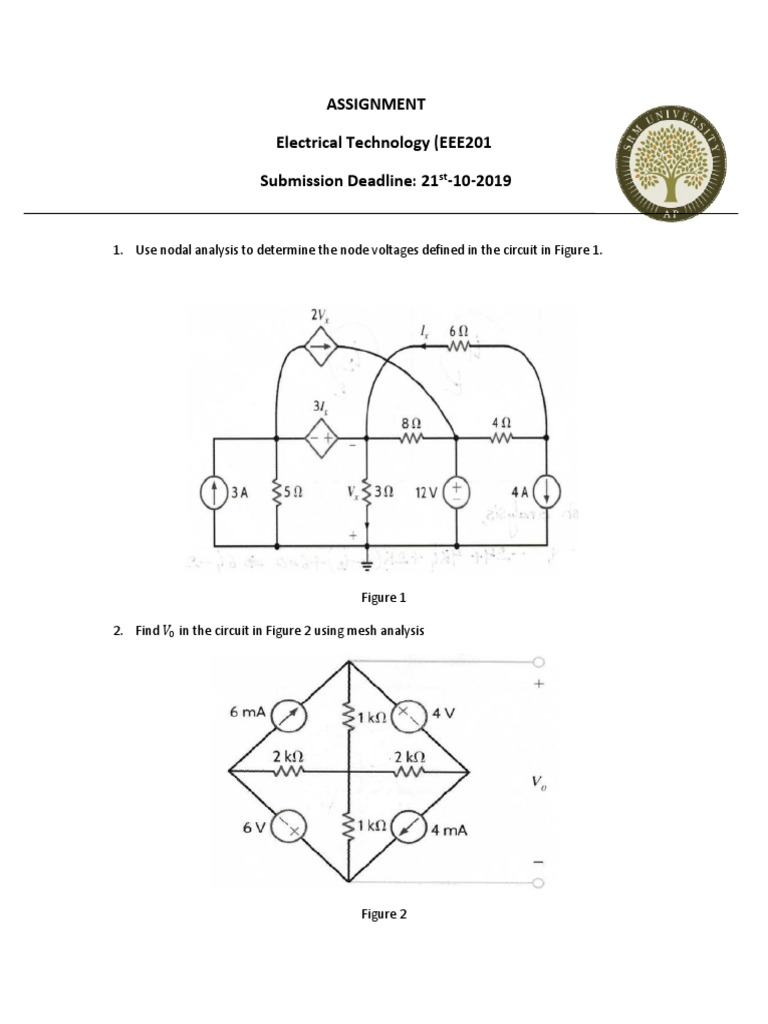

1. Use nodal analysis to determine the node voltages defined in the circuit in Figure 1.

Figure 1

2. Find 𝑉0 in the circuit in Figure 2 using mesh analysis

Figure 2
3. Use mesh analysis to determine the power delivered by the independent 3-V source In the
network in Figure 3.

Figure 3

4. Use Thevenin’s theorem to find 𝐼0 in the network I Figure 4

Figure 4
5. Find 𝑉0 in the circuit in Figure 5 using Norton’s theorem and Thevenin’s theorem.

Figure 5

6. Find 𝐼𝐴 in the network in Figure6 using Thevenin’s Theorem.

Figure 6
7. Find 𝑉0 in the network in Figure 7 using Thevenin’s theorem.

Figure 7

8. Given circuit of Figure 8 , use nodal analysis to solve for the voltage 𝑉𝑎𝑏 .

Figure 8
 9. Write the nodal equations for the circuit of Figure 9 and determine the voltage 𝑉𝑎𝑏

Figure 9

10. Determine the nodal voltages and the voltage 𝑉𝑅5for the circuit of Figure 10

Figure 10
11. Find the current I for the given circuit of Figure 11
 Figure 11

12. Refer to the circuit of Figure 12

(a) Find the Thevenin’s equivalent circuit external to 𝑅𝐿 .
(b) Use the equivalent circuit to determine 𝑉𝑎𝑏 when 𝑅𝐿 = 10𝑘Ω and when 𝑅𝐿 = 20𝑘Ω

Figure 12
13. Refer to the circuit of Figure 13. Take the values of resistance as 3.3K Ohms.
(c) Find the Thevenin’s equivalent circuit external to 𝑅𝐿 .
(d) Use the equivalent circuit to determine 𝑉𝐿

Figure 13
14. Refer to the circuit of Figure 14
(e) Find the Thevenin’s equivalent circuit external to the indicated terminals.
(f) Use the Thevenin’s equivalent circuit to determine the current through the indicated
branch.

Figure 14

15. Find the Thevenin’s equivalent circuit to determine the current through the indicated branch.

Figure 15
16. (a). Write the branch current equations
(b). solve for the current I.
(c). determine the voltage 𝑉𝑎𝑏 .

Figure 16
17. (a) for the circuit of figure 17 , determine the value of 𝑅𝐿 so the maximum power is delivered to
the load.
(b) calculate the value of the maximum power which can be delivered to the load
(c) sketch the curve of power versus resistance as 𝑅𝐿 is adjusted from 0 Ω to 50 kΩ in increment
of 5Ω

Figure 17
18. (a) for the circuit of figure 18 , determine the value of 𝑅𝐿 so the maximum power is delivered to
the load.
(b) calculate the value of the maximum power which can be delivered to the load

Figure 18
19. Determine the value of voltage v in Figure 19

Figure 19
20. Calculate 𝑅𝑖𝑛 indicated in Figure 20
 Figure20

21. Calculate 𝑅𝑖𝑛 indicated in Figure 21

Figure 21
22. For the circuit in Fig , find the thevenin equivalent between terminals a and b

Figure 22

23. Find the maximum power that can be delivered to the resistor R in the circuit of Fig
 Figure 23

24. The variable resistor R in Fig is adjusted until it absorbs the maximum power from the circuit.
(a). calculate the value of R for maximum power
(b). determine the maximum power absorbed by R.

Figure 24
25. Compute the value of R that results in maximum power transfer to the 10-Ω resistor in fig . find
the maximum power.

Figure 25
 26. For the circuit in fig determine the value of R such that the maximum power delivered to the
load is 3mW.

Figure 26
27. A wheatstone bridge ABCD has the following details: AB=10Ω;BC=30Ω; CD=15Ω; and DA=20Ω. A
battery of EMF 2V and negligible internal resistance is connected between A and C with A
positive. A galvanometer of 40Ω resistance is connected between B and D. determine the
maximum and direction of current in the galvanometer using thevenin’s theorem.
