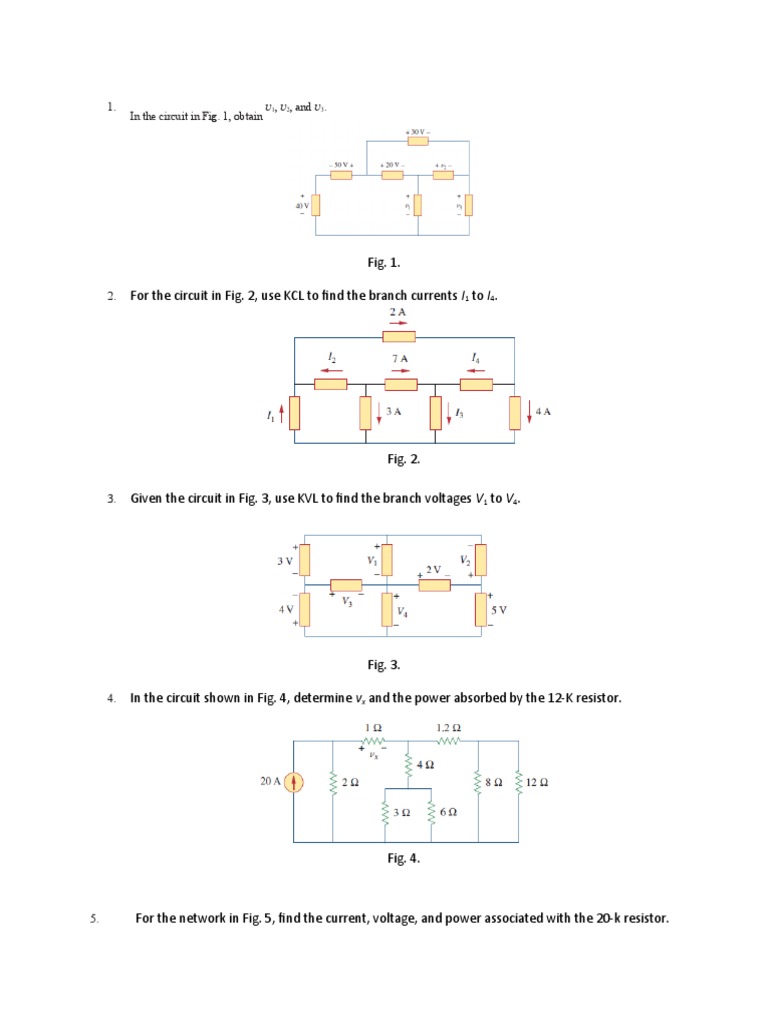

1. v1, v2, and v3.

In the circuit in Fig. 1, obtain

Fig. 1.

2. For the circuit in Fig. 2, use KCL to find the branch currents I1 to I4.

Fig. 2.

3. Given the circuit in Fig. 3, use KVL to find the branch voltages V1 to V4.

Fig. 3.

4. In the circuit shown in Fig. 4, determine vx and the power absorbed by the 12-K resistor.

Fig. 4.

5. For the network in Fig. 5, find the current, voltage, and power associated with the 20-k resistor.
 Fig. 5.
6. For the circuit in Fig. 6, io = 3 A. Calculate ix and the total power absorbed by the entire circuit.

Fig. 6
7. Find i and Vo in the circuit of Fig. 7.

Fig. 7
8. Find R for the circuit in Fig. 8.

Fig. 8

9. Find Req and io in the circuit of Fig. 9.

 Fig. 9.
10. If Req = 50 K in the circuit of Fig. 10, find R.

Fig. 10

11. Find the equivalent resistance at terminals a-b of each circuit in Fig. 11.

12. For the circuit shown in Fig. 12, find the equivalent resistance. All resistors are 3 K.

Fig. 12.
13. Obtain the equivalent resistance Rab in each of the circuits of Fig. 13. In (b), all resistors have a
value of 30 K.

14. Find Req and I in the circuit of Fig. 14.

Fig. 14.

15. The 60 W light bulb in Fig. 15 is rated at 120 volts. Calculate Vs to make the light bulb operate at
the rated conditions.

Fig. 15
16. Find Rab in the four-way power divider circuit in Fig. 16. Assume each element is 1 K.

Fig. 16.

17. Find the nodal voltages for the circuit in Fig. 17.

Fig. 17.

18. Find the mesh currents for the circuit in Fig. 18.
 Fig. 18.

19. Find the mesh currents for the circuit in Fig. 19.

Fig. 19.
20. In the circuit of Fig. 20, determine the currents i1, i2, and i3.

Fig. 20.
21. Using nodal analysis, determine Vo in the circuit in Fig. 21.

Fig. 21.
22. Using nodal analysis, find current io in the circuit of Fig. 22.

Fig. 22.
23. Determine voltages v1 through v3 in the circuit of Fig. 23 using nodal analysis.

Fig. 23.
24. Determine the node voltages in the circuit in Fig. 24 using nodal analysis.

Fig. 24.

25. Use nodal analysis to find v1, v2, and v3 in the circuit of Fig. 25.

Fig. 25.
26. Find the nodal voltages for the following circuit.

Fig. 26.
27. Find the nodal voltages for the following circuit.

Fig. 27.

28. Which of the circuits in Fig. 28 is planar? For the planar circuit, redraw the circuits with no
crossing branches.
 Fig. 28.
29. Apply mesh analysis to the circuit in Fig. 29 and obtain Io.

Fig. 29.

30. Use mesh analysis to find vab and io in the circuit of Fig. 30.

Fig. 30.
31. Determine the current through the 10-k resistor in the circuit of Fig. 31 using mesh analysis.

Fig. 31.

32. Find the mesh currents in the circuit of Fig. 32.

Fig. 32.

33. Use mesh analysis to find i1, i2, and i3 in the circuit of Fig. 33.
Fig. 33.
