DEVELOPMENT CONSULTANTS LTD Job No.- K8202 Doc.No.

- K8202-210-CAL-S-0007
CONSULTING ENGINEERS Title :- Design of ID Fan Foundation

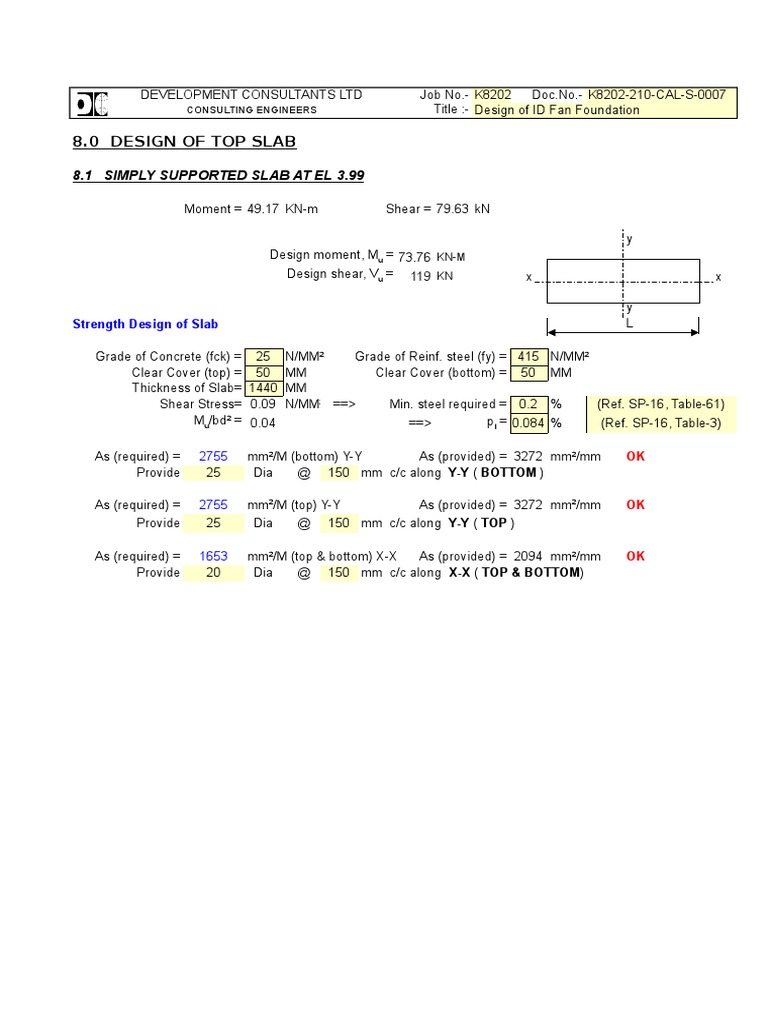

8.0 DESIGN OF TOP SLAB

8.1 SIMPLY SUPPORTED SLAB AT EL 3.99

Moment = 49.17 KN-m Shear = 79.63 kN

y
Design moment, Mu = 73.76 KN-M
Design shear, Vu = 119 KN x x

y
Strength Design of Slab L

Grade of Concrete (fck) = 25 N/MM2 Grade of Reinf. steel (fy) = 415 N/MM2
Clear Cover (top) = 50 MM Clear Cover (bottom) = 50 MM
Thickness of Slab= 1440 MM
Shear Stress= 0.09 N/MM2 ==> Min. steel required = 0.2 % (Ref. SP-16, Table-61)
Mu/bd2 = 0.04 ==> pt = 0.084 % (Ref. SP-16, Table-3)

As (required) = 2755 mm2/M (bottom) Y-Y As (provided) = 3272 mm2/mm OK

Provide 25 Dia @ 150 mm c/c along Y-Y ( BOTTOM )

As (required) = 2755 mm2/M (top) Y-Y As (provided) = 3272 mm2/mm OK

Provide 25 Dia @ 150 mm c/c along Y-Y ( TOP )

As (required) = 1653 mm2/M (top & bottom) X-X As (provided) = 2094 mm2/mm OK
Provide 20 Dia @ 150 mm c/c along X-X ( TOP & BOTTOM)
 DEVELOPMENT CONSULTANTS LTD Job No.- K8202 Doc.No.- K8202-210-CAL-S-0007
CONSULTING ENGINEERS Title :- Design of ID Fan Foundation

8.2 SIMPLY SUPPORTED SLAB AT EL 3.79

Moment = 229 KN-m Shear = 164 kN

y
Design moment, Mu = 343 KN-M
Design shear, Vu = 245 KN x x

y
Strength Design of Slab L

Grade of Concrete (fck) = 25 N/MM2 Grade of Reinf. steel (fy) = 415 N/MM2
Clear Cover (top) = 50 MM Clear Cover (bottom) = 50 MM
Thickness of Slab= 695 MM
Shear Stress= 0.39 N/MM2 ==> Min. steel required = 0.3 % (Ref. SP-16, Table-61)
Mu/bd2 = 0.85 ==> pt = 0.246 % (Ref. SP-16, Table-3)

As (required) = 1905 mm2/M (bottom) Y-Y As (provided) = 2094 mm2/mm OK

Provide 20 Dia @ 150 mm c/c along Y-Y ( BOTTOM )

As (required) = 1905 mm2/M (top) Y-Y As (provided) = 2094 mm2/mm OK

Provide 20 Dia @ 150 mm c/c along Y-Y ( TOP )

As (required) = 762 mm2/M (top & bottom) X-X As (provided) = 1340 mm2/mm OK
Provide 16 Dia @ 150 mm c/c along X-X ( TOP & BOTTOM)
 DEVELOPMENT CONSULTANTS LTD Job No.- K8202 Doc.No.- K8202-210-CAL-S-0007
CONSULTING ENGINEERS Title :- Design of ID Fan Foundation

8.3 CANTILEVER SLAB EL 3.79

Moment = 9 KN-m Shear = 15 kN

y
Design moment, Mu = 13.5 KN-M
Design shear, Vu = 22.5 KN x x

y
Strength Design of Slab L

Grade of Concrete (fck) = 25 N/MM2 Grade of Reinf. steel (fy) = 415 N/MM2
Clear Cover (top) = 50 MM Clear Cover (bottom) = 50 MM
Thickness of Slab= 400 MM
Shear Stress= 0.07 N/MM2 ==> Min. steel required = 0.2 % (Ref. SP-16, Table-61)
Mu/bd2 = 0.11 ==> pt = 0.084 % (Ref. SP-16, Table-3)

As (required) = 688 mm2/M (bottom) Y-Y As (provided) = 754 mm2/mm OK

Provide 12 Dia @ 150 mm c/c along Y-Y ( BOTTOM )

As (required) = 688 mm2/M (top) Y-Y As (provided) = 754 mm2/mm OK

Provide 12 Dia @ 150 mm c/c along Y-Y ( TOP )

As (required) = 413 mm2/M (top & bottom) X-X As (provided) = 565 mm2/mm OK
Provide 12 Dia @ 200 mm c/c along X-X ( TOP & BOTTOM)
 DEVELOPMENT CONSULTANTS LTD Job No.- K8202 Doc.No.- K8202-210-CAL-S-0007
CONSULTING ENGINEERS Title :- Design of ID Fan Foundation

8.4 SIMPLY SUPPORTED SLAB AT EL 2.94

Moment = 8.027 KN-m Shear = 15.84 kN

y
Design moment, Mu = 12 KN-M
Design shear, Vu = 23.76 KN x x

y
Strength Design of Slab L

Grade of Concrete (fck) = 25 N/MM2 Grade of Reinf. steel (fy) = 415 N/MM2
Clear Cover (top) = 50 MM Clear Cover (bottom) = 50 MM
Thickness of Slab= 555 MM
Shear Stress= 0.05 N/MM2 ==> Min. steel required = 0.12 % (Ref. SP-16, Table-61)
Mu/bd2 = 0.05 ==> pt = 0.084 % (Ref. SP-16, Table-3)

As (required) = 599 mm2/M (bottom) Y-Y As (provided) = 754 mm2/mm OK

Provide 12 Dia @ 150 mm c/c along Y-Y ( BOTTOM )

As (required) = 599 mm2/M (top) Y-Y As (provided) = 754 mm2/mm OK

Provide 12 Dia @ 150 mm c/c along Y-Y ( TOP )

As (required) = 599 mm2/M (top & bottom) X-X As (provided) = 754 mm2/mm OK
Provide 12 Dia @ 150 mm c/c along X-X ( TOP & BOTTOM)
 DEVELOPMENT CONSULTANTS LTD Job No.- K8202 Doc.No.- K8202-210-CAL-S-0007
CONSULTING ENGINEERS Title :- Design of ID Fan Foundation

Moment = 35 KN-m Shear = 140 kN

y
Design moment, Mu = 52.53 KN-M
Design shear, Vu = 210 KN x x

y
Strength Design of Slab L

Grade of Concrete (fck) = 25 N/MM2 Grade of Reinf. steel (fy) = 415 N/MM2
Clear Cover (top) = 50 MM Clear Cover (bottom) = 50 MM
Thickness of Slab= 200 MM
Shear Stress= 1.48 N/MM2 ==> Min. steel required = 0.74 % (Ref. SP-16, Table-61)
Mu/bd2 = 2.61 ==> pt = 0.916 % (Ref. SP-16, Table-3)

As (required) = 1301 mm2/M (bottom) Y-Y As (provided) = 1340 mm2/mm OK

Provide 16 Dia @ 150 mm c/c along Y-Y ( BOTTOM )

As (required) = 1301 mm2/M (top) Y-Y As (provided) = 1340 mm2/mm OK

Provide 16 Dia @ 150 mm c/c along Y-Y ( TOP )

As (required) = 170 mm2/M (top & bottom) X-X As (provided) = 754 mm2/mm OK
Provide 12 Dia @ 150 mm c/c along X-X ( TOP & BOTTOM)
 DEVELOPMENT CONSULTANTS LTD Job No.- K8202 Doc.No.- K8202-210-CAL-S-0007
CONSULTING ENGINEERS Title :- Design of ID Fan Foundation

Moment = 3.377 KN-m Shear = 13.51 kN

y
Design moment, Mu = 5.065 KN-M
Design shear, Vu = 20.26 KN x x

y
Strength Design of Slab L

Grade of Concrete (fck) = 25 N/MM2 Grade of Reinf. steel (fy) = 415 N/MM2
Clear Cover (top) = 50 MM Clear Cover (bottom) = 50 MM
Thickness of Slab= 150 MM
Shear Stress= 0.22 N/MM2 ==> Min. steel required = 0.2 % (Ref. SP-16, Table-61)
Mu/bd2 = 0.57 ==> pt = 0.171 % (Ref. SP-16, Table-3)

As (required) = 188 mm2/M (bottom) Y-Y As (provided) = 565 mm2/mm OK

Provide 12 Dia @ 200 mm c/c along Y-Y ( BOTTOM )

As (required) = 188 mm2/M (top) Y-Y As (provided) = 565 mm2/mm OK

Provide 12 Dia @ 200 mm c/c along Y-Y ( TOP )

As (required) = 113 mm2/M (top & bottom) X-X As (provided) = 565 mm2/mm OK
Provide 12 Dia @ 200 mm c/c along X-X ( TOP & BOTTOM)
 DEVELOPMENT CONSULTANTS LTD Job No.- K8202 Doc.No.- K8202-210-CAL-S-0007
CONSULTING ENGINEERS Title :- Design of ID Fan Foundation

Over hang

Moment = 26.58 KN-m Shear = 62.43 kN

y
Design moment, Mu = 39.86 KN-M
Design shear, Vu = 93.65 KN x x

y
Strength Design of Slab L

Grade of Concrete (fck) = 25 N/MM2 Grade of Reinf. steel (fy) = 415 N/MM2
Clear Cover (top) = 50 MM Clear Cover (bottom) = 50 MM
Thickness of Slab= 1200 MM
Shear Stress= 0.08 N/MM2 ==> Min. steel required = 0.12 % (Ref. SP-16, Table-61)
Mu/bd2 = 0.03 ==> pt = 0.084 % (Ref. SP-16, Table-3)

As (required) = 1368 mm2/M (bottom) Y-Y As (provided) = 2094 mm2/mm OK

Provide 20 Dia @ 150 mm c/c along Y-Y ( BOTTOM )

As (required) = 1368 mm2/M (top) Y-Y As (provided) = 2094 mm2/mm OK

Provide 20 Dia @ 150 mm c/c along Y-Y ( TOP )

As (required) = 1368 mm2/M (top & bottom) X-X As (provided) = 2094 mm2/mm OK
Provide 20 Dia @ 150 mm c/c along X-X ( TOP & BOTTOM)
