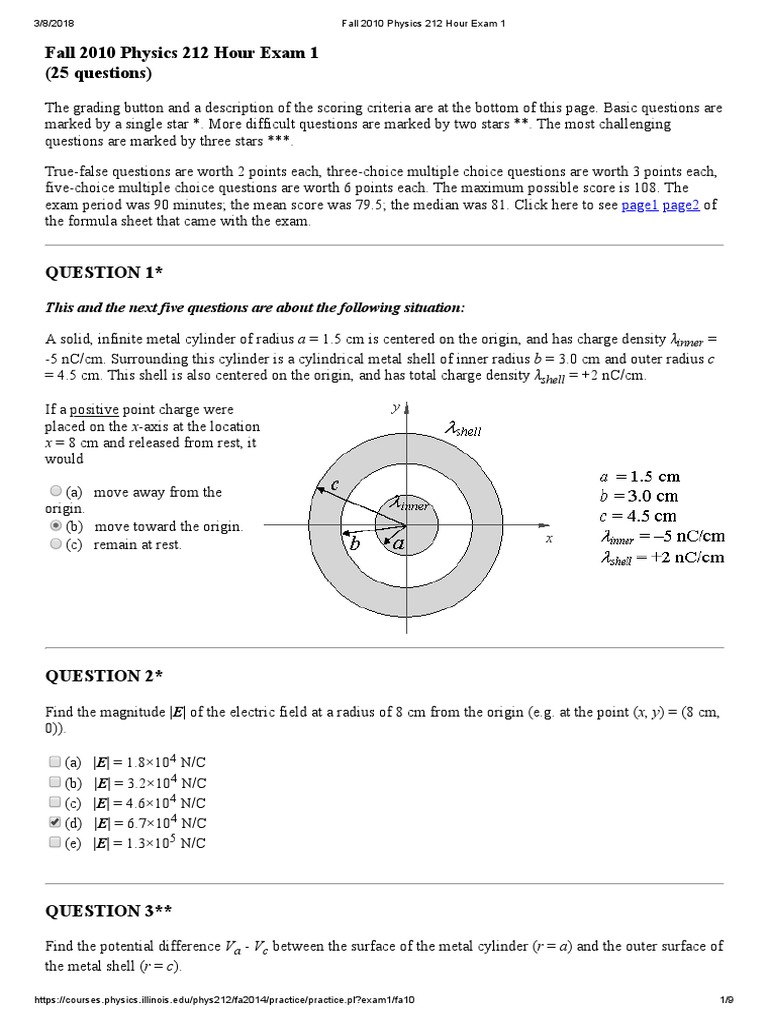

Fall 2010 Physics 212 Hour Exam 1

(25 questions)

The grading button and a description of the scoring criteria are at the bottom of this page. Basic questions are
marked by a single star *. More difficult questions are marked by two stars **. The most challenging
questions are marked by three stars ***.

True-false questions are worth 2 points each, three-choice multiple choice questions are worth 3 points each,
five-choice multiple choice questions are worth 6 points each. The maximum possible score is 108. The
exam period was 90 minutes; the mean score was 79.5; the median was 81. Click here to see page1 page2 of
the formula sheet that came with the exam.

QUESTION 1*

This and the next five questions are about the following situation:

A solid, infinite metal cylinder of radius a = 1.5 cm is centered on the origin, and has charge density λinner =
-5 nC/cm. Surrounding this cylinder is a cylindrical metal shell of inner radius b = 3.0 cm and outer radius c
= 4.5 cm. This shell is also centered on the origin, and has total charge density λshell = +2 nC/cm.

If a positive point charge were

placed on the x-axis at the location
x = 8 cm and released from rest, it
would

(a) move away from the

origin.
(b) move toward the origin.
(c) remain at rest.

QUESTION 2*

Find the magnitude |E| of the electric field at a radius of 8 cm from the origin (e.g. at the point (x, y) = (8 cm,
0)).

(a) |E| = 1.8×104 N/C

(b) |E| = 3.2×104 N/C
(c) |E| = 4.6×104 N/C
(d) |E| = 6.7×104 N/C
(e) |E| = 1.3×105 N/C

QUESTION 3**

Find the potential difference Va - Vc between the surface of the metal cylinder (r = a) and the outer surface of
the metal shell (r = c).

https://courses.physics.illinois.edu/phys212/fa2014/practice/practice.pl?exam1/fa10 1/9
3/8/2018 Fall 2010 Physics 212 Hour Exam 1

(a) Va - Vc = -8.7 kV
(b) Va - Vc = -6.2 kV
(c) Va - Vc = 0
(d) Va - Vc = +6.2 kV
(e) Va - Vc = +8.7 kV

QUESTION 4*
What is the linear charge density, λsh,outer on the outer surface of the cylindrical shell?

(a) λsh,outer = +3 nC/cm

(b) λsh,outer = 0 nC/cm
(c) λsh,outer = -3 nC/cm

QUESTION 5*

What is the surface charge density σinner on the inner solid metallic cylinder which has radius a?

(a) σinner = 0
(b) σinner = -0.53 nC/cm2
(c) σinner = -3.33 nC/cm2

QUESTION 6**
If the shell is connected to ground, the charge density λsh,inner on the inner surface (with radius b) of the
cylindrical shell will

(a) increase in magnitude.

(b) be zero.
(c) remain unchanged.

QUESTION 7*

This and the next two questions are about the following situation:

A solid spherical insulator has radius R = 2.5 cm, and carries a total positive charge Q = 8 × 10-10 C
distributed uniformly throughout its volume.

Find the magnitude of the electric field |E| at a radius of 5 cm from the origin (i.e., outside the sphere).

(a) |E| = 2.88×103 N/C

(b) |E| = 8.92×103 N/C
(c) |E| = 2.41×104 N/C

https://courses.physics.illinois.edu/phys212/fa2014/practice/practice.pl?exam1/fa10 2/9
3/8/2018 Fall 2010 Physics 212 Hour Exam 1

(d) |E| = 5.01×104 N/C

(e) |E| = 8.30×104 N/C

QUESTION 8*
If we define the electric potential V to be zero at the surface of the sphere, what is the potential V at a radius
of 5 cm from the origin?

(a) V = +2500 V
(b) V = +985 V
(c) V = -144 V
(d) V = -2500 V
(e) V = -3700 V

QUESTION 9**

Which of the three diagrams shown here best represents the electric potential as a function of r, the distance
from the origin?

(a)
(b)
(c)

https://courses.physics.illinois.edu/phys212/fa2014/practice/practice.pl?exam1/fa10 3/9
3/8/2018 Fall 2010 Physics 212 Hour Exam 1

QUESTION 10*
This and the next question refer to this situation:

https://courses.physics.illinois.edu/phys212/fa2014/practice/practice.pl?exam1/fa10 4/9
3/8/2018 Fall 2010 Physics 212 Hour Exam 1

The electric field lines (solid) and the equipotential

lines (dashed) in a certain region of space are as shown
here.

When a positive charge is moved from point A to point

D, the work done by the electric field is

(a) greater than the work done by the field when

the same charge is moved from point B to point C.

(b) equal to the work done by the field when the

same charge is moved from point B to point C.

(c) less than the work work done by the field when
the same charge is moved from point B to point C.

QUESTION 11***
The electric potential at C is

(a) greater than the electric potential at B.

(b) equal to the electric potential at B.
(c) less than the electric potential at B.

QUESTION 12*

This and the next two questions are about the following situation.

Two charged, thin, metal plates of infinite area are placed in the planes x = -a and x = +a, as shown in the
figure. Each plate carries a negative surface charge density σp = -3 μC/m2. Finally, a metal slab of thickness
a and infinite area is placed so that its left-hand surface coincides with the plane x = +3a. This metal slab
carries a total positive charge density σs = +8 μC/m2.

The potential energy of a

positive charge moving
from point B to point A
will

(a) decrease.
(b) remain constant.
(c) increase.

QUESTION 13**
Find the magnitude of the electric field at the origin.

https://courses.physics.illinois.edu/phys212/fa2014/practice/practice.pl?exam1/fa10 5/9
3/8/2018 Fall 2010 Physics 212 Hour Exam 1

(a) |E| = |σp| / ε0

(b) |E| = |σs| / ε0
(c) |E| = |σs| / (2ε0)
(d) |E| = |σs+2σp| / (2ε0)
(e) |E| = |σs-2σp| / (2ε0)

QUESTION 14**
Find the surface-charge density σR on the right-hand surface of the metal slab (the plane containing point C).

(a) σR = σs / 2
(b) σR = 2σp
(c) σR = (σs + σp) / 2
(d) σR = (σs/2) + σp
(e) σR = 0

QUESTION 15**

An uncharged metal sphere will

(a) be repelled by a charged metal surface.

(b) feel no force when brought close to a charged metal surface.
(c) be attracted by a charged metal surface.

QUESTION 16**
This and the next two questions are about the following situation.

A positive point charge q = +3 μC is placed on the y axis at y = +5 cm. A negative point charge -q = -3 μC is
placed at the origin.

At how many points on the y axis could an additional

positive charge +q be placed without changing the
potential energy of the system?

(a) no points
(b) 1 point
(c) 2 points

QUESTION 17*

Calculate the work done by the field to bring in an additional point charge +q from infinity to the point A.
(The other two charges are held in position during this procedure.)

https://courses.physics.illinois.edu/phys212/fa2014/practice/practice.pl?exam1/fa10 6/9
3/8/2018 Fall 2010 Physics 212 Hour Exam 1

(a) W = 2.98 J
(b) W = 0.47 J
(c) W=0J
(d) W = -1.36 J
(e) W = -5.19 J

QUESTION 18**
What is the potential energy U of the square arrangement
of charges at right?

(a) U > 0
(b) U = 0
(c) U < 0

QUESTION 19*

This and the next three questions are related.

The circuit at left contains 3 capacitors, all of initial value C = 3 μF.

What is the charge Q1 on capacitor C1?

(a) Q1 = 18.3 μC
(b) Q1 = 21.4 μC
(c) Q1 = 27 μC
(d) Q1 = 30.8 μC
(e) Q1 = 33.7 μC

QUESTION 20*
What is the charge Q2 on capacitor C2?

(a) Q2 = 9.1 μC
(b) Q2 = 13.5 μC
(c) Q2 = 21.4 μC
(d) Q2 = 33.7 μC
(e) Q2 = 42.8 μC

QUESTION 21**

Now suppose C3 is modified by filling it with a dielectric with constant κ = 3. How does the charge Q2 on C2
change?

https://courses.physics.illinois.edu/phys212/fa2014/practice/practice.pl?exam1/fa10 7/9
3/8/2018 Fall 2010 Physics 212 Hour Exam 1

(a) Q2 decreases because the capacitance of C2 decreases relative to that of C3.

(b) Q2 stays the same because the charge of capacitors in series is the same.
(c) Q2 increases because the capacitance of C3 increases.

QUESTION 22*
How does the charge Q1 on C1 change when C3 is modified by filling it with a dielectric with constant κ = 3?

(a) Q1 decreases because the capacitance of C1 decreases relative to that of C3.

(b) Q1 stays the same because the voltage across C1 is the same as it was originally.
(c) Q1 increases because the effective capacitance of the C2 C3 part of the circuit increases.

QUESTION 23*

This and the next two questions are related.

The X-ray tube shown at right is used to accelerate

electrons which hit a target and produce X-rays. The
device consists of two parallel, metal plates of very
large area separated by a 10 cm gap. The plate on the
left ("cathode") is connected to ground, while the
plate on the right ("anode") is set to a potential of
+11 kV. Electrons are produced (at rest) at the
cathode plate. They accelerate across the gap, and
strike the target area where they slow down rapidly
and produce X-rays.

Calculate the final speed v achieved by electrons of mass m = 9.1 × 10-31 kg and charge magnitude |q| = 1.6
× 10-19 C.

(a) v = 9.1 × 105 m/s

(b) v = 7.3 × 106 m/s
(c) v = 2.3 × 107 m/s
(d) v = 6.2 × 107 m/s
(e) v = 4.1 × 108 m/s

QUESTION 24***
If, when the tube is operating, the surface charge densities on the cathode and anode are equal and opposite,
what is their magnitude σ ?

(a) σ = 0.49 μC/m2

(b) σ = 0.97 mC/m2
(c) σ = 1.24 μC/m2
(d) σ = 1.56 μC/m2

https://courses.physics.illinois.edu/phys212/fa2014/practice/practice.pl?exam1/fa10 8/9
3/8/2018 Fall 2010 Physics 212 Hour Exam 1

(e) σ = 1.95 μC/m2

QUESTION 25**
If the charge densities on the cathode and anode are equal and opposite as above, outside the tube the electric
field will point

(a) to the right on the right side of the tube and to the left on the left side of the tube.
(b) to the left on the right side of the tube and to the right on the left side of the tube.
(c) the field will be zero everywhere to the left of the cathode and to the right of the anode.
