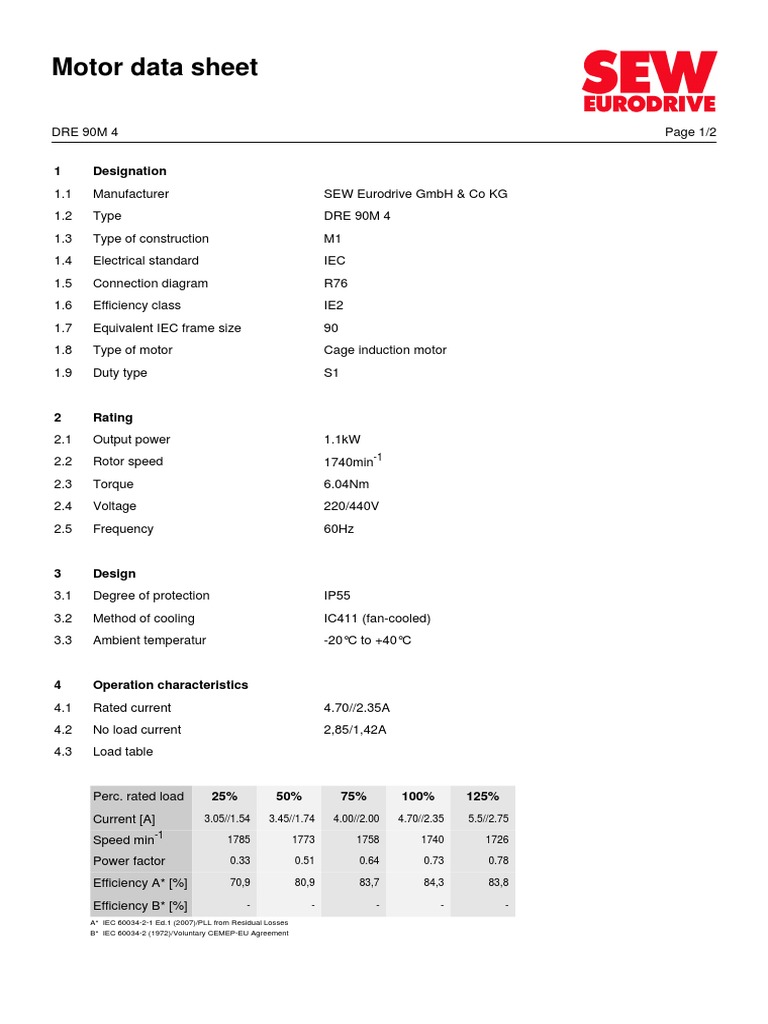

Motor data sheet

DRE 90M 4 Page 1/2

1 Designation
1.1 Manufacturer SEW Eurodrive GmbH & Co KG
1.2 Type DRE 90M 4
1.3 Type of construction M1
1.4 Electrical standard IEC
1.5 Connection diagram R76
1.6 Efficiency class IE2
1.7 Equivalent IEC frame size 90
1.8 Type of motor Cage induction motor
1.9 Duty type S1

2 Rating
2.1 Output power 1.1kW
2.2 Rotor speed 1740min-1
2.3 Torque 6.04Nm
2.4 Voltage 220/440V
2.5 Frequency 60Hz

3 Design
3.1 Degree of protection IP55
3.2 Method of cooling IC411 (fan-cooled)
3.3 Ambient temperatur -20°C to +40°C

4 Operation characteristics
4.1 Rated current 4.70//2.35A
4.2 No load current 2,85/1,42A
4.3 Load table

Perc. rated load 25% 50% 75% 100% 125%


Current [A] 3.05//1.54 3.45//1.74 4.00//2.00 4.70//2.35 5.5//2.75
-1
Speed min 1785 1773 1758 1740 1726

Power factor 0.33 0.51 0.64 0.73 0.78

Efficiency A* [%] 70,9 80,9 83,7 84,3 83,8

Efficiency B* [%] - - - - -
A* IEC 60034-2-1 Ed.1 (2007)/PLL from Residual Losses
B* IEC 60034-2 (1972)/Voluntary CEMEP-EU Agreement
Motor data sheet

DRE 90M 4 Page 2/2

5 Starting characteristics
5.1 Starting torque ratio 3.6
5.2 Pull-up torque ratio 2.9
5.3 Pull-out torque ratio 3.8
5.4 Locked rotor current ratio 7.7
5.5 Perm. no-load starts 2400h-1
5.6 Perm. no-load starts 6400h-1
5.7 KVA letter L

6 Winding and insulation


6.1 Connection YY/Y
6.2 Winding resist. cold 4.64 Ohm at 20°C
6.3 Thermal class F
6.4 Thermal protection -
6.5 Winding temp. rise 30K

7 Design details
7.1 Direction of rotation both
7.2 Inertia rotor 0,003540kgm2
7.3 Motor weight net 18,4kg

8 Standard bearing sizes


8.1 Bearing A IEC motor 6306
8.2 Bearing A gearmotor 6306
8.3 Bearing B motor w/o brake 6205
8.4 Bearing B brake motor 6205
