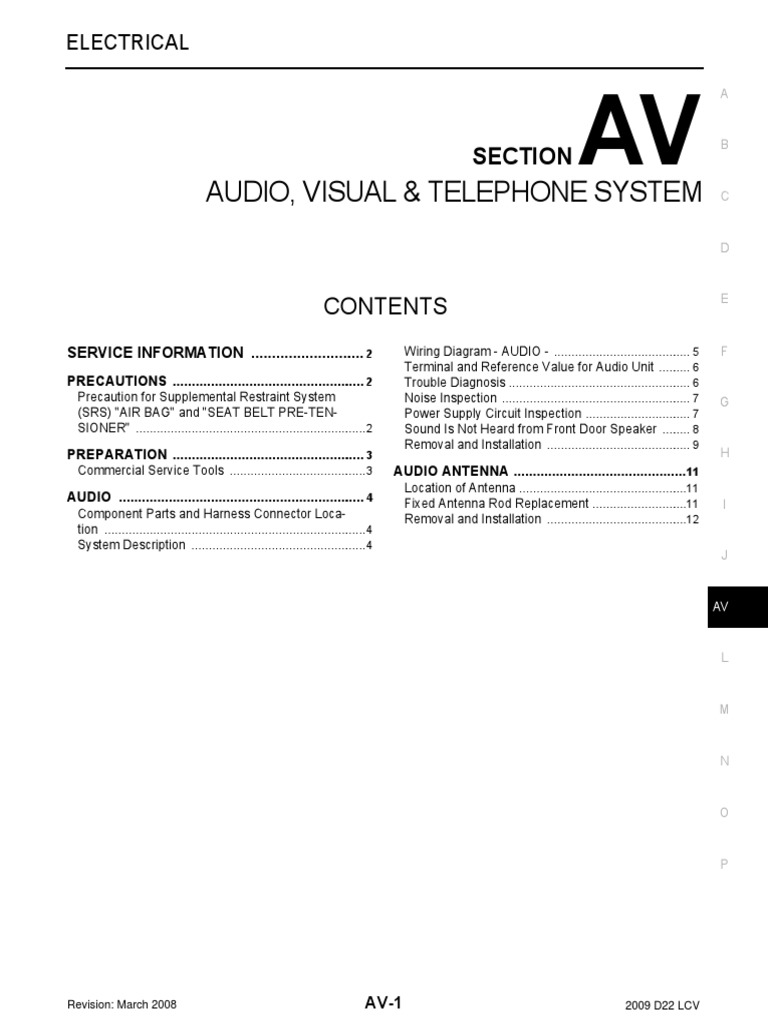

ELECTRICAL

AV
A

B
SECTION
AUDIO, VISUAL & TELEPHONE SYSTEM C

E
CONTENTS
SERVICE INFORMATION ............................ 2 Wiring Diagram - AUDIO - ........................................ 5 F
Terminal and Reference Value for Audio Unit .......... 6
PRECAUTIONS ................................................... 2 Trouble Diagnosis ..................................................... 6
Precaution for Supplemental Restraint System Noise Inspection ....................................................... 7 G
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN- Power Supply Circuit Inspection ............................... 7
SIONER" ................................................................... 2 Sound Is Not Heard from Front Door Speaker ......... 8
Removal and Installation .......................................... 9
PREPARATION ................................................... 3 H
Commercial Service Tools ........................................ 3 AUDIO ANTENNA ............................................. 11
Location of Antenna .................................................11
AUDIO ................................................................. 4 Fixed Antenna Rod Replacement ............................11 I
Component Parts and Harness Connector Loca- Removal and Installation .........................................12
tion ............................................................................ 4
System Description ................................................... 4
J

AV

Revision: March 2008 AV-1 2009 D22 LCV


PRECAUTIONS
< SERVICE INFORMATION >
SERVICE INFORMATION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" INFOID:0000000003941931

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRS section.
• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Revision: March 2008 AV-2 2009 D22 LCV


PREPARATION
< SERVICE INFORMATION >
PREPARATION
A
Commercial Service Tools INFOID:0000000003921563

B
Tool name Description
Loosening bolts and nuts
C

Power tool
D

PBIC0191E

AV

Revision: March 2008 AV-3 2009 D22 LCV


AUDIO
< SERVICE INFORMATION >
AUDIO
Component Parts and Harness Connector Location INFOID:0000000003867028

ALMIA0454ZZ

1. Audio unit M17 2. Front door speaker


LH D3
RH D103

System Description INFOID:0000000003867029

Refer to Owner's Manual for audio system operating instructions.


Power is supplied at all times
• through 10A fuse (No. 39, located in the fusible link and fuse box)
• to audio unit terminal 19.
With the ignition switch in the ACC or ON position, power is supplied
• through 10A fuse (No. 7, located in the fuse block)
• to audio unit terminal 7.
Ground is supplied through the case of the audio unit.
Then audio signals are supplied
• through audio unit terminals 2, 3, 11 and 12
• to front door speakers.

Revision: March 2008 AV-4 2009 D22 LCV


AUDIO
< SERVICE INFORMATION >
Wiring Diagram - AUDIO - INFOID:0000000003867031

AV

AANWA0002GB
P

Revision: March 2008 AV-5 2009 D22 LCV


AUDIO
< SERVICE INFORMATION >
Terminal and Reference Value for Audio Unit INFOID:0000000003940832

Terminal
Signal Condition
(Wire color) Reference value
Item input/
Ignition (Approx.)
+ – output Operation
switch

2 3
Audio signal front LH Output ON Receive audio signal
(LG) (BR)

ALMIA0456ZZ

7
Ground ACC power supply Input ACC – Battery voltage
(P)

11 12
Audio signal front RH Output ON Receive audio signal
(GR) (B)

ALMIA0456ZZ

19
Ground Battery power supply Input OFF – Battery voltage
(V)

Trouble Diagnosis INFOID:0000000003941932

• The majority of the audio malfunctions are the result of outside causes such as electromagnetic interference.
Check the symptoms below to diagnose the malfunction.
• The vehicle itself can be a source of noise if noise prevention parts or electrical equipment is malfunctioning.
Check if noise is caused and/or changed by engine speed, ignition switch turned to each position, and oper-
ation of each piece of electrical equipment, and then determine the cause.

Symptom Check item


• Audio unit power supply circuit. Refer to AV-7, "Power Supply
Audio system does not work properly. Circuit Inspection" .
• Audio unit. Refer toAV-9, "Removal and Installation" .
No sound can be heard from all speakers. Audio unit. Refer to AV-9, "Removal and Installation" .
• Open or short in audio signal circuit between audio unit and front
speaker. Refer to AV-8, "Sound Is Not Heard from Front Door
Speaker" .
No sound can be heard from one speaker.
• Front speaker. Refer to AV-8, "Sound Is Not Heard from Front
Door Speaker" .
• Audio unit. Refer toAV-9, "Removal and Installation" .
• Antenna feeder. Refer to AV-7, "Noise Inspection" .
No sound can be heard from radio or noise is heard. • Antenna. Refer to AV-12, "Removal and Installation" .
• Audio unit. Refer to AV-9, "Removal and Installation" .

Revision: March 2008 AV-6 2009 D22 LCV


AUDIO
< SERVICE INFORMATION >
FOR RADIO ONLY
Symptom Possible cause A
• Audio unit. Refer to AV-9, "Removal and Installation" .
No sound • Antenna feeder, wiring or connections
• Antenna amplifier, power supply, wiring or connections
B
• Audio unit. Refer to AV-9, "Removal and Installation" .
• Antenna feeder, wiring or connections
• Power supply, wiring or connections
Noisy C
• Noise prevention parts
• Electrical equipment (alternator, bonding wire, etc.)
• Wire harness of each piece of electrical equipment
• Audio unit power circuit. Refer to AV-7, "Power Supply Circuit In- D
All radio stations stored in memory are deleted spection" .
• Audio unit. Refer to AV-9, "Removal and Installation" .
NOTE: E
Noise resulting from variations in field strength, such as fading noise and multi-path noise, or external noise
from trains and other sources. It is not a malfunction.
• Fading noise: This noise occurs because of variations in the field strength in a narrow range due to moun-
tains or buildings blocking the signal. F
• Multi-path noise: This noise results from the waves sent directly from the broadcast station arriving at the
antenna at a different time from the waves that reflect off of mountains or buildings.
G
Noise Inspection INFOID:0000000003941933

The vehicle itself can be a source of noise if noise prevention parts or electrical equipment is malfunctioning. H
Check if noise is caused and/or changed by engine speed, ignition switch turned to each position, and opera-
tion of each piece of electrical equipment, and determine the cause.
NOTE:
The source of the noise can be found easily by listening to the noise while removing the fuses of electrical I
components, one by one.
TYPE OF NOISE AND POSSIBLE CAUSE J

Occurrence condition Possible cause


A continuous growling noise occurs. The speed of AV
Ignition components
the noise varies with changes in the engine speed.
Occurs only when engine is ON. A whistling noise occurs while the engine speed is
high. A booming noise occurs while the engine is Alternator
running and the lighting switch is ON. L
A cracking or snapping sound occurs with the op-
Noise only occurs when various Relay malfunction, radio malfunction
eration of various switches.
electrical components are oper- M
ating. The noise occurs when various motors are operat- • Motor case ground
ing. • Motor
• Ground wire of body parts.
A cracking or snapping sound occurs while the vehicle is being driven, especially when N
• Ground due to improper part installation
it is vibrating excessively.
• Wiring connections or a short circuit

Power Supply Circuit Inspection INFOID:0000000003940836


O
1.CHECK FUSE
Check that the following fuses of the audio unit are not blown. P

Unit Terminals Signal name Fuse No.


19 Battery power 39
Audio unit
7 Ignition switch ACC or ON 7
OK or NG
OK >> GO TO 2.

Revision: March 2008 AV-7 2009 D22 LCV


AUDIO
< SERVICE INFORMATION >
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.
2.AUDIO UNIT POWER SUPPLY CIRCUIT CHECK
1. Disconnect audio unit connector.
2. Check voltage between the audio unit and ground.

(+)
(-) OFF ACC ON
Connector Terminal
Battery Battery Battery
19 Ground
voltage voltage voltage
M17
Battery Battery
7 Ground 0V
voltage voltage
OK or NG ALMIA0457ZZ

OK >> GO TO 3.
NG >> • Check connector housings for disconnected or loose terminals.
• Repair harness or connector.
3.GROUND CIRCUIT CHECK
Inspect audio unit case ground.
OK or NG
OK >> Inspection End.
NG >> Repair audio unit case ground.
Sound Is Not Heard from Front Door Speaker INFOID:0000000003940837

1.HARNESS CHECK
1. Disconnect audio unit connector and front door speaker (LH or RH).
2. Check continuity between audio unit harness connector terminal
and front door speaker harness connector terminal.

A B
Continuity
Connector Terminal Connector Terminal
2 1
D3
3 2
M17 Yes
11 1
D103
12 2
3. Check continuity between audio unit harness connector terminal
and ground.

A
— Continuity
Connector Terminal
2
3
M17 Ground No
11
12
ALMIA0458ZZ
OK or NG
OK >> GO TO 2.
NG >> • Check connector housings for disconnected or loose terminals.
• Repair harness or connector.
2.FRONT SPEAKER SIGNAL CHECK
1. Connect audio unit connector and front door speaker connector.
2. Turn ignition switch to ACC.

Revision: March 2008 AV-8 2009 D22 LCV


AUDIO
< SERVICE INFORMATION >
3. Push “POWER” switch.
4. Check the signal between audio unit connector terminals with A
CONSULT-III or oscilloscope.

(+) (-) Reference B


Condition
Connector Terminal Terminal signal

2 3
C
Receive
M17 audio sig-
11 12 nal D

ALMIA0460ZZ
E
OK or NG
OK >> Replace front speaker. Refer to AV-9, "Removal and
Installation".
NG >> Replace audio unit. Refer to AV-9, "Removal and Instal- F
lation".

G
ALMIA0459ZZ

Removal and Installation INFOID:0000000003902743 H

AUDIO UNIT
REMOVAL I
1. Remove cluster lid C. Refer to IP-10, "Removal and Installation".
2. Remove the audio unit screws (A) using power tool and pull J
audio unit out (2).
3. Disconnect the audio unit connectors, antenna cable and then
remove the audio unit (2).
AV
4. Remove the audio unit bracket screws (B), then remove the
audio unit brackets (1).
L

ALNIA1107ZZ
M
INSTALLATION
Installation is in the reverse order of removal.
DOOR SPEAKER N

REMOVAL
1. Remove the door finisher. Refer to EI-23, "Removal and Installation". O

Revision: March 2008 AV-9 2009 D22 LCV


AUDIO
< SERVICE INFORMATION >
2. Remove the door speaker screws (B), then pull out the door
speaker (1).
3. Disconnect the door speaker connector and then remove the
door speaker (1).
4. Remove the door speaker spacer screws (A), then remove the
speaker spacer (2).

ALNIA1108ZZ

INSTALLATION
Installation is in the reverse order of removal.

Revision: March 2008 AV-10 2009 D22 LCV


AUDIO ANTENNA
< SERVICE INFORMATION >
AUDIO ANTENNA
A
Location of Antenna INFOID:0000000003492368

G
ALMIA0455ZZ

1. Antenna 2. Antenna feeder 3. Audio unit M17


H
Fixed Antenna Rod Replacement INFOID:0000000003492369

AV

ALNIA1111ZZ

Revision: March 2008 AV-11 2009 D22 LCV


AUDIO ANTENNA
< SERVICE INFORMATION >

1. Antenna cover 2. Antenna assembly 3. Antenna feeder (antenna assembly)


4. Antenna feeder (audio unit) A. Antenna assembly bolt Vehicle front

REMOVAL
1. Remove the antenna cover.
2. Remove the cowl tops RH and LH. Refer to EI-16, "Removal and Installation".
3. Remove the antenna assembly bolt.
4. Remove the LH fender protector. Refer to EI-17, "Removal and Installation of Front Fender Protector".
5. Detach the antenna feeder (1) from the clip (A) and detach the
rubber grommet (B).

ALNIA1118ZZ

6. Remove the audio unit. Refer to AV-9, "Removal and Installation".


7. Remove the combination meter. Refer to DI-35, "Removal and Installation".
8. Detach the antenna feeder (audio unit) plastic clips (A).

ALNIA1119ZZ

9. Disconnect the antenna feeder (audio unit) (1), located in the LH


foot well area and remove the antenna feeder (audio unit) (1).

ALNIA1120ZZ

10. Remove the antenna feeder (antenna assembly) pull out from the inner fender apron.
11. Remove the antenna assembly.
INSTALLATION
Installation is in the reverse order of removal.
Removal and Installation INFOID:0000000003902744

Revision: March 2008 AV-12 2009 D22 LCV

You might also like
