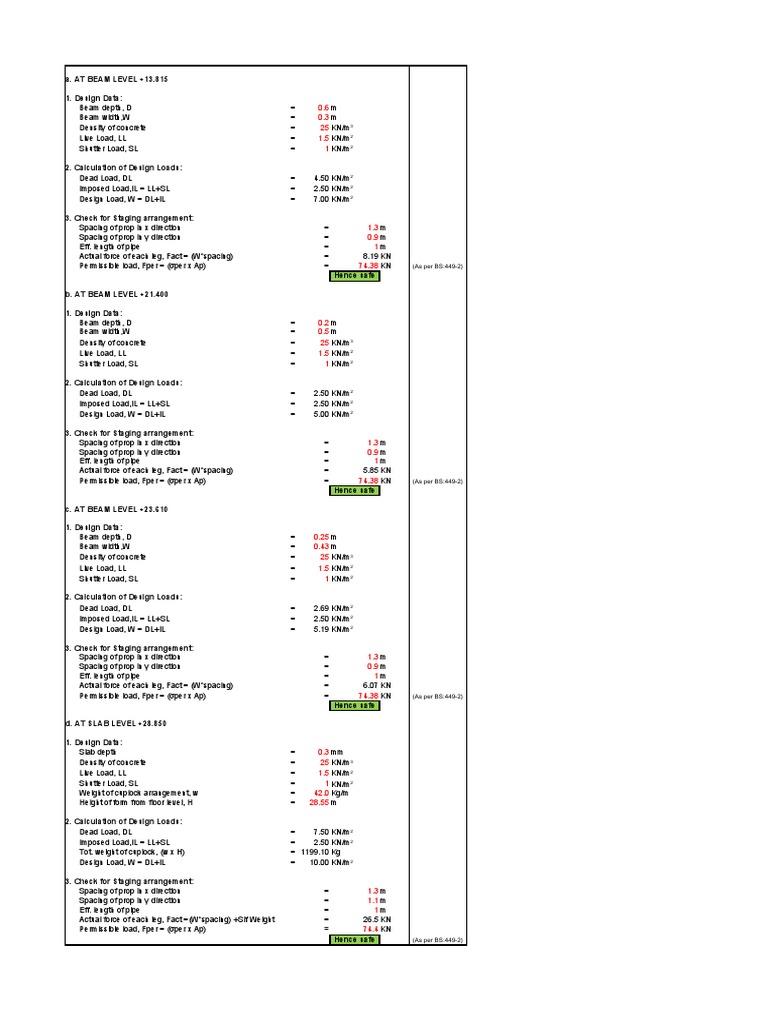

a. AT BEAM LEVEL +13.

815

1. Design Data:
Beam depth, D = 0.6 m
Beam width,W = 0.3 m
Density of concrete = 25 KN/m3
Live Load, LL = 1.5 KN/m2
Shutter Load, SL = 1 KN/m2

2. Calculation of Design Loads:

Dead Load, DL = 4.50 KN/m2
Imposed Load,IL = LL+SL = 2.50 KN/m2
Design Load, W = DL+IL = 7.00 KN/m2

3. Check for Staging arrangement:

Spacing of prop in x direction = 1.3 m
Spacing of prop in y direction = 0.9 m
Eff. length of pipe = 1m
Actual force of each leg, Fact = (W*spacing) = 8.19 KN
Permissible load, Fper = (σper x Ap) = 74.38 KN (As per BS:449-2)
Hence safe

b. AT BEAM LEVEL +21.400

1. Design Data:
Beam depth, D = 0.2 m
Beam width,W = 0.5 m
Density of concrete = 25 KN/m3
Live Load, LL = 1.5 KN/m2
Shutter Load, SL = 1 KN/m2

2. Calculation of Design Loads:

Dead Load, DL = 2.50 KN/m2
Imposed Load,IL = LL+SL = 2.50 KN/m2
Design Load, W = DL+IL = 5.00 KN/m2

3. Check for Staging arrangement:

Spacing of prop in x direction = 1.3 m
Spacing of prop in y direction = 0.9 m
Eff. length of pipe = 1m
Actual force of each leg, Fact = (W*spacing) = 5.85 KN
Permissible load, Fper = (σper x Ap) = 74.38 KN (As per BS:449-2)
Hence safe

c. AT BEAM LEVEL +23.610

1. Design Data:
Beam depth, D = 0.25 m
Beam width,W = 0.43 m
Density of concrete = 25 KN/m3
Live Load, LL = 1.5 KN/m2
Shutter Load, SL = 1 KN/m2

2. Calculation of Design Loads:

Dead Load, DL = 2.69 KN/m2
Imposed Load,IL = LL+SL = 2.50 KN/m2
Design Load, W = DL+IL = 5.19 KN/m2

3. Check for Staging arrangement:

Spacing of prop in x direction = 1.3 m
Spacing of prop in y direction = 0.9 m
Eff. length of pipe = 1m
Actual force of each leg, Fact = (W*spacing) = 6.07 KN
Permissible load, Fper = (σper x Ap) = 74.38 KN (As per BS:449-2)
Hence safe

d. AT SLAB LEVEL +28.850

1. Design Data:
Slab depth = 0.3 mm
Density of concrete = 25 KN/m3
Live Load, LL = 1.5 KN/m2
Shutter Load, SL = 1 KN/m2
Weight of cuplock arrangement, w = 42.0 Kg/m
Height of form from floor level, H = 28.55 m

2. Calculation of Design Loads:

Dead Load, DL = 7.50 KN/m2
Imposed Load,IL = LL+SL = 2.50 KN/m2
Tot. weight of cuplock, (w x H) = 1199.10 Kg
Design Load, W = DL+IL = 10.00 KN/m2

3. Check for Staging arrangement:

Spacing of prop in x direction = 1.3 m
Spacing of prop in y direction = 1.1 m
Eff. length of pipe = 1m
Actual force of each leg, Fact =(W*spacing) +Slf Weight = 26.5 KN
Permissible load, Fper = (σper x Ap) = 74.4 KN
Hence safe (As per BS:449-2)
