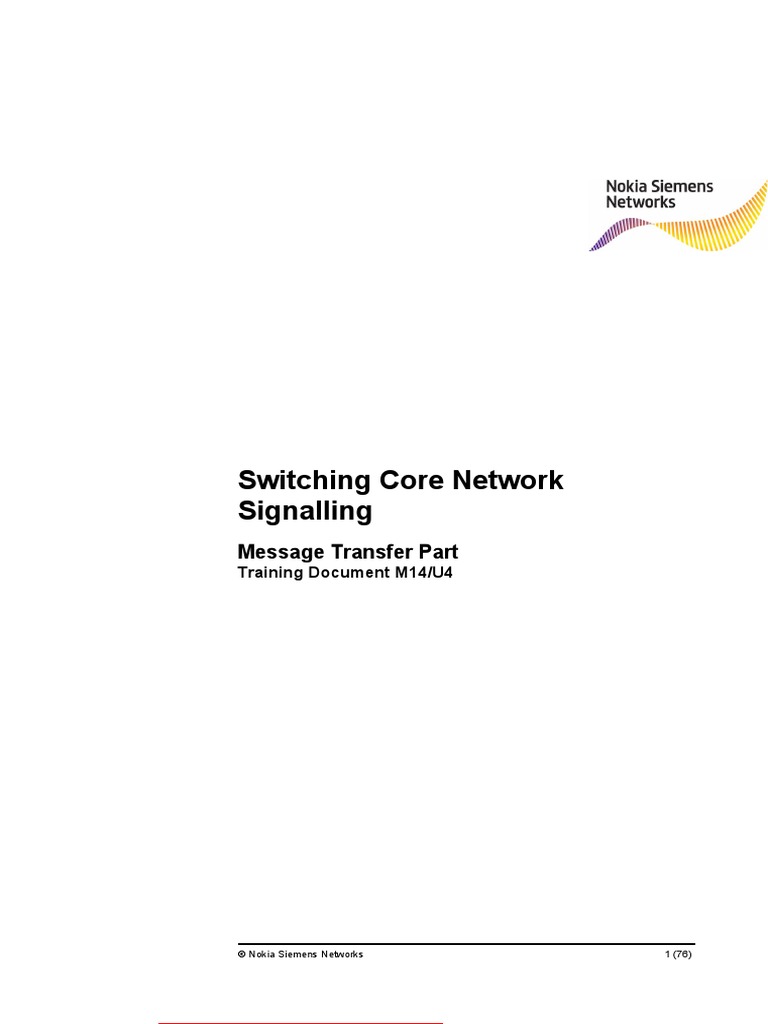

Switching Core Network

Signalling
Message Transfer Part
Training Document M14/U4

© Nokia Siemens Networks 1 (76)

Legal notice
Intellectual Property Rights
All copyrights and intellectual property rights for Nokia Siemens Networks training
documentation, product documentation and slide presentation material, all of which are
forthwith known as Nokia Siemens Networks training material, are the exclusive property of
Nokia Siemens Networks. Nokia Siemens Networks owns the rights to copying, modification,
translation, adaptation or derivatives including any improvements or developments. Nokia
Siemens Networks has the sole right to copy, distribute, amend, modify, develop, license,
sublicense, sell, transfer and assign the Nokia Siemens Networks training material. Individuals
can use the Nokia Siemens Networks training material for their own personal self-
development only, those same individuals cannot subsequently pass on that same Intellectual
Property to others without the prior written agreement of Nokia Siemens Networks. The Nokia
Siemens Networks training material cannot be used outside of an agreed Nokia Siemens
Networks training session for development of groups without the prior written agreement of
Nokia Siemens Networks.
Indemnity
The information in this document is subject to change without notice and describes only the
product defined in the introduction of this documentation. This document is intended for the
use of Nokia Siemens Networks customers only for the purposes of the agreement under
which the document is submitted, and no part of it may be used, reproduced, modified or
transmitted in any form or means without the prior written permission of Nokia Siemens
Networks. The document has been prepared to be used by professional and properly trained
personnel, and the customer assumes full responsibility when using it. Nokia Siemens
Networks welcomes customer comments as part of the process of continuous development
and improvement of the documentation.
The information or statements given in this document concerning the suitability, capacity, or
performance of the mentioned hardware or software products are given “as is” and all liability
arising in connection with such hardware or software products shall be defined conclusively in
a separate agreement between Nokia Siemens Networks and the customer. However, Nokia
Siemens Networks has made all reasonable efforts to ensure that the instructions contained in
the document are adequate and free of material errors and omissions. Nokia Siemens
Networks will, if deemed necessary by Nokia Siemens Networks, explain issues which may
not be covered by the document.
Nokia Siemens Networks will correct errors in the document as soon as possible. IN NO
EVENT WILL NOKIA SIEMENS NETWORKS BE LIABLE FOR ERRORS IN THIS
DOCUMENT OR FOR ANY DAMAGES, INCLUDING BUT NOT LIMITED TO SPECIAL,
DIRECT, INDIRECT, INCIDENTAL OR CONSEQUENTIAL OR ANY MONETARY
LOSSES,SUCH AS BUT NOT LIMITED TO LOSS OF PROFIT, REVENUE, BUSINESS
INTERRUPTION, BUSINESS OPPORTUNITY OR DATA,THAT MAY ARISE FROM THE
USE OF THIS DOCUMENT OR THE INFORMATION IN IT
This document and the product it describes are considered protected by copyrights and other
intellectual property rights according to the applicable laws.
Wave logo is a trademark of Nokia Siemens Networks Oy. Nokia is a registered trademark of
Nokia Corporation. Siemens is a registered trademark of Siemens AG.
Other product names mentioned in this document may be trademarks of their respective
owners, and they are mentioned for identification purposes only.
Copyright © Nokia Siemens Networks 2008. All rights reserved.

© Nokia Siemens Networks 2 (76)

Contents

Contents

1 Objectives..............................................................................................5

2 Introduction...........................................................................................6

3 Signalling Network................................................................................8
3.1 Addressing Signalling Points...................................................................8

4 MTP layers...........................................................................................10
4.1 MTP Layer 1: Signalling Data Link........................................................10
4.2 MTP Layer 2: Signalling Link.................................................................10
4.2.1 Signal Units...........................................................................................11
4.2.2 Error Correction.....................................................................................15
4.2.3 Signalling Link Failure Detection...........................................................16
4.2.4 Level 2 Procedures...............................................................................16
4.3 MTP Layer 3: Signalling Network..........................................................19
4.3.1 MTP3 Message Structure......................................................................19
4.3.2 Signalling Message Handling................................................................23
4.3.3 Signalling Network Management...........................................................26
4.3.4 Signalling Traffic Management Procedures...........................................30
4.3.5 Signalling Route Management Procedures...........................................32
4.3.6 Signalling Link Management Procedures..............................................38

5 MTP Alarms.........................................................................................40

6 MTP Parameters Handling..................................................................42

6.1 Level 3 Parameters...............................................................................43
6.2 CCS7 Signalling Network-Specific Parameters.....................................48
6.3 Signalling Link Specific Parameters......................................................53
6.4 Signalling Route Set Specific Parameters.............................................63

© Nokia Siemens Networks 3 (76)

Summary of changes

Summary of changes

© Nokia Siemens Networks 4 (76)

MTP Parameters HandlingAppendix

1 Objectives
On completion of this module, you should be able to:
 Describe the functionality of MTP layer
 Explain MTP message structure
 Explain the MTP procedures
 Output and interpret analysing results
 List MTP parameter in DX200 NE

© Nokia Siemens Networks 5 (76)

MTP Parameters HandlingAppendix

2 Introduction
The CCS#7 Structure divides the signalling functions into “Message
Transfer Parts” and the “User Parts” for different users and
applications.
The user part communicates with a corresponding user part in the
adjoining network element.
The MTP serves as a common transport system that provides reliable
transmission of the signalling messages between the communicating
user parts, regardless of the unreliability of the physical transmission
media. MTP is covered under ITU-T specifications Q.701 –707. The
functions of the MTP are divided into three levels:
 Level 3 Signalling network functions
 Level 2 Signalling link functions
 Level 1 Signalling data link functions
The signalling data link function (level 1) defines the physical,
electrical and functional characteristics of a signalling data link and the
means to access it. The level 1 function provides a bearer for a
signalling link.
The signalling link function (level 2) defines the functions considering
message transfer between two adjacent network elements through a
signalling link. It defines the message structure, framing, error detection
and correction, alignment procedure, and so on.
The signalling network function (level 3) can be divided into two parts:
message handling, which includes message routing and distribution to
the respective user part, and network management, which provides all
the necessary procedures for using the signalling network in an optimal
way.

© Nokia Siemens Networks 6 (76)

MTP Parameters HandlingAppendix

Layer 4
(User Part) ISUP TUP SCCP Other User Parts

MTP3
Signalling Network Signalling Message
Management Handling

MTP2
Signalling Link
Function

MTP1
MTP2 Signalling Data Link
Function
Signalling

Control signals Signalling message flow

Figure 1. MTP Layers

© Nokia Siemens Networks 7 (76)

MTP Parameters HandlingAppendix

3 Signalling Network
A signalling network comprises of signalling points. A distinction is made
between 2 categories:
 Signalling end points (SEP)
 Signalling transfer points (STP)
The signalling end points are the sources (origination points) and
destinations (destination points) of the signalling traffic. In
communications network both these points are usually switching
centers.
On the basis of the destination address, the signalling transfer points
forward received signalling messages to another signalling transfer point
or, where applicable, to a signalling end point. No processing of the
message content takes places in a signalling transfer point. A signalling
transfer point may be integrated in a signalling point (e.g. a switching
cent) or may be a separate node in the signalling network.

3.1 Addressing Signalling Points

All signalling points are identified by a signalling point code (SPC)
which is defined by a corresponding numbering scheme and can
therefore be addressed specifically in a signalling message.
The signalling point code is a 14 bit value (ITU-T SS7 standard) and can
be allocated into subfield, for example, 3-8-3 bit for international use
(see ITU-T Q.708).
Since the signalling point code with 14 bits (0…16383) is insufficient to
address all signalling points worldwide, it is always used together with
the network indicator. The network indicator has four values: NA0,
NA1, IN0, and IN1.

© Nokia Siemens Networks 8 (76)

MTP Parameters HandlingAppendix

Signalling link
SEP SEP
Signalling Signalling
end point end point

Signalling link Signalling link

SEP DPC = X STP DPC = X SEP
Signalling Signalling Signalling
end point transfer point end point

Figure 2. Components of a signalling network, SEP and STP

Signalling Point Codes

•National use
Length: 14 bits (ITU-T SS7 standard), 16 bits (Japan
SS7 standard), or 24 bits (China or ANSI SS7 standard)
Format: can be allocated into subfields
•International use (ITU-T Q.708)
3bit-8bit-3bit
meaning: Zone-Area-Signalling point

Network Indicator
•NA0 National network 0
•NA1 National network 1
•IN0 International network 0
•IN1 International network 1

Figure 3. SPC and network indicator

© Nokia Siemens Networks 9 (76)

MTP Parameters HandlingAppendix

4 MTP layers

4.1 MTP Layer 1: Signalling Data Link

Signalling data link level (level 1) defines the physical, electrical and
functional characteristics and the physical interface (E1 or T1) towards
the transmission media.
In digital systems normally 64 kbps or 56 kbps channels are used, that
is, a timeslot of PCM30 or PCM24 respectively. The choice of the
timeslot may be any timeslot except TS “0”. These are governed by the
G.703 and G.704 specifications. This channel is called a link.
Level 1 function is specified in Recommendation Q.702.

4.2 MTP Layer 2: Signalling Link

Signalling link level (level 2) defines the functions and procedures for
and relating to the transfer of signalling messages over one individual
signalling data link. The level 2 functions, together with a level 1
signalling data link as a bearer, provide a signalling link for reliable
transfer of signalling messages between two directly connected
signalling points.
Signalling messages delivered by superior hierarchical levels are
transferred over the signalling link in variable length signal units. The
signal units include transfer control information for proper operation of
the signalling link in addition to the signalling information.
The signalling link functions comprise:
1. delimitation of signal unit by means of flags
2. flag imitation prevention by bit stuffing

© Nokia Siemens Networks 10 (76)

MTP Parameters HandlingAppendix

3. error detection by means of check bits included in each signal

units
4. error correction by retransmission and signal unit sequence control
by means of explicit sequence numbers in each signal unit and
explicit continuous acknowledgements
5. signalling link failure detection by means of signal unit error rate
monitoring and signalling link recovery by means of special
procedures
Level 2 functions are specified in Recommendation Q.703.

User Part

TransmitBuffer
Transmit Buffer ReceivedBuffer
Received Buffer
Controller
Controller

SequenceNumber
Sequence Number SequenceNumber
Sequence Number
FSN BSN
Generation
Generation Retransmission
Retransmission Check
Check
Buffer
Buffer
Checksum
Checksum
Checksum
Checksum Generationand
Generation and
Generation
Generation BIB
Comparison
Comparison

MessageLength
Message Length
Check
Check

FlagGeneration
Flag Generation FlagDetection
Flag Detectionandand
andBit-stuffing
and Bit-stuffing Bit-stuffing
Bit-stuffing

Level 1 Level 1

Figure 4. MTP Layer 2 functions

4.2.1 Signal Units

The message transfer part transports messages in signal units of

variable length towards destination. A signal unit is formed by the
function of level 2. In addition to the message it also contains control
information for the message exchange.

© Nokia Siemens Networks 11 (76)

MTP Parameters HandlingAppendix

There are three different types of signal units:

1. Message signal units (MSU)
2. Link status signal units (LSSU)
3. Fill-in signal units (FISU)

Types of signal units are differentiated by means of the length indicator

contained in all signal units. Message signal units are used for the
transport of the user part messages. Link status signal units contain
information about state of the signalling link. Fill-in signal units contain
no additional information. It is used when there is no message to be sent
on the link. Own side has no messages to send, but the remote end
expects acknowledgements for the message signal units that it has sent.
Message signal units are retransmitted in case of error; link status signal
unit and fill-in signal unit are not. The basic formats of the signal units
are shown in Figure 5.

[Link] Function and Codes of The Signal Unit Fields

Flag (F)
The signal units are of varying length. The opening flag indicates the
start of a signal unit. The opening flag of one signal unit is normally the
closing flag of the preceding signal unit. The bit pattern for the flag is
“0111 1110” or 7Eh. The flag is also used for alignment of the signalling
link at the far-end.
Bit stuffing for “Flag imitation prevention” is done by inserting a “0” after
5 consecutive “1” in a message data stream. At the receiving end a “0” is
deleted after five consecutive ones in the received data stream.
Backward sequence number (BSN)
It is the sequence number of a signal unit being acknowledged.
Backward indicator bit (BIB)
With this bit, faulty signal units are requested to be retransmitted for
error correction.
Forward sequence number (FSN)
It is the sequence number of the signal unit in which it is carried. FSN
and BSN are numbers in binary code from a cyclic sequence ranging
from 0 to 127.
Forward indicator bit (FIB)
It indicates whether a signal unit is being sent for the first time or
whether it is being retransmitted.

© Nokia Siemens Networks 12 (76)

MTP Parameters HandlingAppendix

F B
First bit
MSU F CK SIF SIO LI I FSN I BSN F
B B transmitted
8 16 8n, n>2 8 2 6 1 7 1 7 8 [bit]
length indicator >2 and ≤63

F B
First bit
LSSU F CK SF LI I FSN I BSN F
B B transmitted
8 16 8 or 16 2 6 1 7 1 7 8 [bit]
length indicator = 1 or 2

F B
FISU F CK LI I FSN I BSN F First bit
B B transmitted
8 16 2 6 1 7 1 7 8 [bit]
length indicator = 0
F Flag LI Length Indicator
BSN Backward Sequence Number SIO Service Information Octet
BIB Backward Indicator Bit SIF Signalling Information Field
FSN Forward Sequence Number CK Check Bits
FIB Forward Indicator Bit SF Status Field

Figure 5. Signal unit formats

Length indicator (LI)

The length indicator is used to indicate the number of octets following
the length indicator octet and preceding the check bits. Length indicator
is a number in binary code in the range of 0-63. It differentiates between
the three types of signal units as follows:
Length indicator = 0: Fill-in signal unit
Length indicator = 1 or 2: Link status signal unit
Length indicator > 2: Message signal unit
In the case that the signalling information field (SIF) is spanning 62
octets or more, the length indicator is set to 63.
Service information octet (SIO)
The service information octet only exists in message signal units. It
contains the service indicator and the subservice field.
Signalling information field (SIF)
The signalling information field only exists in message signal units. It
contains the actual user message.

© Nokia Siemens Networks 13 (76)

MTP Parameters HandlingAppendix

Check bits (CK)

CRC16 checksum is inserted in each signal unit for error detection.
A checksum is calculated for the data between the flags and inserted in
the signalling unit. At the remote end the checksum is recalculated, if the
calculated and received checksums do not match, a negative
acknowledgement is conveyed by setting BSN to the received FSN and
inverting the previously transmitted BIB. This BIB will remain in the new
state till a new error occurs.
Status field (SF)
The status field only exists in link status signal units. It contains status
indications of the signalling link. Only three bits are used to represent
signal status. The possible state and corresponding messages are
stated below. Their coding is shown in Figure 6.
 Status indication “O” (SIO) Link out of alignment
 Status indication “N” (SIN) Normal alignment
 Status indication “E” (SIE) Emergency alignment
 Status indication “OS” (SIOS) Link out of service
 Status indication “PO” (SIPO) Processor outage
 Status indication “B” (SIB) Busy

F B
LSSU F CK SF LI I FSN I BSN F First bit
B B transmitted

8 16 8 or 16 2 6 1 7 1 7 8 [bit]

DCBA
XXXX X000

• Bit 000 Status indication “O” (SIO) Link out of alignment

• Bit 001 Status indication “N” (SIN) Normal alignment
• Bit 010 , Status indication “E” (SIE) Emergency alignment
• Bit 011 Status indication “OS” (SIOS) Link out of service
• Bit 100 Status indication “PO” (SIPO) Processor outage
• Bit 101 Status indication “B” (SIB) Busy

Figure 6. Link status indications in LSSU

© Nokia Siemens Networks 14 (76)

MTP Parameters HandlingAppendix

4.2.2 Error Correction

Error correction is through retransmission. Two techniques of error

correction are provided, the basic method and the preventive cyclic
retransmission method. Both error correction techniques apply only to
MSU but not to LSSU and FISU.
Basic error correction is implemented by a negative acknowledgement
through BIB and retransmission after inverting FIB. All signalling units
are repeated from that sequence number. Positively acknowledged
signalling units are deleted from the retransmission buffer.

Signalling Terminal Signalling Terminal

Retransmission Buffer
Negative Acknowledgement

Retransmission
MSU

Figure 7. Basic error correction method

The preventive cyclic retransmission method is implemented on long

distance lines, with transmission time greater than 15ms. Negative
acknowledgement is not awaited., instead all unacknowledged and new
signalling units are kept in the retransmission buffer and transmitted
periodically. The remote end simply waits for the retransmission to
correct the error.
Signalling Terminal Signalling Terminal
Send only positive Retransmission Buffer:
acknowledgement of Delete a positive
MSU acknowledgement else
cyclically transmit buffer

Figure 8. Preventive cyclic retransmission method

© Nokia Siemens Networks 15 (76)

MTP Parameters HandlingAppendix

4.2.3 Signalling Link Failure Detection

Signalling link failure detection is provided by means of Signal Unit Error

Rate Monitoring (SUERM). This is a statistical method of ensuring the
permitted error rate on a link. SUERM is a counter, which increments on
a detection of error. If 256 signalling units are received error free it
decrements by one. This is called the leaky bucket principle. If the
SUERM counter reached the pre-set threshold (generally 64), then link
is declared faulty and change procedure to a working link takes place.
Initial alignment procedure is carried out to recover the faulty link.

Alarm level

+1 for every SU in error

-1 for 256 correctly received SUs

Figure 9. Signal Unit Error Rate Monitoring (SUERM)

4.2.4 Level 2 Procedures

Signalling link recovery is provided by means of special procedures,

which are initial alignment procedure, processor outage procedure, and
congestion control.

[Link] Initial Alignment Procedure

The initial alignment procedure is used for link activation and restoration
either through MML commands or through SUERM.
5 different states are distinguished:
Link out of service
Internally an activate signal changes the link to an idle state.

© Nokia Siemens Networks 16 (76)

MTP Parameters HandlingAppendix

Link idle
On the idle link an SIO message is sent. On receiving an SIO as
acknowledgement the link becomes aligned on both the local and
remote end.
Link aligned
SIO continues to be exchanged. At this point any one side may decide to
send either SIN or SIE and results in proving state. SIE is generally sent.
If the entire linkset is out of service, an SIE is sent to recover each link
one by one.
Link proving
SIN or SIE is sent in response to received SIN or SIE. This initiates
either of the two types of proving:
 Normal proving

When SIN was the LSSU, 216 octets are exchanged via the
signalling link within 8.2 sec. allowing only 4 signal units to be
faulty.
 Emergency proving

If SIE was the LSSU exchanged, 212 octets are exchanged via the
signalling link within a time of 0.5 sec with only one SU allowed to
be faulty.
In either of the two proving procedures Alignment Error Rate Monitoring
(AERM) is used. The AERM counter is set to zero to mark the beginning
of an alignment period. Every SU in fault increments the counter by one.
If threshold (four or one) is reached before the exchange of pre-requisite
octets, start a new alignment period. If five periods fail, the link is marked
faulty.
In service
After successful execution of the proving period the link becomes active.
A signalling link test message (MSU) is sent on the link, containing the
DPC, OPC, SLC, and a test pattern. It is acknowledged from the other
side by Signalling Link Test Acknowledgement message (SLTA) with the
same
bit-pattern. If the test pattern is received correctly, the Link State is
marked as available executing and the link can be used for signalling.

© Nokia Siemens Networks 17 (76)

MTP Parameters HandlingAppendix

Link out of service

Activate link Link Idle
SIO

SIO
Link Aligned
SIN/SIE

SIN/SIE

FISU

FISU

FISU Link Proving

FISU

MSU (SLTM)

MSU (SLTA) Link In Service

Figure 10. Initial alignment procedure

Aligned

SIO SIN/SIE
Link activation

Out of
Idle Proving
service

In
service

Figure 11. Process flow between different states

© Nokia Siemens Networks 18 (76)

MTP Parameters HandlingAppendix

[Link] Processor Outage

A processor outage may occur if:
 Signalling messages cannot be transferred to functional level 3
and / or 4 at either network elements
 Else if the state of the link was changed through MML to “Blocked”.
In either of the cases, an LSSU (SIPO) is transmitted and received
MSUs are discarded. FISU are exchanged continuously.

[Link] Congestion Control

In case there is congestion on the receiving side of the signalling
connection, an LSSU (SIB) is sent every 200msec, until congestion
ceases. MSU and FISU continue to be transmitted as usual. The BSN
and BIB values do not change, but show the last acknowledged MSU.
If congestion persists beyond 10 seconds, the link is declared faulty and
an LSSU (SIOS) is sent.

4.3 MTP Layer 3: Signalling Network

The signalling network functions (MTP3) can be divided into two parts,
namely:
 Signaling message handling, and
 Signaling network management

The purpose of the signaling message handling functions is to ensure

that the signaling messages originated by a particular user part at a
signaling point (originating point) are delivered to the same user part at
the destination point indicated by the sending user part.
The signalling message handling functions are based on the label
contained in the messages which explicitly identifies the destination and
originating points. The label part used for signalling message handling
by the message transfer part is called routing label.

4.3.1 MTP3 Message Structure

The MTP3 message structure is shown on the Figure 12. Basically it

consists of 3 main parts: the service information octet (SIO), routing
label and user information field.

© Nokia Siemens Networks 19 (76)

MTP Parameters HandlingAppendix

The destination of a signal unit is specified in a routing label. The routing

label is a component of every user message and is transported in the
signalling information filed (SIF). The routing label consists of
destination point code (DPC), originating point code (OPC), and
signalling link selection (SLS) field.
The service information octet (SIO) contains additional address
information. Using the service indicator (SI), the destination message
transfer part identifies the user part for which message is intended. The
subservice field (SSF) contains the network indicator which enables a
message to be identified, for example, as being for national or
international traffic.
Link status signal units (LSSU) and fill-in signal units require no routing
label as they are only exchanged between level2 of adjacent message
transfer parts.

Signalling Information Field (SIF)

First bit
Routing
User Information SIO transmitted
Label

Subservice Service
SLS OPC DPC Field (SSF) Indicator (SI)

4 14 14 4 4 [bit]
OPC Originating Point Code 00XX (0H) : IN0 0000 (0H): SNM
DPC Destination Point Code 01XX (4H) : IN1 0001 (1H): SNT
SLS Signalling Link Selection 10XX (8H) : NA0 0011 (3H): SCCP
11XX (CH) : NA1 0100 (4H): TUP
0101 (5H): ISUP
1101 (DH): BICC

Figure 12. MTP3 message structure and coding

The command group NP – SERVICE INFORMATION DATA HANDLING

is used to create, modify, delete, and interrogate the signalling service
information data of own signalling point.
Execution of ZNPI command gives the following printout:

© Nokia Siemens Networks 20 (76)

MTP Parameters HandlingAppendix

Execution printout

Abbreviations used in execution printout

Figure 13. NPI – Interrogate services

Explanation of SIO parameters

Signalling network
NA0 national network 0
NA1 national network 1
IN0 international network 0
IN1 international network 1
Service indicator index
— a hexadecimal 0 - F
The service indicator index indicates the user part within the signalling
network.
Service indicator name
1-5 ASCII characters
Service existing for STP messages
The parameter may receive the following values:
Y it is desired that service exists for STP messages

© Nokia Siemens Networks 21 (76)

MTP Parameters HandlingAppendix

N service does not exist for STP messages

Service existing for user part of own signalling point
The parameter may receive the following values:
Y it is desired that service exists for the user part of own
signalling point
N service does not exist for the user part of own signalling point
Primary process family
— a hexadecimal 1 - FFFF
The number of the primary process family, which handles incoming
signalling messages of the user part of one's own signalling point. The
parameter is obligatory if service is created for the incoming signalling
messages of the user part of one's own signalling point but the
parameter cannot be given if no service is created for incoming
signalling messages of the user part of one's own signalling point.
Secondary process family
— a hexadecimal 1 - FFFF
The number of the secondary process family which handles the
incoming signalling messages of the user part of one's own signalling
point. The parameter is not obligatory, and it cannot be given if no
service is created for the incoming signalling messages of the user part
of one's own signalling point
ADDITIONAL INFORMATION
One of the services at the minimum
 service for STP messages
 service for the user part in own signalling point
must be created.
If no service is created for incoming messages in one's own signalling
point, the parameters PRIMARY PROCESS FAMILY and SECONDARY
PROCESS FAMILY cannot be given.
If service is created for incoming messages in the user part of own
signalling point, the parameter PRIMARY PROCESS FAMILY must be
given.
If SERVICE INDICATOR INDEX = 0 and service is created for incoming
messages in the user part of one's own signalling point, the default of
PRIMARY PROCESS FAMILY is the process family indicator of
CCNETM and the default of SECONDARY PROCESS FAMILY is the
process family indicator of CCDESM.
If SERVICE INDICATOR INDEX = 1 and service is created for incoming
messages in the user part of one's own signalling point, the default of

© Nokia Siemens Networks 22 (76)

MTP Parameters HandlingAppendix

PRIMARY PROCESS FAMILY is the process family indicator of

CCNETM. PRIMARY PROCESS FAMILY and SECONDARY PROCESS
FAMILY cannot have the same value (family process indicator).

4.3.2 Signalling Message Handling

Signalling message handling is responsible for the routing of messages

to the appropriate link, and distribution of the received messages within
own exchange. This can be divided into three sub functions:
 Message discrimination
 Message distribution
 Message Routing
These functions and interactions between them are shown below.

User Part ISUP TUP SCCP Network Management

MTP3 Signalling message handling

Message
distribution
DPC ≠ own SPC
DPC = own SPC

Message Message
routing discrimination

MTP2

Figure 14. Block diagram of signalling message handling function

The discrimination function evaluates the destination point code

(DPC) of the MSU. If the DPC of the received message is equal to own

© Nokia Siemens Networks 23 (76)

MTP Parameters HandlingAppendix

SPC the message is sent to the distribution function. Otherwise it is sent

to the routing function.
The distribution function checks the service information octet (SIO) to
find out the suitable user part.
The routing function finds the suitable signalling link for sending the
signal unit to another network element. The routing is based on DPC,
SIO, and the SLS carried in the message. The SLS in turn defines load
sharing, and thus link selection.

[Link] Load sharing within a Link Set

Load sharing within a link set is based on use of SLS bits (4 bits after
OPC in routing label). For example in ISUP messages SLS bits are
copied from 4 least significant bits of CIC (circuit identification code). All
4 bits of SLS are used for load sharing regardless of link set size. Load
sharing is performed between all available signalling links in a link set.
Link priority has no meaning. In case of a link failure, traffic of the link set
is evenly distributed among all remaining available links. The following
table describes the relation between SLS-bits and links.

LINK
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
- - - - - - - - - -- -- -- -- -- -- --
SLS
0000 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
0001 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
0010 1 1 3 3 3 3 3 3 3 3 3 3 3 3 3 3
0011 1 2 1 4 4 4 4 4 4 4 4 4 4 4 4 4
0100 1 1 2 1 5 5 5 5 5 5 5 5 5 5 5 5
0101 1 2 3 2 1 6 6 6 6 6 6 6 6 6 6 6
0110 1 1 1 3 2 1 7 7 7 7 7 7 7 7 7 7
0111 1 2 2 4 3 2 1 8 8 8 8 8 8 8 8 8
1000 1 1 3 1 4 3 2 1 9 9 9 9 9 9 9 9
1001 1 2 1 2 5 4 3 2 1 10 10 10 10 10 10 10
1010 1 1 2 3 1 5 4 3 2 1 11 11 11 11 11 11
1011 1 2 3 4 2 6 5 4 3 2 1 12 12 12 12 12
1100 1 1 1 1 3 1 6 5 4 3 2 1 13 13 13 13
1101 1 2 2 2 4 2 7 6 5 4 3 2 1 14 14 14
1110 1 1 3 3 5 3 1 7 6 5 4 3 2 1 15 15
1111 1 2 1 4 1 4 2 8 7 6 5 4 3 2 1 16

Figure 15. Load sharing within a link set

© Nokia Siemens Networks 24 (76)

MTP Parameters HandlingAppendix

[Link] Load Sharing between Link Sets in a Route Set

For link sets in a route set the value 7 indicates the highest priority route
and 0 the lowest priority route.
Load sharing between link sets is independent from load sharing within a
link set. Link set size has no effect on the load sharing between link sets.
So link set sizes should be equal if load sharing is used. In the DX 200
implementation, 8 link sets can belong to a route set (8 routes). Route
priorities are significant because traffic is shared on the routes with
same priority. If only one route has highest priority (usually the direct
route), no load sharing occurs. Priority is also used in forced rerouting to
determine the alternative route. Load sharing between link sets also
uses all 4 bits of a SLS. If route priorities are the same and load sharing
is allowed load sharing is as follows:

LINK SET

1 2 3 4 5 6 7 8
SLS
- - - - - - - -
0000 1 1 1 1 1 1 1 1
0001 1 1 1 1 1 1 1 1
0010 1 1 1 1 1 1 1 2
0011 1 1 1 1 1 2 2 2
0100 1 1 1 2 2 2 2 3
0101 1 1 1 2 2 2 2 3
0110 1 1 2 2 2 3 3 4
0111 1 1 2 2 3 3 3 4
1000 1 2 2 3 3 3 4 5
1001 1 2 2 3 3 4 4 5
1010 1 2 2 3 4 4 5 6
1011 1 2 3 3 4 4 5 6
1100 1 2 3 4 4 5 6 7
1101 1 2 3 4 5 5 6 7
1110 1 2 3 4 5 6 7 8
1111 1 2 3 4 5 6 7 8

Figure 16. Load sharing between link sets

© Nokia Siemens Networks 25 (76)

MTP Parameters HandlingAppendix

4.3.3 Signalling Network Management

The signalling network management functions provide the actions and

procedures required to maintain signalling service, and to restore normal
signalling conditions in the event of disruption in the signalling network,
either in signalling links or at signalling points. The disruption may be in
the form of complete loss of a signalling link or a signalling point, or in
reduced accessibility due to congestion.
There are 2 categories of signalling network management messages as
indicated in the service information octet in MSU:
1. Signalling network management (SNM)
2. Signalling network testing and maintenance (SNT)

Signalling network management (SNM) messages

The SNM messages contain a heading code, after the label. It
comprises of two parts H0 and H1, 4 bits each, which identify the
message. The message structure is shown on the Figure 17.

F B
MSU F CK SIF SIO LI I FSN I BSN F First bit
B B transmitted

SI
User Information H1 H0 SLS OPC DPC SSF
0000

4 4 4 14 14 4 4 [bit]

SSF Subservice Field

H0 Heading code indicating which message group the message belong to
H1 Heading code indicating the message within the group in question

Figure 17. SNM message structure and coding

The SNM messages are coded as 0000 in the Service indicator subfield
in SIO. H0 and H1 indicate the type of message being sent. Figure 18
illustrates the heading code allocation of SNM messages.

© Nokia Siemens Networks 26 (76)

MTP Parameters HandlingAppendix

H0 H1
GROUP
0001 0010 0011 0100 0101 0110 0111 1000
0000
CHM 0001 COO COA CBD CBA
ECM 0010 ECO ECA
FCM 0011 RCT TFC
TFM 0100 TFP TFR TFA
RSM 0101 RST RSR
MIM 0110 LIN LUN LIA LUA LID LFU LLT LRT
TRM 0111 TRA
DLM 1000 DLC CSS CNS CNP
UFC 1010 UPU

Figure 18. Heading code allocation of SNM messages

The SNM messages are listed in Table 1 and 2.

Signalling network testing and maintenance (SNT) messages

There are only two SNT messages:
SLTM Signalling Link Test Message
SLTA Signalling Link test Acknowledgement
The additional information carried by these two messages is a test
pattern. The SNT messages are coded as 0001 in the Service indicator
subfield in SIO

© Nokia Siemens Networks 27 (76)

MTP Parameters HandlingAppendix

Table 1. SNM messages related to signalling traffic management

Group H0 Group H1 PDU

ECM ECA Emergency changeover acknowledgement

ECM ECO Emergency changeover order
CHM COA Changeover acknowledgement
CHM COO Changeover order
CHM CBD Changeback declaration
CHM CBA Changeback acknowledgement
MIM LFU Link force uninhibit
MIM LIN Link inhibit
MIM LUN Link uninhibit
MIM LIA Link inhibited acknowledgement
MIM LUA Link uninhibited acknowledgement
MIM LID Link inhibit denied
MIM LLT Link local inhibit test
MIM LRT Link remote inhibit test
TRM TRA Traffic restart allowed

UFC UPU User part unavailable

Table 2. SNM messages related to signalling route management

Group H0 Group H1 PDU

RSM RST Signalling Route Set Test for prohibited destination

RSM RSR Signalling Route Set Test for restricted destination
FCM RCT Signalling Route Set Congestion Test
TFM TFA Transfer allowed
TFM TFC Transfer controlled
TFM TFP Transfer prohibited
TFM TFR Transfer restricted
The signalling network management is divided into 3 functions:

© Nokia Siemens Networks 28 (76)

MTP Parameters HandlingAppendix

1. Signalling traffic management function

The signalling traffic management is responsible for the availability
of a signalling link or a signalling route by using the following
procedures:
 changeover
 changeback
 forced rerouting
 controlled rerouting
 MTP restart
 management inhibiting
 signalling traffic flow control
2. Signalling link management function
The signalling link management function controls the signalling
links and is responsible for the state changes by using the
following procedures:
 signalling link activation
 signalling link restoration
 signalling link deactivation
 signalling link set activation
3. Signalling route management function
The signalling route management is responsible for the availability of a
destination by using the following procedures:
 transfer-prohibited procedure, indicating the unavailability of
a destination
 transfer-allowed procedure, indicating the availability of a
destination
 transfer-controlled procedure, indicating the overload
situation of a destination
 signalling-route-set-test procedure, testing the state of a
signalling route set.

4.3.4 Signalling Traffic Management Procedures

[Link] Changeover Procedure
In case of a signalling link failure the traffic from failed link is diverted to
all other remaining links in a link set, avoiding at the same time loss of

© Nokia Siemens Networks 29 (76)

MTP Parameters HandlingAppendix

messages, duplication or wrong order. When a signalling link fails the

load sharing table is calculated again.
Changeover order signal (COO) is sent to the remote end via one of
available signalling links inside the signalling link set. It indicates the
SLC of the faulty link.
The new link may be on the same link set or on an alternate route.
Procedure:
 When a signalling link is detected as faulty (state change to SIOS)
load sharing table of signalling LINKSET is recalculated.
 The signalling traffic on the faulty link is stopped; new signalling
messages for this link are buffered in the delay buffers of
alternative signalling links x, y...
 A changeover message (COO) is sent to the remote end. This
changeover message contains the Signalling Link Code (SLC) of
the faulty link and the sequence number of the last successfully
RECEIVED (not transmitted) SU.
 The remote end proceeds in the same way.
 The reception of a changeover message is acknowledged by
sending a changeover acknowledge message (COA).
 Related to the FSN included in the received changeover message
the messages, which did not arrive at the remote end, will be sent
via the alternative link (= retrieval procedure).
 After the retrieval the contents of delay buffers are released and
the traffic continues normally on all remaining available links.

[Link] Changeback Procedure

The objective of the changeback procedure is to ensure that the transfer
of the signalling from the alternative signalling links to a signalling link
that has become available again is successful, while avoiding at the
same time loss, duplication or miss sequencing of messages.
Procedure:
 Automatically the traffic is returned to the now available signalling
link.
 The signalling link selection table is updated and the new
information is distributed to all CCSUs.
 A changeback message (CBD) is sent to the remote end and
acknowledged with a (CBA) message.

© Nokia Siemens Networks 30 (76)

MTP Parameters HandlingAppendix

0) Faulty link

SLC = X

A SLC = Y

B
1) On link Y,
COO (SLC = X, BSN = FSN of last correct received MSU)

2) COA (BSN = FSN of last correctly received MSU)

3) Change Signalling Link Selection (SLS) table in CCSU

Figure 19. Change over to a parallel link

0) Recovered link
SLC = X

A SLC = Y

B
1) Traffic to signalling link with SLC = X

2) Update signalling link selection table in all CCSUs

3) CBD

4) CBA

Figure 20. Changeback to a recovered link

[Link] Emergency Changeover Procedure

An emergency changeover takes place when the signalling terminal
becomes faulty. It is not possible to obtain the last FSN of the last
correctly received SU.

© Nokia Siemens Networks 31 (76)

MTP Parameters HandlingAppendix

Procedure:
 The signalling point initiates an emergency changeover through
ECO message. (It does not contain any sequence number).
 The remote end, if it has the FSN of the last received message, it
may acknowledge through COA, else through ECA.
 In cases of receiving either ECO or ECA, the retransmission buffer
is not updated. Instead only new messages are transmitted. Hence
some messages may be lost.

4.3.5 Signalling Route Management Procedures

[Link] Transfer-Prohibited Procedure
The transfer-prohibited procedure is performed at a signalling point
acting as a signalling transfer point (STP) for messages relating to a
given destination, when it has to notify one or more adjacent signalling
points that they must no longer route the concerned messages via that
signalling transfer point.
The transfer-prohibited procedure makes use of the transfer-prohibited
(TFP) message which contains routing label, transfer-prohibited signal
and destination for which traffic transfer is no longer possible.
TFP messages are always addressed to an adjacent signalling point.
Procedure followed on loss of a destination:
 In case of unavailability of a signalling route set (e.g. the route
between B and D is not longer available and neither B nor D have
any alternative route to reach the destination), B and D send a
Transfer Prohibited message including the DPC of the network
element, which is no longer reachable to the adjacent signalling
points.
 B sends the DPC of D.
 D sends the DPC of B.
 The reception of a transfer prohibited message (TFP) causes a
Forced Rerouting.
Additional remark:
The transfer prohibited message is not sent to the BSC.

© Nokia Siemens Networks 32 (76)

MTP Parameters HandlingAppendix

1)

SP D
SP B
2) TFP (DPC=D)

2) TFP (DPC=D) 2) TFP (DPC=B)

SP A

SP E

SP C

Figure 21. Transfer-prohibited procedure

[Link] Forced Rerouting Procedure

On reception of a transfer prohibited message the forced rerouting
procedure is activated.
Procedure:
 Alternative route to the destination, which was named in the
received TFP, is searched and the traffic is re-routed via the new
route.

© Nokia Siemens Networks 33 (76)

MTP Parameters HandlingAppendix

1)

SP D
SP B
1) TFP (DPC=D)
1) TFP (DPC=B)

1) TFP (DPC=D)

SP A
SP E
2) FRR:
Signalling traffic to D via C
SP C 2) FRR:
Signalling traffic
2) FRR: to B via C
Signalling traffic to D via E

Figure 22. Forced rerouting procedure

[Link] Signalling-Route-Set-Test procedure

The signalling-route-set-test procedure is used at a signalling point to
test whether or not signalling traffic towards a certain destination may be
routed via an adjacent signalling transfer point.
The procedure makes use of the signalling-route-set-test message, and
the transfer-allowed and the transfer-prohibited procedures.
The signalling-route-set-test message contains:
 The label, indicating the destination and originating points
 The signalling-route-set-test signal
 The destination, the accessibility of which to be tested
 The current route status of the destination being tested

Procedure to check availability of the route:

© Nokia Siemens Networks 34 (76)

MTP Parameters HandlingAppendix

 On reception of a TFP message initiates the signalling route set

procedure.
 C and E periodically send an RST message to B and D
respectively. This message contains the same DPC as the
received TFP message.
 A and C send RST to B with DPC of D.
 E sends RST to D with DPC of B.
 The reception of a RST message causes B respectively D to check
the availability of the route.
 In case the signalling point of the message is still unavailable there
is no reply.
 In case the signalling point of the message is available again, a
Transfer Allowed message is sent back.

1)

SP D
SP B
RST (DPC=D)

RST (DPC=D) RST (DPC=B)

SP A
SP E

SP C

Figure 23. Signalling-route-set-test procedure

© Nokia Siemens Networks 35 (76)

MTP Parameters HandlingAppendix

[Link] Transfer-Allowed Procedure

The transfer-allowed procedure is performed at a signalling point, acting
as signalling transfer point for messages relating to a given destination,
when it has to notify one or more adjacent signalling points that they
may start to route to it.
The transfer-allowed procedure makes use of the transfer-allowed
message which contains:
 The label, indicating the destination and originating points
 The transfer-allowed signal
 The destination for which transfer is now possible
Transfer-allowed messages are always addressed to an adjacent
signalling point.
Procedure:
 If the route set becomes available again, B and D send a transfer
allowed message with the DPC of the network element, which is
available again to the adjacent signalling points.
 B sends the DPC of D
 D sends the DPC of B
The reception of a TFA message may cause in a controlled rerouting

1)

SP D
SP B
2) TFA (DPC=D)

2) TFA (DPC=D) 2) TFA (DPC=B)

SP A
SP E

SP C

Figure 24. Transfer-allowed procedure

© Nokia Siemens Networks 36 (76)

MTP Parameters HandlingAppendix

[Link] Controlled Rerouting Procedure

The controlled rerouting procedure may be performed when a previous
unavailable route becomes available again.
It has to be distinguished between 3 different cases:
 In the case the route that becomes available again has a higher
priority than the route actually used, the controlled rerouting
procedure is performed.
 In the case the route that becomes available again has the same
priority as the route actually used and load sharing is allowed, the
traffic is spread over both routes.
 In the case the route that becomes available again has the same
priority as the route actually used and load sharing is denied, the
traffic is still sent over the actually used route.

[Link] Congestion on Link

If even one link is congested on a route, a link is said to be congested.
A transfer-controlled procedure is initiated by passing a transfer-
controlled (TFC) message to the final destinations. This message may
start from an OPC or from a STP. It is sent in every 8th message to the
DPC. The TFC message results in informing level four to slow down the
signalling messages to the mentioned destination.

[Link] User Part Availability Control

If the message transfer part is unable to distribute a received message
to a local user because that user is unavailable, the message transfer
part sends a user part unavailable (UPU) message to the message
transfer part at the originating signalling point.
When the originating signalling point’s MTP receives a UPU message, it
send an indication to the local user designated in the message. The user
should then take appropriate action in order to stop generation of normal
signalling information for the unavailable user part.
The UPU message contains
 The label, indicating the destination and originating point
 The user part unavailable signal
 The identity of the unavailable user part
 The cause of the unavailability

© Nokia Siemens Networks 37 (76)

MTP Parameters HandlingAppendix

A B
1) MSU (DPC = B)

2) Unable to deliver message,

subsystem faulty

3) UPU

UPU User part unavailable message

UnavailabilityUser part H1 H0
cause Id 00 Destination 0001 0100 Routing Label
4 4 2 14 4 4 32

Figure 25. User part availability control

4.3.6 Signalling Link Management Procedures

The possible states defined for a link are available, unavailable, and
inhibited. If the link state is either available of inhibited, MTP level 3
traffic continues to pass. The state of a link may change due to:
 Link errors
 Processor outage
 Transmission failure
 Operational activity
The signalling link management takes care of:
 Link management
 Processor outage
 Administrative inhibit procedure
 Signalling link test procedure

[Link] Link Management

Signalling link management is required for:
 Link activation, by using the initial alignment procedure
 Link restoration, by using the same initial alignment procedure, but
initiated by the system
 Link deactivation

© Nokia Siemens Networks 38 (76)

MTP Parameters HandlingAppendix

 Emergency restart, an initial alignment for links of linkset that has

no link available

[Link] Processor Outage

On failure of the signalling terminal processor:
 A SIPO LSSU is transmitted to the remote end
 This initiates a link changeover procedure
 If the processor fault is removed, a changeback procedure is
initiated
 The traffic may then be rerouting through this link

[Link] Administrative Inhibit Procedure

This is done to administratively block a link and not allow it to come up,
so as to make some changes, without loss of signalling. The steps
involved are:
 Checks database to find out if a destination may become
unavailable as a result
 An LSSU (LIN) message is sent to the remote end. The remote
end has a choice to reject the process.
 The remote end sends an LSSU (LIA) as an acknowledgement to
inhibit the link. If LIA is not received within a time limit, LIN may be
resent. If still no answer is received the process may be aborted.
 The database is updated with link state as inhibited.
To uninhibit the link: The signalling point that inhibited it may uninhibit
by LUN message. A remote destination point may force uninhibit by
sending an LFU message. If the link has not been inhibited through the
remote signalling point, it may recover the link by performing a
changeback procedure.

[Link] Signalling Link Test Procedure

The link testing procedure may be carried out to
 Activate or restore a signalling link
 Continuously, with a period of 30 seconds.
The procedure is initiated by one end sending an LSSU (SLTM)
message with a test pattern. The test is said to be successful if, an
LSSU (SLTA) is received within 10 seconds and has the same test
pattern. If two consecutive tests fail, the link is declared faulty.

© Nokia Siemens Networks 39 (76)

MTP Parameters HandlingAppendix

5 MTP Alarms
There are some DX 200 alarms related to the MTP level signalling
network management:

1038 UPU message received

The exchange has received a User Part Unavailable message (UPU).
This message informs the sending end of a signalling message that the
user part of the destination address is not available. Depending on the
unavailable user part (TUP and ISUP) the telephone traffic and
signalling traffic fail. In the case of SCCP, used services fail.

1072 Signalling link out of service

A signalling link has failed and changed state from IN SERVICE to OUT
OF SERVICE, or its initial alignment attempt has failed. If this signalling
link is the only one in the signalling link set, the system sets also alarm
2070, LINK SET UNAVAILABLE. If there is an alternative signalling link
available in the link set, the system performs a changeover. In this case
the signal transmission capacity is also decreased.

1548 MTP confusion message received

An MTP confusion message has been received in the exchange. The
signalling point indicated by the originating point code given in the 3rd
supplementary information field has not identified the signalling network
management message. The heading code of the signalling network
management message is given in the 6th supplementary information
field.

2064 Route set unavailable

The signalling point cannot be reached because none of the signalling
routes of the signalling route set can be used. Signalling traffic to the
signalling point concerned is totally blocked. This might cause a situation
where CCS calls to the signalling point concerned fail or where, in the

© Nokia Siemens Networks 40 (76)

MTP Parameters HandlingAppendix

worst case, all outgoing calls, for example, fail (the signalling point that
cannot be reached is HLR) or all calls of a certain type fail (the signalling
point that cannot be reached is for example SCP or SMSC).

2069 Signalling link test failed

The signalling link test has failed. Lockout of the signalling link on level 2
has succeeded, but testing the signalling link on level 3 has failed and
the signalling link is not brought into use. The system restarts the
signalling link and the signalling link test is repeated.

2070 Link set unavailable

All signalling links in the signalling link set are unavailable. There is no
direct connection to the partner exchange to which this link set is
connected. If there is an alternative connection between the exchanges,
traffic is routed to that connection. If the alarm 2064 ROUTE SET
UNAVAILABLE is also on, there is no connection to the partner
exchange or another exchange reached through this signalling link set.
There is something wrong with the data transmission connections of the
links of this link set, and/or links have been blocked. The exchange
automatically attempts to re-establish the connection by attempting to
restart the links that are in state UA-INS. The alarm 1072 SIGNALLING
LINK OUT OF SERVICE is given for each link that is in state UA-INS.

2072 Failure in signalling link activation or restoration

The activation or restoration of a signalling link fails. If there are other
available signalling links in the signalling link set, signalling traffic is
transmitted through them. Signalling transmission capacity is, however,
decreased. The alarm 1072 SIGNALLING LINK OUT OF SERVICE has
also been issued about this signalling link.

© Nokia Siemens Networks 41 (76)

MTP Parameters HandlingAppendix

6 MTP Parameters Handling

It is possible to change the functions of signalling network elements by
using various parameters. The parameters can be divided into the
following groups:
 MTP
 Level 3 parameters
 CCS7 signalling network specific parameters
 Signalling route set specific parameters
 Signalling link specific parameters
Table 3 shows parameter sets, the effected parts, and MML commands.

Table 3. Parameter sets

Parameter set Effected parts MML commands

MTP level 3 parameters Message Transfer Part NMI
of the signalling system
Signalling network Whole signalling network NMO
parameters
Signalling link parameter Signalling links NOI
sets
Signalling route set Signalling routes NNI
parameter sets

You can modify the functions of the MTP in the Common Channel
Signalling (CCS) system to a certain extent by modifying the related
parameter values. The parameter values are stored in the parameter
files, as listed in Table 4.

© Nokia Siemens Networks 42 (76)

MTP Parameters HandlingAppendix

Table 4. Parameter values

Name of parameter file Content

L3PARA Level 3 parameters
RSPARA Signalling route set parameters
SLNPAR Signalling link parameters
SNWPAR Signalling network parameters

6.1 Level 3 Parameters

The level 3 parameters define the functions of the whole MTP. Some of
the parameter values are related to monitoring the functions, while
others define various limits. In addition, a parameter can have different
values depending on the system and release level.
You can handle the level 3 parameters by using the commands NMI and
NMM. The command NMI displays the used parameter values grouped by
the parameter sets. The command NMM is used to modify the used
parameters.
The first parameter in the command defines the parameter set (A-F):
 A - CSS7 general parameters
 B – overload control parameters
 C - timing parameters of own signalling point
 D - parameters for testing/SIO parameters
 E – internal routing parameters
 F - parameters for CSS7 statistics

With the second parameter in the command we define which parameter

we want to modify and give the new value, lists the parameter groups,
parameters and their indexes, parameter names and their meanings, the
possible values of each parameter and the value range, as well as the
recommended value, if that exists.

© Nokia Siemens Networks 43 (76)

MTP Parameters HandlingAppendix

Table 5. Layer 3 parameters

Parameter Parameter Value

name/meaning
A CSS7 COMMON
PARAMETERS
A0-A9 DISTRIB_MTP_UNIT_TYP
E_0 - 9 Defines those unit
types on an exchange
where you can create
signalling links. Note:
Usually, the parameter
values need not be
changed in the MSC, HLR,
BSC or fixed network
exchanges, because unit
types CCSU, BCSU and
BSU have been installed.
B OVERLOAD CONTROL
PARAMETERS
B0 MAX_NB_OF_NOTICES 10...30
The largest amount of
incoming messages
allowed to enter a
centralised unit during a
message-monitoring period
(100 ms). Purpose of the
parameter is to control
overload within the
exchange. The parameter
value should not be
changed.
C TIMER PARAMETERS
FOR OWN SIGNALLING
POINT
C0 LINK_TEST_PERIOD 1500...45000 (10 ms)
The sending period for 4000 (40 sec.)
signalling link test messages.
The period applies to a group
of 10signalling links. This
means that when an exchange
has 30 links, the test message
goes to each link in every third
sending period.

C1 Q704_T18_LINK_AVAIL_WAI 1000... 6000 (10 ms)

T
The time used controlling the 2000
availability of the links when a
signalling transfer point is
restarted. The value depends
on the implementation and on
the network.

C2 Q704_T19_TRA_WAIT 200... 1000 (10 ms)

© Nokia Siemens Networks 44 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
The timer controlling the 400
reception of all TRA messages
while the signalling transfer
point is being restarted, when
the restarting is made as
defined in the CCITT Blue
Book. The timer is defined by
parameter P7 when the system
follows the White Book.
C3 Q704_T20_TRAF_RESTARTI 200... 1000 (10 ms)
NG_TIME

The timer controlling the 400

sending of all TRA messages
when the signalling transfer
point is being restarted.
C4 T111_T26 1000... 2000 (10 ms)

Defines the timer for resending 1500

of TRW messages when the
signalling transfer point is
being restarted, the timer is
defined in the ANSI standards.
C5 Q714_T_GUARD 600... 9600 (100 ms)

Defines the monitoring time 6000

used for the signalling
connections when the
signalling transfer point is
being restarted.
C6 T111_T27 300... 500 (10 ms)

After commencing the restart

procedure of a signalling point,
all the signalling links of the
exchange keep sending the
processor outage state
indicator to the partner
exchanges for a given time
(defined in this parameter).
This is to make sure that all
adjacent signalling points
recognise that this point cannot
be reached any more.
D PARAMETERS FOR
TESTING

D0 L2_TEST_MSG_SIO 0 ... FF
The service information octet 8F (NA0 network user part F)
used by the CCS System Test
Message Generator
(MSGGEN) reads the data
only when it starts up. After
changing the parameter
values, the MSGGEN has to
be restarted before new values
can be included in the contents
of the test messages.

© Nokia Siemens Networks 45 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
D1 TEST_MSG_LENGTH 0...272
The length of the SIF part smaller than 272
in the MSGGEN messages
of the CCS System Test
Message Generator. This
parameter effects only
those messages whose
length can be modified.
Value for this parameter
can be changed while the
MSGGEN is running, and
the MSGGEN needs not be
restarted.
E INTERNAL ROUTING
PARAMETERS
E0 INT_ST7_ROUTE ´
Defines the number of the
internal routes that include
the PCM time slots used by
the signalling link terminals
between the unit and the
switching network.
E1 EXT_ST7_ROUTE
Defines the number of the
external routes that include
the external PCM timeslots
used by the signalling link
terminals.
E2 INT_ST7_ROUTE_NAME
Defines the name of the
internal route that includes
the PCM timeslots used by
the signalling link terminals
between the unit and the
switching network.
E3 EXT_ST7_ROUTE_NAME
Defines the name of the
external route that includes
the external PCM timeslots
used by the signalling link
terminals.
E4 INTERNAL_ROUTING_FO
R_SL
Defines whether the
system tries to update the
signalling link related
PCM/TSL data into the

© Nokia Siemens Networks 46 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
routing data of the
CM3PRO. Used only on
test exchanges that have
no group switch (GSW).
F CSS7 STATISTICS
PARAMETERS
F0 SUCC_UNIT_COLL_COU 2... 10
NT_5
Defines the number of MTP 4
decentralised units from
which the statistics
counters are collected
during a 5-minute
monitoring period.
F1 SUCC_UNIT_COLL_COU 2... 20
NT_30
Defines the number of MTP 10
decentralised units from
which the statistics
counters are collected one
by one during a 30-minute
monitoring period.
F2 SL_LOG_TYPE CYCLIC
Type of signalling link event CYCLIC
log, which can be either
NORMAL or CYCLIC.
When the event log is
stored in the normal buffer,
the buffer can be emptied
with command OLE.
F3 SP_LOG_TYPE CYCLIC
Type of the signalling point CYCLIC
event log, which can be
either NORMAL or
CYCLIC. When the event
log is stored in the normal
buffer, the buffer can be
emptied with command
ONE.
F4 SL_LOG_MAX_COUNT 16... 32
The maximum amount of 16
changes in the state of a
signalling link that can be
stored in the buffer.
F5 SP_LOG_MAX_COUNT 16... 32
The maximum amount of 16
changes in the state of a

© Nokia Siemens Networks 47 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
signalling point that can be
stored in the buffer.
F6 USER_NOTICE_ACT ACTIVE, PASSIVE
Controls the notices for the
users statistics output.
F7 SCCP_LOG_TYPE CYCLIC
Type of the SCCP event
log buffer. ZOTE to clear
the buffer.

F8 TC_LOG_TYPE CYCLIC

Type of the TC event log

buffer. ZOTE to clear the
buffer

6.2 CCS7 Signalling Network-Specific Parameters

These parameters apply to the whole signalling network. All parameters
that are used specifically in the CSS7 signalling network are listed in this
section. There are also short descriptions on their meanings. Parameter
values vary depending on the system used and the release level.
The CSS7 signalling network-specific parameters are managed by using
the commands NMO and NMC. The command NMO outputs the used
parameter values in each parameter set. The command NMC is used to
modify the used parameters.
The first parameter in the command defines the parameter set (J-M) of
the parameter that you want to modify:
 J - network-specific parameters
 K - parameters for controlling international congestion
 L - parameters for controlling national congestion
 M - SLS parameters
The second parameter in the command defines the parameter you want
to modify and its new value. Table 6 lists the parameter groups,
parameters and their indexes, parameter names and their meanings, all
possible values, and quality of parameter value and the recommended
value, if any.

© Nokia Siemens Networks 48 (76)

MTP Parameters HandlingAppendix

Table 6. CCS7 signalling network-specific parameters

Parameter Parameter Value

name/meaning
J NETWORK SPECIFIC
PARAMETERS
J0 CONGESTION_METHOD NO, INT, NAT, NATP
Three congestion methods
exist: international method
(INT), national method
without prioritisation of
signalling messages (NAT)
and national method with
prioritisation of messages
(NATP).
INT method: The
congestion criteria is the
filling degree (1 limit) of the
sending buffer whose limit
values are defined in the
Signalling Link Parameter
File (SLNPAR). The
congestion level directly
follows the occupancy of
the buffer. Timers T29 and
T30 are used to control
traffic restriction according
to definitions made with
parameters K0-K5.
NAT method: The
congestion criteria is the
filling degree (1 limit) of the
sending buffer whose limit
values are defined in the
Signalling Link Parameter
File (SLNPAR). Timers Tx
and Ty determine the
congestion level. The
congestion level can have
values 1-3, and traffic is
restricted as required by
the prevailing congestion
level and as defined in
parameters L1-L3.
NATP method: The
congestion criteria is the
occupancy (3 limits) of the
sending buffer whose limit
values are defined in the
Signalling Link Parameter
File (SLNPAR). The

© Nokia Siemens Networks 49 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
congestion level
determines how the
messages are handled (for
example, on congestion
level 3, only messages with
priority 3 or higher are
routed forwards).
K INTERNATIONAL
CONGESTION CONTROL
METHOD PARAMETERS
K0 NB_OF_UP_LEVELS 1 ... 5
The amount of restriction
levels for the originating
traffic concerning the INT
method.
K1 RESTRICT_PR_OF_UP_L 0 ... 40 %
1
The restriction percentage
for the originating traffic on
restriction level 1. Timers
T29 and T30 determine the
restriction level. The default
value is 40%.
K2 RESTRICT_PR_OF_UP_L 20 ... 60 %
2
The restriction percentage
for the originating traffic on
restriction level 2. Timers
T29 and T30 determine the
restriction level. The default
value is 60%.
K3 RESTRICT_PR_OF_UP_L 40 ... 80 %
3
The restriction percentage
for the originating traffic on
restriction level 3. Timers
T29 and T30 determine the
restriction level. The default
value is 70%.
K4 RESTRICT_PR_OF_UP_L 60 ... 90 %
4
The restriction percentage
for the originating traffic on
restriction level 4. Timers
T29 and T30 determine the
restriction level. The default
value is 80%.

© Nokia Siemens Networks 50 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
K5 RESTRICT_PR_OF_UP_L 80 ...100 %
5
The restriction percentage
for the originating traffic on
restriction level 5. Timers
T29 and T30 determine the
restriction level. The default
value is 90%.
K6 Q764_T29 30 ... 60
When the first congestion 50
indication is received by the
ISDN User Part (ISUP), the
traffic load into the affected
destination point code is
reduced by one step. At the
same time timers T29 and
T30 are started. During T29
all received congestion
indications for the same
destination point code are
ignored in order to not
reduce traffic too rapidly.
Reception of a congestion
indication after the expiry of
T29, but still during T30,
will decrease the traffic
load by one more step and
restart T29 and T30. This
step-by-step reduction of
the ISUP signalling traffic is
continued until maximum
reduction is obtained by
arriving at the last step. If
T30 expires (for example,
no congestion indications
are no more received
during the T30 period)
traffic will be increased
step-by-step and T30 will
be restarted unless full
traffic load has been
resumed.
K7 Q764_T30 500 ... 1000
See K6. 600
L NATIONAL CONGESTION
CONTROL METHOD
PARAMETERS
L0 PREDETERMINED_CONG 1 ... 3
_LEVEL
Defines the default value

© Nokia Siemens Networks 51 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
for the congestion level that
is reached when the buffer
occupancy limit is
exceeded for the first time,
or when the congestion
level is coded as 0 in a
received TFC message.
L1 RESTRICT_PR_OF_MTP_ 0 ... 50 %
L1
The restriction percentage
for originating traffic on
congestion level 1.
L2 RESTRICT_PR_OF_MTP_ 20 ... 80 %
L2
The restriction percentage
for originating traffic on
congestion level 2.
L3 RESTRICT_PR_OF_MTP_ 50 ...100 %
L3
The restriction percentage
for originating traffic on
congestion level 3.
L4 Q704_TX 5 ... 200
The timer raises the 200 ms
congestion level when the
filling limit of the transmit
buffer has been exceeded.
The smaller the parameter
value is, the faster the
congestion level is raised.
(If the signalling link
congestion status is set to s
and the buffer occupancy
continues to be above the
set congestion threshold
during Tx, the signalling
link congestion status is
updated by the new value s
+ 1.)
L5 Q704_TY 5 ... 200
The timer lowers the
congestion level when
congestion has been on but
then the filling degree of
the sending buffer is
decreased and goes below
the set limit. The smaller
the Ty is, the faster the
congestion level

© Nokia Siemens Networks 52 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
decreases. (If the signalling
link congestion status is set
to s and the buffer
occupancy continues to be
below the abatement
threshold during Ty, the
signalling link congestion
status is updated by the
new value s - 1.)
M SLS BITS
M0 LINK_SLS_BIT_MASK
Defines which SLS bits are ITU: 00001111 ANSI:
used in load sharing within
the link set. 11111110

M1 ROUTE_SLS_BIT_MASK
Defines which SLS bits are ITU: 00001111 ANSI:
used in load sharing
between the routes. 00000001

M2 SLS_LENGTH 4,5,8
Defines the length of SLS
within the signalling
network. In ITU networks,
the SLS is 4 bits, while in
ANSI networks it is 5 or 8
bits. ITU: 4 ANSI: 5 or 8.

6.3 Signalling Link Specific Parameters

The parameters in the signalling link specific parameter set define how
the signalling links function. All signalling link-specific parameters are
listed in this section. There are also short descriptions on their purposes.
Parameter values vary depending on system and release level.
The signalling link -specific parameters are managed by using the
commands in the command group NO. The commands can be used to
modify existing parameter sets or to create new ones. Before you start
modifying an existing parameter set, check that all signalling links using
this parameter set have been deactivated. The new values become
effective when the links are activated again. To create a new parameter
set, you can replicate (copy and rename) an old parameter set and
modify its values.

© Nokia Siemens Networks 53 (76)

MTP Parameters HandlingAppendix

The command NOI outputs the values of parameters belonging to the

defined sets, and the command NOM can be used to modify the
parameter values in an existing parameter set.
In the command, the name and number of the parameter set are
defined. In addition, the identifier of the parameter group is defined
according to the parameter that you want to change:
 A - miscellaneous parameters on MTP level 2
 B - control parameters for the error ratio on MTP level 2 (as
defined by ITU)
 C - timer parameters for MTP level 2 (as defined by ITU)
 D - miscellaneous parameters on MTP level 3
 E - signalling congestion control parameters
 F - timer parameters for MTP level 3

The second parameter in the command defines which parameter from

the parameter set you want to modify, and gives the new value. Table 7
lists the parameter groups, parameters and their indexes, parameter
names and their meanings, all possible values, quality of the value and
the recommended value, if any

Table 7. Signalling link specific parameters

Parameter Parameter Value

name/meaning
A MISCELLANEOUS MTP
LEVEL 2 PARAMETERS
A0 LI_CODING STANDARD, BTNR
Controlling the LI coding. STANDARD
BTNR is a specific method
in BTNR Spec. (UK).
A1 BIT_D_CODING_IN_LSSU STANDARD, BTNR
Controlling the D bit coding STANDARD
in the LSSUs. BTNR is a
specific method in BTNR
Spec. (UK).
A2 BIT_D_CHECK_IN_LSSU YES, NO
Controlling the D bit YES
checking in the received
LSSUs. (1H Bit D checked
from the received LSSU).
A3 L2_ERROR_CORRECTIO BASIC, PCR

© Nokia Siemens Networks 54 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
N
Controlling the error rate BASIC
monitoring in the
transmission direction.
PCR is for preventive cyclic
retransmission for satellite
links.
A4 SN_RANGE 40…4095

Maximum value for 127

backward sequence
number and forward
sequence number of
signalling unit.

A5 JT_Q703_K 40…127

Defines the number of 40

transmitted MSU messages
without positive
acknowledgement. This
parameter is relevant only
in Japanese signalling
network.

B MTP LEVEL 2 ERROR

RATE MONITORING
PARAMETERS
B0 SUERM_T 8 ... 512
Controlling the error rate of 64
the message unit:
SUERM_T, SUERM_D and
SUERM_N (see CCITT
Q703 10.2).
B1 SUERM_D 16 ... 1024
Controlling the error rate of 256
the message unit:
SUERM_T, SUERM_D and
SUERM_N (see CCITT
Q703 10.2).
B2 SUERM_N 8 ... 24
Controlling the error rate of 16
the message unit:
SUERM_T, SUERM_D and
SUERM_N (see CCITT
Q703 10.2).
B3 AERM_TIN 1 ... 16
Controlling the error rate of 4

© Nokia Siemens Networks 55 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
the alignment AERM_TIN,
(see CCITT Q703 10.3).
B4 AERM_TIE 1 ... 8
Controlling the error rate of 1
the alignment AERM_TIE
(see CCITT Q703 10.3).
B5 AERM_M 1 ... 16
Controlling the error rate of 5
the alignment AERM_M
(see CCITT Q703 10.3).
B6 AERM_N 8 ... 24
Controlling the error rate of 16
the alignment AERM_N
(see CCITT Q703 10.3).
B7 PCR_N1 (preventive cyclic 1 ... 127
retransmission)
PCR_N1, number of MSUs 127
that can be resent.
B8 PCR_N2 300 ... 6000
PCR_N2, number of MSUs 800
that can be resent.
B9 EIM_TE 8 ... 793544

Error interval monitor 99193

parameter (see ITU-T
Q703 A.10.2)

B10 EIM_UE 1 ... 198384

Error interval monitor 24798

parameter (see ITU-T
Q703 A.10.2)

B11 EIM_DE 1 ... 11328

Error interval monitor 1416

parameter (see ITU-T
Q703 A.10.2)

B12 JT_Q703_TE 20 ... 30 (1 ms)

Defines the normalized 24

time for error rate
monitoring. This parameter
is relevant only in
Japanese signalling
network.

© Nokia Siemens Networks 56 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
C MTP LEVEL 2 TIMER
PARAMETERS
C0 Q703_T1 130 ... 500 (0.1s)
Q703_T1, Alignment 400
Completed timer.
C1 Q703_T2 50 ... 1500 (0.1s)
Q703_T2, No Alignement 100
timer.
C2 Q703_T3 10 ... 116 (0.1s)
Q703_T3, Alignment timer. 10
C3 Q703_T4 23 ... 95 (0.1s)
Q703_T4, Length of Test 82
Period timer.
C4 Q703_T5 8 ... 30 (0.1s)
Q703_T5, SIB 10
Transmission timer.
C5 Q703_T6 30 ... 72 (0.1s)
Q703_T6, Remote End 50
Congestion timer.
C6 Q703_T7 5 ... 20 (0.1s)
Q703_T7, Delayed 10
Acknowledgement timer.
C7 Q703_T8 8 ... 12 (0,01 s)

Error interval monitor timer 10

C8 JT_Q703_TF 20 ... 30 (1 ms
Defines interval for sending 24
FISU when there is no
MSUs transmitted. This
parameter is relevant only
in Japanese signalling
network.

C9 JT_Q703_TO 20 ... 30 (1 ms)

Defines interval for 24

transmitting SIO and SIE
messages used for initial
set-up and during
verification. This parameter
is relevant only in
Japanese signalling
network.

© Nokia Siemens Networks 57 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
C10 JT_Q703_TS 10 ... 30 (1 ms)

Defines interval of SIOS to 24

be transmitted during
suspension. This
parameter is relevant only
in Japanese signalling
network.

D MISCELLANEOUS MTP
LEVEL 3 PARAMETERS
D0 PERIODIC_LINK_TEST_D YES, NO
ENIED
Controlling the NO
transmission of signalling
link test messages.
D1 MAX_LENGTH_OF_SIF 272
Maximum length of the SIF 272
field in the MSU message.
D2 INHIBIT_ATTEMPT_LIMIT 1 ... 5
Limit for repeated attempts 3
to inhibit a link.
D3 INHIBIT_TEST_DENIED YES, NO
Controlling the inhibition of NO
a test procedure.
D4 ECO_SENDING_ALLOWE YES, NO
D

Defines the control of ITU-T: YES ANSI: YES

Emergency Changeover
procedure. JAPAN: NO (NTT), YES
(TTC

D5 INHIBITION DENIED YES, NO

NO
D6 SIN DENIED YES, NO
NO
D7 SIPO DENIED YES, NO
NO
D8 LINK SUSPEND DENIED YES, NO
YES
D9 FALSE CONG DENIED YES, NO
YES

© Nokia Siemens Networks 58 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
D10 LINK SRT DENIED YES, NO
YES
E SIGNALLING
CONGESTION CONTROL
PARAMETERS
E0 CONG_FILTERING_TIME 10 ... 100 (0.01s)
Defines the time after 1
which continuing
congestion on a signalling
link is reported to level 3.
This feature keeps the
signalling traffic control
procedures from starting
during very short-time peak
loads. 30 (0.3s).
E1 BUFF_FILTERING_TIME 50 ... 300 (0.01s)
Defines the time after 1
which continuing
congestion on a signalling
link is reported to level 3
while signalling message
buffering is active. This
feature keeps the signalling
traffic control procedures
from starting in special
situations such as
changeovers, changeback,
and controlled rerouting.
150 (1,5s).
E2 CONG_ONSET_THRESH 2 ... 1000
OLD1
Reports the occupancy of 49
the transmission buffer that
is interpreted as level 1
congestion. Congestion
can be set for threshold
values 0-127; if the value is
128-255, signalling link
congestion is never on. The
limit for congestion onset
(messages) is 49.
E3 CONG_ABATE_THRESHO 1 ... 800
LD1
Reports the occupancy of 2
the transmission buffer that
is interpreted as ending for
level 1 congestion (that has
been on). It is advisable to
set the release level of

© Nokia Siemens Networks 59 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
congestion lower than the
activation level to avoid
vibrations. The limit for
congestion reset
(messages) is 2.
E4 CONG_DISC_THRESHOL 0 ... 2500, NOT IN USE
D1
Reports the occupancy of
the transmission buffer that
enables the signalling
terminal software to set the
signalling message. This
sets the destroy status in
the transmission mailbox.
When the CCSEND
program block notices that
the destroy status is set, it
destroys the signalling
messages addressed to the
mentioned signalling
terminal. The threshold
values for the destroy
status are selected from
the range 0-127; if the
value is 128-255, the status
is not set. However, when
the transmission buffer fills
up, signalling messages
have to be destroyed. The
status value must therefore
be higher than the limit for
signalling link congestion in
order to avoid unnecessary
message destruction. The
limit for message
discarding (messages) is
NOT IN USE.
E5 CONG_ONSET_THRESH 2 ... 1000, NOT IN USE
OLD2
CONG_ONSET_THRESH
OLD2,CONG_ABATE_TH
RESHOLD2,CONG_DISC_
THRESHOLD2,CONG_ON
SET_THRESHOLD3,CON
G_ABATE_THRESHOLD3
and
CONG_DISC_THRESHOL
D3 are similar to the above-
mentioned parameters
when the congestion
control method that is used
has several levels. The
parameter values on level 2

© Nokia Siemens Networks 60 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
must be higher than the
corresponding values on
level 1, and values on level
3 must be higher than
those on level 2 in order to
get the congestion method
to work properly. When the
congestion method uses
only one level, set the
parameter values on levels
2 and 3 as 255 = 0FFH.
See parameters E2, E3.
E4 & E6 CONG_ABATE_THRESHO 1 ... 800, NOT IN USE See
LD2 parameters E5 and E3
E7 CONG_DISC_THRESHOL 10 ... 2500, NOT IN USE
D2 See parameters E5 and E4
E8 CONG_ONSET_THRESH 2 ... 1000, NOT IN USE
OLD3 See parameters E5 and E2
E9 CONG_ABATE_THRESHO 1 ... 800, NOT IN USE See
LD3 parameters E5 and E3
E10 ONG_DISC_THRESHOLD 10 ... 2500, NOT IN USE
3 See parameters E5 and E4
E11 T111_T31_ONSET_THRE 1, 2, 3, NOT IN USE
SHOLD
Congestion threshold for 0
starting timer T111_T31.
E12 T111_T31_RESET_THRE 1, 2, 3, NOT IN USE
SHOLD
Congestion threshold for 0
resetting timer T111_T31.
E13 SL_LOAD_THRESHOLD 100 ... 900

Allows maximum value for 200

signalling link load in
Merlangs without
notification.

F MTP LEVEL 3 TIMING

PARAMETERS
F0 Q704_T1 5 ... 12 (0.1s)
Delay to avoid message 8
mis-sequencing on
changeover.
F1 Q704_T2 7 ... 20 (0.1s)
Waiting for changeover 14
acknowledgement.

© Nokia Siemens Networks 61 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
F2 Q704_T3 7 ... 12 (0.1s)
Time controlled diversion- 8
delay to avoid mis-
sequencing on
changeback.
F3 Q704_T4 5 ... 12 (0.1s)
Waiting for changeback 8
acknowledgement (first
attempt).
F4 Q704_T5 5 ... 12 (0.1s)
Waiting for changeback 8
acknowledgement (second
attempt).
F5 Q704_T12 8 ... 12 (0.1s)
Waiting for un-inhibition 10
acknowledgement.
F6 Q704_T13 6 ... 15 (0.1s)
Waiting for force un- 10
inhibition
acknowledgement.
F7 Q704_T14 8 ... 30 (0.1s)
Waiting for inhibition 20
acknowledgement.
F8 Q704_T17 8 ... 60 (0.1s)
Delay to avoid oscillation of 10
initial alignment failure and
link restart.
F9 Q704_T22 180 ... 600 (1s)
Local inhibit test timer. 180
F10 Q704_T23 180 ... 600 (1s)
Remote inhibit test timer. 180
F11 Q707_T1 8 ... 120 (0.1s)
Waiting for signalling link 80
test message
acknowledgement.
F12 T111_T19 120 ... 600 (1s)
Time supervision for setting 120
an alarm about a signalling
link that refuses to start up,
as defined in ANSI
standards.

© Nokia Siemens Networks 62 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
F13 T111_T20 90 ... 120 (1s)
Control for local inhibition 120
testing as defined in ANSI
standards.
F14 T111_T21 90 ... 120 (1s)
Control for remote end 120
inhibition testing as defined
in ANSI standards.
F15 T111_T31 10 ... 120 (1s)
False link congestion 10
detection timer.
F16 T111_T32 5 ... 120 (1s)
Link oscillation timer - 5
Procedure A.
F17 JT_Q704_TS 0 ...600 (1 s)

Defines the time for 30

transmitting SIOS on a
periodical basis during
suspension. This
parameter is relevant only
in Japanese signalling
network.

F18 JT_Q707_T10 0..600 (0.1s)

This parameter is relevant 100

only in Japanese signalling
network.

F19 ALIGN_RESPONSE_WAIT 40

6.4 Signalling Route Set Specific Parameters

The parameters included in the parameter set of the signalling route set
are used to handle the functions of the whole Message Transfer Part
(MTP). This section introduces all parameters that are specific to each
signalling route set and describes their purposes briefly. The parameter
values vary depending on the used system and release level.
The signalling route set-specific parameters are managed using the
commands in the command group NN. You can use the commands to
create new parameter sets or to modify the values of individual

© Nokia Siemens Networks 63 (76)

MTP Parameters HandlingAppendix

parameters included in the parameter sets. When you have modified the
values of existing parameters, the new values become effective
immediately. To create a new parameter set, you can replicate (copy
and rename) an old parameter set and modify its values so that they suit
the present needs.
The command NNI outputs the values of the parameters in the selected
parameter sets. The command NNM is used to modify the parameter
values in an existing parameter set.
In the command, the name and number of the parameter set are
defined. In addition, the identifier of the parameter group is defined
according to the parameter that you want to change:
 A – Common timers for all destinations
 B – Signalling point restart timers
 C – Adjacent signalling point parameters
 D – Common parameters of all signalling points

Table 8. Signalling route set specific parameters (* -parameter valid

locally only)

Parameter Parameter Value

name/meaning
A COMMON TIMERS OF
ALL DESTINATIONS
A0 Q704_T6 5 ... 20 (0.1s)
Delay to avoid message 8
mis-sequencing on
controlled rerouting. The
parameter sets the time
that is waited during
controlled rerouting before
traffic is activated to the
destination point via a new
or alternative transfer point.
A1 Q704_T8 5 ... 20 (0.1s)
Time supervision for 10
inhibition of the Transfer
Prohibited messages. The
Transfer Prohibited
messages generated by
the reply system are not
sent to the destination
point, if other—similar—
messages have been sent
there during the time
specified by the parameter.

© Nokia Siemens Networks 64 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
A2 Q704_T10 10 ... 120 (1s)
Time supervision for 31
repetition of test messages
in the signalling route set.
Test messages related to
another signalling point are
sent at intervals defined by
the time parameter.
A3 Q704_T11 30 ... 90 (1s)
Transfer restricted time 60
supervision. This
parameter sets the time for
how long a signalling link
set, that uses another
signalling point as the
transfer point, has to be
faulty before it is set in a
long-term failure state.
When this state is set for a
signalling link set, transfer
restricted messages are
sent to the adjoining
signalling points. The
messages concern all route
sets where one of the
primary routes has been
using the failed link set and
where the traffic is now
directed to secondary
routes.
A4 Q704_T15 20 ... 30 (0.1s)
Signalling point Z receives 25
another transfer-controlled
message related to the
same destination within
T15 after the reception of
the last transfer-controlled
message related to
destination X.
If the value of the
congestion status carried in
the new transfer controlled
message is higher than the
current value of the
congestion status of the
signalling route set towards
destination X, then the
current value is updated to
the higher one.
If T15 expires after the last
update of the signalling

© Nokia Siemens Networks 65 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
route set toward destination
X in a transfer-controlled
message related to the
same destination, the
signalling-route-set-
congestion-test procedure
is invoked.
A5 Q704_T16 14 ... 20 (0.1s)
If a Transfer Controlled 15
message related to the
concerned destination is
received within T16 after
sending a signalling-route-
set-congestion-test
message, the signalling
point updates the
congestion status of the
signalling route set.
If T16 expires after sending
a signalling-route-set-
congestion-test message
without a Transfer
Controlled message related
to the concerned
destination having been
received, the signalling
point changes the
congestion status
associated with the
signalling route set.
A6 T111_T18 2 ... 20 (1s)
A signalling point starts the 3
MTP restart procedure
when its first link is in
service at level 2.
Restarting the MTP: - if it
has the transfer function, it
starts timer T18;

A7 JT_Q707_T10 100
B SIGNALLING POINT
RESTART TIMERS
B0 * Q704_T21/T111_T25 20.70 (1s)
Q704_T21: The waiting Blue Book 31
period before traffic is
restarted via an adjacent White Book 64
signalling point. Traffic on
the routes using the ANSI 64
adjacent signalling point is
started only when the time

© Nokia Siemens Networks 66 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
defined in this parameter
has past after the restart of
the adjacent point (or when
the point has sent the
Traffic Restart Allowed
message). T111_T25:
Waiting for the Traffic
Restart Active message.

B1 T111_T28 3..35 (1s)

Signalling point X starts 30
timer T28 either when the
first signalling link goes into
state In Service on level 2,
or when the first signalling
link becomes available on
level 3.

This parameter is used only

in networks built according
to the ANSI standards.

B2 Q704_T19_WHITE/T111_T 60 ..80 (1s)

29

Supervision timer during 68

the MTP restart to avoid
possible ping-pong (back
and forward) of TFP, TFR
and TRA messages.

B3 * T111_T30 20 ... 40 (1s)

If the receiving point has 30 ANSI
the transfer function, it
starts timer T30 and then
sends a Traffic Restart
Waiting message followed
by the necessary Transfer
Restricted and Transfer
Prohibited messages.
Preventive Transfer
Prohibited messages are
required for traffic currently
being routed via the point
from which the unexpected
Traffic Restart Allowed or
Traffic Restart Waiting
messages were received. It
also sends a Traffic Restart
Allowed message.
C ADJACENT SIGNALLING
POINT PARAMETERS

© Nokia Siemens Networks 67 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
C0 * TRM_DENIED YES, NO
Use of message pair NO
TRA/TRW is denied in
network management. In
an ANSI network, the use
of TRW in connection with
the SP restart is denied.
C1 * TRM_EXPECTED YES, NO
This parameter controls the YES
use of message pair
TRA/TRW.
TRA_EXPECTED means
that traffic restart is
allowed. When the
signalling link set is used, it
controls the wait for the
message reception.
TRA_WAITING controls the
waiting of message
reception when the
signalling link set is taken
into use. TRA_DENIED
means that sending of
Traffic Restart Allowed
messages is denied.
C2 * SP_RESTART_TYPE BLUE, NONE
/WHITE/ANSI
Controlling the denial of the BLUE
signalling point restart
procedure. When this
procedure is denied, the
restart procedure of the
adjacent signalling point is
not used. When its own
signalling point is restarted,
the Traffic Restart Allowed
message is not sent to the
adjacent SP, either.
C3 * INDIRECT_ROUTES_DEF AVAILABLE,
AULT RESTRICTED,
UNAVAILABLE, TFM
BASED
Parameter for controlling AVAILABLE
the signalling link set
restarts in situations when
the adjacent SP has not
been started. The possible
parameter values are
available, restricted,
unavailable, and TFM
based.

© Nokia Siemens Networks 68 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
C4 * TFM_CONTROL ALL ALLOWED,
BROADCAST DENIED,
ALL DENIED
Control parameter for ALL ALLOWED
broadcasting messages:
Transfer Allowed, Transfer
Restricted, and Transfer
Denied. When the
parameter denies
broadcasting of messages,
and an SP becomes either
available or unavailable, it
is not reported to the
adjacent SP.
C5 * RESP_TFM_CONTROL TFR ALLOWED, TFP
ALLOWED, TFPFOR
KNOWN, TFM DENIED
Control parameter for the TFP ALLOWED
response method
messages. Possible
parameter values are TFR
allowed, TFP allowed, TFP
for known, and TFN
denied.
C6 * TFR_DENIED YES, NO
Control parameter for the YES
use of the Transfer
Restricted procedure. If the
use of this procedure is
denied, the Transfer
Restricted messages
coming from the source
point are not handled, and
Transfer Restricted
messages are not sent to
the destination point.
Instead, the system sends
Transfer Allowed
messages (unless their use
is also denied).
D COMMON PARAMETERS
OF ALL SIGNALLING
POINTS
D0 TFR_SENDING_BASIS NONE, ITU, ANSI
Control parameter for NONE
managing overload on a
spare route when the last
available route becomes
unavailable. Possible
parameter values are

© Nokia Siemens Networks 69 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
NONE (no TFR messages
broadcast), ITU (follows
ITU-T Rec. Q704), and
ANSI (examines state of
timer T11).
D1 CIRC_ROU_PREV_IN_US YES, NO
E
Control parameter for NO
restricting the occurrence
possibilities of circularly
routed messages. When
this parameter has the
value YES, an extra
Transfer Prohibited
message is used for one of
the destination signalling
points. If traffic to the point
travels via alternative
routes, the system sends
the Transfer Prohibited
message about that point
to all adjoining signalling
points. It then orders all
traffic to switch to the point
via other signalling points.
D2 TFC_DENIED YES, NO
Control parameter for the NO
Transfer Controlled
message. If the parameter
has the value NO and
denies the message, the
Transfer Controlled
messages are not sent to
the destination point.
D3 CONG_LEVEL_SUPPORT NONE, TFC
Control parameter for the TFC
Transfer Controlled
messages congestion level
encoding. If the parameter
has the value NO and the
message control is inactive,
the system sets congestion
level 0 for the TFC
messages directed to the
destination point.
Otherwise they get a
congestion level that is
defined by the over loaded
signalling terminal. This
control parameter can also
be used to define the

© Nokia Siemens Networks 70 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
overload of a destination
point to be monitored using
the Congestion Level Test
messages.
D4 CONFUSION_MSG_DENI YES, NO
ED
Control parameter for the YES
MTP Confusion message.
If sending the messages is
prohibited, the messages
are not transmitted to the
destination point. This
feature is implemented as
defined in standard BTNR
146.
D5 UPU_ALLOWED YES, NO
This parameter either NO
allows (YES) or denies
(NO) UPU message
sending.
D6 RST_ON_TFP_ALLOWED YES, NO

This parameter either ITU: YES

allows (YES) or denies
(NO) immediate sending of ANSI: YES
route set test (RST)
message when transfer JAPAN: NO
prohibited message (TFP)
is received. When this
parameter has value NO,
the RST message is sent
after the Q704_T10 timer
has expired.

D7 SUPPORT_OF_M3UA_N YES, NO
W_APP

Control of using Network YES

Appearance parameter in
the "M3UA signalling
network management
messages".

D8 USE_OF_M3UA_NW_SN YES, NO
M

Control of sending M3UA NO

signalling network
management messages.

D9 SRT DENIED YES, NO

© Nokia Siemens Networks 71 (76)

MTP Parameters HandlingAppendix

Parameter Parameter Value

name/meaning
D10 USN DENIED YES, NO

© Nokia Siemens Networks 72 (76)

Appendix

Appendix

© Nokia Siemens Networks 73 (76)

References

References

© Nokia Siemens Networks 74 (76)

Glossary

Glossary

© Nokia Siemens Networks 75 (76)

Index

Index

© Nokia Siemens Networks 76 (76)
