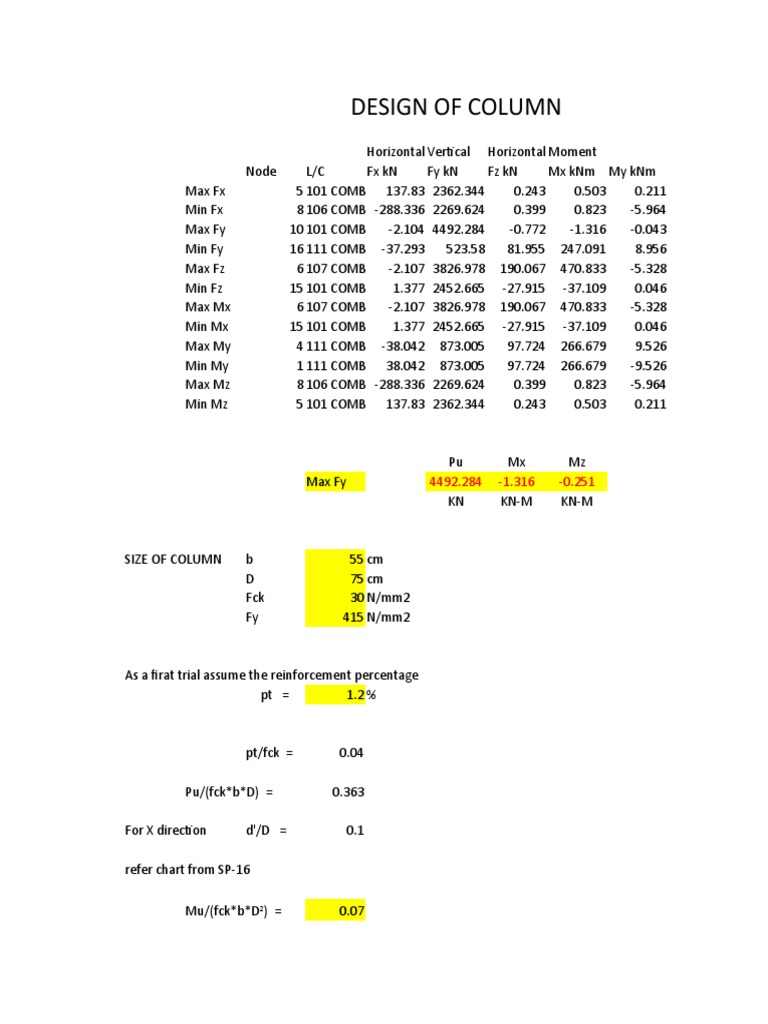

DESIGN OF COLUMN

Horizontal Vertical Horizontal Moment

Node L/C Fx kN Fy kN Fz kN Mx kNm My kNm
Max Fx 5 101 COMBI 137.83 2362.344 0.243 0.503 0.211
Min Fx 8 106 COMBI -288.336 2269.624 0.399 0.823 -5.964
Max Fy 10 101 COMBI -2.104 4492.284 -0.772 -1.316 -0.043
Min Fy 16 111 COMBI -37.293 523.58 81.955 247.091 8.956
Max Fz 6 107 COMBI -2.107 3826.978 190.067 470.833 -5.328
Min Fz 15 101 COMBI 1.377 2452.665 -27.915 -37.109 0.046
Max Mx 6 107 COMBI -2.107 3826.978 190.067 470.833 -5.328
Min Mx 15 101 COMBI 1.377 2452.665 -27.915 -37.109 0.046
Max My 4 111 COMBI -38.042 873.005 97.724 266.679 9.526
Min My 1 111 COMBI 38.042 873.005 97.724 266.679 -9.526
Max Mz 8 106 COMBI -288.336 2269.624 0.399 0.823 -5.964
Min Mz 5 101 COMBI 137.83 2362.344 0.243 0.503 0.211

Pu Mx Mz
Max Fy 4492.284 -1.316 -0.251
KN KN-M KN-M

SIZE OF COLUMN b 55 cm
D 75 cm
Fck 30 N/mm2
Fy 415 N/mm2

As a firat trial assume the reinforcement percentage

pt = 1.2 %

pt/fck = 0.04

Pu/(fck*b*D) = 0.363

For X direction d'/D = 0.1

refer chart from SP-16

Mu/(fck*b*D2) = 0.07
 Mux1 = 649.69 Kn-M

For Z direction d'/D = 0.1

refer chart from SP-16

Mu/(fck*b*D2) = 0.07

Muz1 = 476.4375 Kn-M

Calculation of Puz

refer chart-63 from SP-16

Puy/Ag = 17

Puy = 7012.5 KN

Pu/Puz = 0.641

Mx/Mux= 0.002

Mz/Muz= 0.001

referring to chart-64 from SP-16 ,

Permissible value of Mx/Mux corresp.
to the above value of Mz/Muz & Pu/Puz

Mx/Mux= 1 SECTION IS OK

Assume % steel is ok

Area of steel As = 4950 mm2

Assume dia of bars 24 mm

Area of bar 452.376 mm2

Nos of bars 12 Nos

Mz kNm
-183.476
760.531
-0.251
49.133
0.3
-0.158
0.3
-0.158
51.069
-51.069
760.531
-183.476
