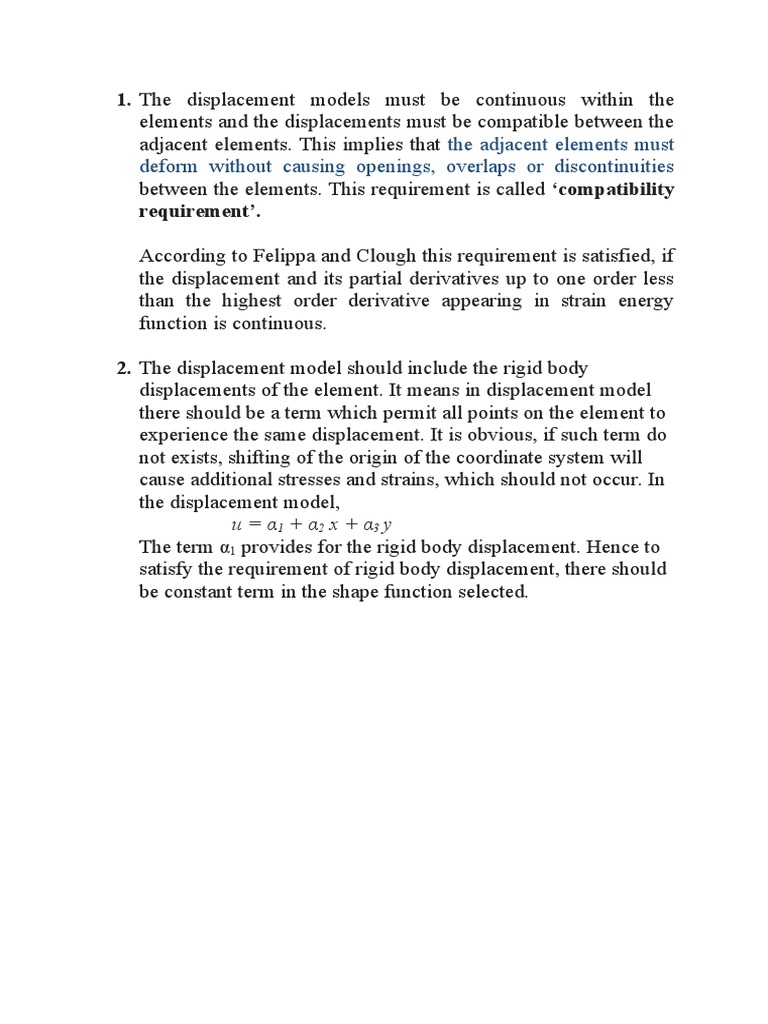

The displacement models must be continuous within the
elements and the displacements must be compatible between the adjacent elements. This implies that the adjacent elements must deform without causing openings, overlaps or discontinuities between the elements. This requirement is called ‘compatibility requirement’.
According to Felippa and Clough this requirement is satisfied, if
the displacement and its partial derivatives up to one order less than the highest order derivative appearing in strain energy function is continuous.
2. The displacement model should include the rigid body
displacements of the element. It means in displacement model there should be a term which permit all points on the element to experience the same displacement. It is obvious, if such term do not exists, shifting of the origin of the coordinate system will cause additional stresses and strains, which should not occur. In the displacement model, u = α1 + α2 x + α 3 y The term α1 provides for the rigid body displacement. Hence to satisfy the requirement of rigid body displacement, there should be constant term in the shape function selected.
