1. The deflecting torque causes the pointer to move from its initial zero position, with the magnitude depending on the measurable quantity. It is produced via effects like magnetic and electromagnetic forces.
2. The controlling torque acts in the opposite direction of the deflecting torque, making the pointer stable at its final position. It also returns the pointer to zero after disconnecting from the circuit. Common controlling torques are provided by springs or gravity.
3. A damping torque is used to bring the pointer quickly to rest at its deflected position to prevent oscillations, through devices like air friction or eddy currents.
1. The deflecting torque causes the pointer to move from its initial zero position, with the magnitude depending on the measurable quantity. It is produced via effects like magnetic and electromagnetic forces.
2. The controlling torque acts in the opposite direction of the deflecting torque, making the pointer stable at its final position. It also returns the pointer to zero after disconnecting from the circuit. Common controlling torques are provided by springs or gravity.
3. A damping torque is used to bring the pointer quickly to rest at its deflected position to prevent oscillations, through devices like air friction or eddy currents.
1. The deflecting torque causes the pointer to move from its initial zero position, with the magnitude depending on the measurable quantity. It is produced via effects like magnetic and electromagnetic forces.
2. The controlling torque acts in the opposite direction of the deflecting torque, making the pointer stable at its final position. It also returns the pointer to zero after disconnecting from the circuit. Common controlling torques are provided by springs or gravity.
3. A damping torque is used to bring the pointer quickly to rest at its deflected position to prevent oscillations, through devices like air friction or eddy currents.

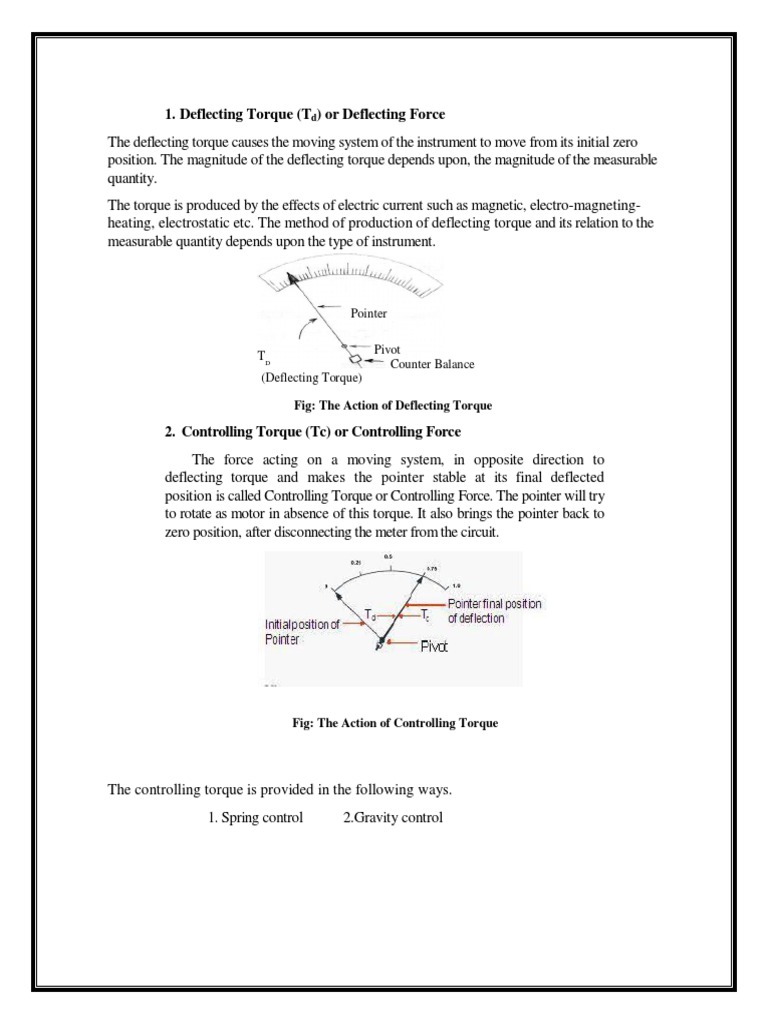

The deflecting torque causes the moving system of the instrument to move from its initial zero position. The magnitude of the deflecting torque depends upon, the magnitude of the measurable quantity. The torque is produced by the effects of electric current such as magnetic, electro-magneting- heating, electrostatic etc. The method of production of deflecting torque and its relation to the measurable quantity depends upon the type of instrument.
Pointer
TD Pivot Counter Balance (Deflecting Torque)
Fig: The Action of Deflecting Torque
2. Controlling Torque (Tc) or Controlling Force
The force acting on a moving system, in opposite direction to deflecting torque and makes the pointer stable at its final deflected position is called Controlling Torque or Controlling Force. The pointer will try to rotate as motor in absence of this torque. It also brings the pointer back to zero position, after disconnecting the meter from the circuit.
Fig: The Action of Controlling Torque
The controlling torque is provided in the following ways.
1. Spring control 2.Gravity control Damping Torque: In the indicating instruments, the pointer will oscillate about its deflected position before coming to rest due to inertia. To bring the moving part to rest at the quickest possible time at the deflected position, a force is used which is called damping force. It operates on the moving system to bring it rest at the quickest possible time. The instrument provided with a damping system is known as deadbeat type instrument. Different devices are used to provide suitable damping. The various methods adopted for damping are., a) Air friction damping b) Fluid friction damping c) Eddy current damping
