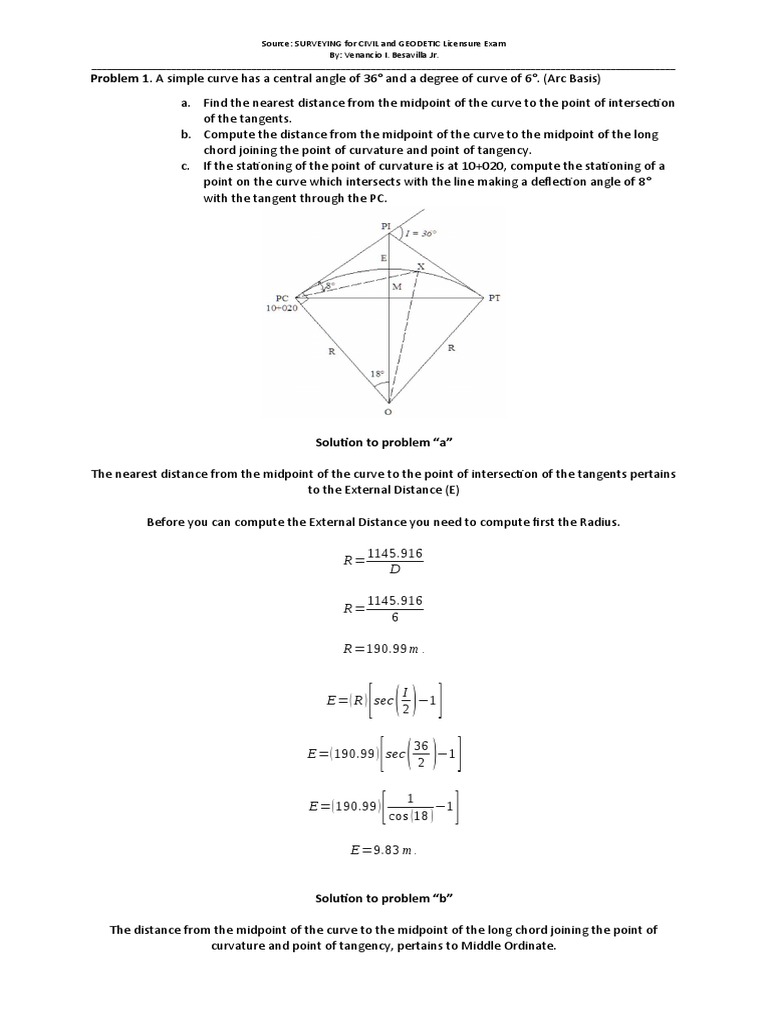

Problem 1. A simple curve has a central angle of 36° and a degree of curve of 6°. (Arc Basis)

a. Find the nearest distance from the midpoint of the curve to the point of intersection
of the tangents.
b. Compute the distance from the midpoint of the curve to the midpoint of the long
chord joining the point of curvature and point of tangency.
c. If the stationing of the point of curvature is at 10+020, compute the stationing of a
point on the curve which intersects with the line making a deflection angle of 8°
with the tangent through the PC.

Solution to problem “a”

The nearest distance from the midpoint of the curve to the point of intersection of the tangents pertains
to the External Distance (E)

Before you can compute the External Distance you need to compute first the Radius.

1145.916
R=
D

1145.916
R=
6

R=190.99m .

I
[ () ]
E=( R ) sec
2
−1

36
[ ( ) ]
E=( 190.99 ) sec
2
−1

1
E=( 190.99 )
[ ]
cos (18 )
−1

E=9.83 m.

Solution to problem “b”

The distance from the midpoint of the curve to the midpoint of the long chord joining the point of
curvature and point of tangency, pertains to Middle Ordinate.
 Source: SURVEYING for CIVIL and GEODETIC Licensure Exam
By: Venancio I. Besavilla Jr.
_____________________________________________________________________________________________________________________

[
M ¿ ( R ) 1−cos ( 2I )]
36
[ ( )]
M ¿ ( 190.99 ) 1−cos
2

M =9.35 m .

Solution to problem “c”

PC is the starting point of the curve and PT is the end point of the curve

In this problem, we need to compute the stationing of point X. using the equation:

Sta.X = Sta.PC + Lc x
Where:
Sta.X = stationing of point X
Sta.PC = stationing of PC
Lc x =¿ length of curve from PC to point X

Using ratio and proportion solution we have

Lc x 20 m
=
16 ° 6°

Lc x =53.33 m.

Sta.PC is at 10+020, this means that PC is 10,020 meters away from the zero marker.
We can write 10+020 as 10,020 m.

Sta. X=Sta. PC + Lc x

Sta. X=( 10+ 020 ) +53.33 m.

Sta. X=10,020 m .+ 53.33 m.

 Source: SURVEYING for CIVIL and GEODETIC Licensure Exam
By: Venancio I. Besavilla Jr.
_____________________________________________________________________________________________________________________
Sta. X=10,073.33 m

Sta. X=10+ 073.33
