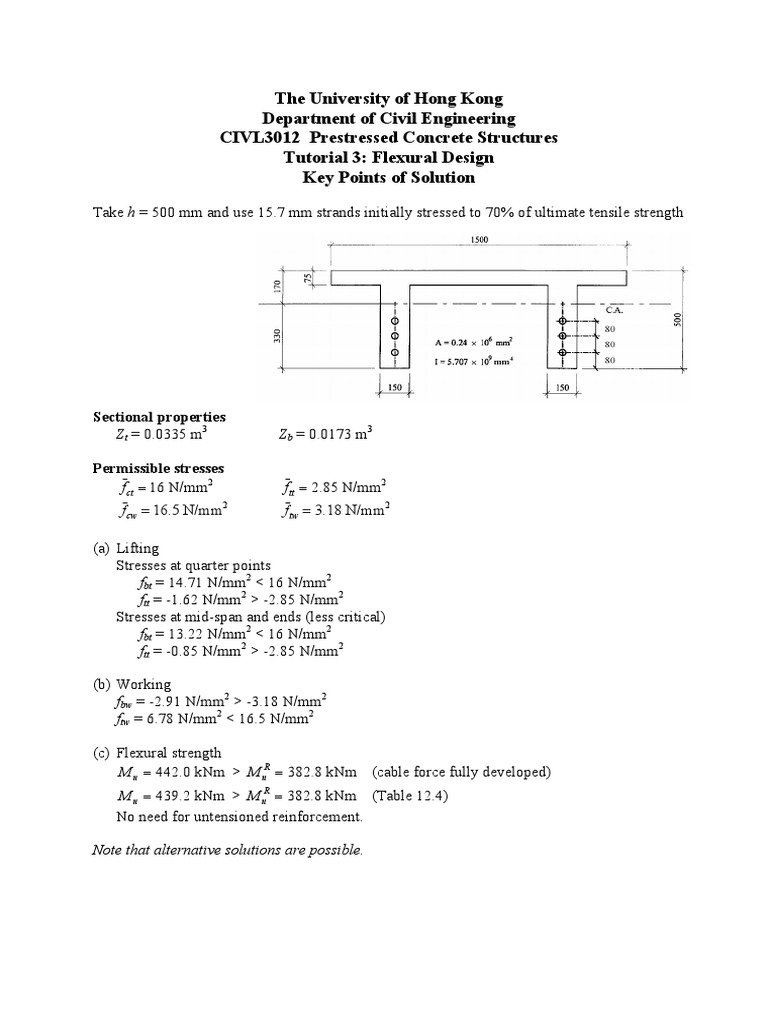

    The University of Hong Kong

    Department of Civil Engineering


    CIVL3012 Prestressed Concrete Structures
    Tutorial 3: Flexural Design
    Key Points of Solution

    Take h = 500 mm and use 15.7 mm strands initially stressed to 70% of ultimate tensile strength

    Sectional properties
    Zt = 0.0335 m3 Zb = 0.0173 m3

    Permissible stresses
    f ct = 16 N/mm2 f tt = 2.85 N/mm2
    f cw = 16.5 N/mm2 f tw = 3.18 N/mm2

    (a) Lifting
    Stresses at quarter points
    fbt = 14.71 N/mm2 < 16 N/mm2
    ftt = -1.62 N/mm2 > -2.85 N/mm2
    Stresses at mid-span and ends (less critical)
    fbt = 13.22 N/mm2 < 16 N/mm2
    ftt = -0.85 N/mm2 > -2.85 N/mm2

    (b) Working
    fbw = -2.91 N/mm2 > -3.18 N/mm2
    ftw = 6.78 N/mm2 < 16.5 N/mm2

    (c) Flexural strength


    M u = 442.0 kNm > M uR = 382.8 kNm (cable force fully developed)
    M u = 439.2 kNm > M uR = 382.8 kNm (Table 12.4)
    No need for untensioned reinforcement.

    Note that alternative solutions are possible.
